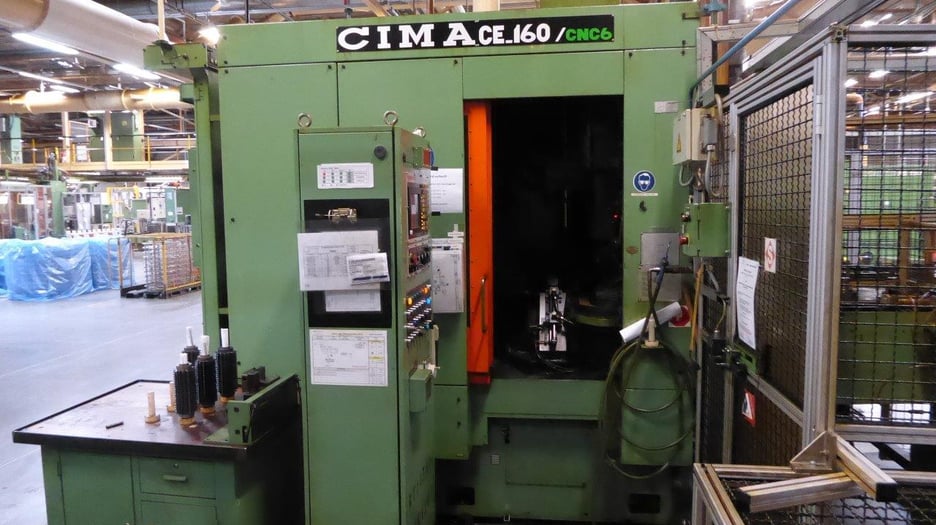

Used CIMA CE 160 CNC Gear Hobbing Machine | A.K. Machine Traders, Navi Mumbai, India

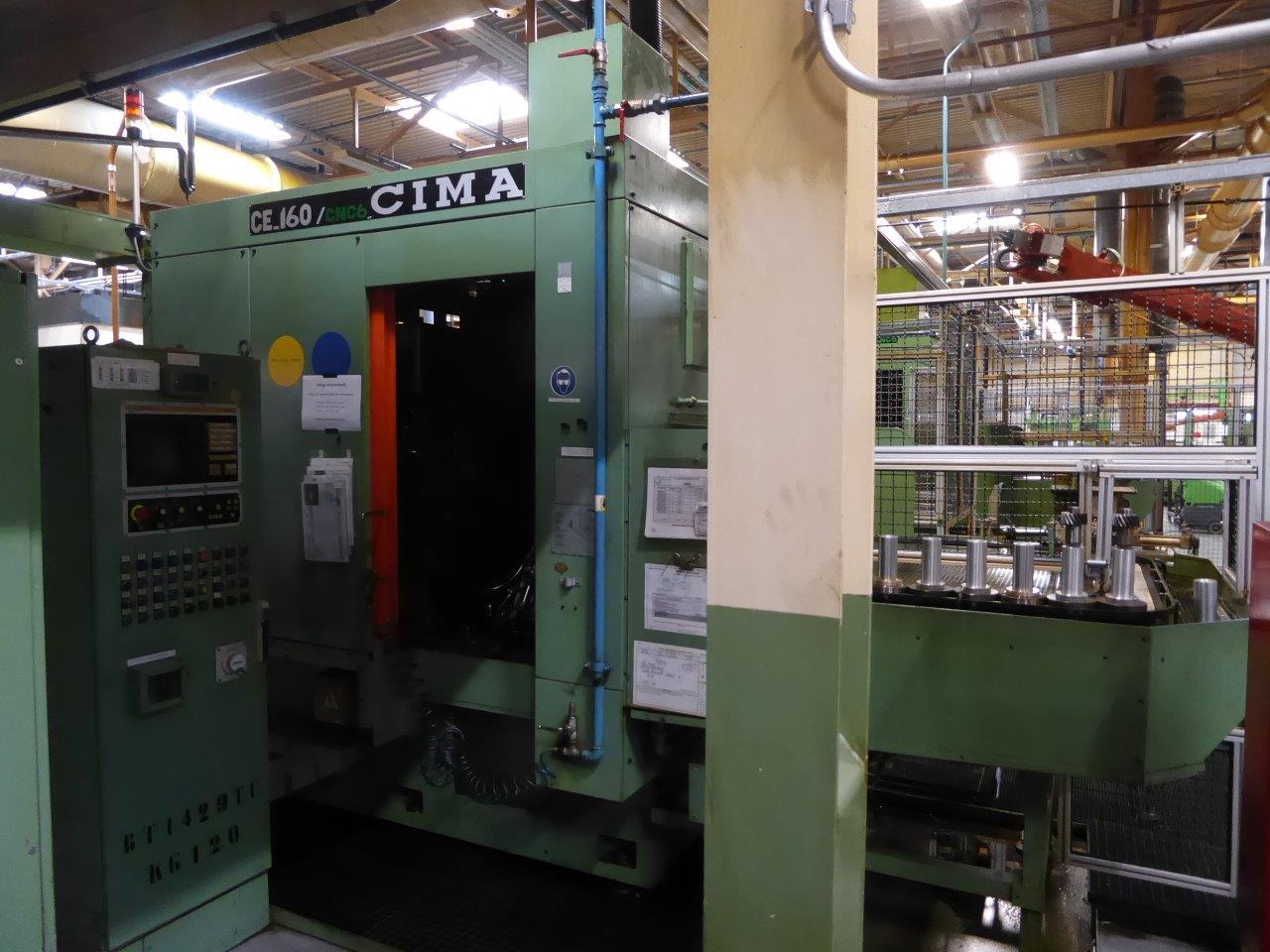

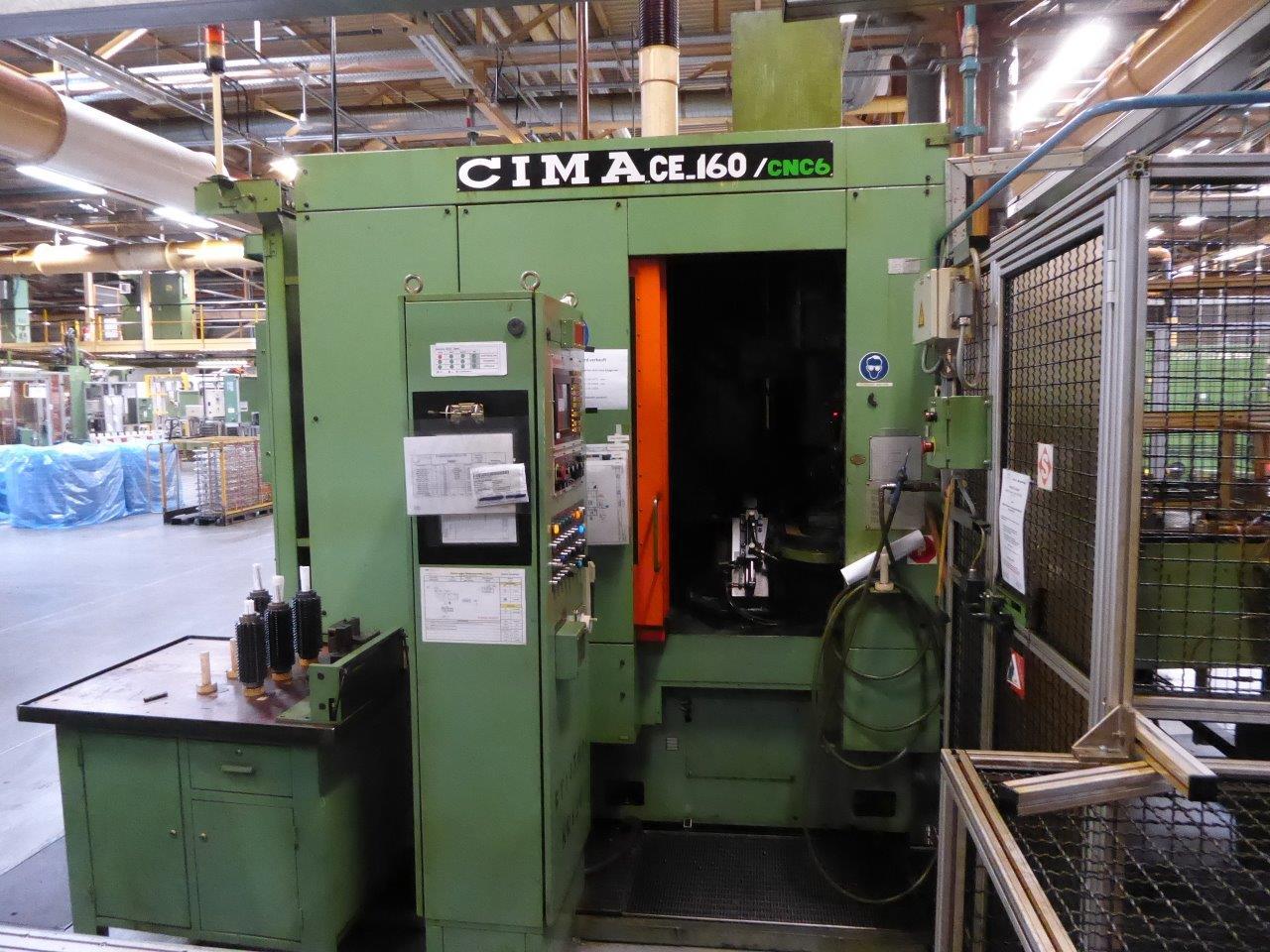

This used CIMA CE 160 CNC gear hobbing machine is available from A.K. Machine Traders in Navi Mumbai, India. A gear hobbing machine cuts gear teeth into round workpieces using a rotating hob.

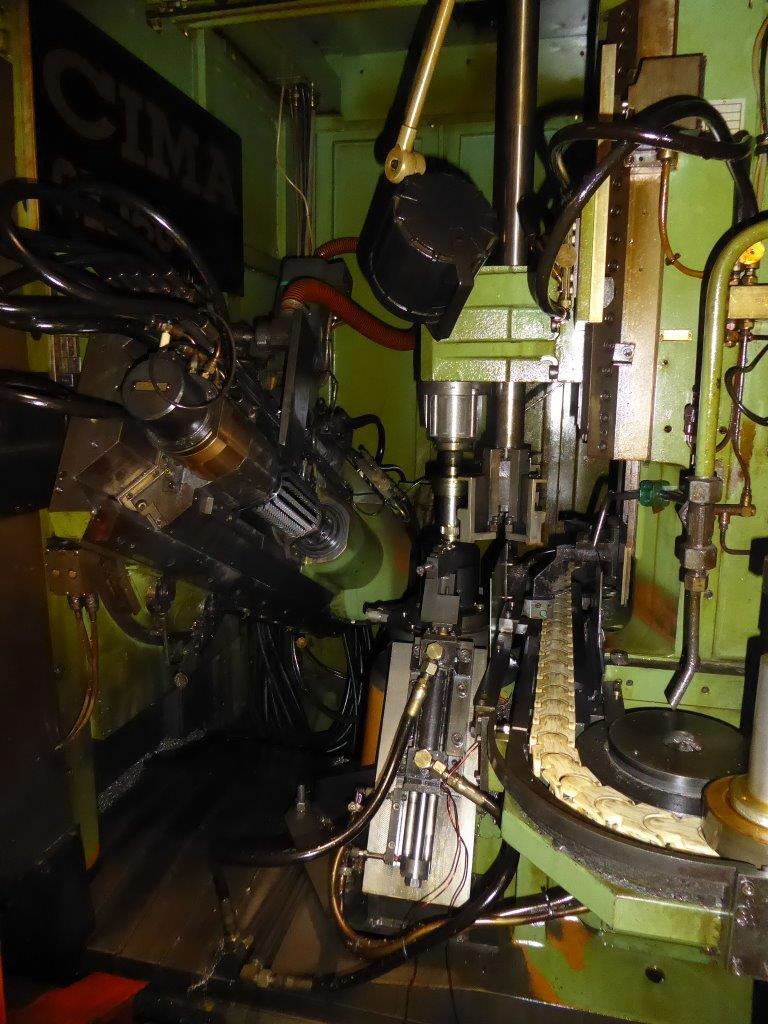

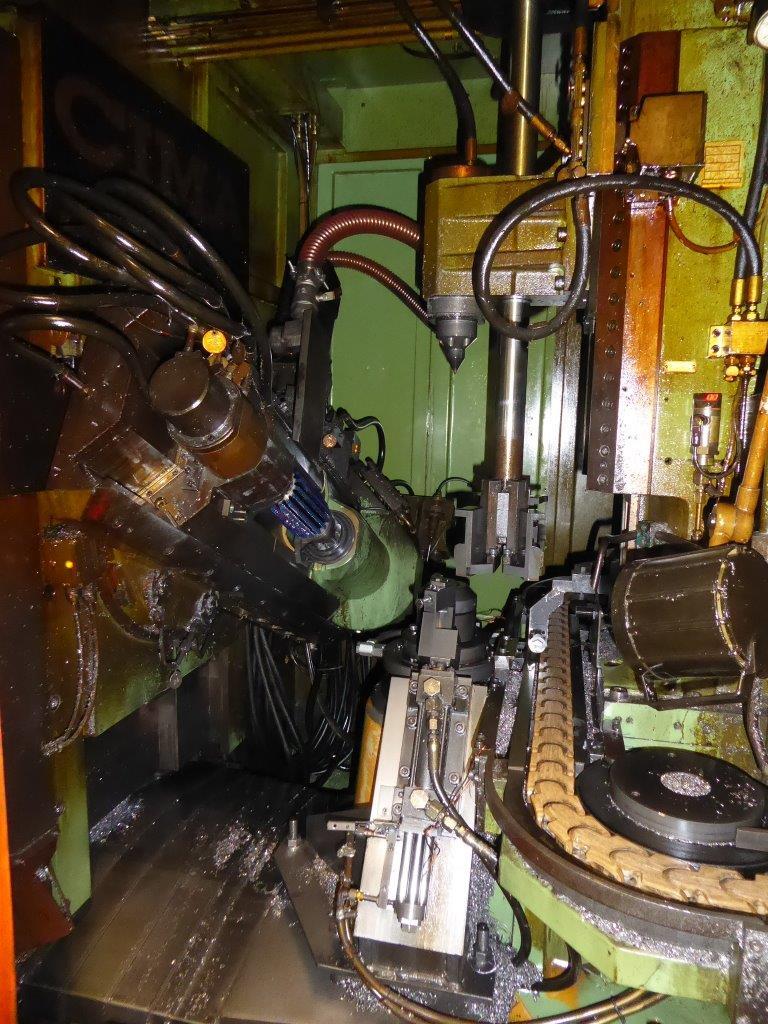

It takes workpieces up to 160 mm in diameter and runs the hob at 100–700 rpm, driven by a 7.5 kW motor. The hob head swivels up to ±45°, and axial, radial and tangential feeds are continuously adjustable from 0.1 to 1,000 mm/min.

Key Features

• Continuously adjustable axial, radial and tangential feeds
• Hob head swivels up to ±45°
• Tailstock with 240 mm stroke

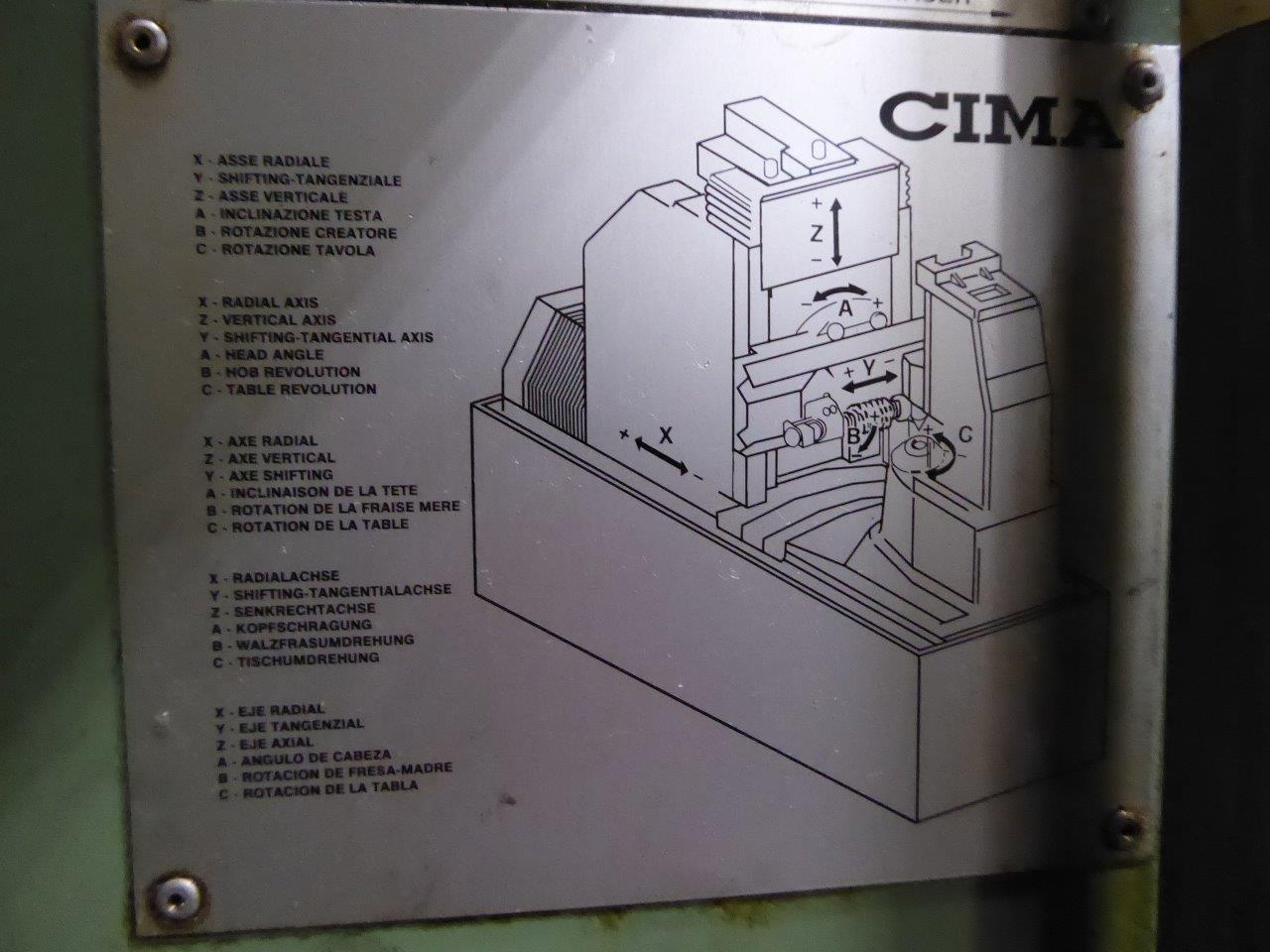

• Rapid traverse on the axial, radial and shift axes

Technical Specifications

• Model: CIMA CE 160

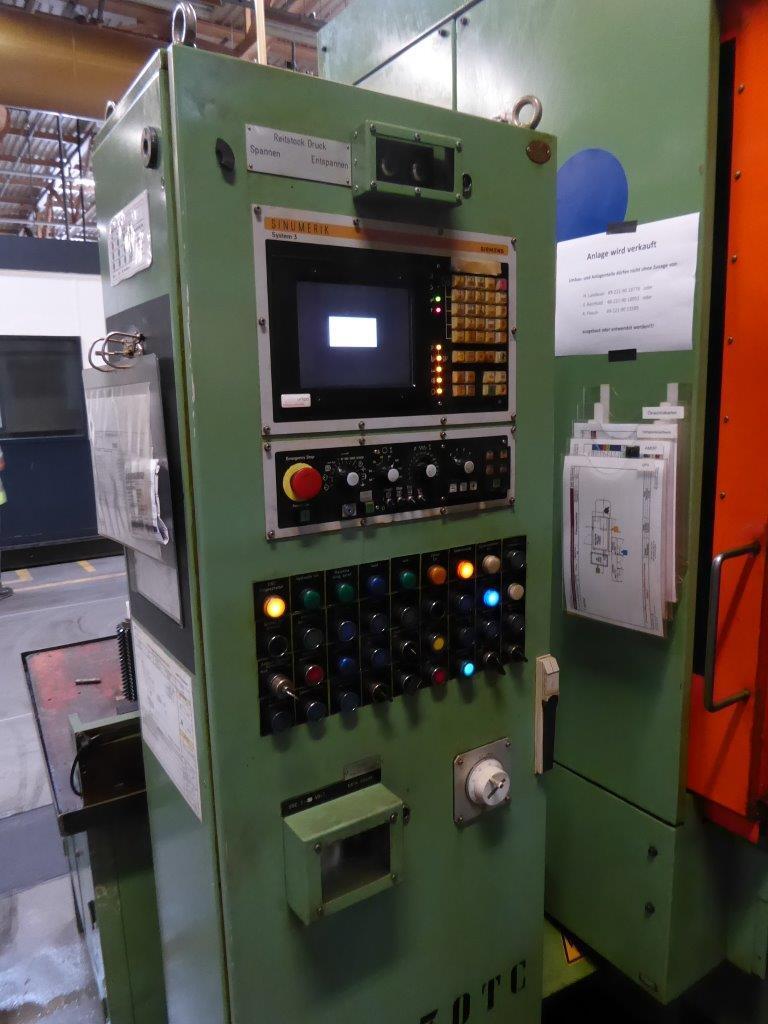

• Control: CNC
• Maximum workpiece diameter: 160 mm
• Minimum number of teeth: 4
• Maximum hob head angle: ±45°
• Tailstock stroke: 240 mm
• Hob speed: 100–700 rpm
• Maximum worktable speed: 125 rpm
• Axial feed: 0.1–1,000 mm/min
• Radial feed: 0.1–1,000 mm/min
• Tangential feed: 0.1–1,000 mm/min
• Axial traverse: 4,100 mm/min
• Radial traverse: 4,100 mm/min
• Shift traverse: 4,100 mm/min
• Rapid head angle: 120 degrees/min
• Hob motor: 7.5 kW at 1,500 rpm
• Total installed power: 50 kVA
• Distance, hob to worktable centres: 20–290 mm
• Distance, hob to worktable axes: 50–300 mm
• Maximum hob vertical stroke: 250 mm
• Maximum hob diameter: 140 mm
• Maximum hob length: 240 mm
• Maximum shift: 200 mm
• Worktable diameter: 145 mm
• Worktable centering diameter: 95 mm
• Worktable bore: 80 mm
• Index crown diameter: 380 mm

Applications

• Cutting spur and helical gears
• Producing small gears for gearboxes
• Cutting gear teeth on shafts and pinions
• Small-batch and production gear manufacture

Commercial Details

• Make: CIMA
• Model: CE 160
• Condition: Used
• Location: Navi Mumbai, Maharashtra, India
• Seller: A.K. Machine Traders

Frequently Asked Questions

• What is the largest workpiece this machine can cut? It handles workpieces up to 160 mm in diameter.
• What hob sizes does it accept? It takes hobs up to 140 mm in diameter and 240 mm long.
• How powerful is the hob drive? The hob motor is 7.5 kW at 1,500 rpm, and total installed power is 50 kVA.
• What should I ask when enquiring? Ask for photos or video of the machine running under power, whether an inspection is possible, which hobs, fixtures and accessories are included, the condition of the CNC control and electrics, and loading and shipping arrangements.
