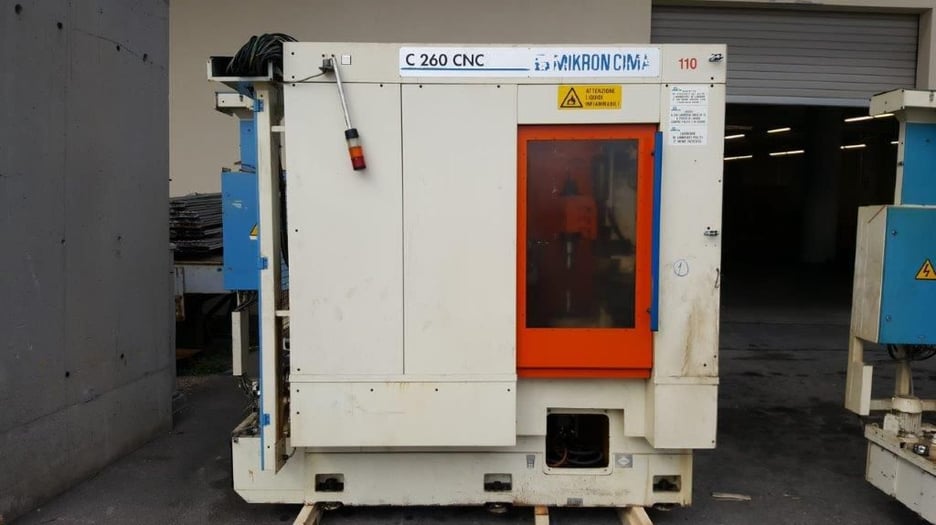

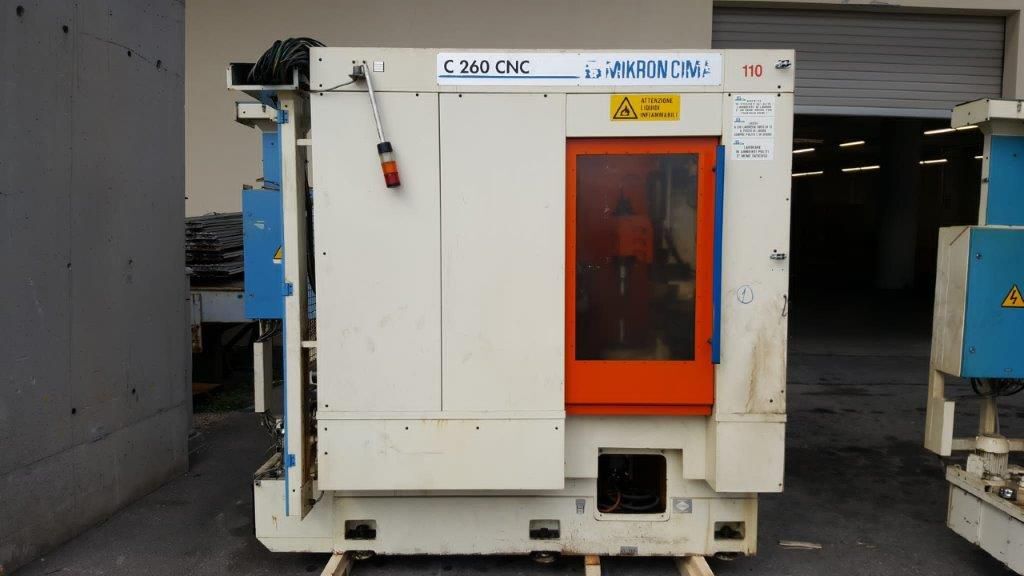

Used Cima Pfauter CE 260 CNC Gear Hobbing Machine | A.K. Machine Traders, Navi Mumbai, India

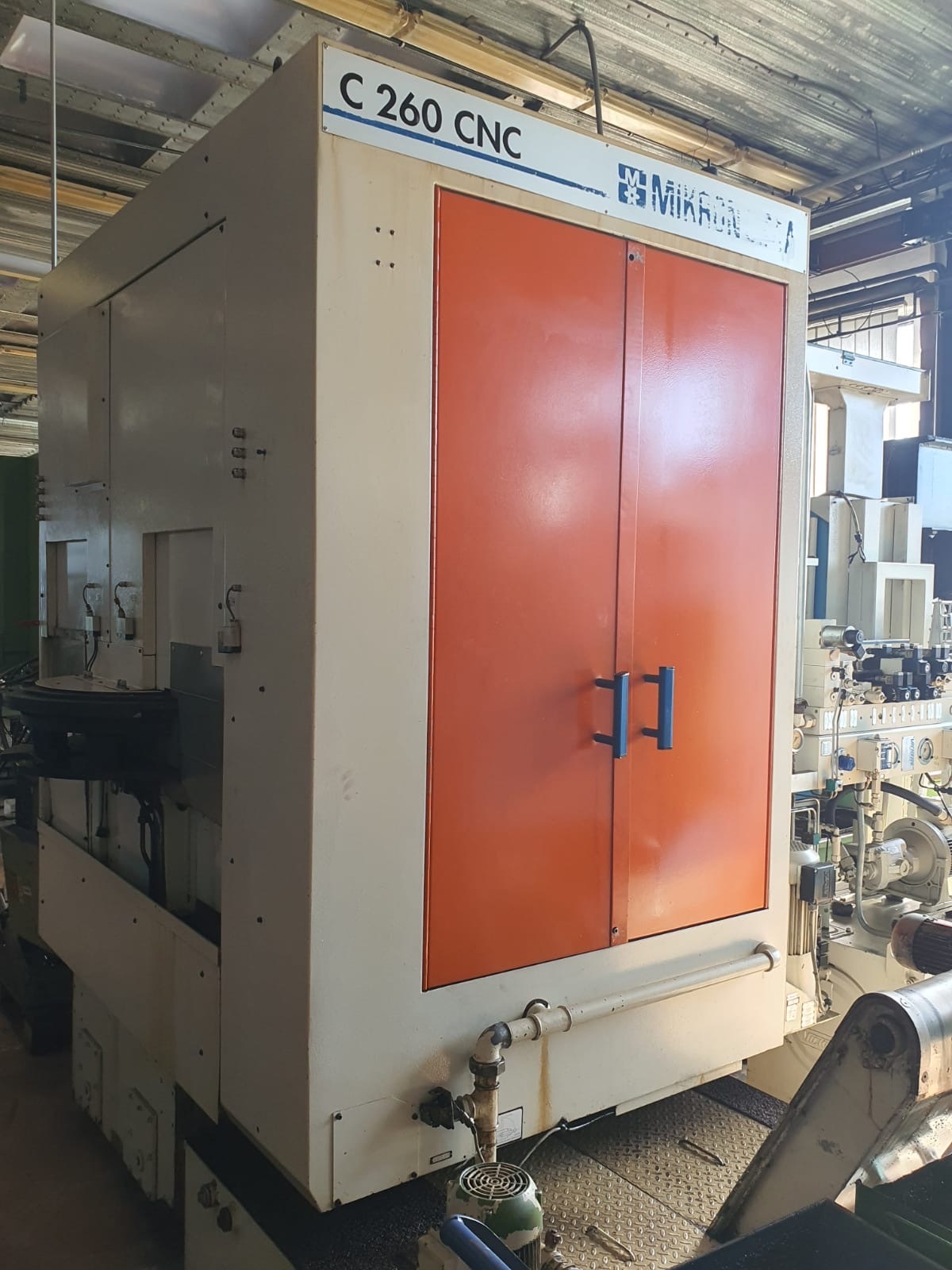

This used Cima Pfauter CE 260 CNC gear hobbing machine is available from A.K. Machine Traders in Navi Mumbai, India. A gear hobbing machine cuts gear teeth into round workpieces using a rotating hob.

It handles workpieces up to 300 mm in diameter and gears up to module 8. The hob head swivels ±45°, and the machine weighs approximately 12,000 kg.

Key Features

• CNC-controlled gear hobbing
• Hob head swivels ±45° for helical gear work
• Tailstock with 250 mm stroke
• Hob shifting travel of 200 mm

Technical Specifications

• Model: Cima Pfauter CE 260
• Max. workpiece diameter: 300 mm
• Max. module: 8
• Min. number of teeth: 4
• Max. hob head angle: ±45°
• Tailstock stroke: 250 mm
• Hob speed: 100–700 rpm
• Max. table speed: 80 rpm
• Min. distance between hob and table: 20 mm
• Min. distance between hob and work table axes: 125 mm
• Max. distance between hob and work table axes: 385 mm
• Max. hob vertical travel: 260 mm
• Max. hob diameter: 140 mm
• Max. hob length: 240 mm
• Max. shifting travel: 200 mm
• Work table diameter: 260 mm
• Table hole: 80 mm
• Division wheel diameter: 380 mm
• Approx. weight: 12,000 kg

Applications

• Spur and helical gears
• Gear blanks and small gear shafts
• Transmission and gearbox components
• General engineering gear production

Commercial Details

• Make: Cima Pfauter
• Model: CE 260
• Condition: Used
• Location: Navi Mumbai, Maharashtra, India
• Seller: A.K. Machine Traders

Frequently Asked Questions

• What is the maximum workpiece size? It takes workpieces up to 300 mm in diameter, with a maximum module of 8.
• What hob speeds does it offer? Hob speed is 100–700 rpm, and the table runs up to 80 rpm.
• Can it cut helical gears? The hob head swivels up to ±45°.

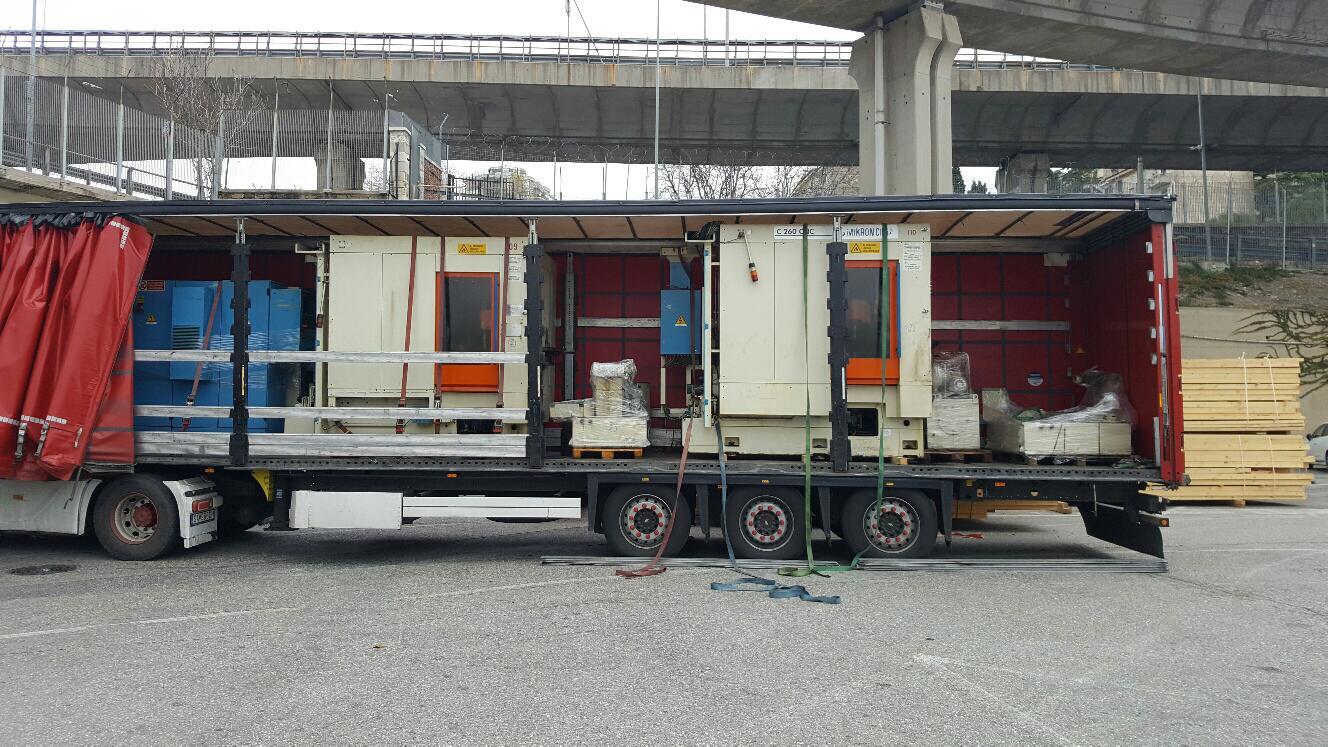

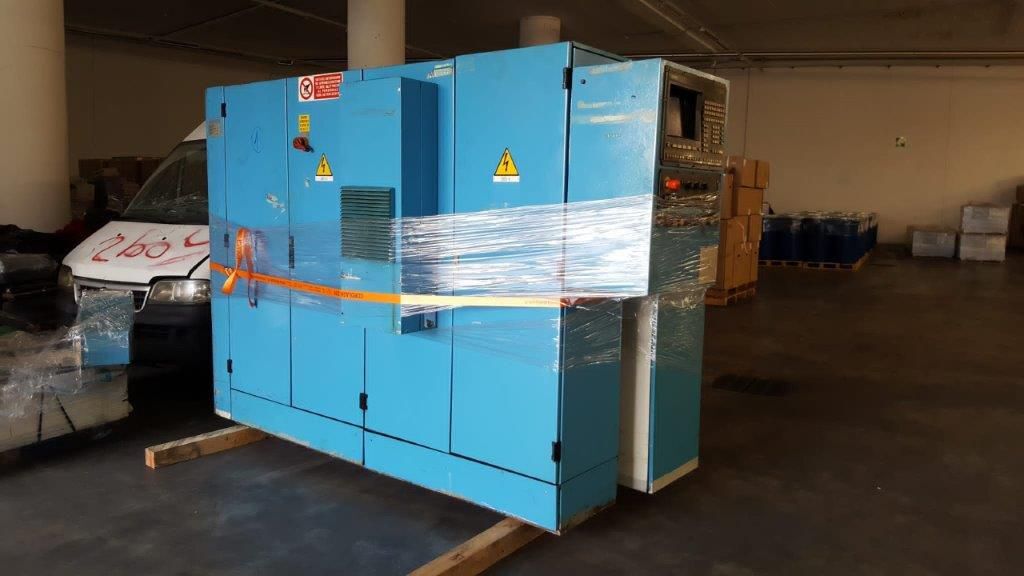

• What should I ask when enquiring? Ask for photos or video of the machine running under power, and whether an inspection can be arranged. Confirm the control and electrics, which hobs, arbors and workholding are included, and loading and shipping arrangements for a machine of about 12,000 kg.
