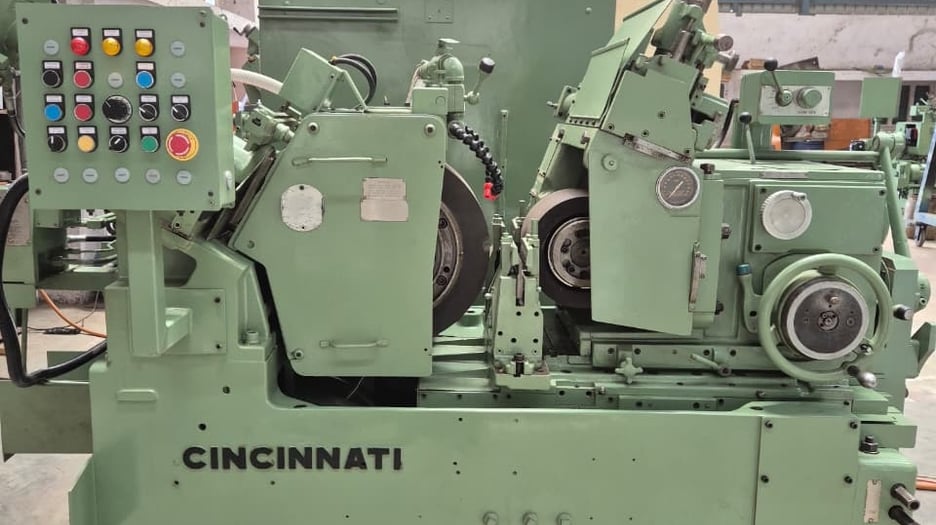

Used Cincinnati 220-8 Centerless Grinder | A.K. Machine Traders, Navi Mumbai, India

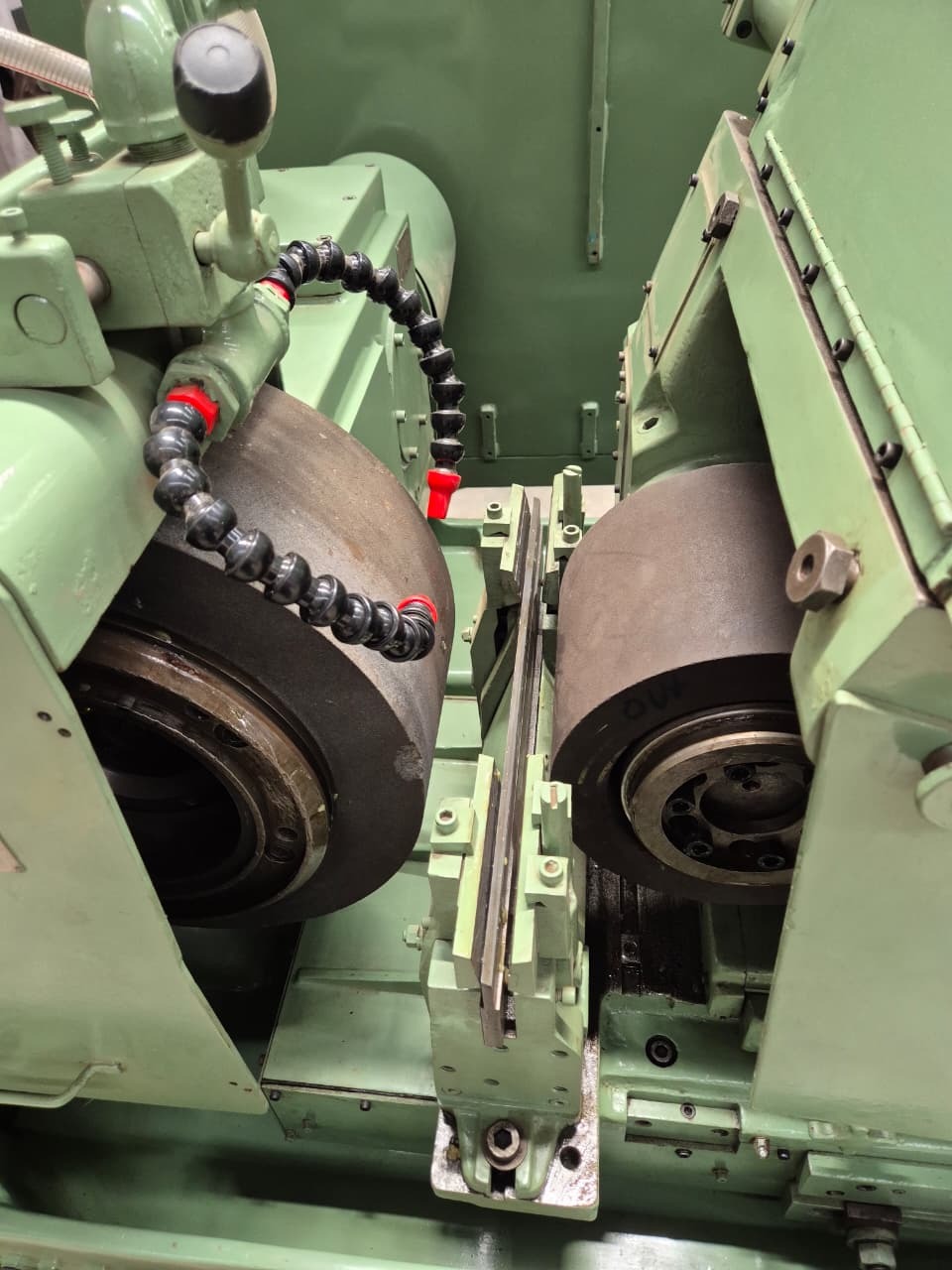

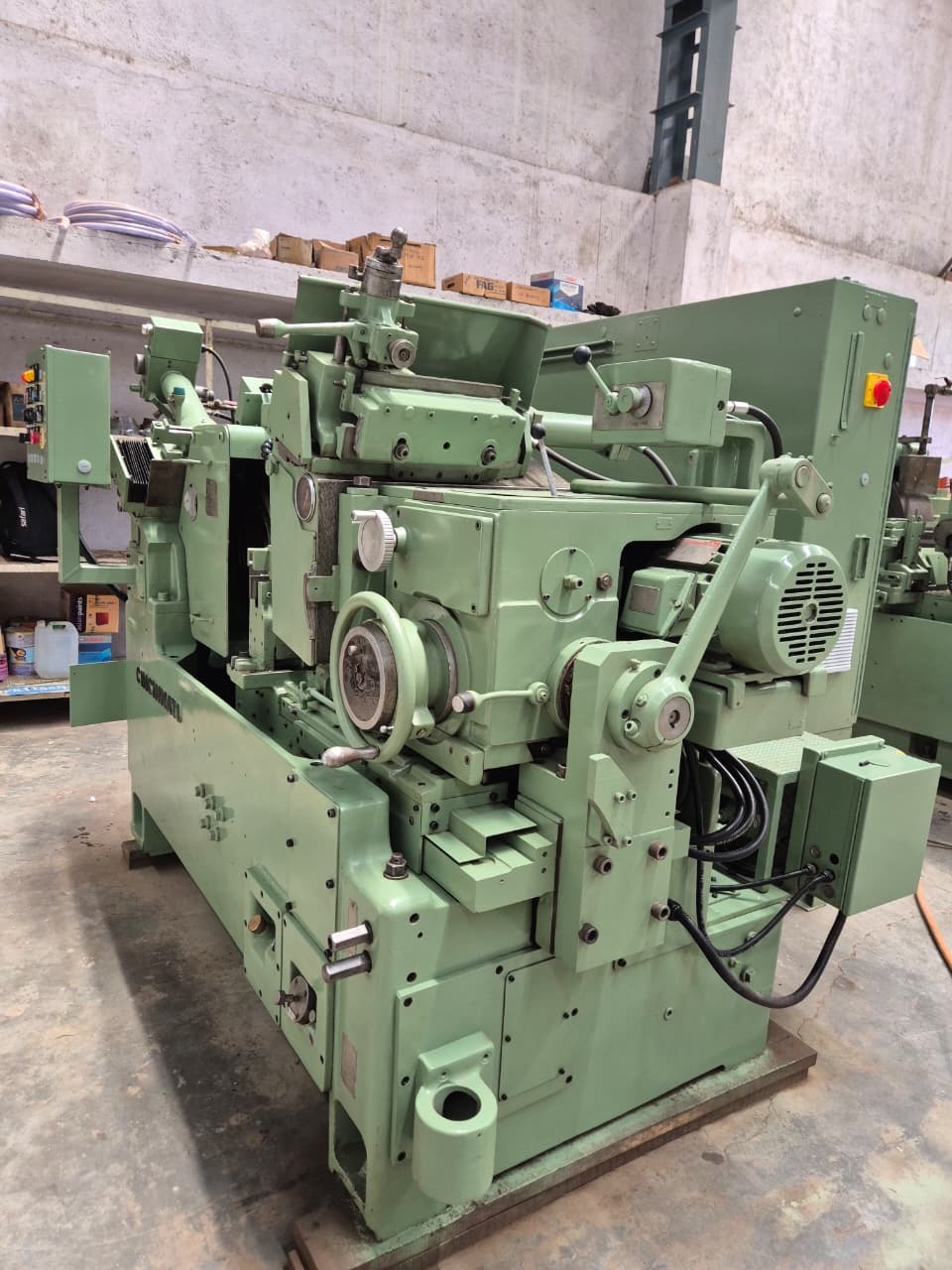

This used Cincinnati 220-8 centerless grinder is available from A.K. Machine Traders in Navi Mumbai, India. It grinds round workpieces held between a grinding wheel and a regulating wheel, without centres or chucks.

It handles diameters from 1.6 mm to 114.3 mm. The grinding wheel is 610 mm x 203 mm x 305 mm and the regulating wheel is 305 mm x 203 mm x 127 mm. The grinding wheel is driven by a 20 HP (14.9 kW) motor on a 460 V, 3-phase, 60 Hz supply.

Technical Specifications

• Model: Cincinnati 220-8
• Diameter capacity: 1.6–114.3 mm
• Grinding wheel size: 610 mm x 203 mm x 305 mm
• Grinding wheel diameter: 431.8–609.6 mm
• Grinding wheel maximum width: 254 mm
• Grinding wheel hole diameter: 304.8 mm
• Regulating wheel size: 305 mm x 203 mm x 127 mm
• Regulating wheel diameter: 279.4–355.6 mm
• Regulating wheel maximum width: 254 mm
• Regulating wheel hole diameter: 152.4 mm
• Grinding wheel motor: 20 HP (14.9 kW)
• Power supply: 460 V, 3-phase, 60 Hz
• Floor space: 2,413 mm x 3,241.5 mm (approx.)
• Shipping dimensions: 3,352.8 mm L x 1,524 mm W x 2,032 mm H (approx.)
• Weight: 6,123.5 kg (approx.)

Applications

• Ground bars, pins and shafts
• Round precision components in engineering and toolmaking
• Bushings, rollers and similar cylindrical parts
• Small-diameter wire-like parts through to larger round stock

Commercial Details

• Make: Cincinnati
• Model: 220-8
• Condition: Used
• Location: Navi Mumbai, Maharashtra, India
• Seller: A.K. Machine Traders

Frequently Asked Questions

• What diameter range can it grind? It grinds workpieces from 1.6 mm to 114.3 mm in diameter.
• What power supply does it need? The grinding wheel motor is 20 HP (14.9 kW) and runs on 460 V, 3-phase, 60 Hz.
• What are its size and weight for shipping? Shipping dimensions are approximately 3,352.8 mm x 1,524 mm x 2,032 mm and weight is approximately 6,123.5 kg.

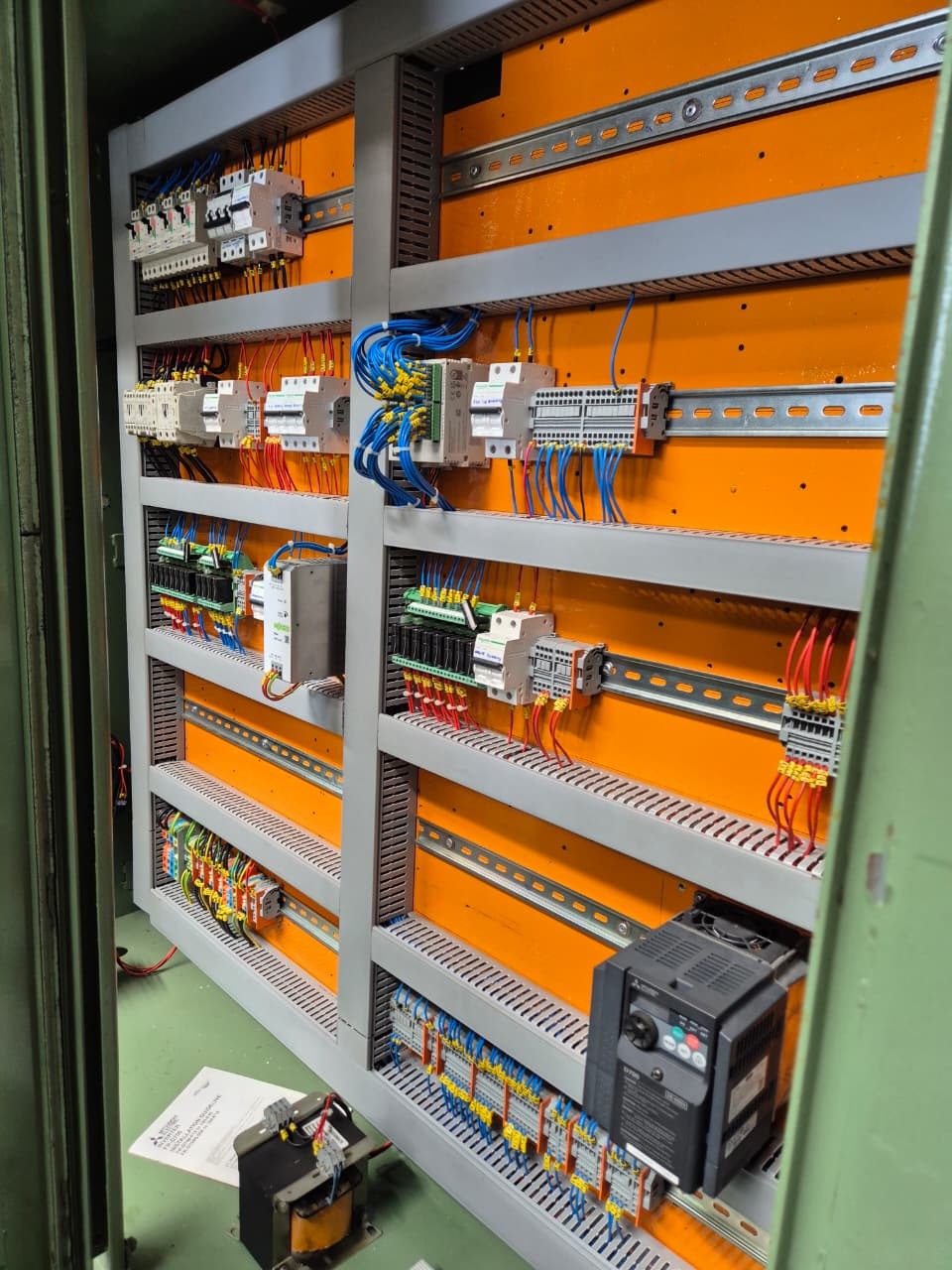

• What should I ask when enquiring? Ask for photos or video of the machine running, whether an inspection is possible, which wheels, work rests and accessories are included, the condition of the electrics given the 460 V, 60 Hz supply, and loading and shipping arrangements.
