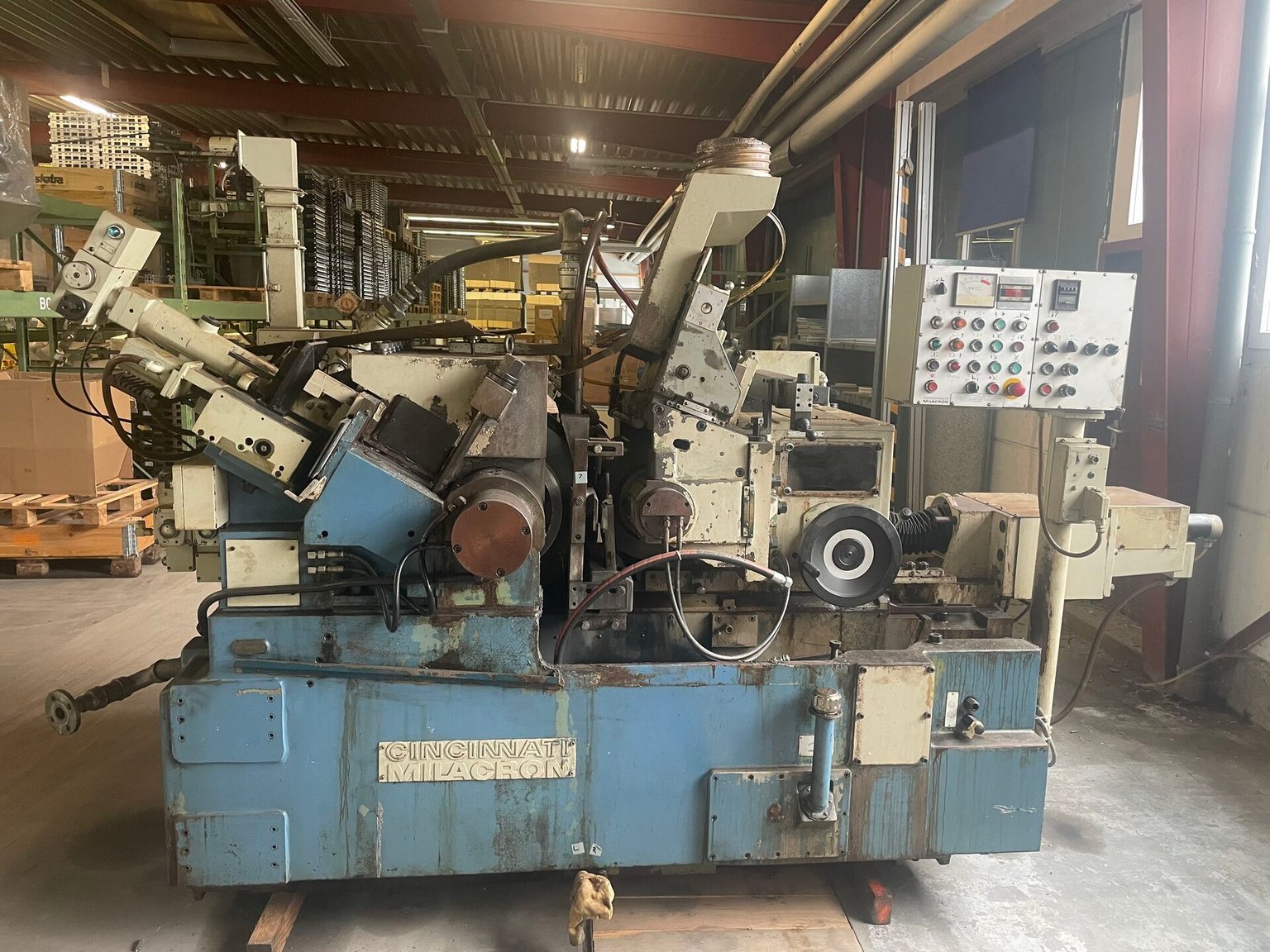

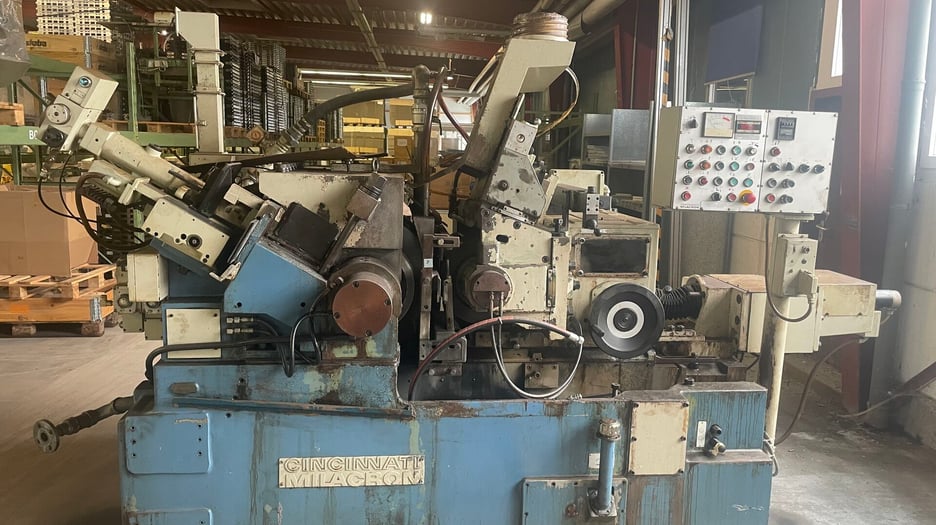

Used Cincinnati 3-500 Twin-Grip Centerless Grinder | A.K. Machine Traders, Navi Mumbai, India

This used Cincinnati 3-500 Twin-Grip centerless cylindrical grinding machine is available from A.K. Machine Traders in Navi Mumbai, India. It grinds round workpieces up to 150 mm in diameter without holding them between centres.

It uses a grinding wheel up to 510 mm wide and a 30 kW grinding wheel drive. The control wheel speed is infinitely variable from 12 to 315 rpm.

Key Features

• Infinitely variable control wheel speed
• Integrated coolant system with pump and tank

Technical Specifications

• Model: Cincinnati 3-500 Twin-Grip
• Max. workpiece diameter: 150 mm
• Grinding wheel diameter, min./max.: 405/610 mm
• Grinding wheel bore diameter: 304.8 mm
• Max. grinding wheel width: 510 mm
• Control wheel diameter, min./max.: 260/355 mm
• Max. control wheel width: 510 mm
• Control wheel bore diameter: 152.4 mm
• Control wheel speed range: 12–315 rpm, infinitely variable
• Grinding wheel drive power: 30 kW
• Coolant pump delivery: 290 l/min
• Coolant tank capacity: 680 l

Applications

• Grinding round bars and pins to size
• Finishing shafts and spindles
• Producing bushings and sleeves
• Precision cylindrical parts in batch production

Commercial Details

• Make: Cincinnati
• Model: 3-500 Twin-Grip
• Condition: Used
• Location: Navi Mumbai, Maharashtra, India
• Seller: A.K. Machine Traders

Frequently Asked Questions

• What is the maximum workpiece diameter? It grinds workpieces up to 150 mm in diameter.
• How wide are the wheels? Both the grinding wheel and the control wheel can be up to 510 mm wide.
• How much power does the grinding wheel drive have? The grinding wheel is driven by a 30 kW motor.
• What should I ask when enquiring? Ask for photos or video of the machine running under power, and whether an inspection is possible. Confirm which wheels, work rests, dressers and tooling are included, and the condition of the control and electrics. Also ask about loading and shipping arrangements.
