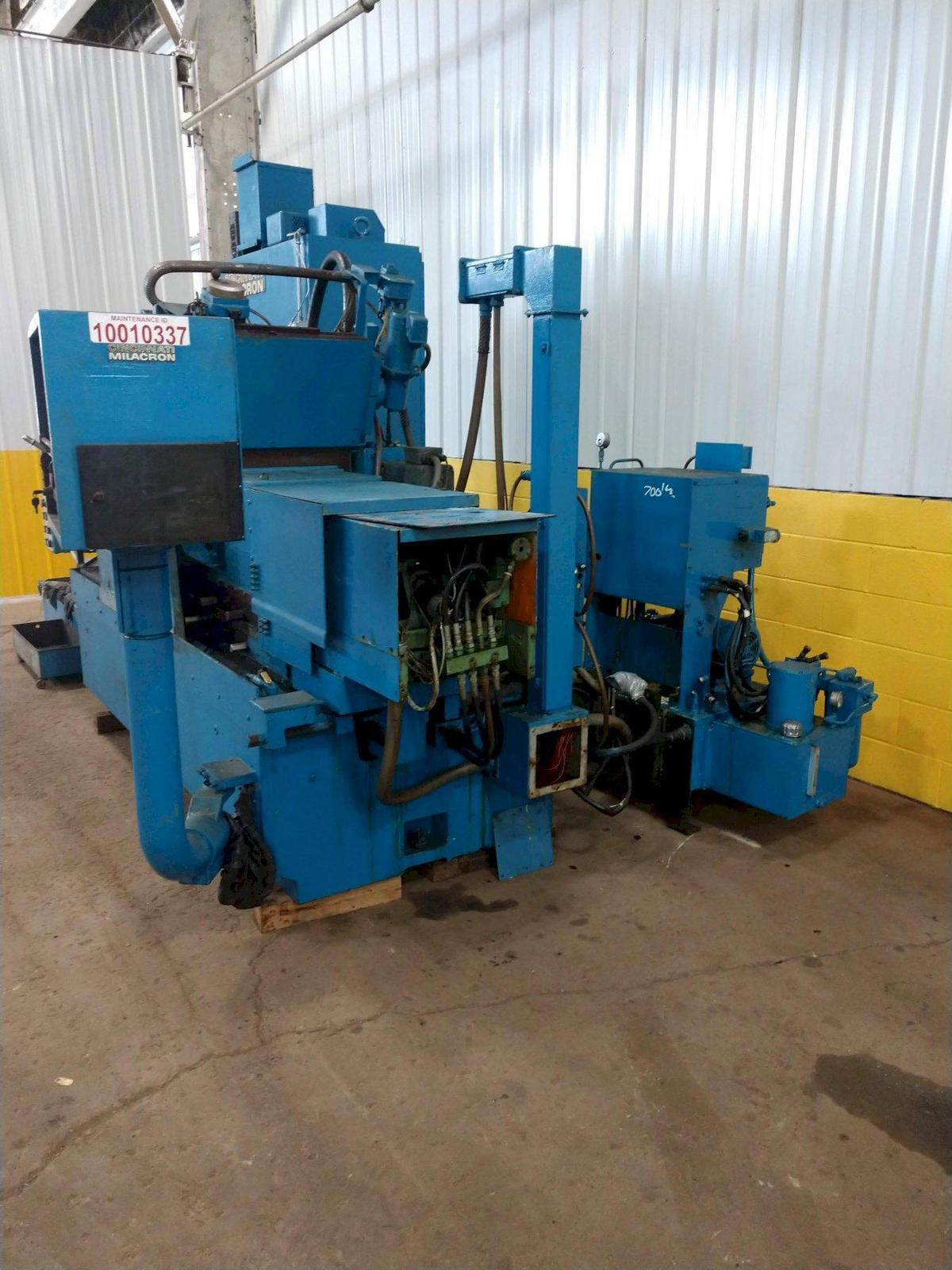

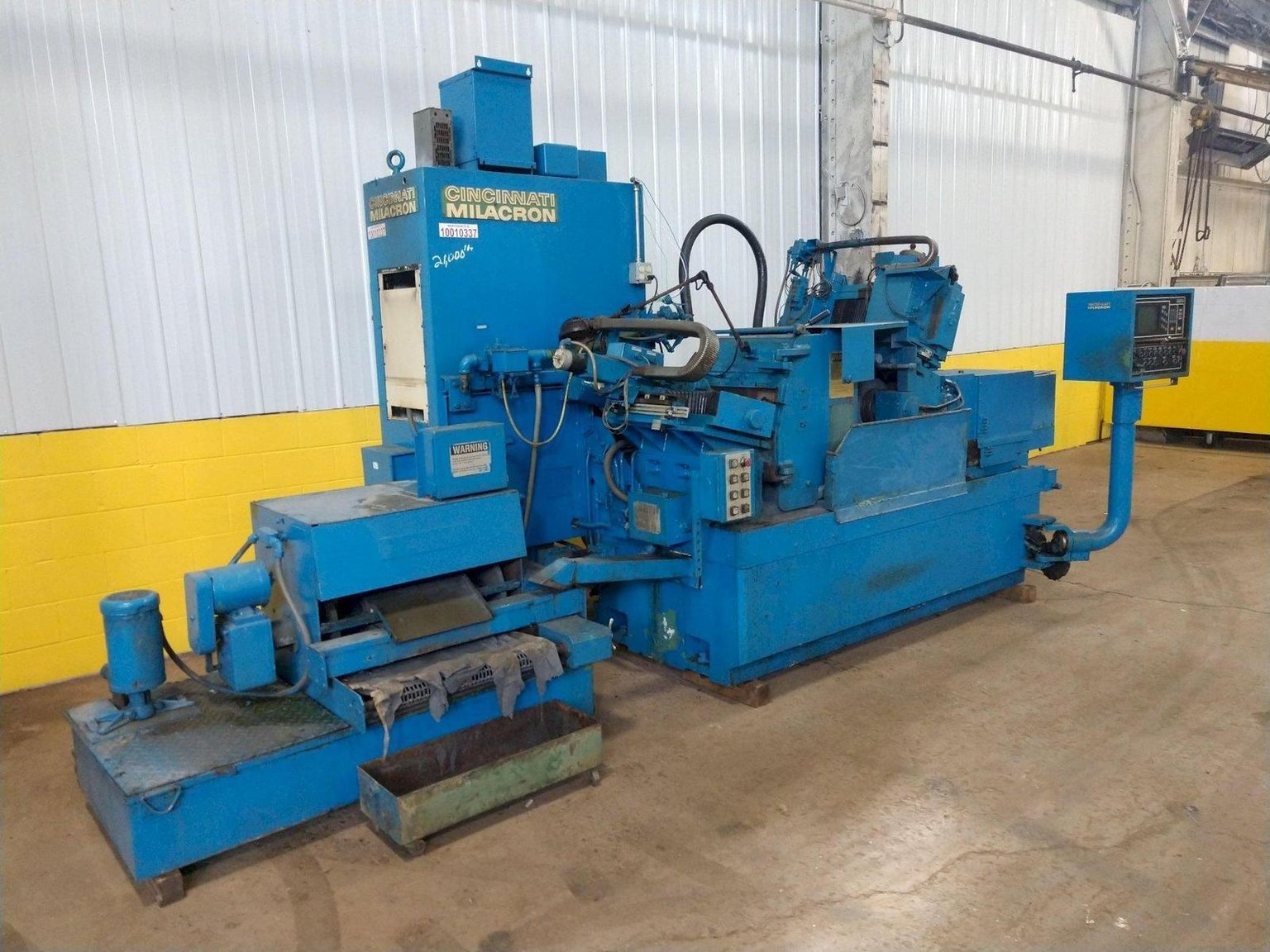

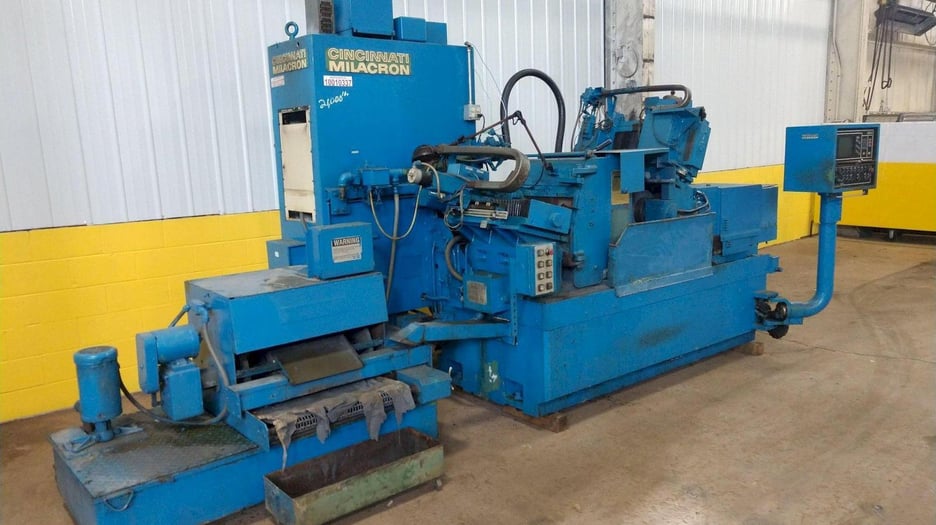

Used Cincinnati Milacron 220-8 Cantilever Centerless Grinder | A.K. Machine Traders, Navi Mumbai, India

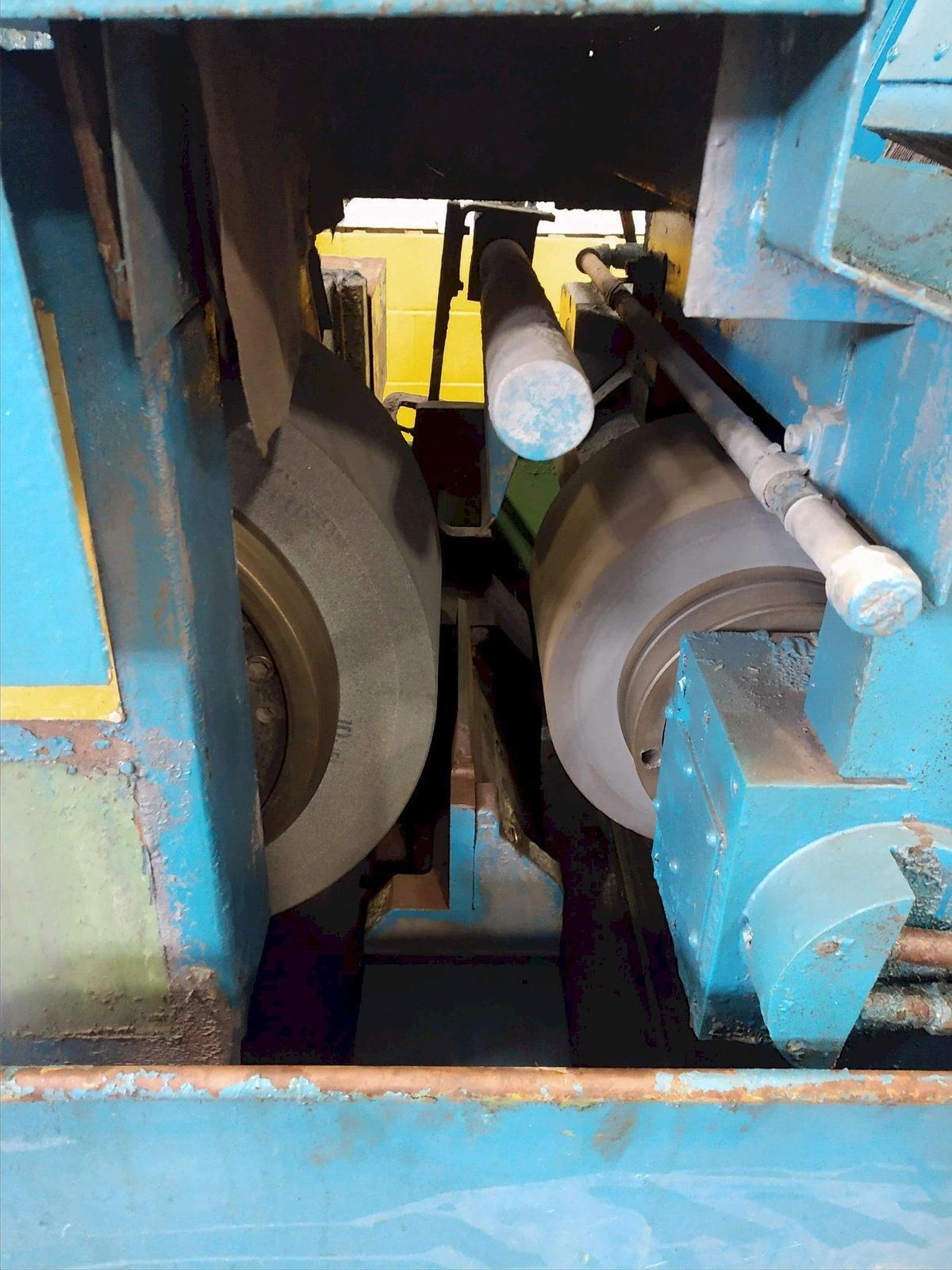

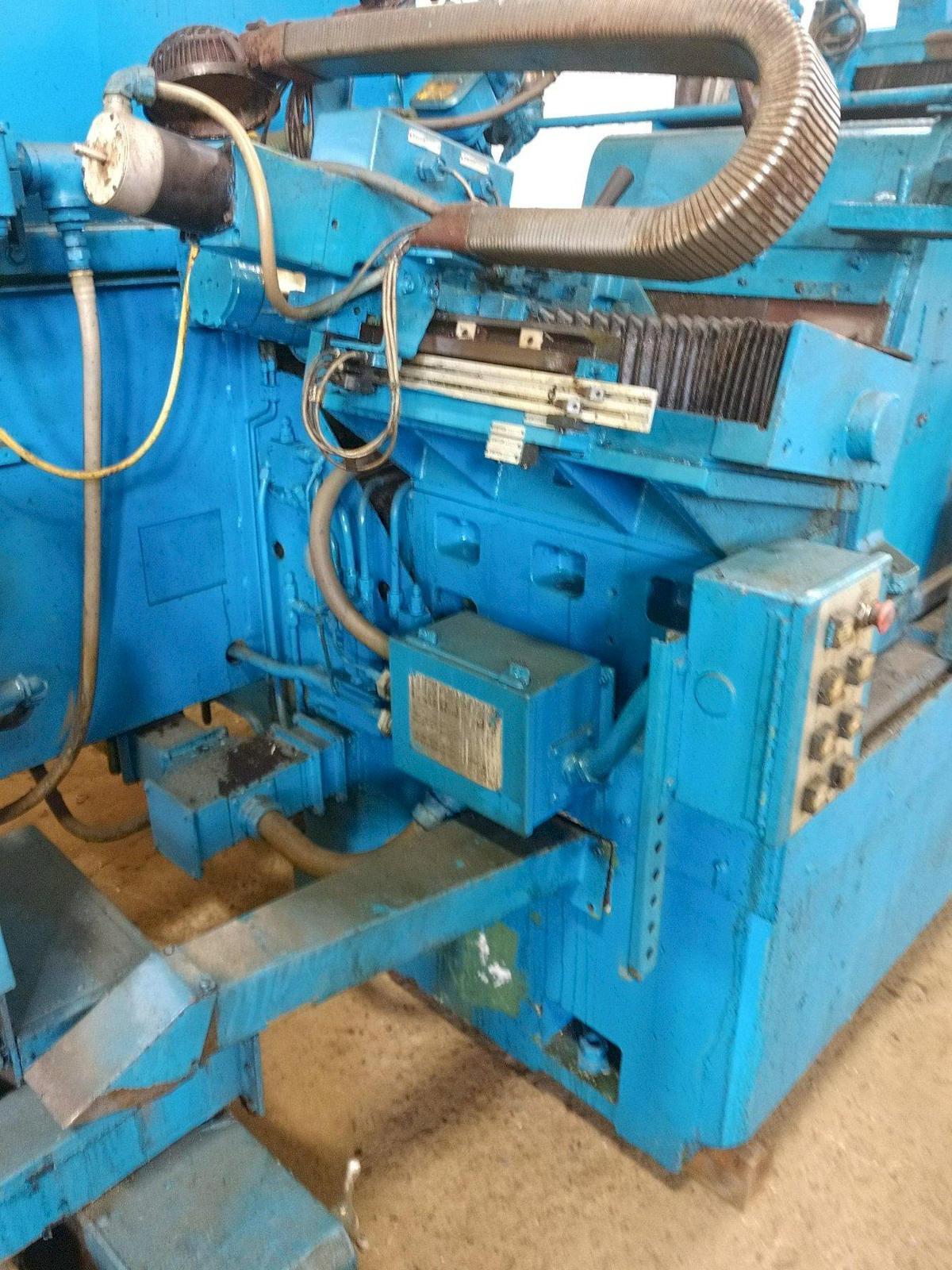

This used Cincinnati Milacron 220-8 cantilever centerless grinder is available from A.K. Machine Traders in Navi Mumbai, India. A centerless grinder grinds round parts held between a grinding wheel and a regulating wheel, without centres or chucks.

It handles throughfeed work from 0.063″ to 3.000″ and has a 20 HP grinding wheel motor. The regulating wheel has infinitely variable speed in a low range and a high range, and a magnetic separator is fitted.

Key Features

• Cantilever design
• Infinitely variable regulating wheel speed
• Low and high regulating wheel speed ranges
• Magnetic separator fitted

Technical Specifications

• Model: Cincinnati Milacron 220-8
• Throughfeed capacity: 0.063″ to 3.000″
• Work diameter: 4.750″
• Wheelhead: 17″ to 24″
• Collet hole diameter: 12″
• Grinding wheel width: 3″ to 8″

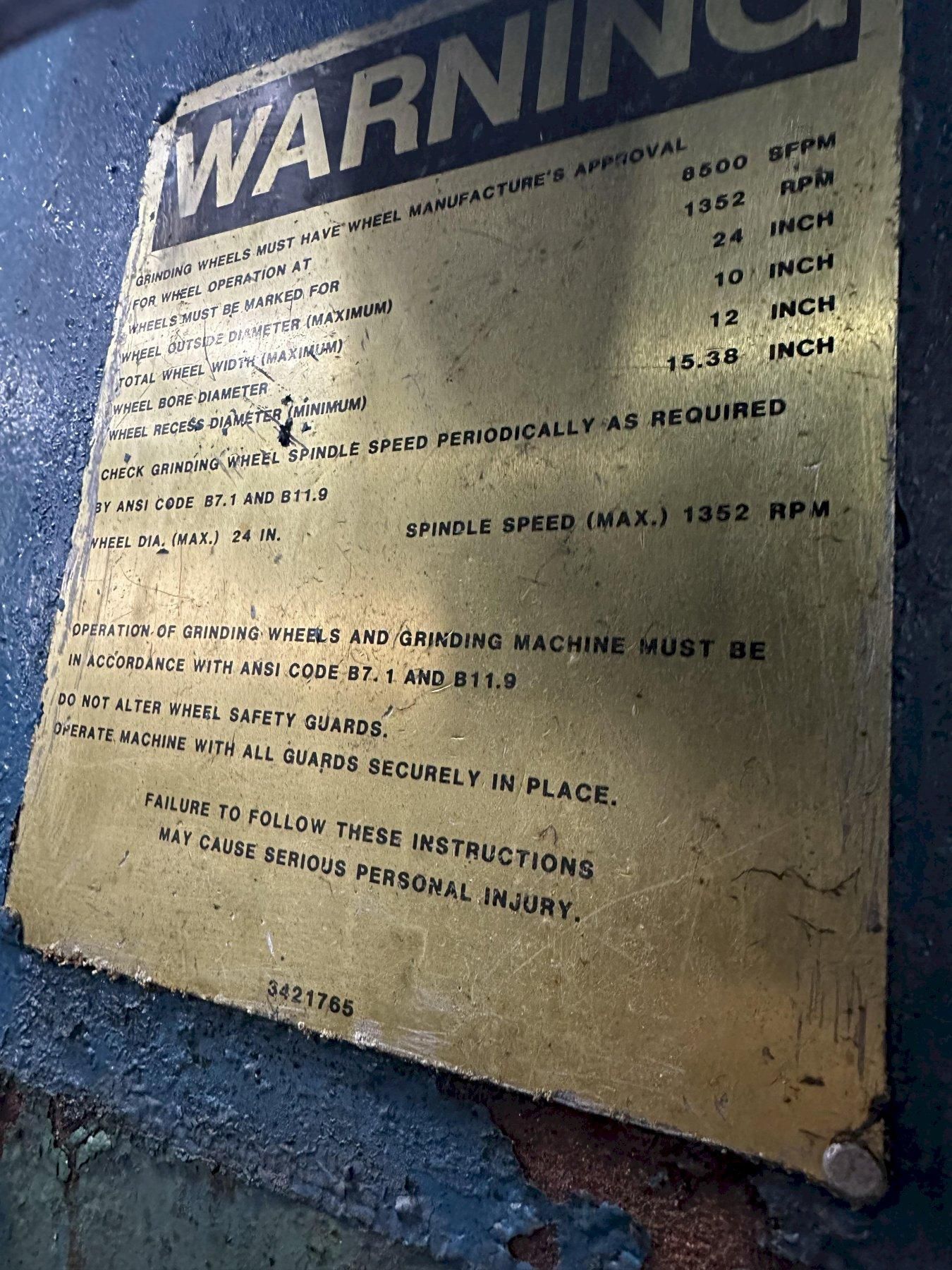

• Grinding wheel speed: 6,500 ft/min

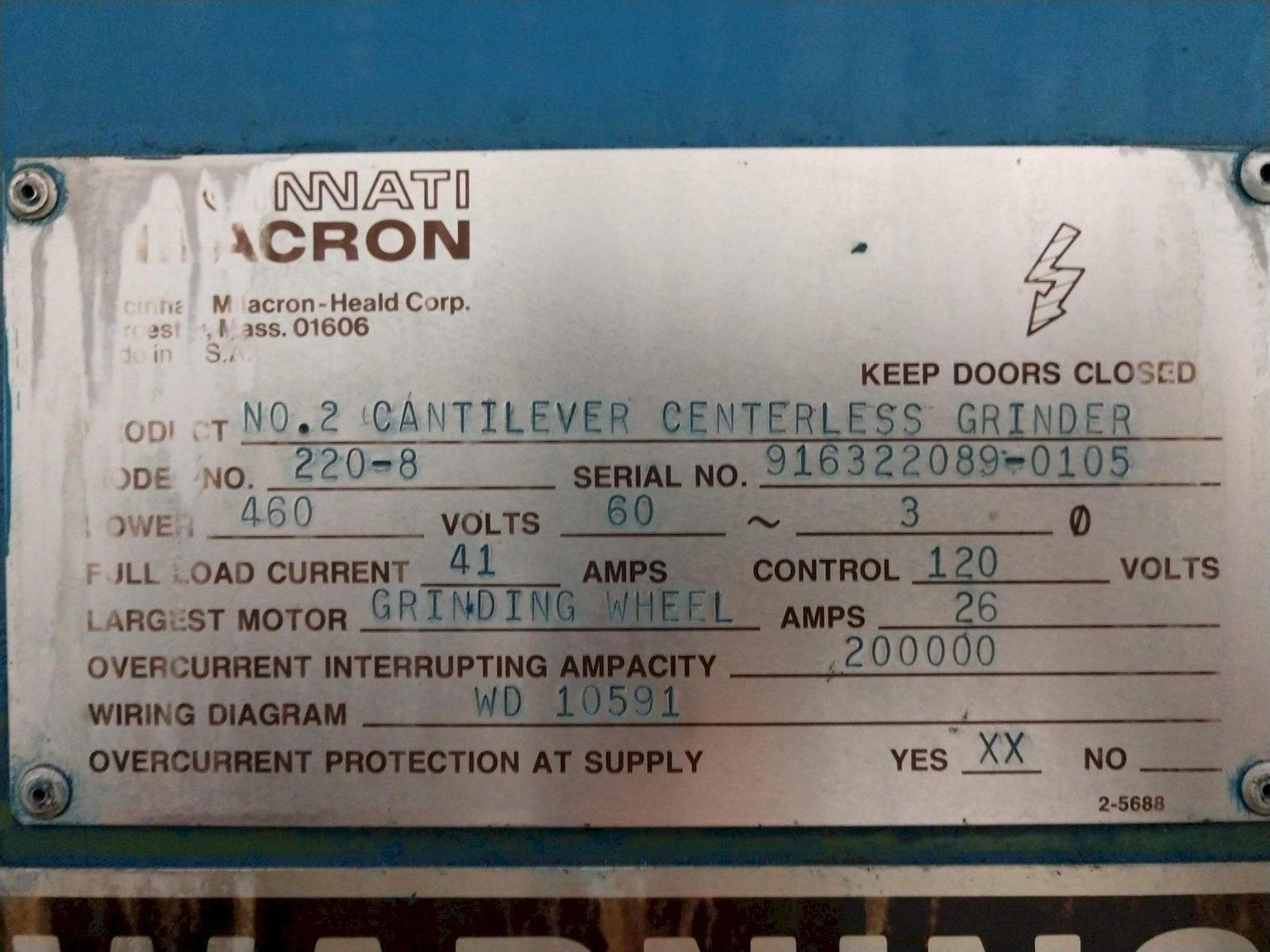

• Grinding wheel motor: 20 HP, 460 V, 60 Hz, 3 phase
• Regulating wheel ID: 5″
• Regulating wheel speeds: Infinite
• Low wheel speeds: 15–56 rpm
• High wheel speeds: 56–300 rpm
• Regulating wheel motor: 1-1/2 HP, 1,200 rpm
• Max lower side travel: 6.375″
• Max upper side travel: 2.875″
• Magnetic separator: Yes

Applications

• Grinding round bars and pins to size
• Precision shafts and spindles
• Bushings and sleeves
• Rollers and cylindrical components

Commercial Details

• Make: Cincinnati Milacron
• Model: 220-8
• Condition: Used
• Location: Navi Mumbai, Maharashtra, India
• Seller: A.K. Machine Traders

Frequently Asked Questions

• What size of work can it grind? It has a throughfeed capacity of 0.063″ to 3.000″ and a work diameter of 4.750″.
• What power does it have? The grinding wheel motor is 20 HP on 460 V, 60 Hz, 3 phase, and the regulating wheel motor is 1-1/2 HP.
• Does it have a magnetic separator? Yes, a magnetic separator is fitted.
• What should I ask when enquiring? Ask for photos or video of the machine running under power, and whether an inspection can be arranged. Confirm which wheels, work rests and tooling are included, the condition of the electrics for the 460 V, 60 Hz supply, and loading and shipping arrangements.
