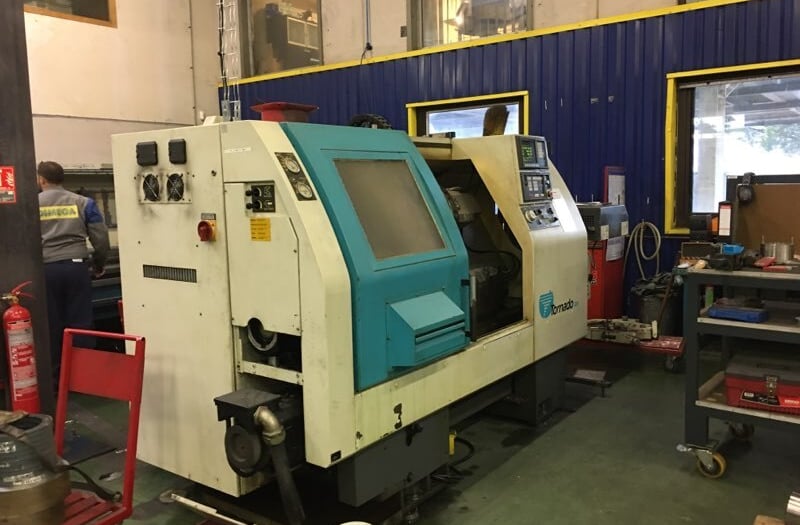

Used Colchester Tornado 300 CNC Lathe | A.K. Machine Traders, Navi Mumbai, India

This used Colchester Tornado 300 CNC lathe is available from A.K. Machine Traders in Navi Mumbai, India. It is a CNC turning machine that cuts round parts from bar or workpieces held in a chuck.

It has a 530 mm swing over the bed, a 300 mm maximum machining diameter and 600 mm between centres. The spindle runs at up to 3,000 rpm with an 87 mm bore, and the machine is fitted with a Fanuc OT control, a 12-station VDI 40 turret and a 12" power chuck.

Key Features

• Fanuc OT control
• 12-station VDI 40 turret
• Programmable tailstock
• 12" power chuck

Technical Specifications

• Model: Colchester Tornado 300
• Control: Fanuc OT
• Swing over bed: 530 mm
• Maximum machining diameter: 300 mm
• Distance between centres: 600 mm
• Spindle speed: 3,000 rpm
• Spindle bore: 87 mm
• Turret: 12-station VDI 40
• Tailstock: Programmable
• Chuck: 12" power chuck

Applications

• Turned shafts and pins
• Round components machined between centres
• Chucked parts such as flanges and bushes
• General engineering and toolroom turning work

Commercial Details

• Make: Colchester
• Model: Tornado 300
• Condition: Used
• Location: Navi Mumbai, Maharashtra, India
• Seller: A.K. Machine Traders

Frequently Asked Questions

• What control does this lathe use? It is fitted with a Fanuc OT control.
• What is the maximum machining diameter and length? The maximum machining diameter is 300 mm, with 600 mm between centres.
• How many tools does the turret hold? The turret is a 12-station VDI 40 type.
• What should I ask when enquiring? Ask for photos or video of the lathe running under power, whether an inspection is possible, and which chuck, tooling and accessories are included. Also confirm the condition of the Fanuc control and electrics, and arrangements for loading and shipping.
