Used Collet BFF 85 Horizontal Boring Mill | A.K. Machine Traders, Navi Mumbai, India

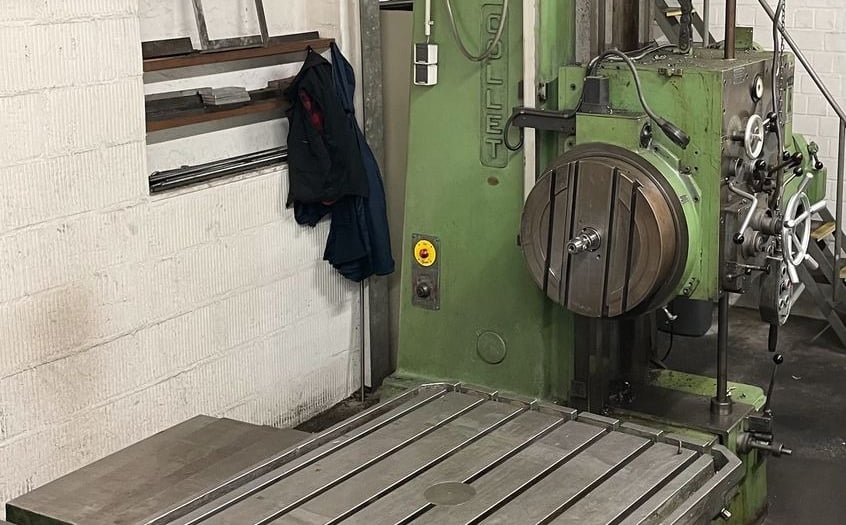

This used Collet BFF 85 horizontal boring mill is available from A.K. Machine Traders in Navi Mumbai, India. A horizontal boring mill machines and bores large workpieces held on a table, using a horizontal spindle.

It has an 85 mm spindle with an MK 5 taper and a speed range of 4–1000 rpm, driven by a 7 kW motor. The table measures 1,200 x 1,000 mm and carries up to 3 t.

Technical Specifications

• Model: Collet BFF 85
• Spindle diameter: 85 mm
• Spindle taper: MK 5
• Spindle stroke, max.: 650 mm
• Spindle speed range: 4–1000 rpm
• Spindle drive: 7 kW
• Voltage: 380 V
• Table cross travel: 1,000 mm
• Table longitudinal adjustment: 1,500 mm
• Vertical adjustment of drilling slide: 1,000 mm
• Table surface area: 1,200 x 1,000 mm
• Table load: 3 t
• Feeds, longitudinal/cross/vertical: 2–950 mm/min
• Machine dimensions, approx.: 6.4 x 2.4 x 2.9 m
• Machine weight, approx.: 11.5 t

Applications

• Boring and machining large housings and casings
• Machining heavy fabricated and cast components
• Toolroom and general engineering work on large parts
• Drilling and boring of workpieces held on a table

Commercial Details

• Make: Collet
• Model: BFF 85
• Condition: Used
• Location: Navi Mumbai, Maharashtra, India
• Seller: A.K. Machine Traders

Frequently Asked Questions

• What is the table size and load capacity? The table surface is 1,200 x 1,000 mm and it takes a load of up to 3 t.
• What spindle does it have? It has an 85 mm diameter spindle with an MK 5 taper, a 650 mm maximum stroke and speeds of 4–1000 rpm.
• What power supply does it need? It runs on 380 V, with a 7 kW spindle drive.
• What should I ask when enquiring? Ask for photos or video of the machine running under power, whether an inspection is possible, which tooling and accessories are included, the condition of the control and electrics, and loading and shipping arrangements for a machine of about 11.5 t.
