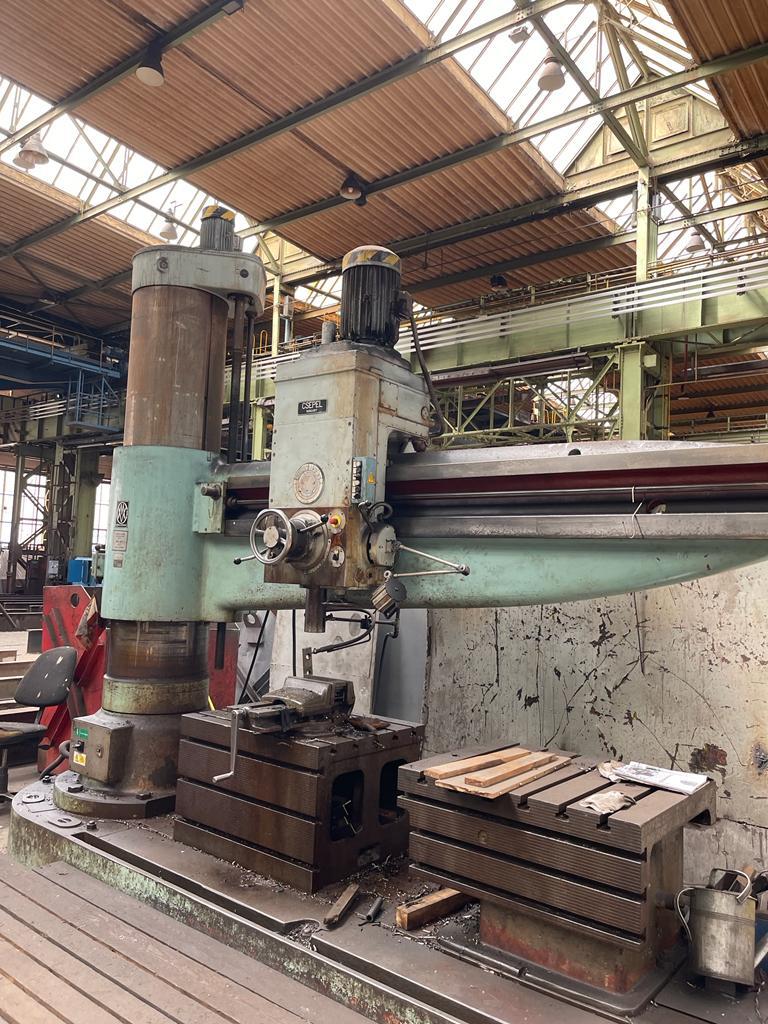

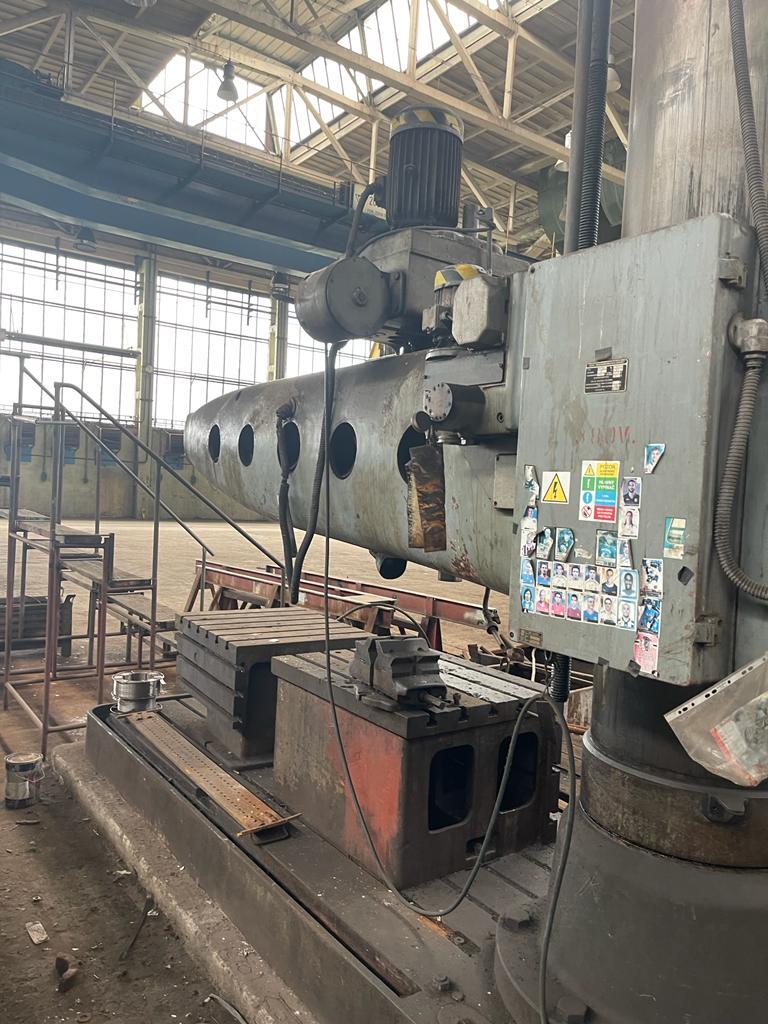

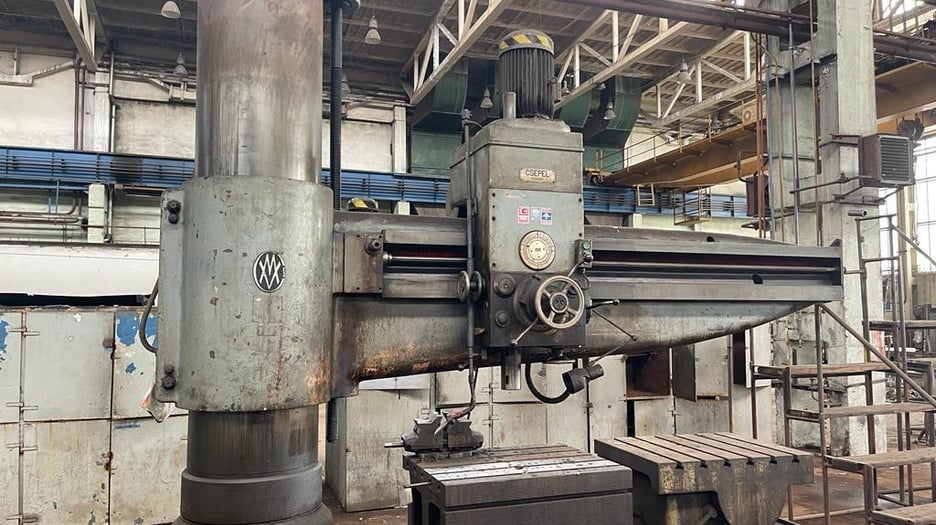

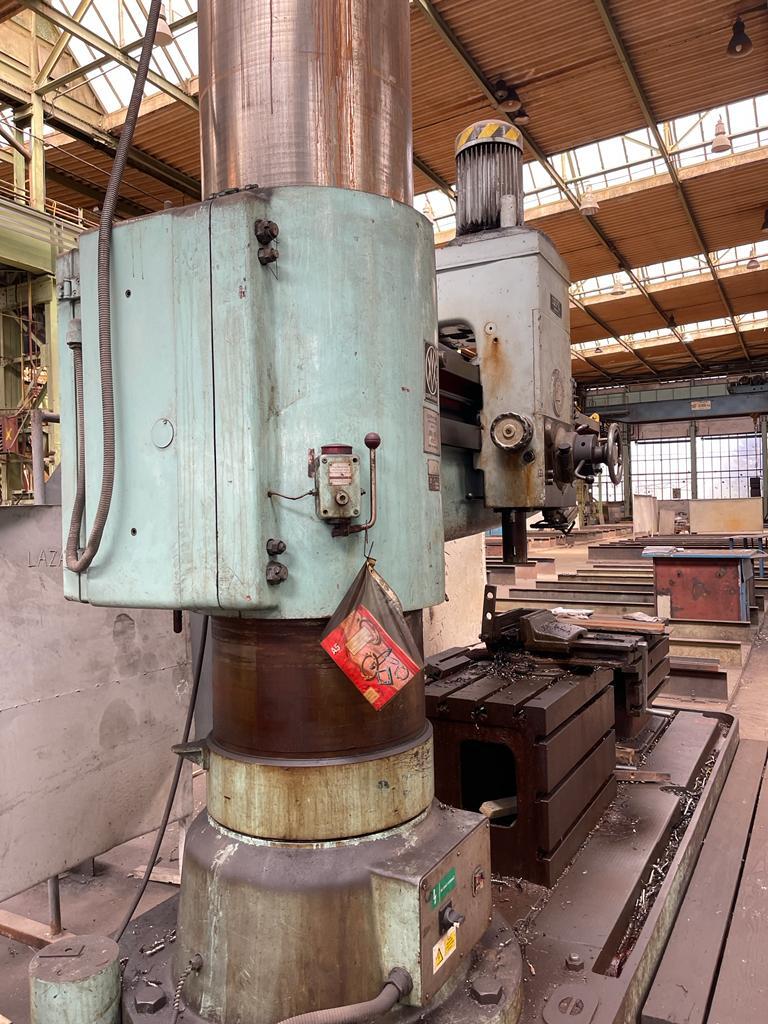

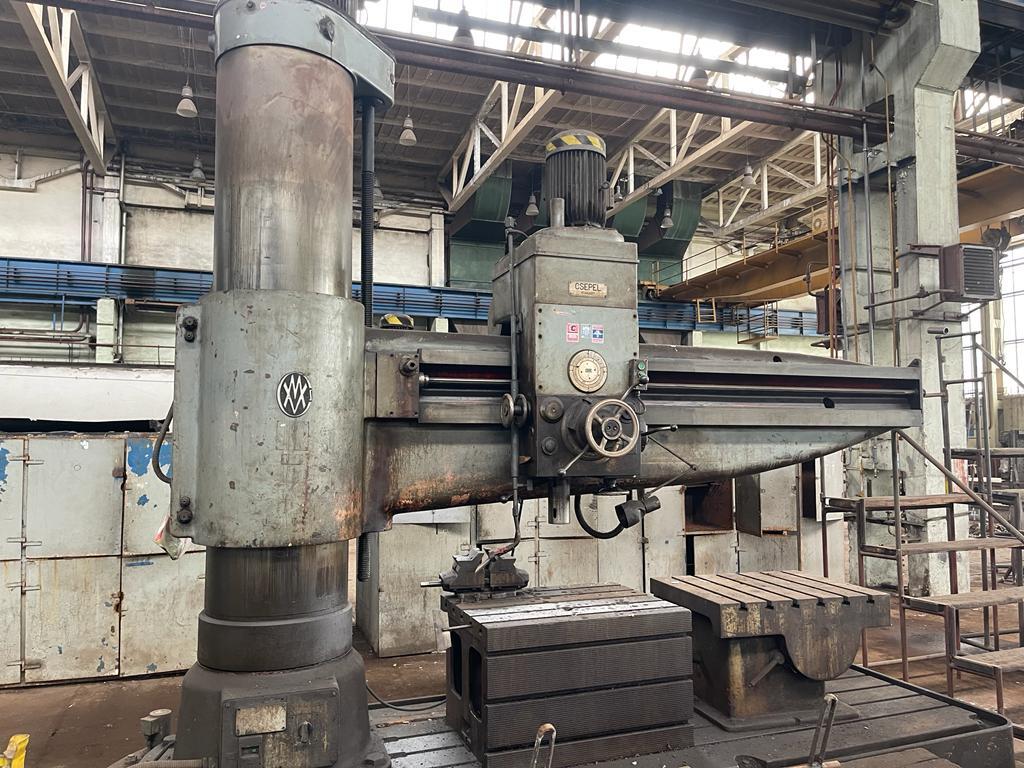

Used CSEPEL RFH-100/3000 Radial Drilling Machine | A.K. Machine Traders, Navi Mumbai, India

This used CSEPEL RFH-100/3000 radial drilling machine is available from A.K. Machine Traders in Navi Mumbai, India. A radial drilling machine drills holes in large workpieces by moving the spindle head along an arm rather than moving the work.

It offers a drilling diameter capacity of 100 mm and a drilling radius of 3,000 mm. The spindle has an MT 6 taper and runs at 18–1,800 rpm, with a 400 mm quill stroke. The machine weighs 13,200 kg and needs 13 kW in total.

Technical Specifications

• Model: RFH-100/3000
• Boring diameter capacity: 100 mm
• Drilling radius: 3,000 mm
• Workpiece height range: 440–2,100 mm
• Spindle taper: MT 6
• Spindle speed range: 18–1,800 rpm
• Quill stroke: 400 mm
• Table surface area: 3,160 × 1,500 mm
• Boring feed range: 0.0375–2 mm
• Distance spindle to column: 400–2,850 mm
• Total power requirement: 13 kW
• Machine dimensions: 4,390 × 1,550 × 4,130 mm
• Machine weight: 13,200 kg

Applications

• Drilling holes in large, heavy workpieces
• Boring and drilling in fabricated structures and castings
• General heavy engineering and workshop drilling

Commercial Details

• Make: CSEPEL
• Model: RFH-100/3000
• Condition: Used
• Location: Navi Mumbai, Maharashtra, India
• Seller: A.K. Machine Traders

Frequently Asked Questions

• What is the drilling radius? The drilling radius is 3,000 mm, with the spindle positioned 400–2,850 mm from the column.
• What spindle taper and speed range does it have? The spindle has an MT 6 taper and runs at 18–1,800 rpm.
• How heavy is the machine and what power does it need? It weighs 13,200 kg and has a total power requirement of 13 kW.
• What should I ask when enquiring? Ask for photos or video of the machine under power, an inspection option, which tooling and accessories are included, the condition of the electrics and controls, and loading and shipping arrangements for a machine of this weight.
