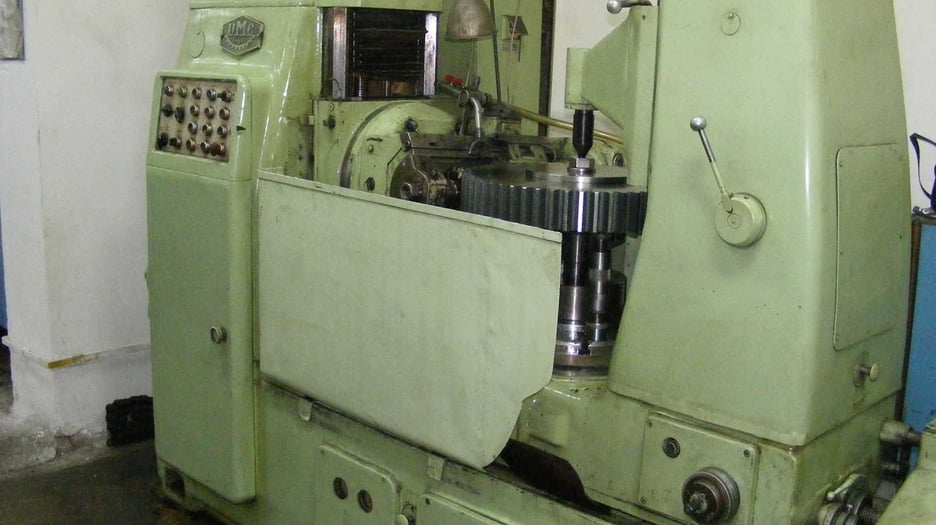

Used Cugir FD500 Gear Hobbing Machine | A.K. Machine Traders, Navi Mumbai, India

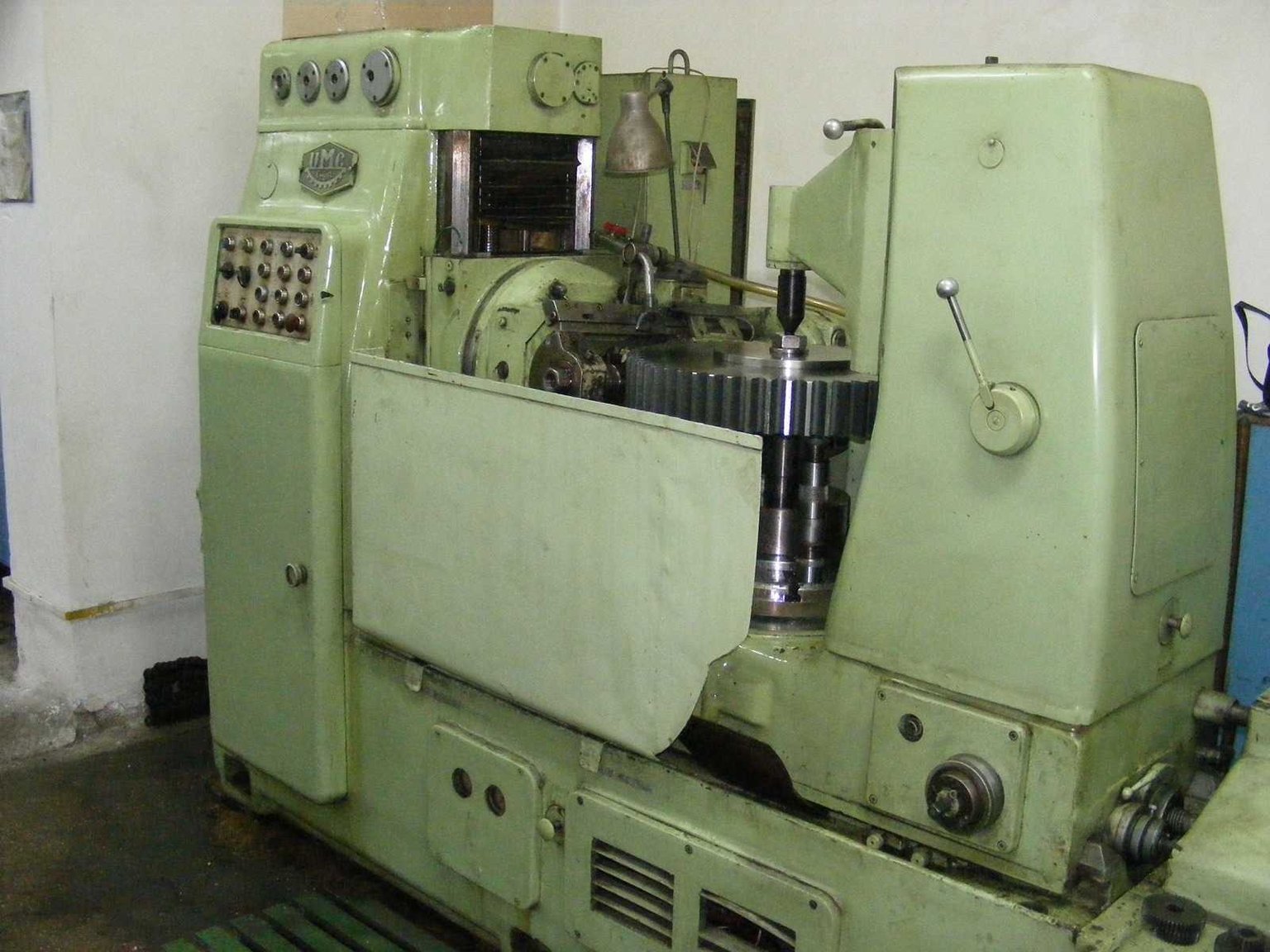

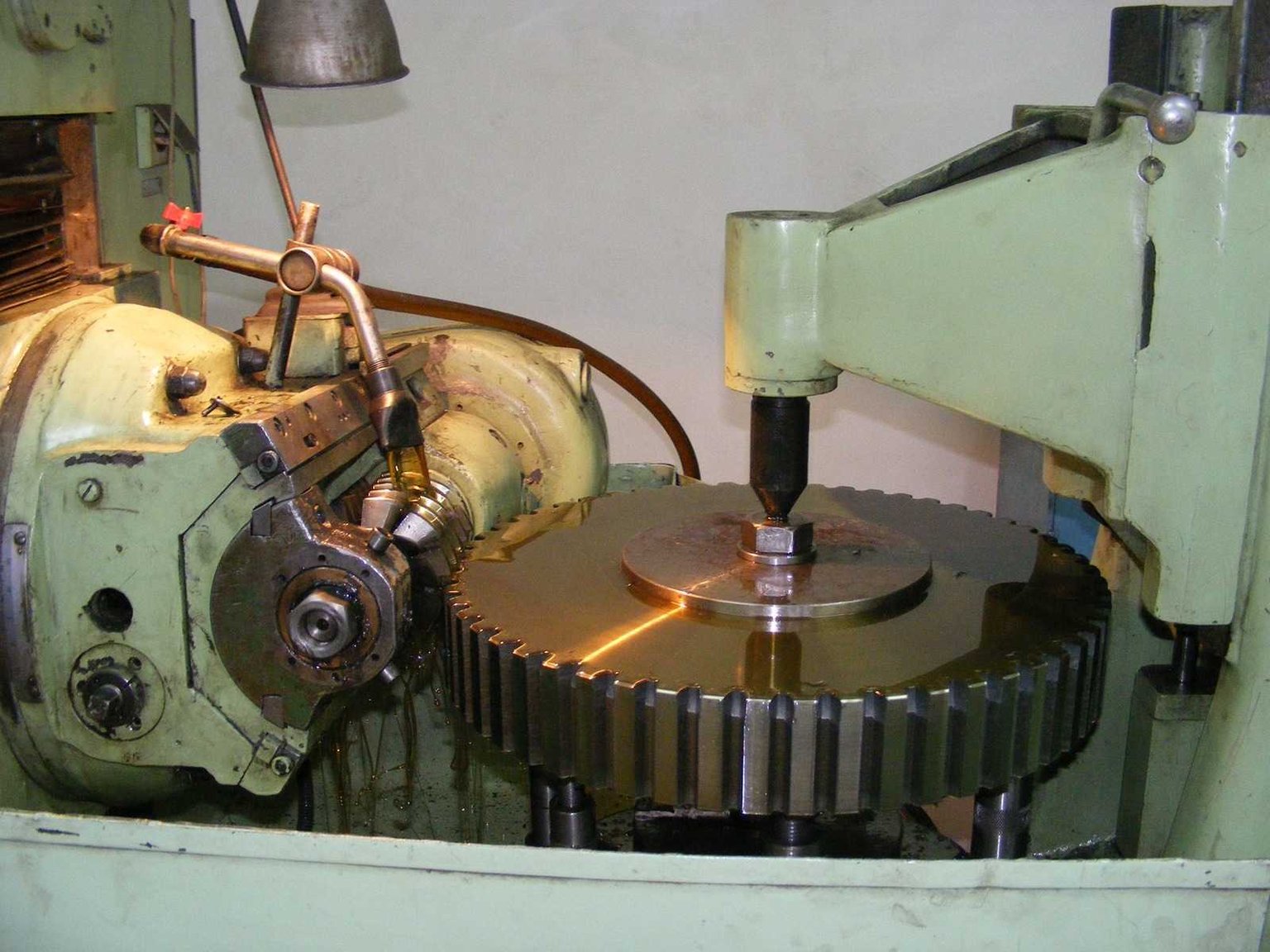

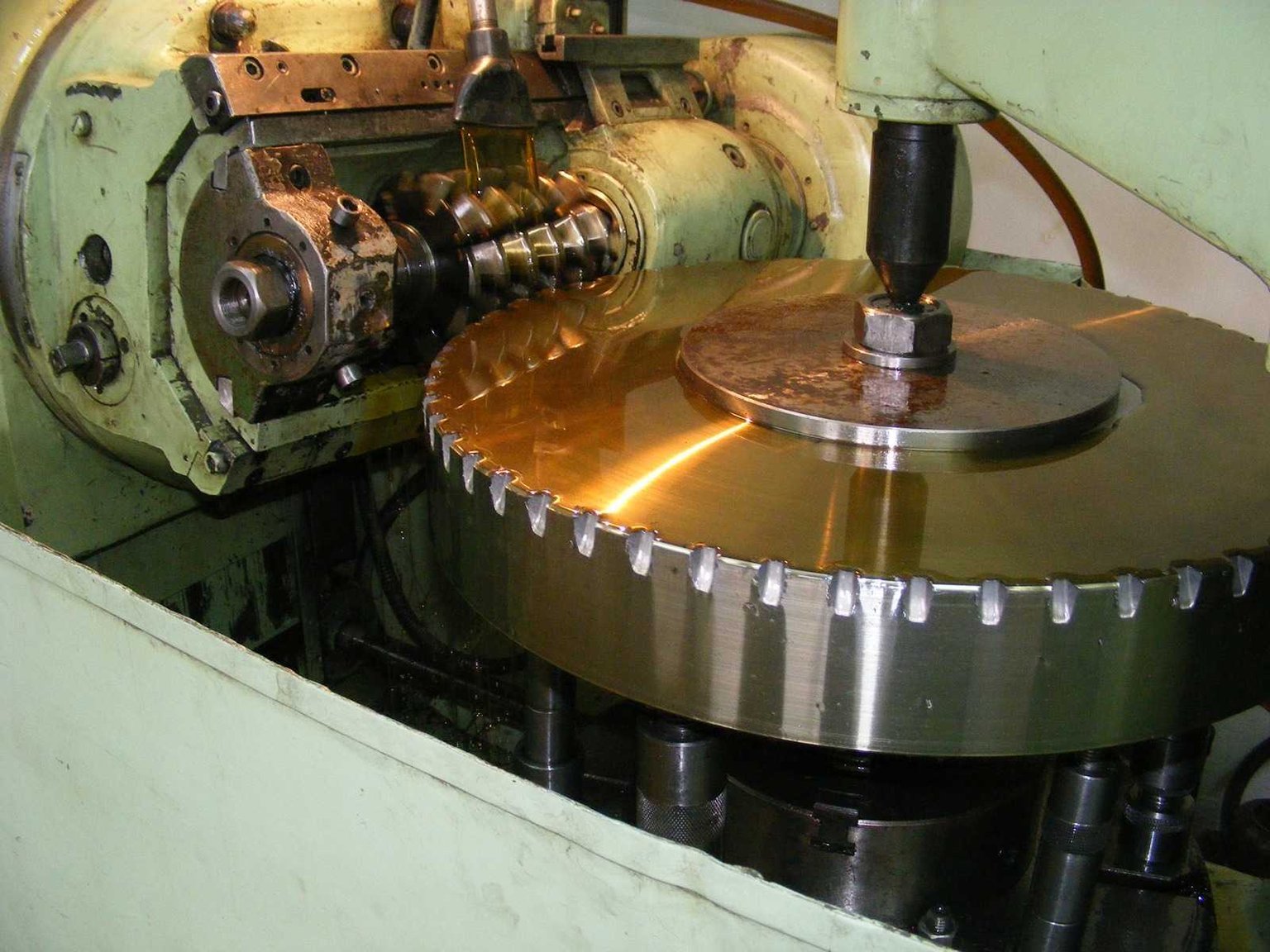

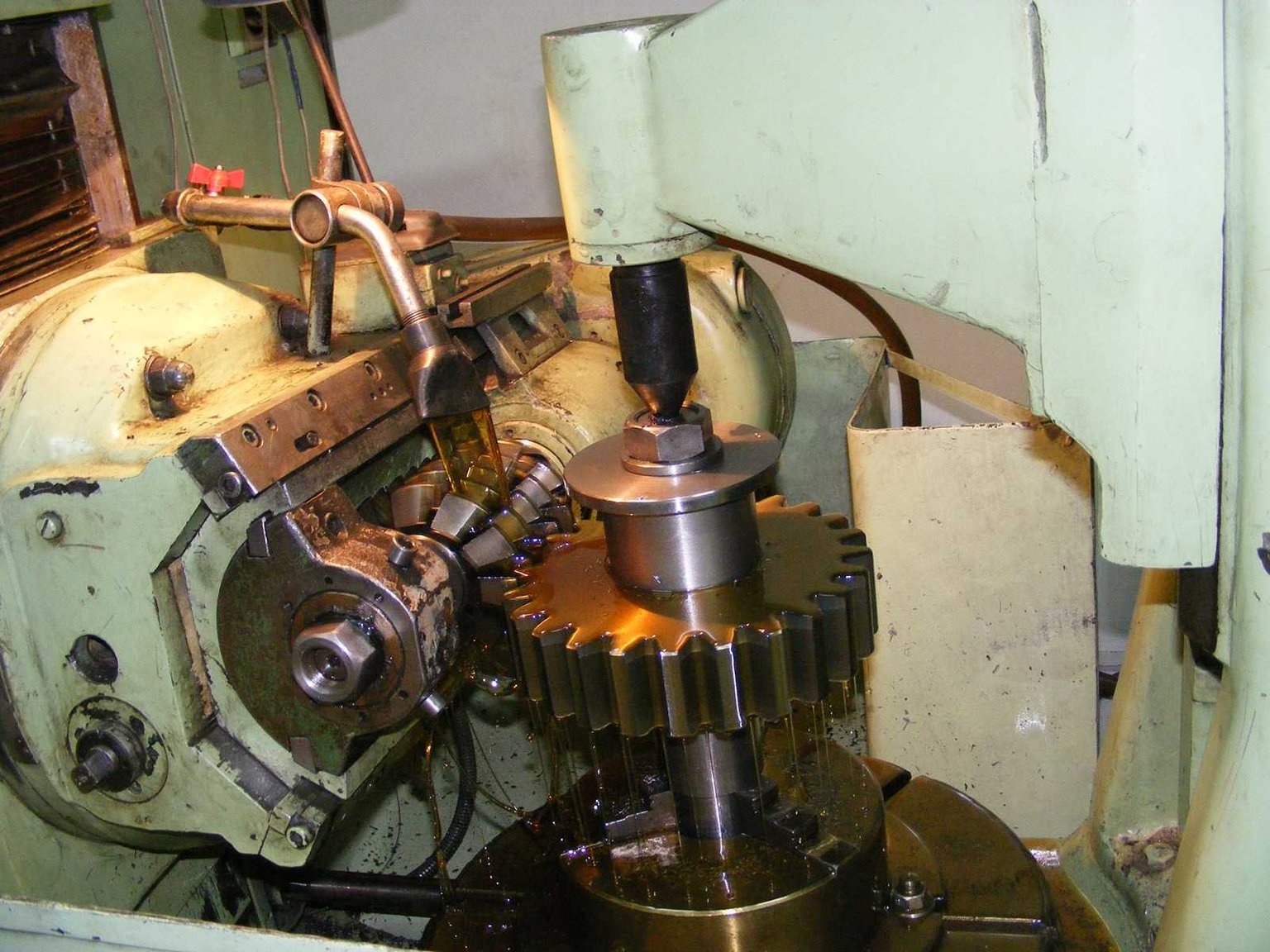

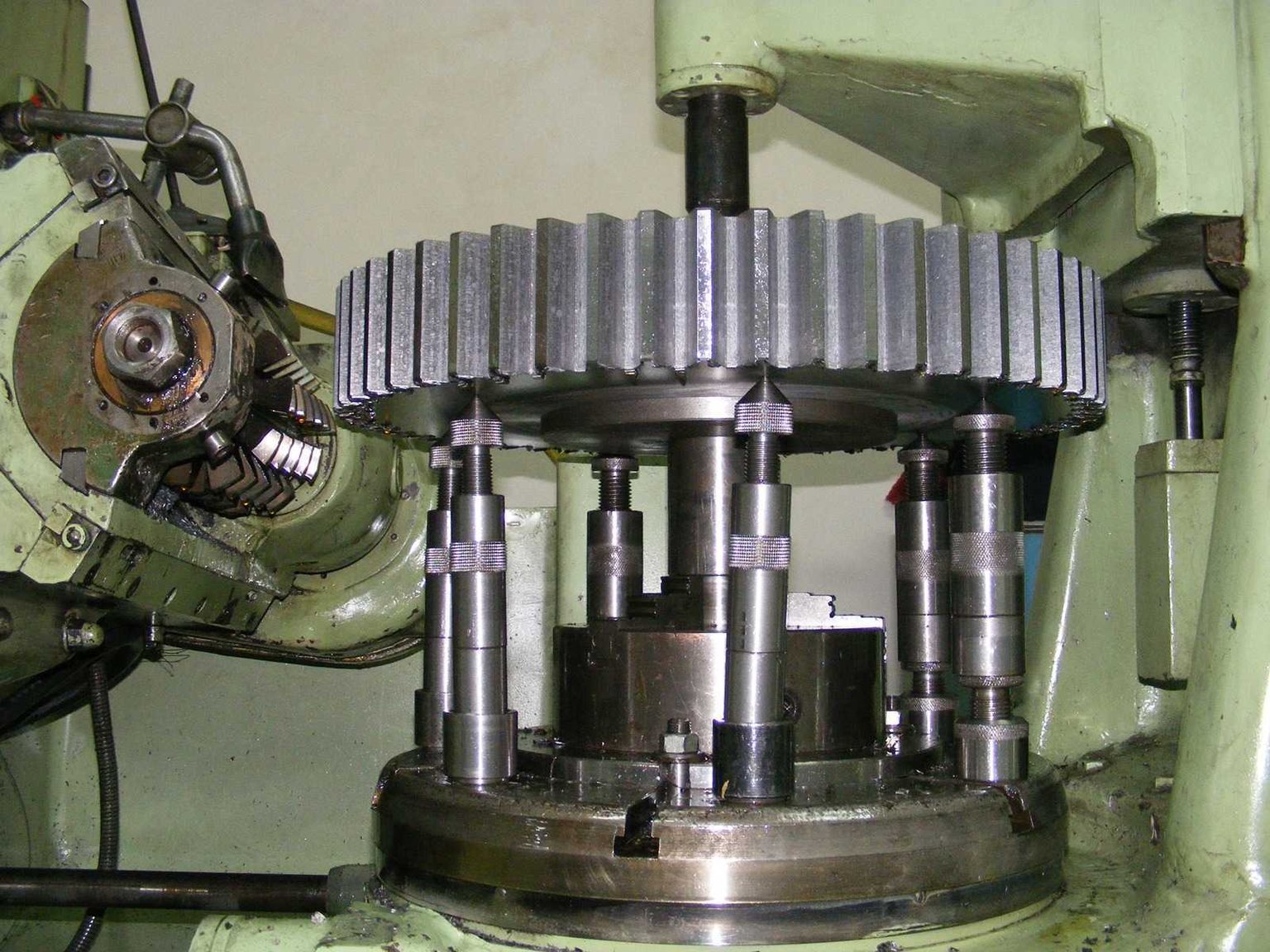

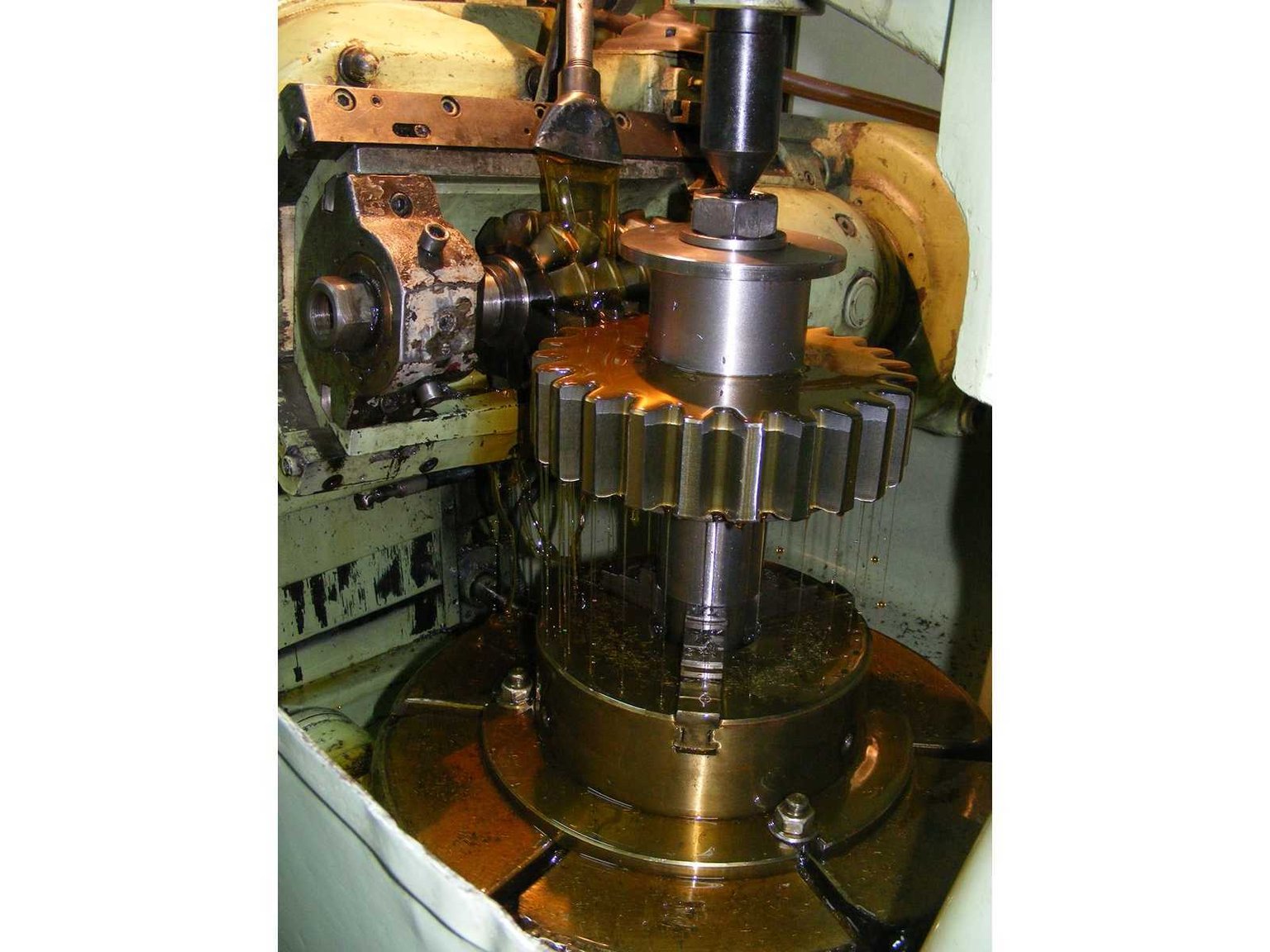

This used Cugir FD500 gear hobbing machine is available from A.K. Machine Traders in Navi Mumbai, India. A gear hobbing machine cuts gear teeth into round blanks using a rotating hob.

It takes gears up to 500 mm in diameter and up to module 8 mm, on a 500 mm diameter working table. The maximum axial feed stroke is approximately 280 mm and the minimum number of teeth is 8.

Technical Specifications

• Model: FD500
• Maximum gear diameter: 500 mm
• Maximum module: 8 mm
• Working table diameter: 500 mm
• Maximum axial feed stroke: Approx. 280 mm
• Maximum hob size: Approx. 170 mm diameter × 180 mm length
• Maximum hob shifting: 110 mm
• Minimum number of teeth: 8
• Machine weight: Approx. 6.2–6.5 t

Applications

• Cutting spur and helical gears for general engineering
• Producing gear blanks into finished teeth for gearboxes
• Making gears for machine tools and industrial drives

Commercial Details

• Make: Cugir
• Model: FD500
• Condition: Used
• Location: Navi Mumbai, Maharashtra, India
• Seller: A.K. Machine Traders

Frequently Asked Questions

• What is the largest gear this machine can cut? It handles gears up to 500 mm in diameter and up to module 8 mm.
• What hob size does it take? The maximum hob size is approximately 170 mm diameter by 180 mm length, with up to 110 mm of hob shifting.
• How heavy is the machine? It weighs approximately 6.2–6.5 t, which is useful for planning transport and installation.

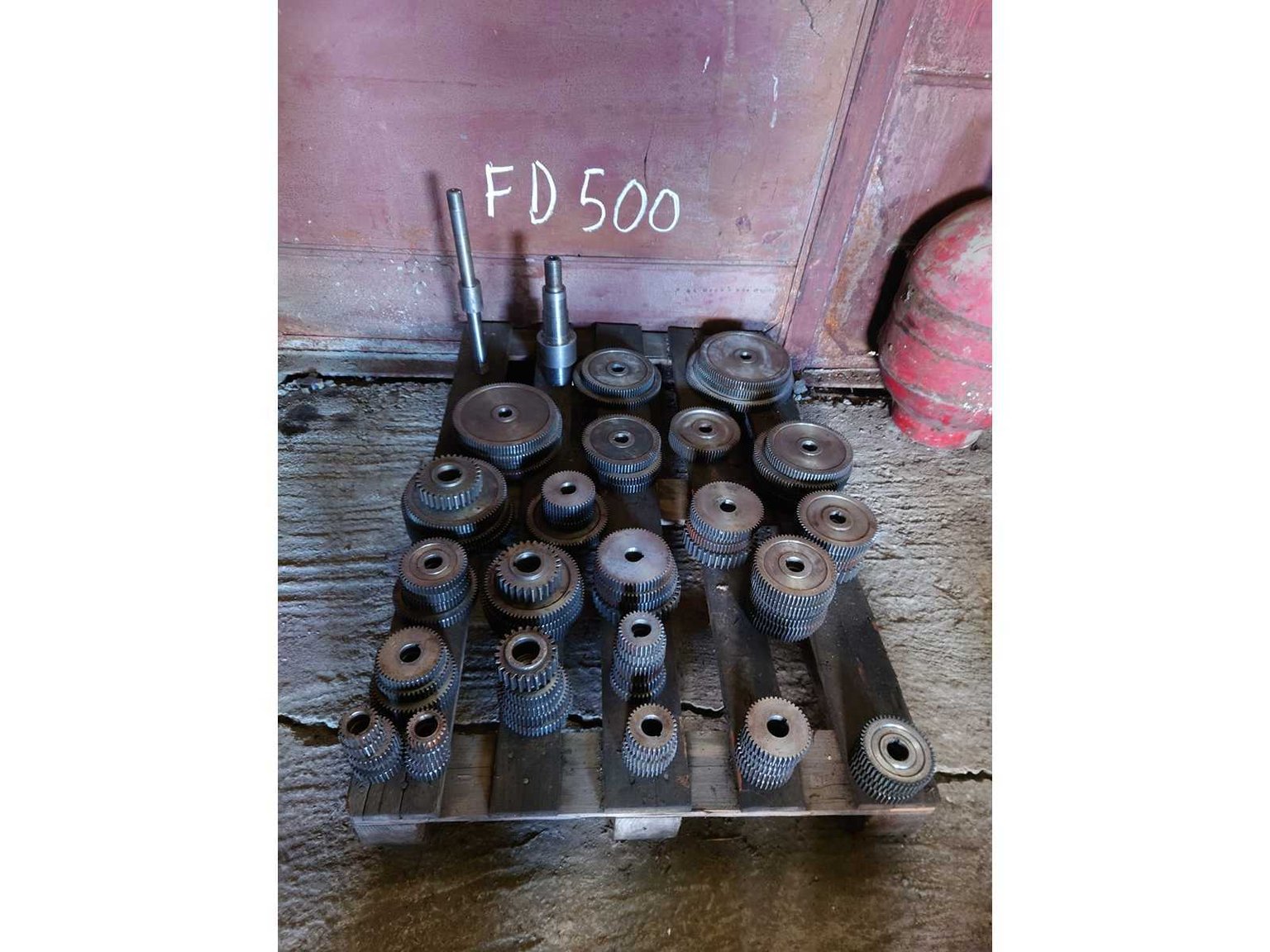

• What should I ask when enquiring? Ask for photos or video of the machine running under power, whether an inspection is possible, which change gears, hobs, fixtures and accessories are included, the condition of the electrics and controls, and how loading and shipping will be handled.
