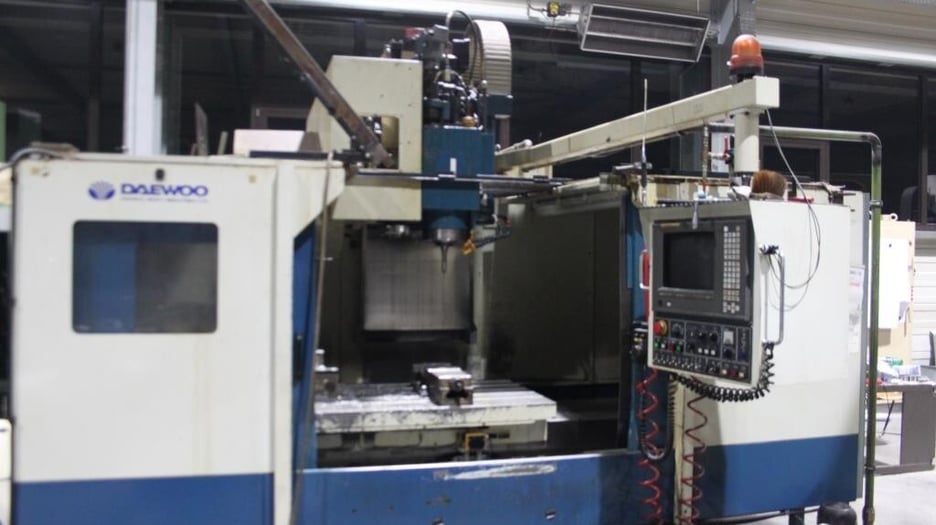

Used Daewoo Ace V65 Vertical Machining Centre | A.K. Machine Traders, Navi Mumbai, India

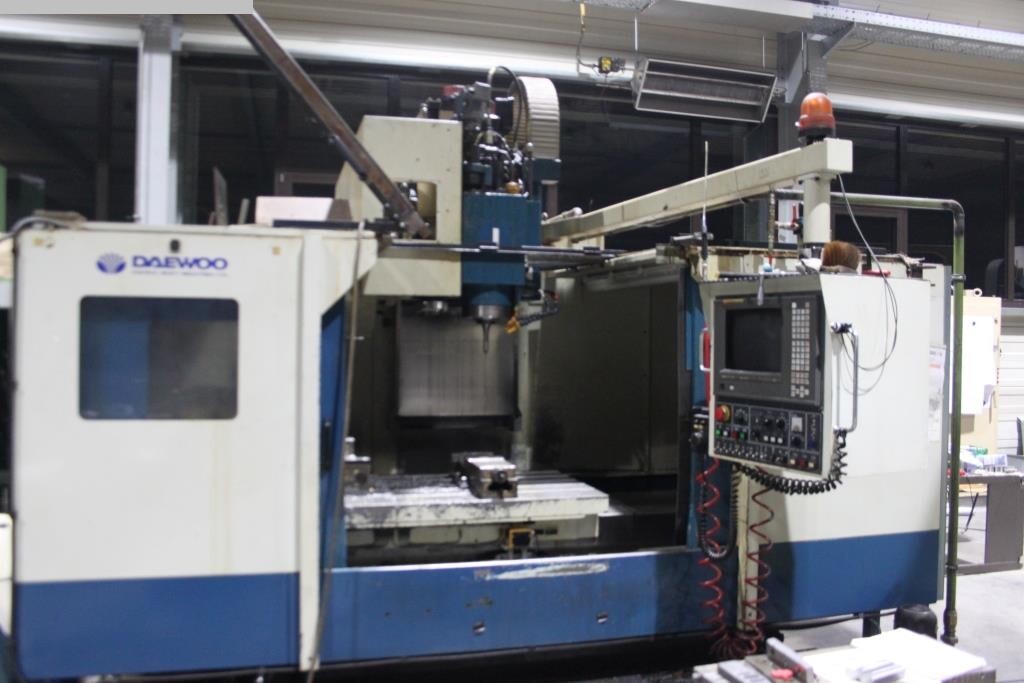

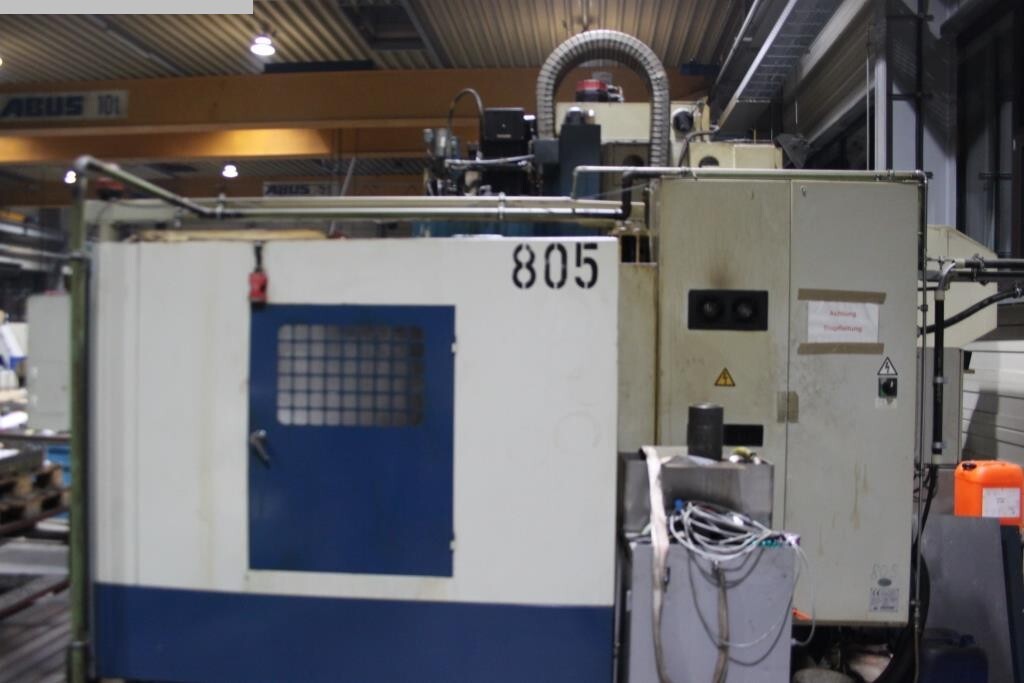

This used Daewoo Ace V65 vertical machining centre with 4th axis is available from A.K. Machine Traders in Navi Mumbai, India. It is a CNC machine that cuts metal parts with a rotating tool, and this one is controlled by a Fanuc 16-M.

Travels are 1,300 mm in X, 650 mm in Y and 650 mm in Z. The 18.5 kW spindle has an ISO 50 taper and runs at 25–4,500 rpm. A 24-tool changer and through-spindle coolant are fitted, and the table takes workpieces up to 2,000 kg.

Key Features

• Fourth controlled axis
• 24-position tool changer
• Coolant through the spindle
• Table with five T-slots

Technical Specifications

• Model: Daewoo Ace V65 with 4th axis

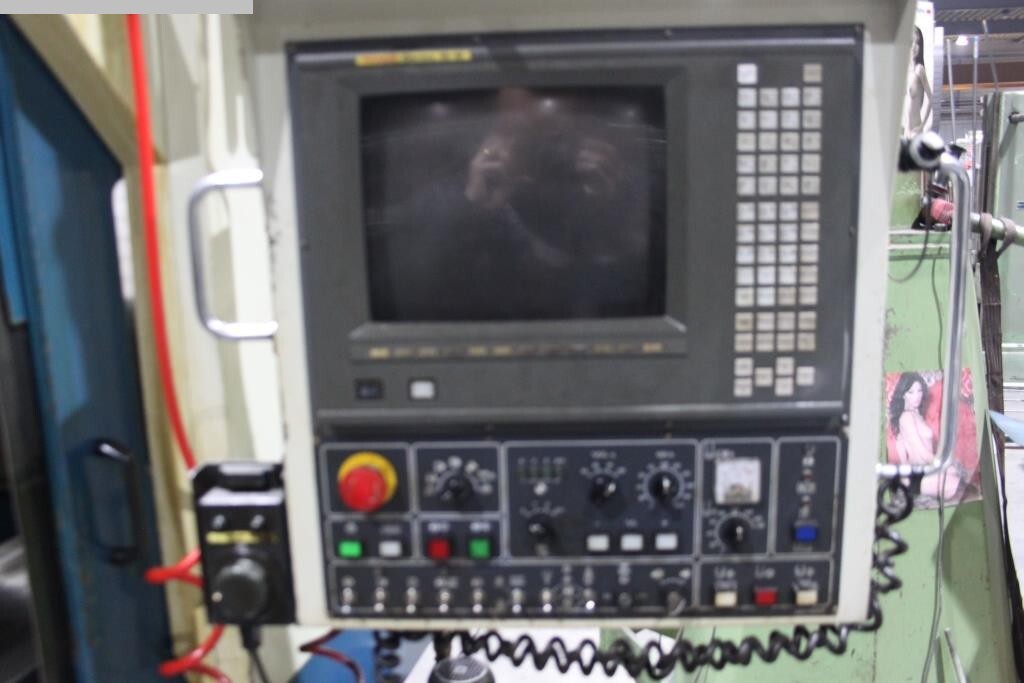

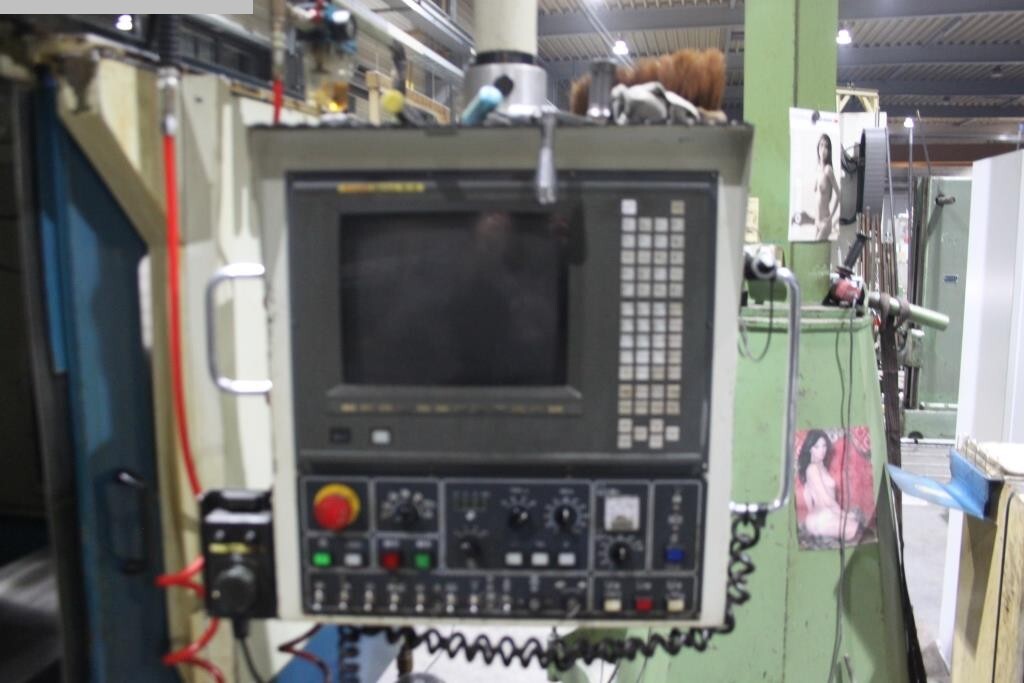

• Control: Fanuc 16-M
• X-axis travel: 1,300 mm
• Y-axis travel: 650 mm
• Z-axis travel: 650 mm
• Spindle nose to table distance: 680 mm

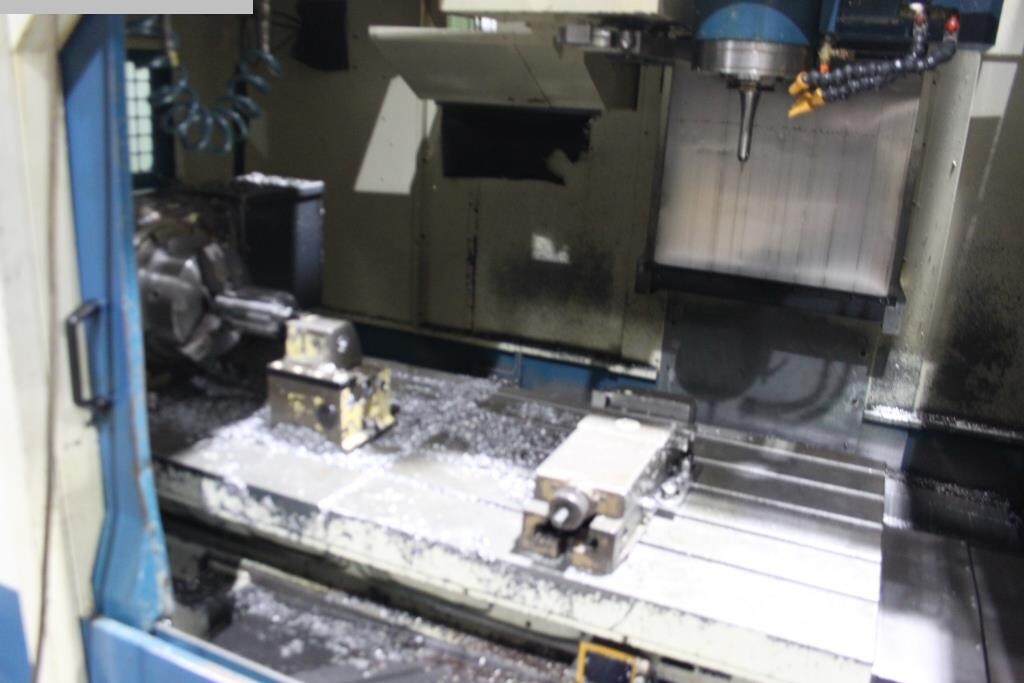

• Table size: 1,800 × 730 mm
• Maximum workpiece weight: 2,000 kg
• T-slots: 5, 18H8, 125 mm pitch
• Spindle power: 18.5 kW

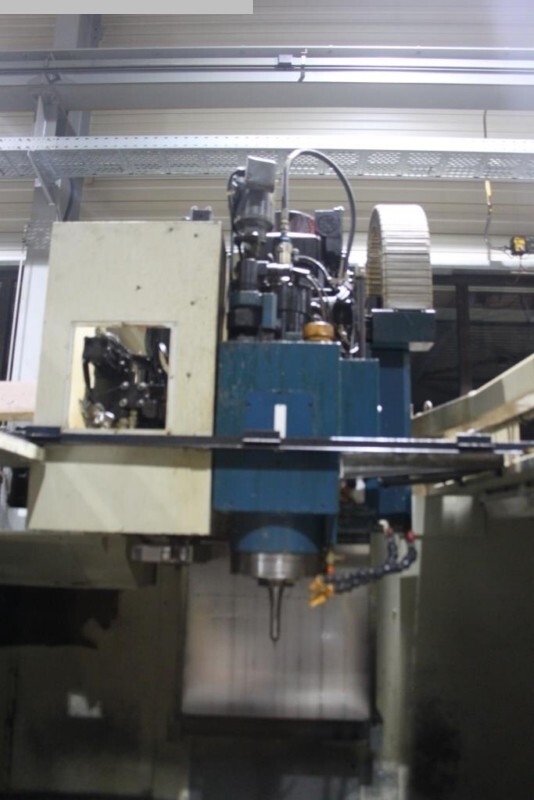

• Spindle speed: 25–4,500 rpm
• Spindle taper: ISO 50
• Transmission ratio: 2
• Tool changer: 24 tools
• Feed rate: 1–5,000 mm/min
• Rapid traverse: 1–13,000 mm/min
• Spindle coolant: Through the spindle
• Controlled axes: 4
• Machine weight: approx. 12.5 t
• Machine dimensions: approx. 4.3 × 4.62 × 3.25 m

Applications

• Milling of medium to large metal components
• Machining of moulds, dies and fixtures
• Machine parts needing multi-face work with a fourth axis
• General engineering and job-shop machining

Commercial Details

• Make: Daewoo
• Model: Ace V65
• Condition: Used
• Location: Navi Mumbai, Maharashtra, India
• Seller: A.K. Machine Traders

Frequently Asked Questions

• What is the work area of the Daewoo Ace V65? Travels are 1,300 × 650 × 650 mm on a 1,800 × 730 mm table that carries up to 2,000 kg.
• What control and tool changer does it have? It has a Fanuc 16-M control and a 24-tool changer, with four controlled axes.
• How fast is the spindle? The 18.5 kW ISO 50 spindle runs at 25–4,500 rpm.
• What should I ask when enquiring? Ask for photos or a video of the machine running under power, and whether an inspection is possible. Confirm the tooling, 4th-axis unit and accessories included, the condition of the control and electrics, and the loading and shipping arrangements for a machine of about 12.5 t.
