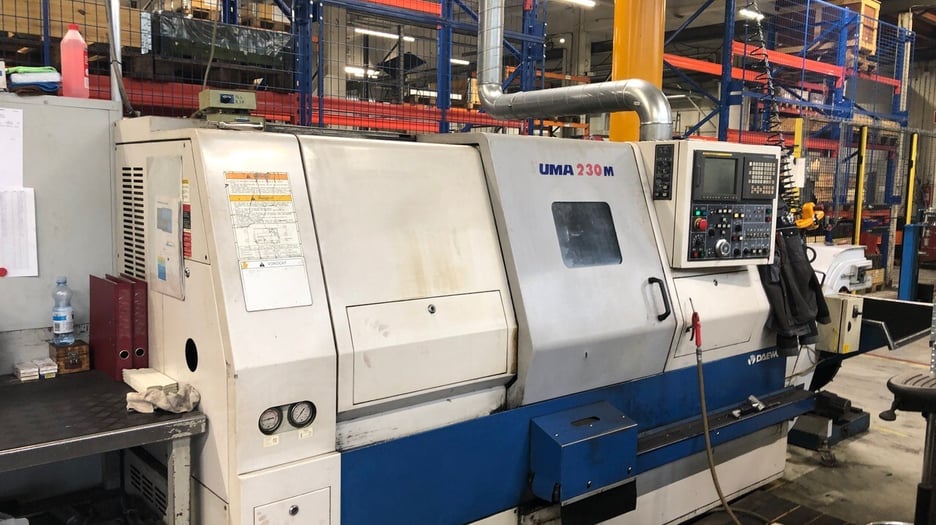

Used Daewoo Puma 230MC CNC Turning Center | A.K. Machine Traders, Navi Mumbai, India

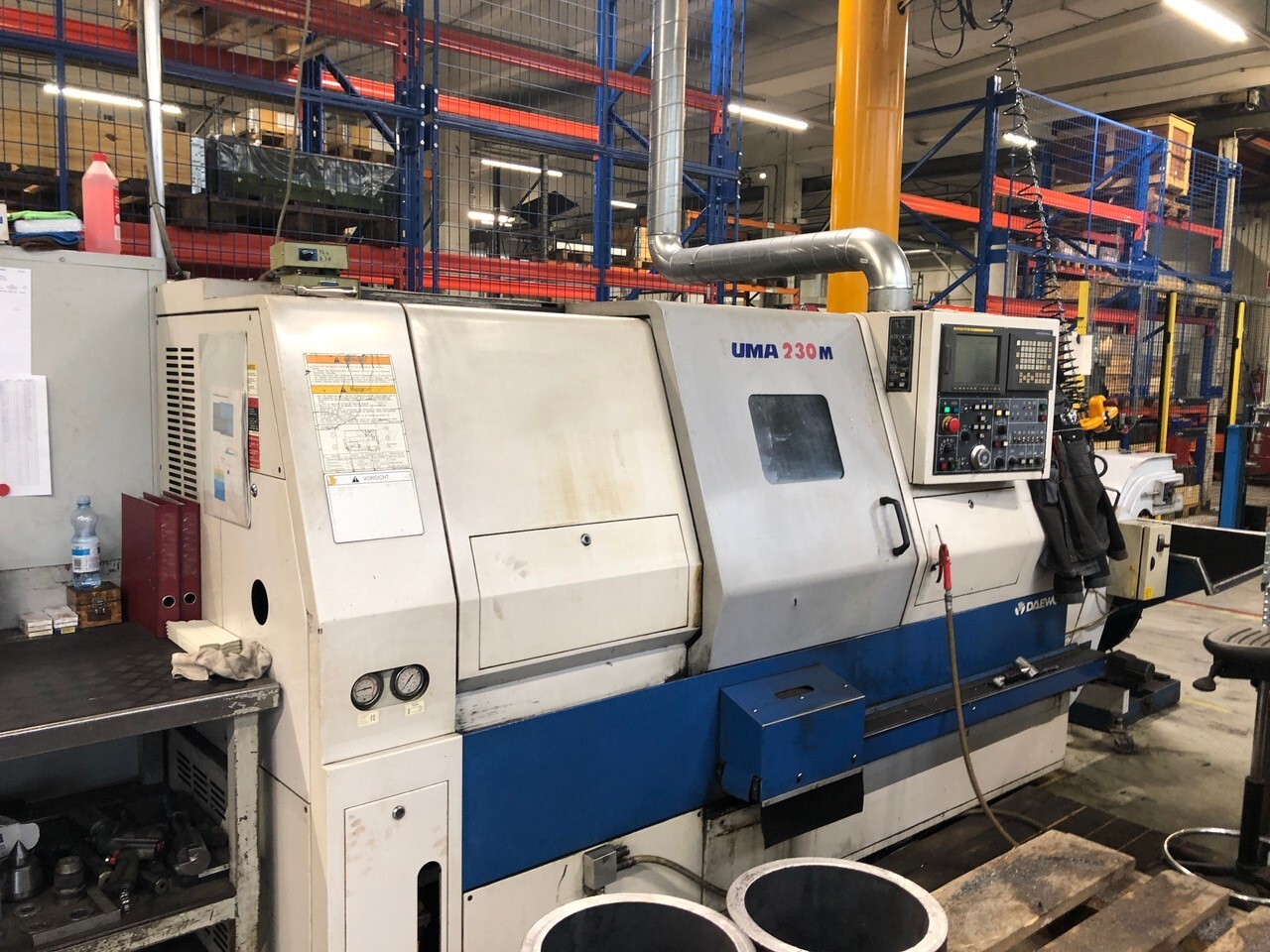

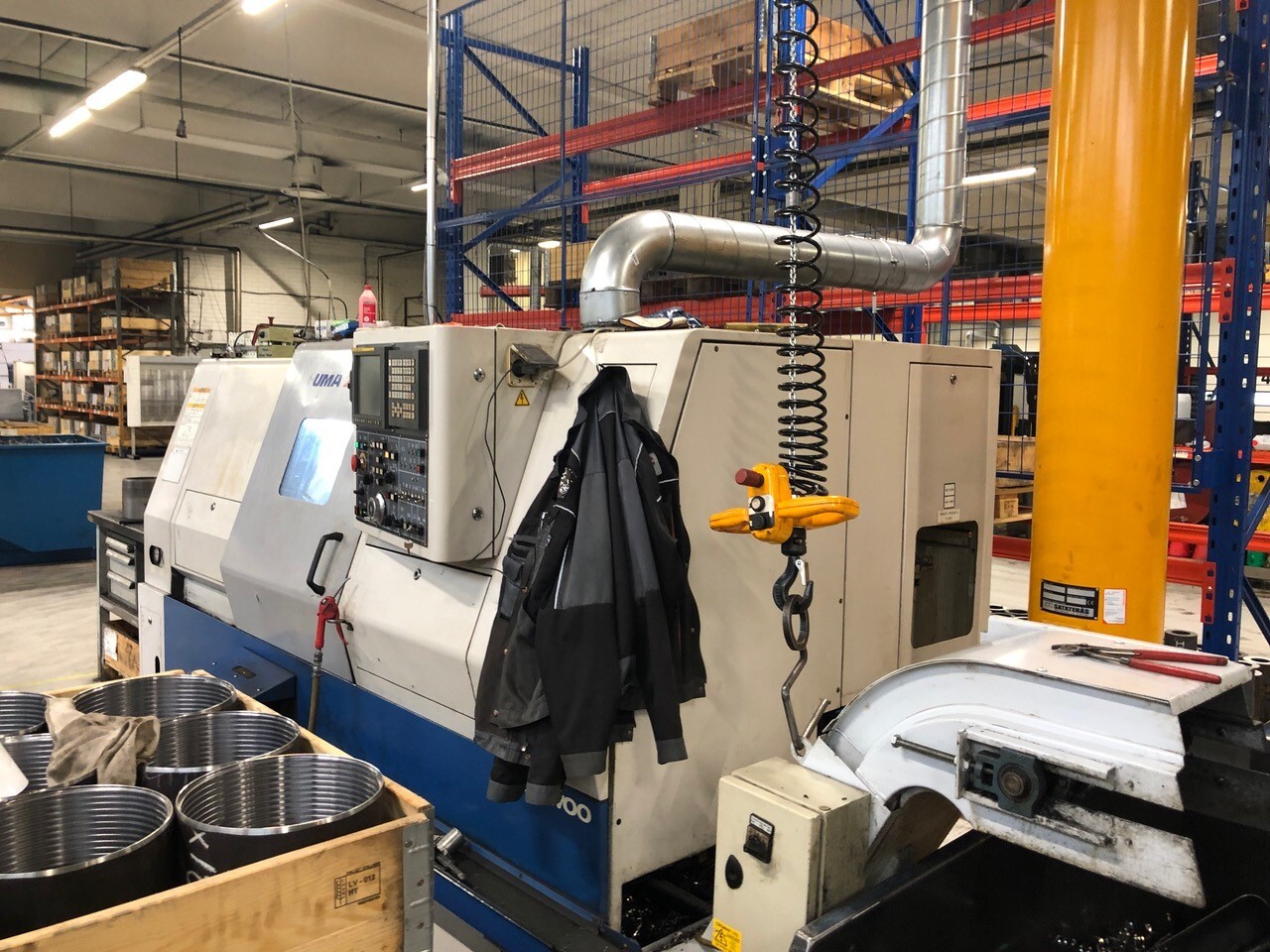

This used Daewoo PUMA 230MC CNC turning center is available from A.K. Machine Traders in Navi Mumbai, India. It is a CNC lathe with a Fanuc 18iT control and a year of manufacture of 2001.

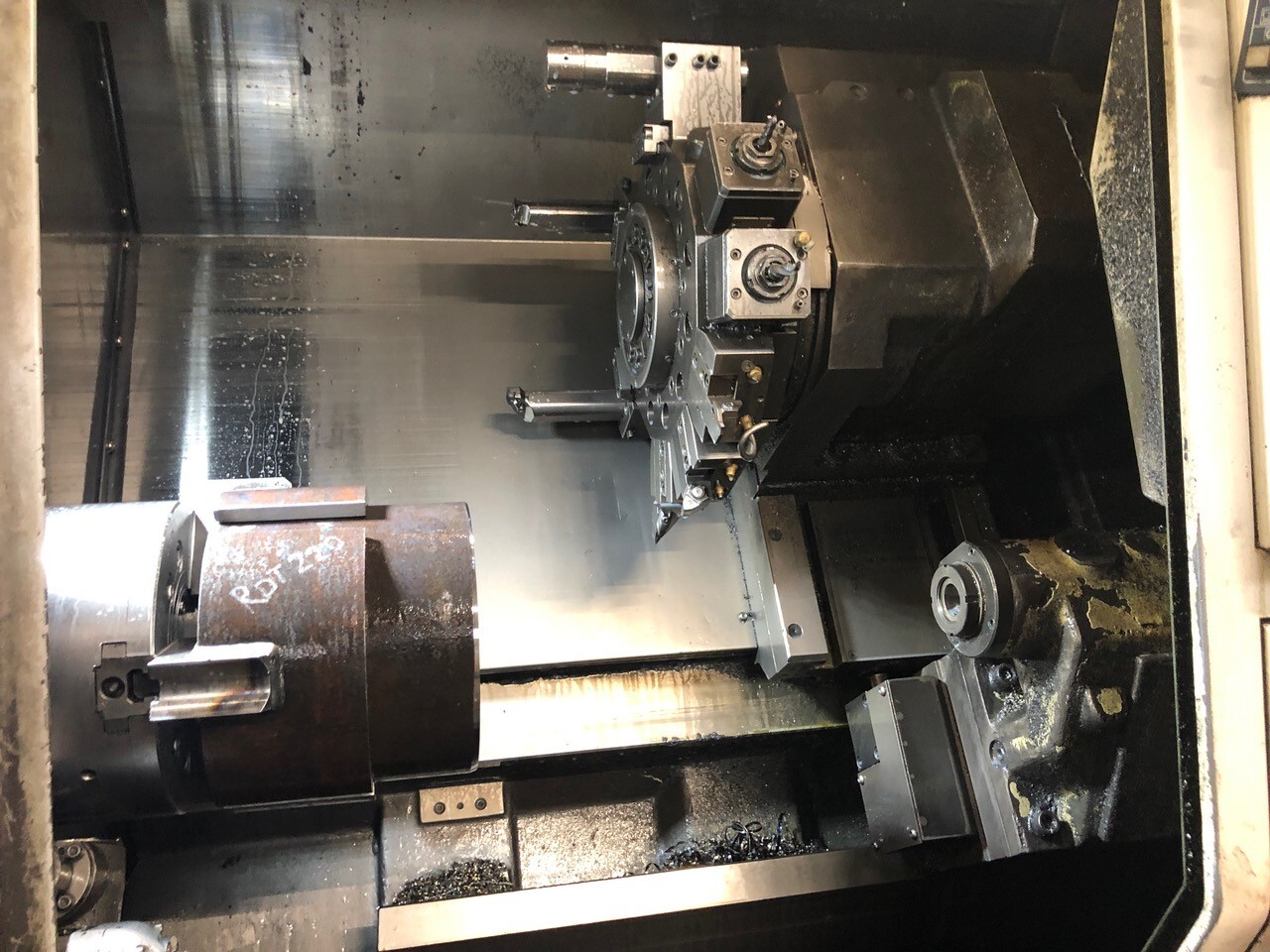

It has a 12-station turret, five of which are live tool stations, so milling and drilling can be done in the same setup as turning. Maximum turning diameter is 11.4 in and maximum turning length is 18.8 in, with a 20 HP spindle motor and an A2-8 spindle nose.

Key Features

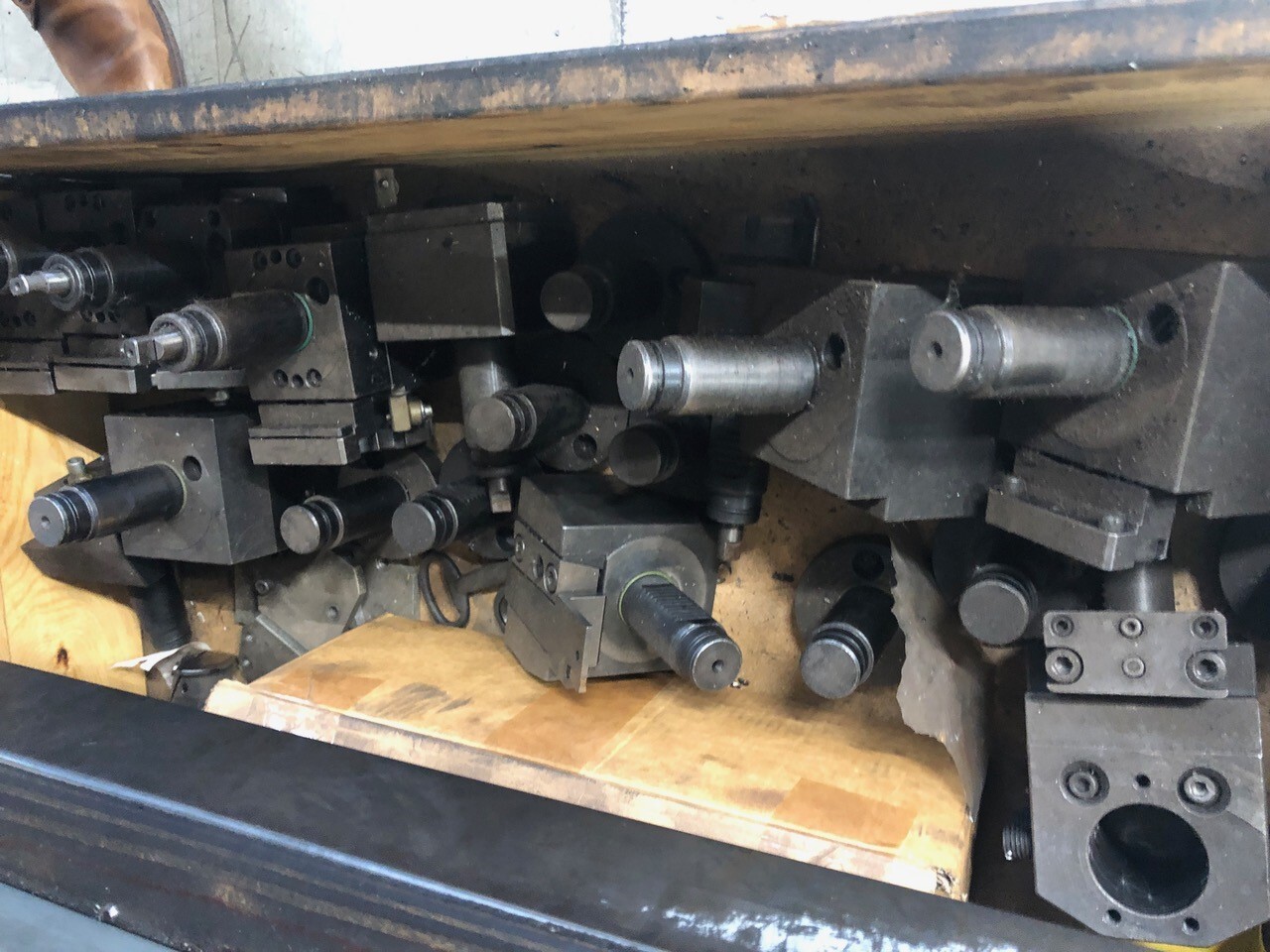

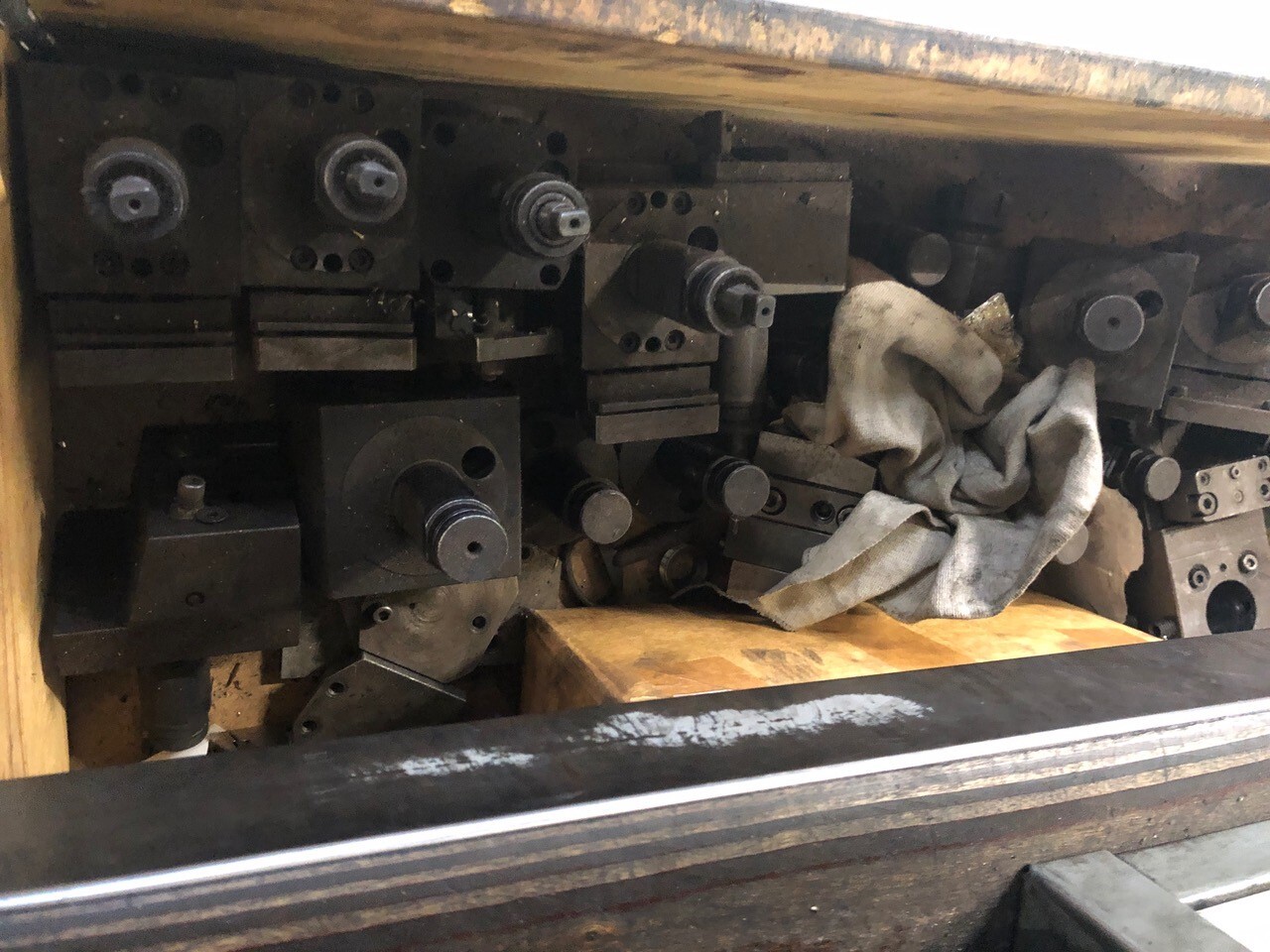

• 12-station turret with 5 live tool stations
• Live tooling driven by a 5 HP rotary motor

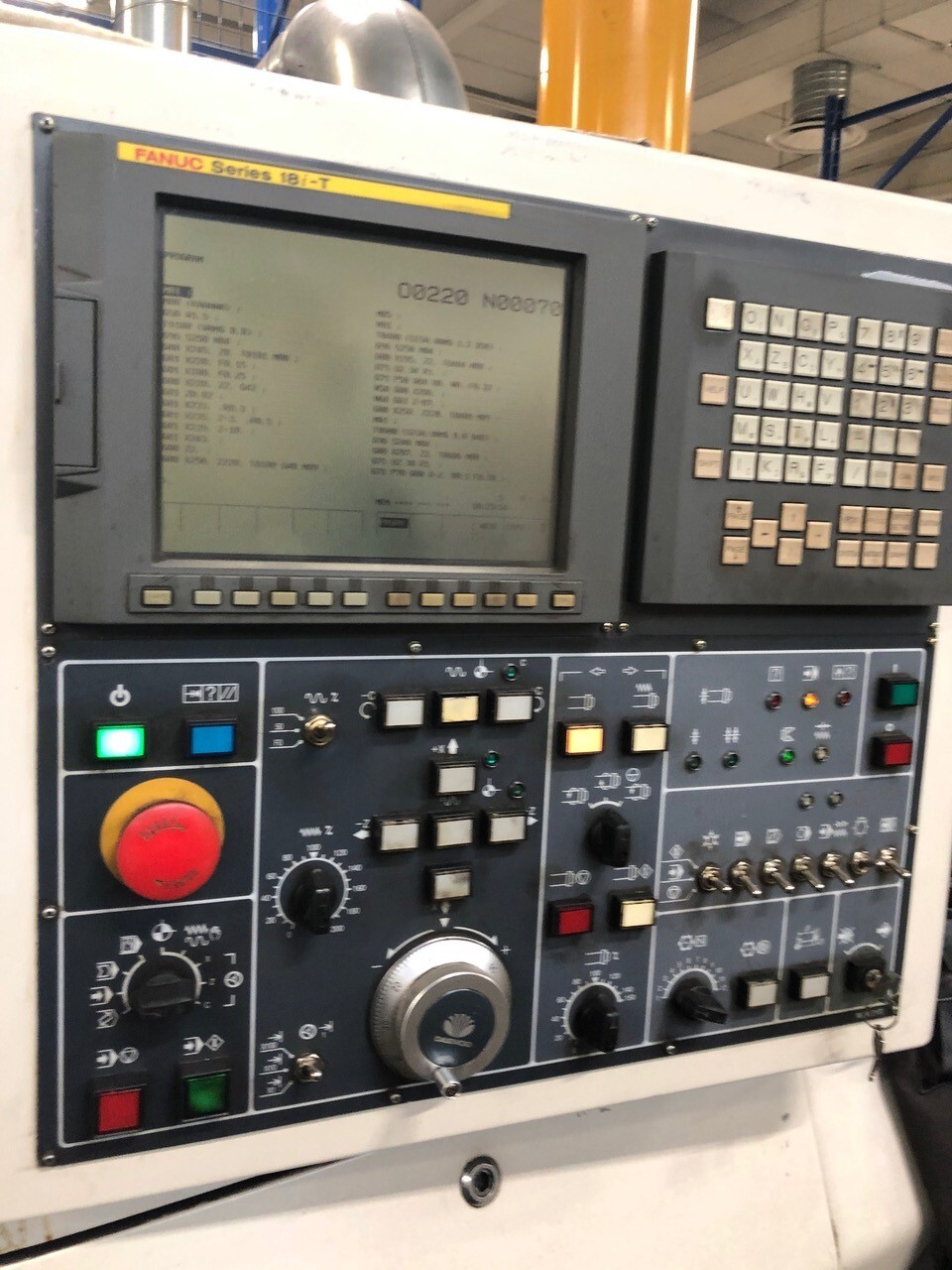

• Fanuc 18iT CNC control
• MT4 tailstock quill taper

Technical Specifications

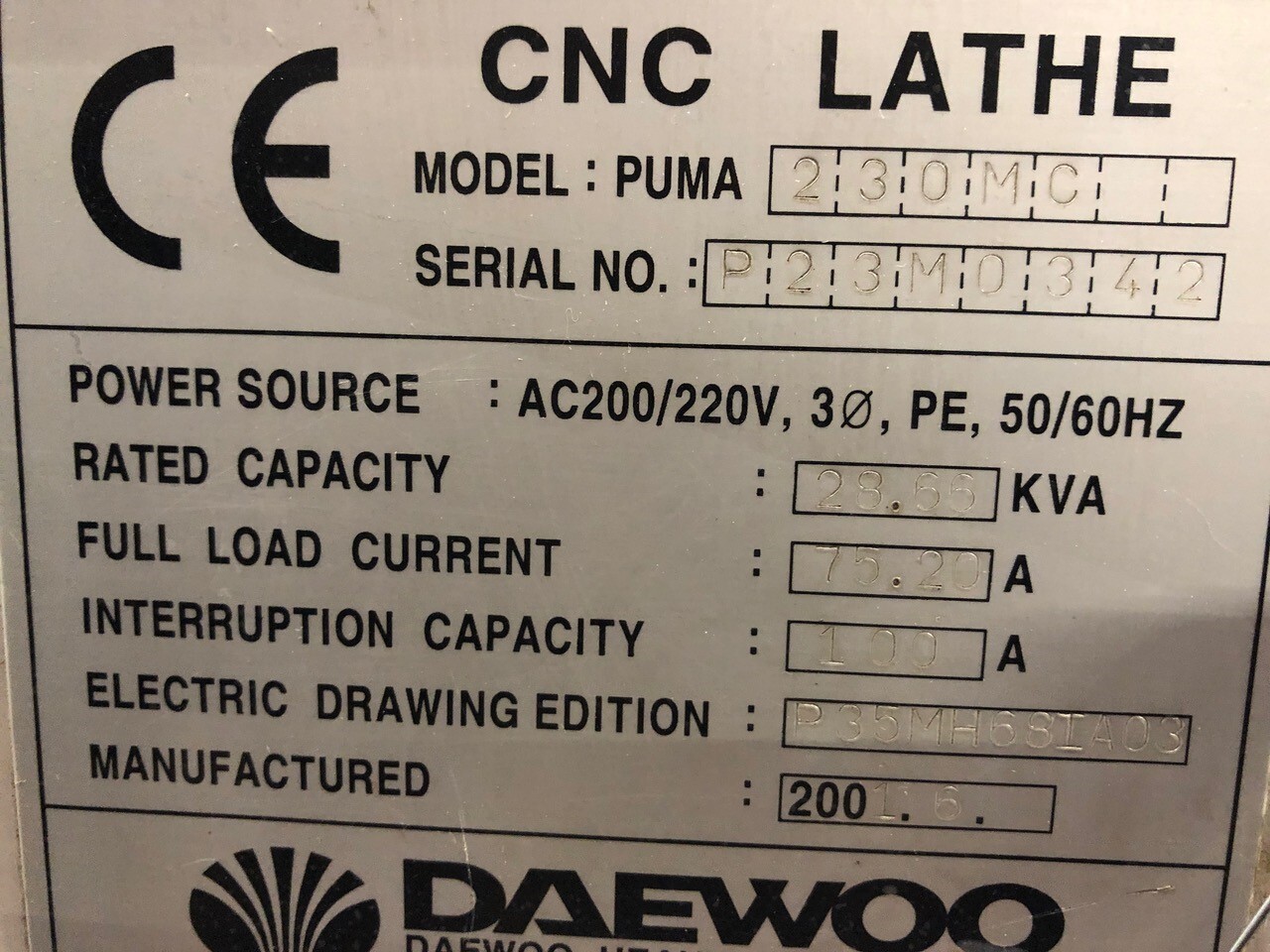

• Model: Daewoo PUMA 230MC
• Year of manufacture: 2001
• Control: Fanuc 18iT
• Swing over bed: 21.65 in
• Swing over cross slide: 15.40 in
• Maximum turning diameter: 11.4 in
• Maximum turning length: 18.8 in
• Spindle speed: 35–3,500 RPM
• Spindle bore: 4.1 in
• Bar capacity: 3.5 in
• Spindle nose: A2-8
• Spindle motor: 20 HP
• Turret stations: 12
• Live tool stations: 5
• Live tool speed: 60–6,000 RPM
• Live tool motor: 5 HP
• Tailstock quill taper: MT4
• Machine dimensions: 129.9 in L x 74.9 in W x 84.7 in H
• Machine weight: 18,700 lb

Applications

• Turned shafts, pins and bushings
• Round parts needing milled flats, cross holes or drilled features in one setup
• Bar-fed turned components up to 3.5 in diameter
• General precision machining and job-shop turning

Commercial Details

• Make: Daewoo
• Model: PUMA 230MC
• Year: 2001
• Condition: Used
• Location: Navi Mumbai, Maharashtra, India
• Seller: A.K. Machine Traders

Frequently Asked Questions

• What control does this lathe have? It has a Fanuc 18iT CNC control.
• Does it have live tooling? Yes, it has 5 live tool stations on a 12-station turret, with live tool speeds of 60–6,000 RPM.
• What size parts can it turn? It turns up to 11.4 in diameter and 18.8 in length, with a bar capacity of 3.5 in.
• What should I ask when enquiring? Ask for photos or video of the machine running under power, whether an inspection is possible, which tooling, chuck and accessories are included, the condition of the control and electrics, and the loading and shipping arrangements.
