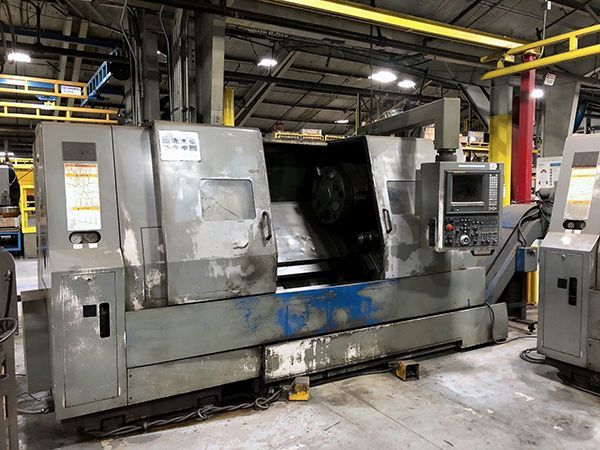

Used Daewoo Puma 400 MB CNC Lathe | A.K. Machine Traders, Navi Mumbai, India

This used Daewoo Puma 400 MB CNC lathe is available from A.K. Machine Traders in Navi Mumbai, India. A CNC lathe turns round parts under computer control.

It has a 50 HP spindle motor with 1836 ft-lbs of torque and a spindle speed of 20–2,000 rpm. The maximum turning diameter is 21.7″ and the maximum turning length is 41.1″. It is fitted with live tools, a tailstock and a Fanuc 18-T control.

Key Features

• 20″ chuck fitted

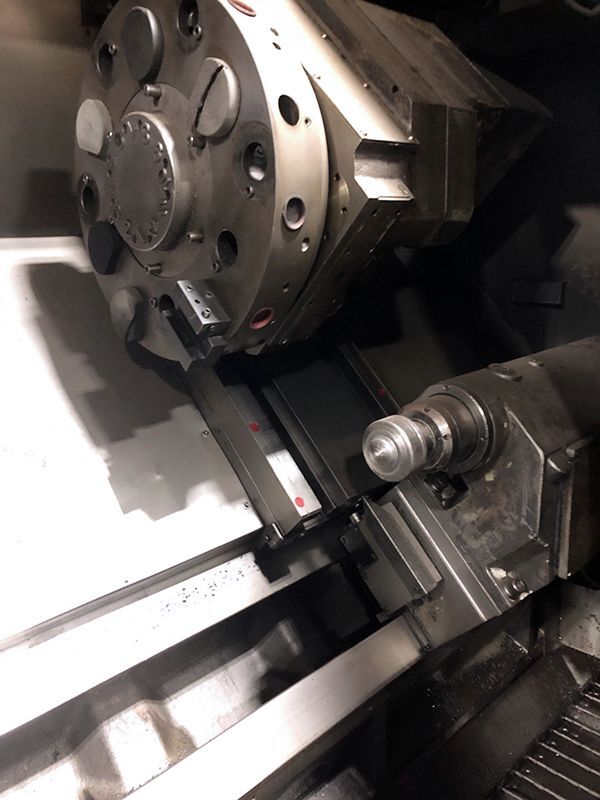

• Live tools
• Tailstock

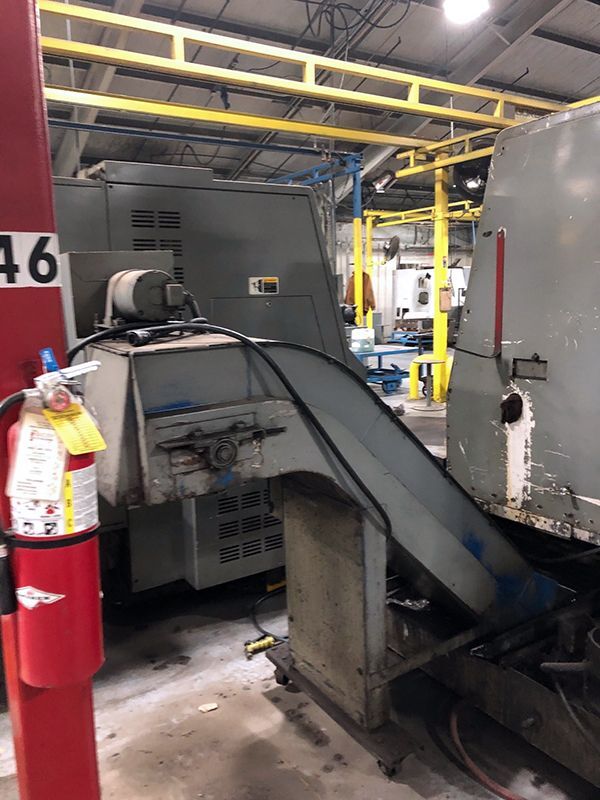

• Chip conveyor
• VDI tool holders included

Technical Specifications

• Model: Puma 400 MB
• Maximum swing: 30.3″
• Swing over carriage: 18.9″
• Maximum turning diameter: 21.7″
• Maximum turning length: 41.1″
• X-axis travel: 14.3″
• Z-axis travel: 43.5″
• Rapid traverse: 630/790 IPM
• Bar capacity: 4.6″
• Spindle nose: A2-11
• Spindle motor: 50 HP
• Spindle torque: 1836 ft-lbs
• Spindle speed: 20–2,000 rpm

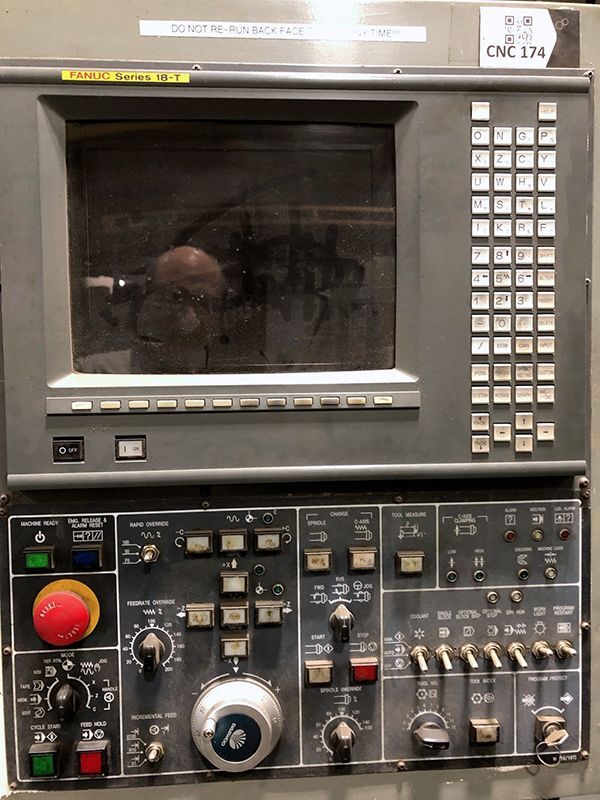

• Control: Fanuc 18-T

Applications

• Turned shafts and round components
• Bar-fed turned parts up to 4.6″ bar capacity
• Parts needing milling or drilling operations using live tools
• General machining and engineering workshops

Commercial Details

• Make: Daewoo
• Model: Puma 400 MB
• Condition: Used
• Location: Navi Mumbai, Maharashtra, India
• Seller: A.K. Machine Traders

Frequently Asked Questions

• What is the spindle speed and power? The spindle runs at 20–2,000 rpm and is driven by a 50 HP motor with 1836 ft-lbs of torque.
• What is the largest part it can turn? The maximum turning diameter is 21.7″ and the maximum turning length is 41.1″.
• What equipment comes with it? It is equipped with a 20″ chuck, chip conveyor, tailstock, live tools, VDI tool holders and a Fanuc 18-T control.
• What should I ask when enquiring? Ask for photos or video of the lathe running under power, and whether an inspection can be arranged. Confirm which chuck, tool holders and accessories are included, the condition of the Fanuc 18-T control and electrics, and the loading and shipping arrangements.
