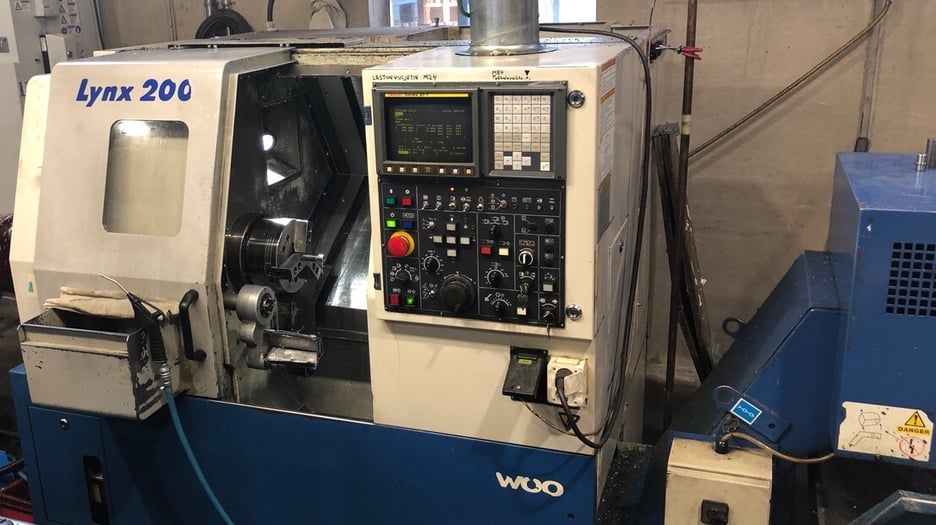

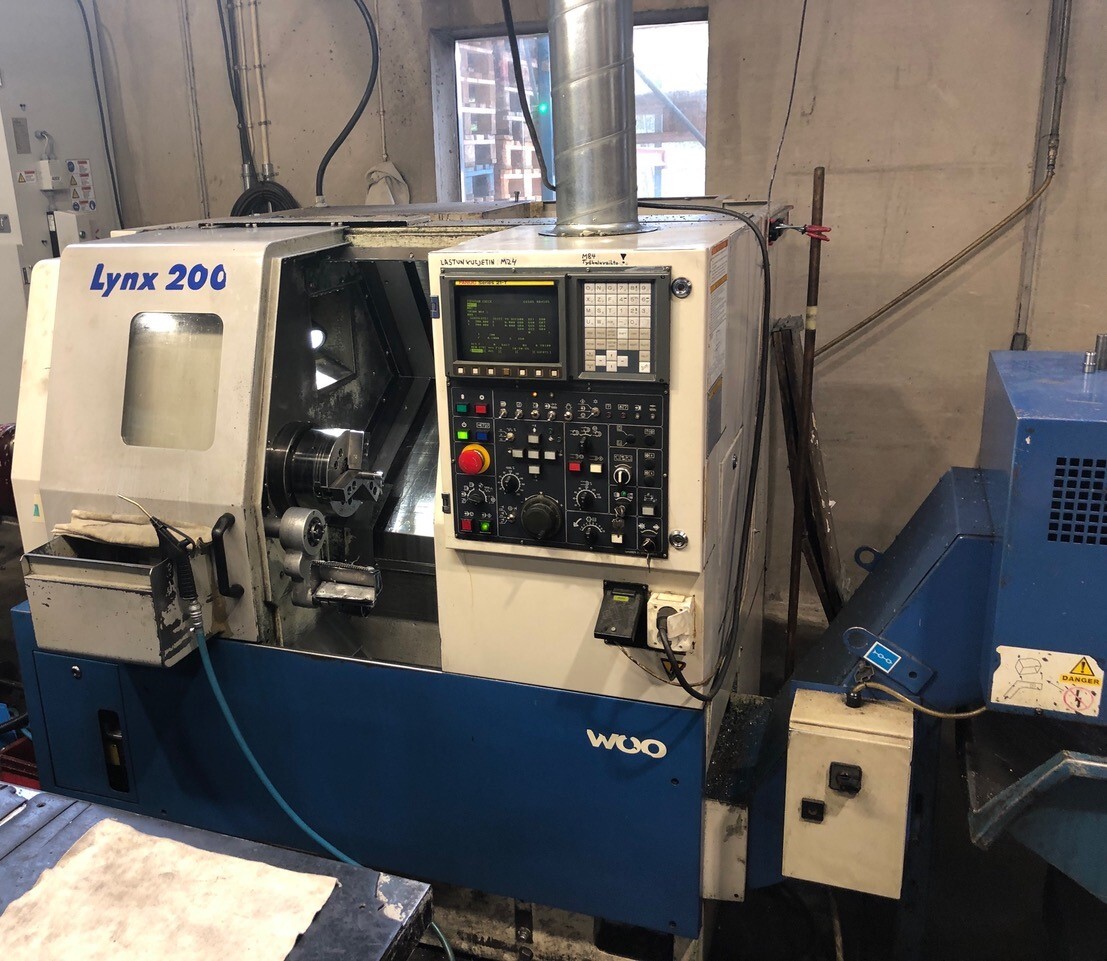

Used Daewoo Puma Lynx 200 B CNC Lathe | A.K. Machine Traders, Navi Mumbai, India

This used Daewoo Puma Lynx 200 B CNC lathe is available from A.K. Machine Traders in Navi Mumbai, India. It is a turning centre for machining round parts.

It swings 460 mm over the bed, machines up to 350 mm in diameter and turns lengths up to 530 mm. The spindle runs at 40–4,000 rpm with 7.5 kW of power and takes bar up to 51 mm in diameter. A 10-position turret and an MT4 tailstock are fitted.

Key Features

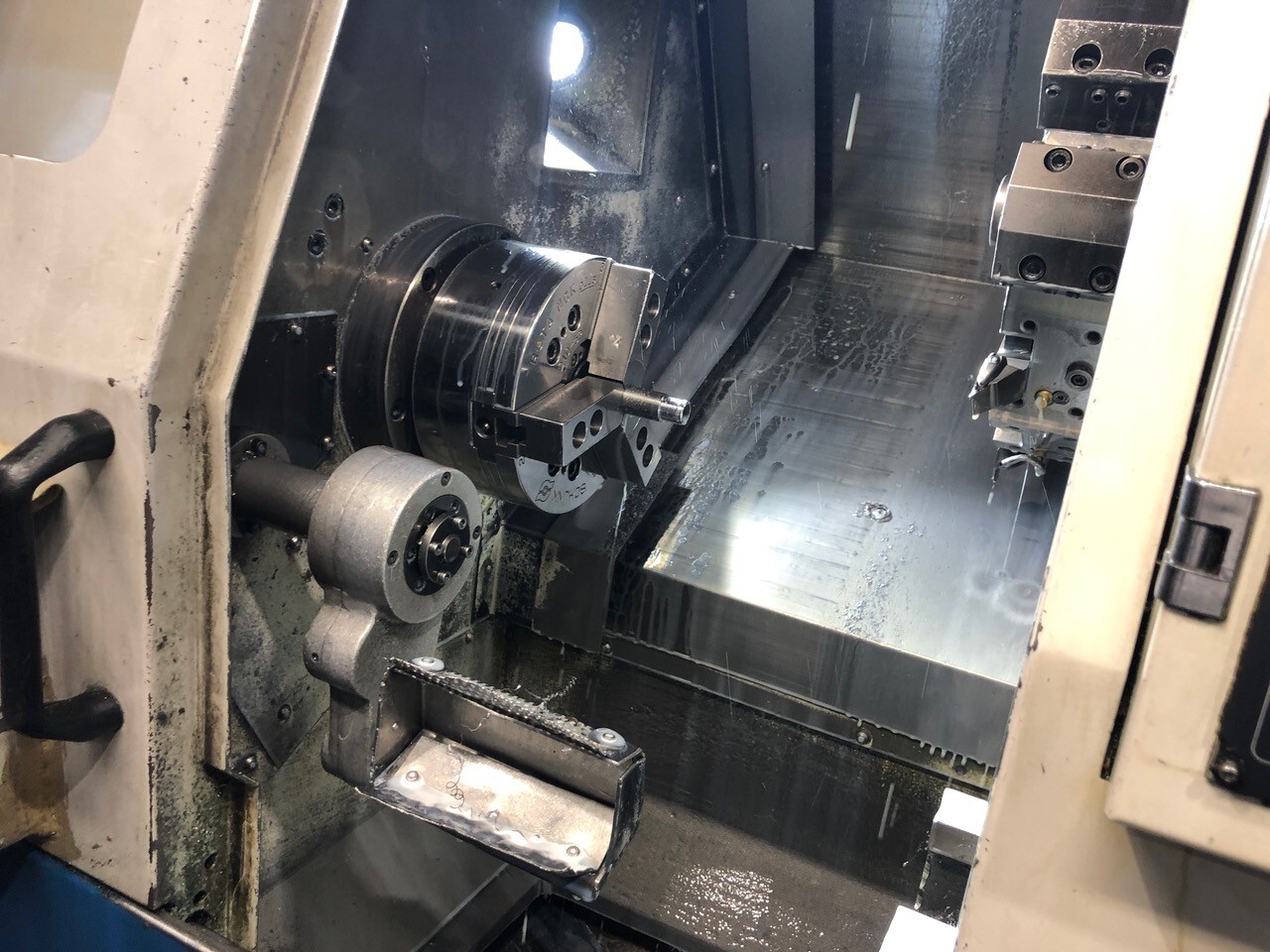

• 10-position turret
• Tailstock with MT4 taper
• Tailstock sleeve with 80 mm stroke
• A2-6 spindle nose

Technical Specifications

• Model: Daewoo Puma Lynx 200 B
• Maximum diameter over bed: 460 mm
• Maximum machining diameter: 350 mm
• Maximum bar diameter: 51 mm
• Maximum turning length: 530 mm
• Spindle type: A2-6
• Spindle speed: 40–4,000 rpm
• Spindle power: 7.5 kW
• Axis strokes X, Z: 160 mm, 330 mm
• Turret: 10 positions
• Tailstock: MT4 type
• Sleeve stroke: 80 mm
• Sleeve diameter: 65 mm
• Dimensions: 1,620 x 1,590 mm
• Weight: 3.2 t

Applications

• Turned shafts and pins
• Round components machined from bar
• General-purpose turning in workshops and job shops
• Small to medium cylindrical parts

Commercial Details

• Make: Daewoo
• Model: Puma Lynx 200 B
• Condition: Used
• Location: Navi Mumbai, Maharashtra, India
• Seller: A.K. Machine Traders

Frequently Asked Questions

• What is the maximum machining diameter? It machines up to 350 mm in diameter, with 460 mm swing over the bed.
• What bar size can it take? The maximum bar diameter is 51 mm.
• What spindle speed and power does it have? The spindle runs at 40–4,000 rpm and is rated at 7.5 kW.
• What should I ask when enquiring? Ask for photos or video of the lathe running under power, and whether an inspection can be arranged. Confirm the control and electrics, which chuck, tooling and accessories are included, and the loading and shipping arrangements for a machine weighing 3.2 t.
