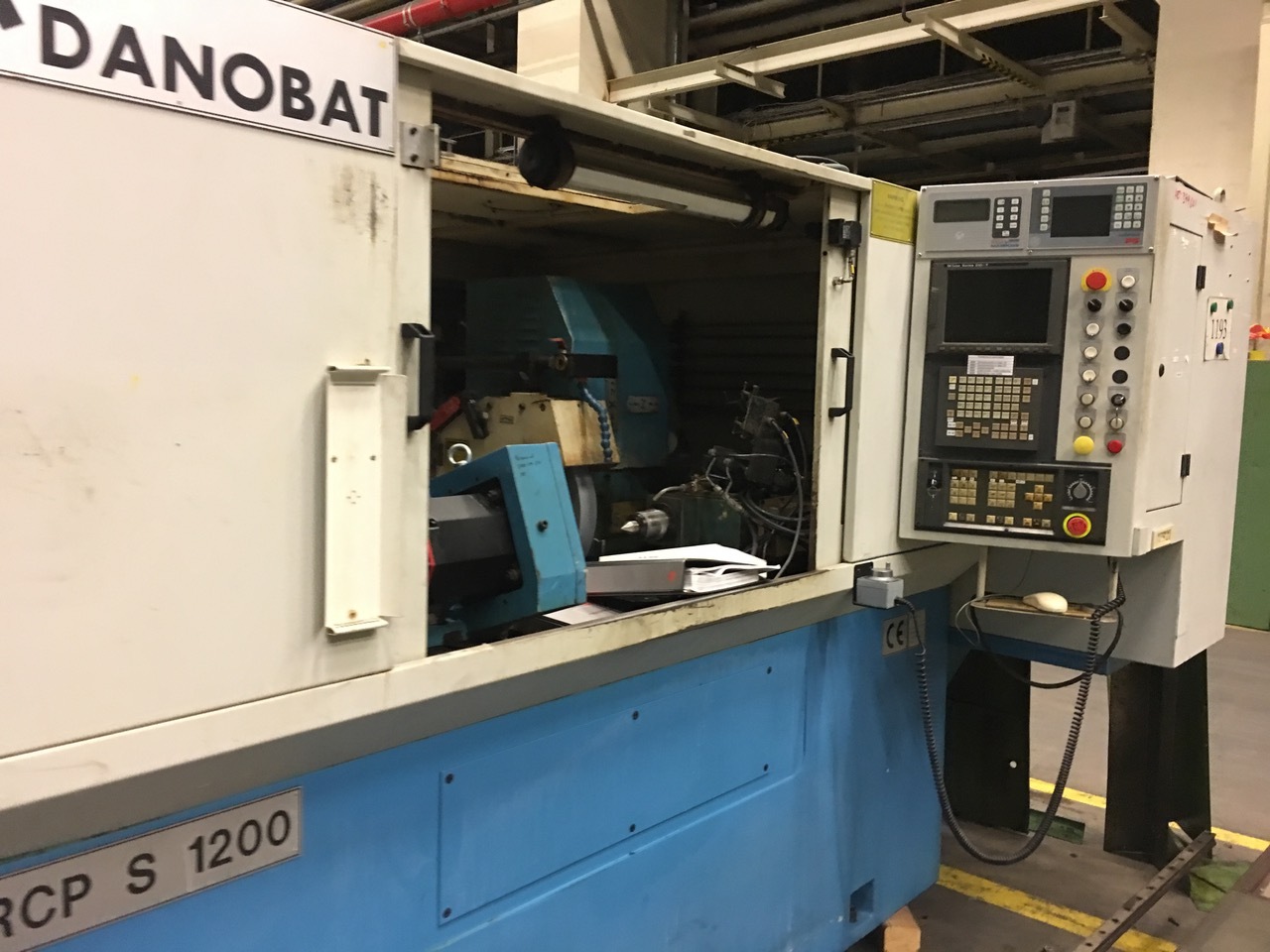

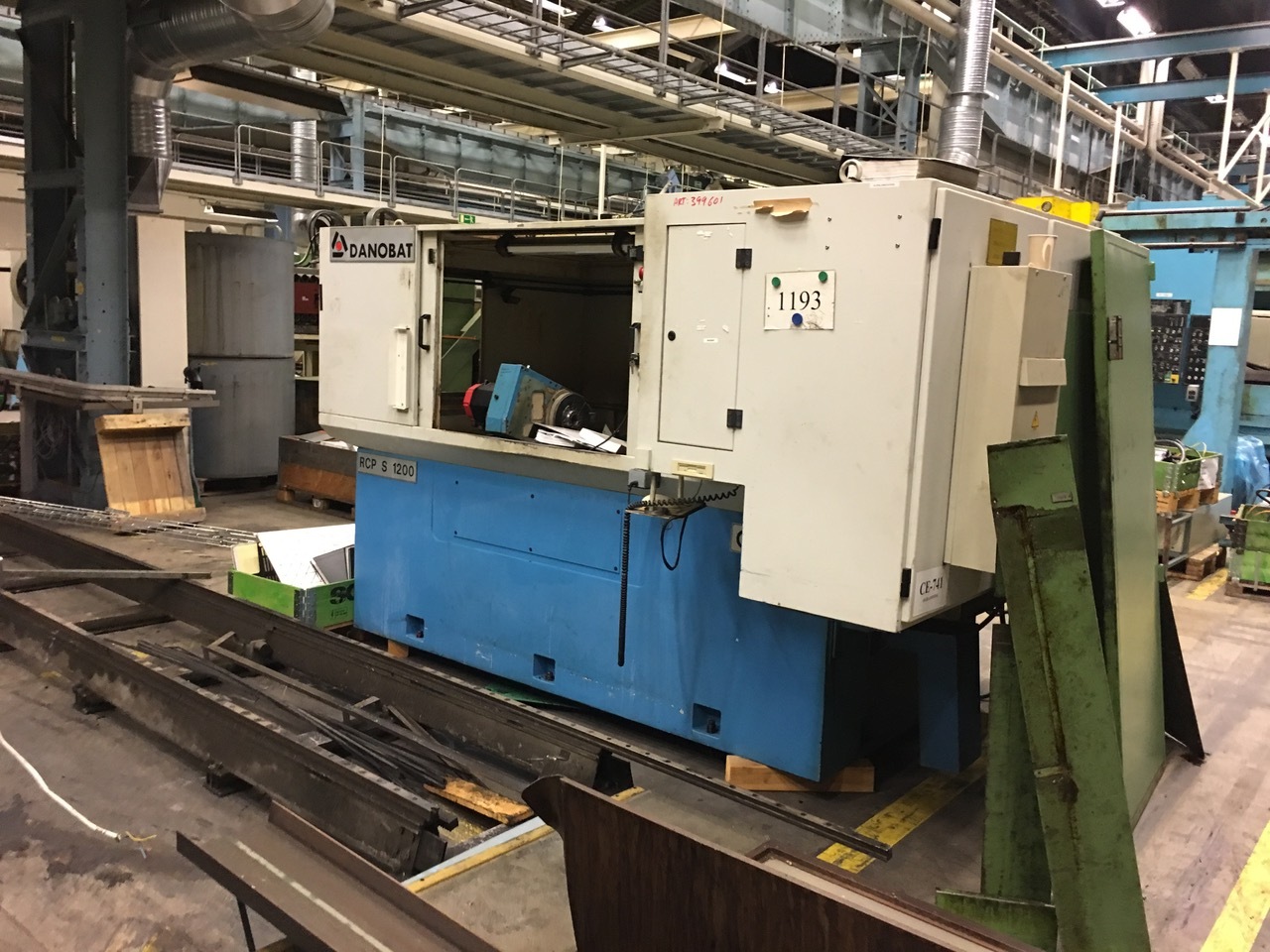

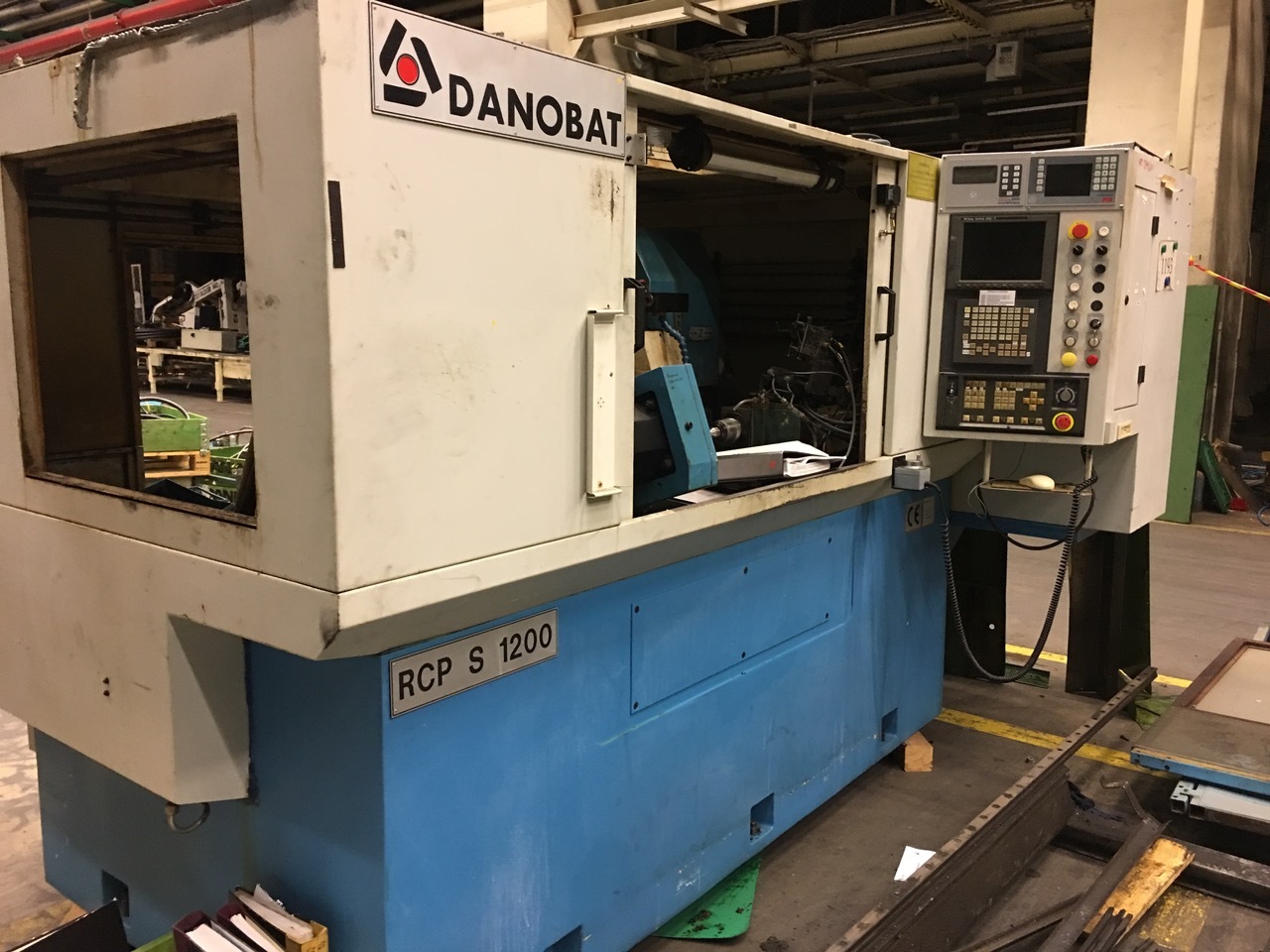

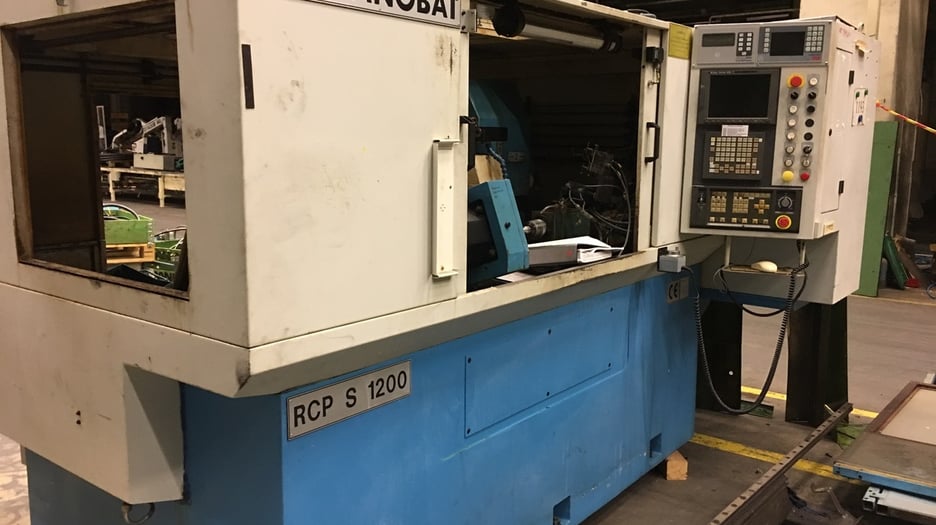

Used Danobat RCP 1200 CNC Cylindrical Grinder | A.K. Machine Traders, Navi Mumbai, India

This used Danobat RCP 1200 grinder is available from A.K. Machine Traders in Navi Mumbai, India. It is a CNC grinder for finishing round workpieces, with 1,100 mm between points and a maximum grinding diameter of 270 mm.

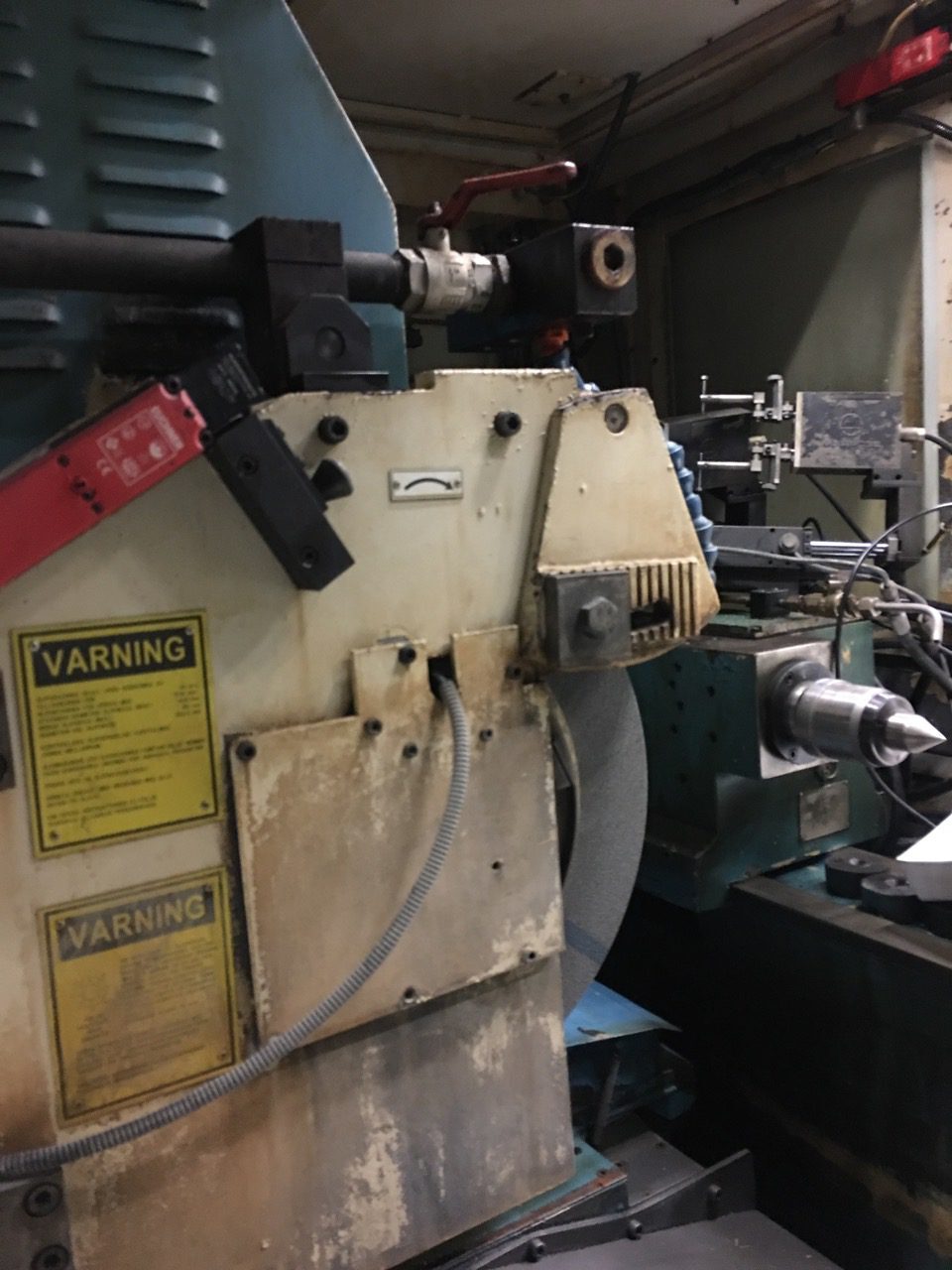

It is driven by a 7.5 kW grinding head carrying a 500×80 mm wheel, and is controlled by a Fanuc 21i-T CNC. An automatic wheel balancer and an in-process gauge are fitted.

Key Features

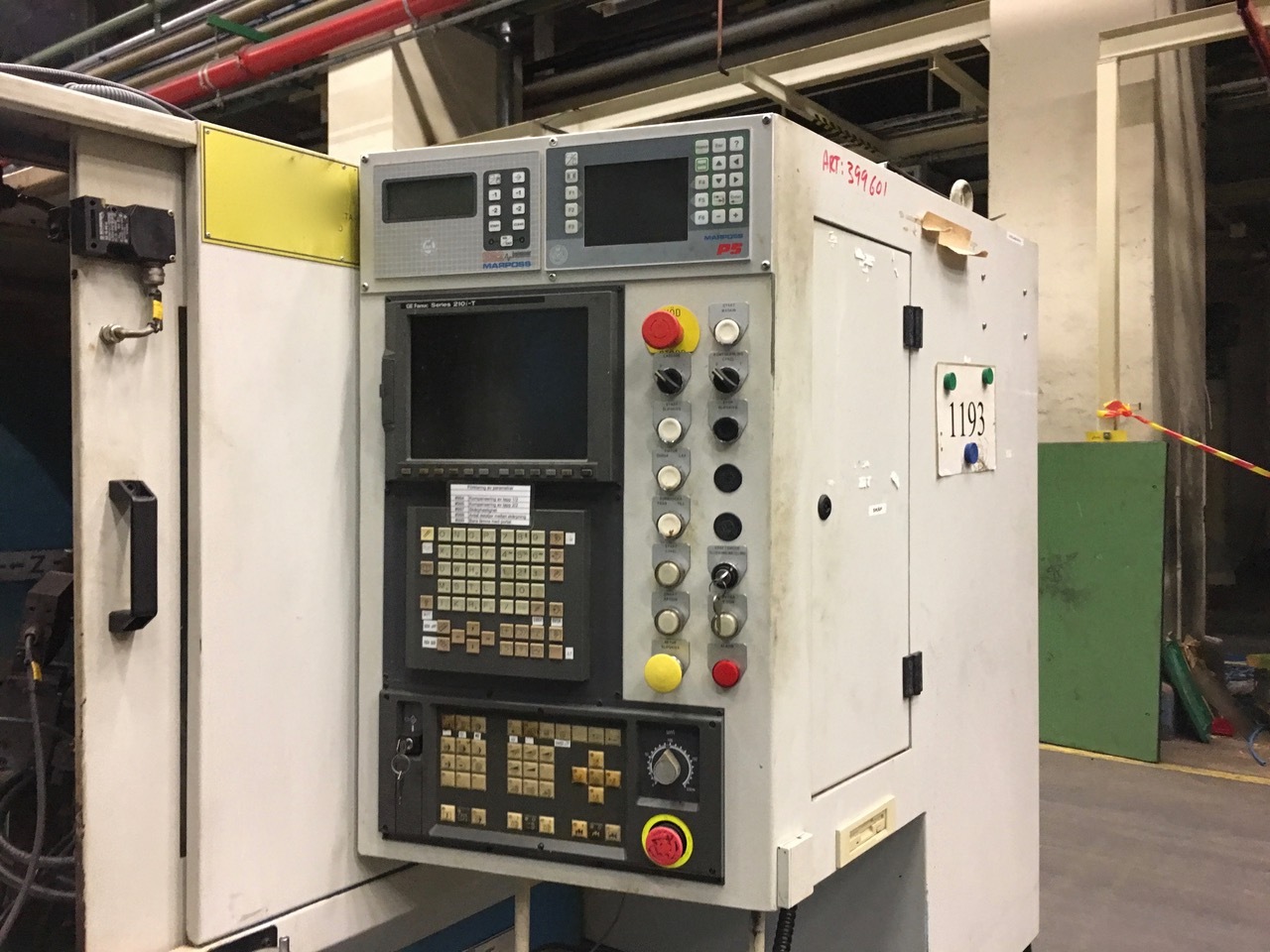

• Fanuc 21i-T numerical control
• Marposs E-82 automatic wheel balancer
• Unimar Marposs P1 in-process meter

Technical Specifications

• Model: Danobat RCP 1200
• Distance between points: 1,100 mm
• Centre height: 175 mm
• Maximum grinding diameter: 270 mm
• Maximum table swivel: 350 mm
• Weight between points: 135 mm

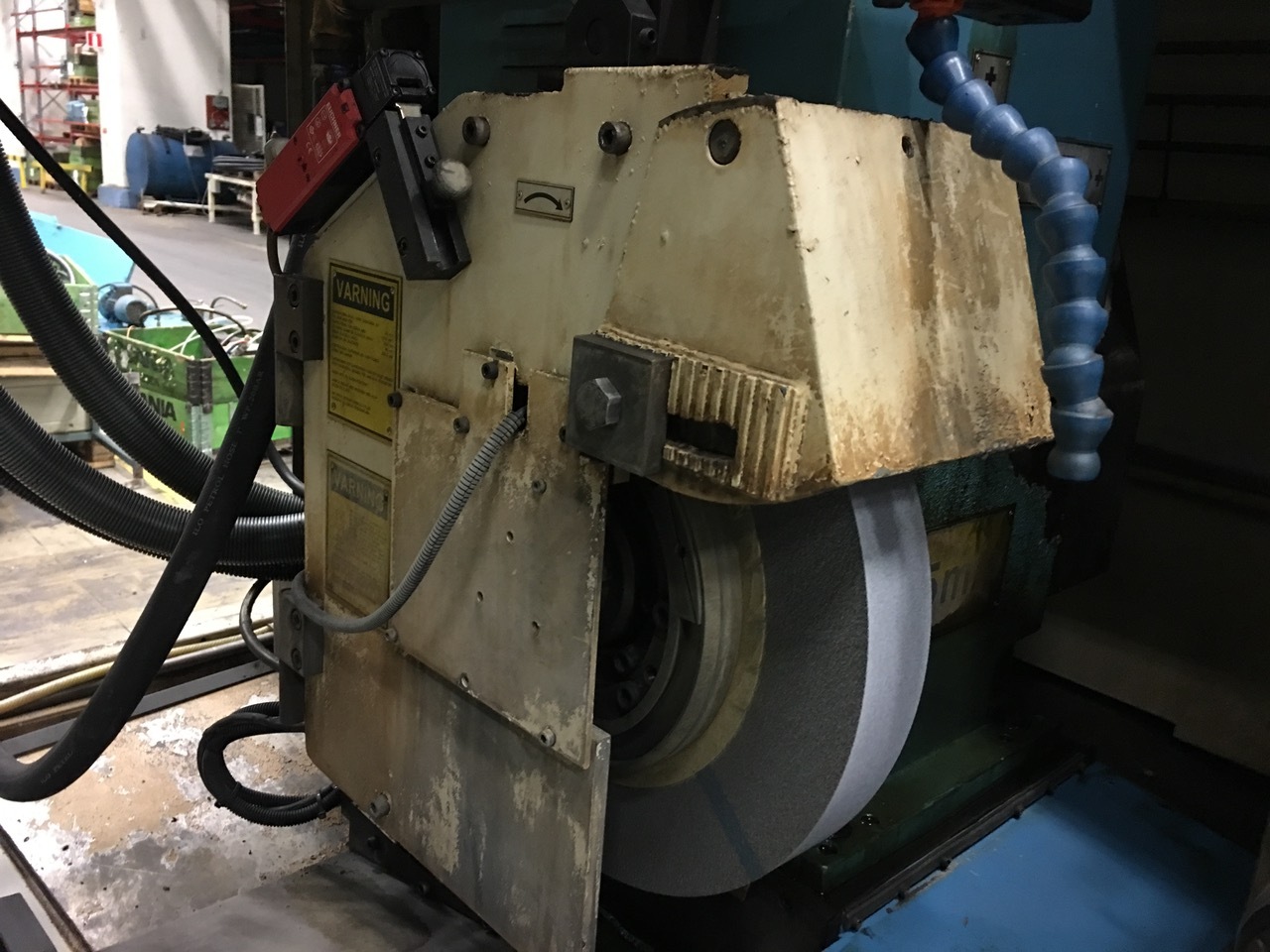

• Wheel dimensions: 500×80 mm
• Grinding head motor power: 7.5 kW
• Control: Fanuc 21i-T CNC
• Wheel balancer: Marposs E-82 automatic
• In-process gauge: Unimar Marposs P1
• Machine weight: 7,400 kg
• Dimensions (L × W × H): 3,420 × 2,270 × 1,900 mm

Applications

• Grinding shafts and spindles
• Finishing cylindrical journals and diameters
• Precision round parts for machinery and tooling

Commercial Details

• Make: Danobat
• Model: RCP 1200
• Condition: Used
• Location: Navi Mumbai, Maharashtra, India
• Seller: A.K. Machine Traders

Frequently Asked Questions

• What is the maximum workpiece size? It grinds up to 270 mm diameter with 1,100 mm between points and a 175 mm centre height.
• What control does it use? It has a Fanuc 21i-T CNC.
• What wheel does it take? The wheel size is 500×80 mm, driven by a 7.5 kW head.
• What should I ask when enquiring? Ask for photos or video of the machine running under power, whether an inspection can be arranged, which accessories and tooling are included, the condition of the control and electrics, and loading and shipping arrangements for its 7,400 kg weight.
