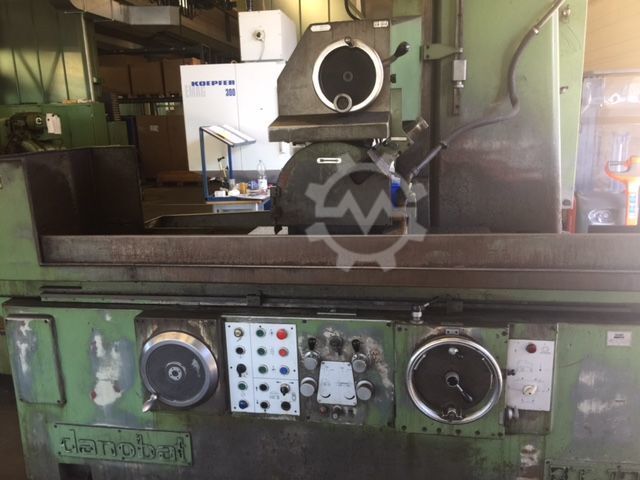

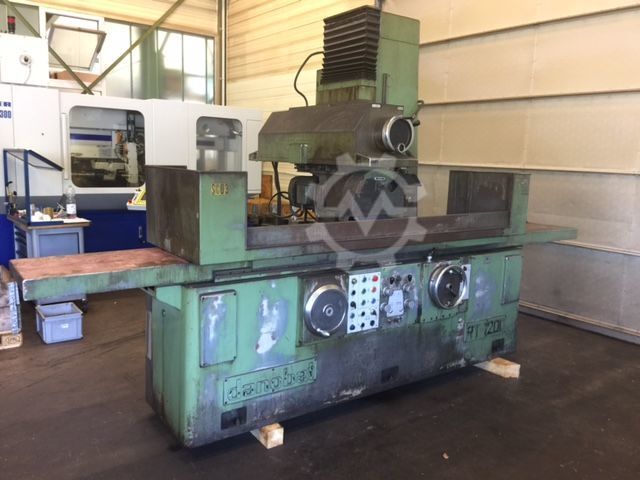

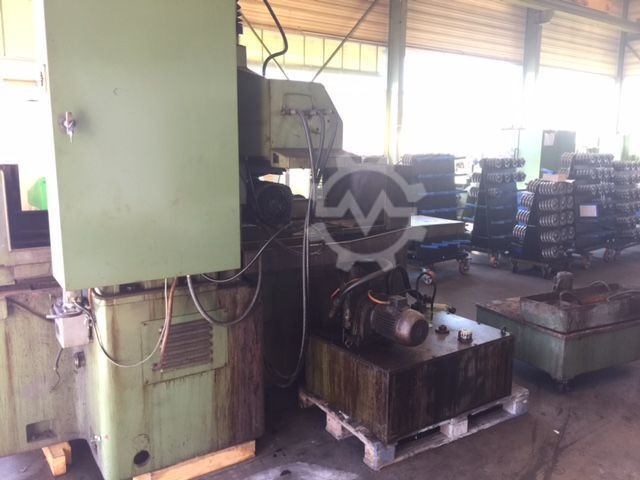

Used Danobat RT 1200 Surface Grinding Machine | A.K. Machine Traders, Navi Mumbai, India

This used Danobat RT 1200 surface grinding machine is available from A.K. Machine Traders in Navi Mumbai, India. It grinds flat surfaces on workpieces held on a magnetic plate.

The machine was built in 1980. It has a 1,400 x 700 mm table, a 7.5 kW spindle running at 1,500 rpm and a Ø 400 mm grinding wheel. Total connected power is 12 kW at 380 V.

Key Features

• Electromagnetic plate, 1000 x 600 mm, for holding workpieces
• Coolant system included
• Pendulum control included
• Table rapid traverse adjustable from 1–25 m/min

Technical Specifications

• Model: Danobat RT 1200
• Year: 1980
• Table size: 1,400 x 700 mm
• Grinding dimensions (L x W x H): 1,200 x 750 x 800 mm
• Magnetic plate size (L x W): 1,000 x 600 mm
• Table rapid traverse speed: 1–25 m/min
• Cross speed: 0.1–5 m/min
• Maximum distance, table to wheel centre: 1,000 mm
• Vertical feed: 0.005–0.05 mm
• Spindle speed: 1,500 rpm
• Spindle power: 7.5 kW
• Grinding wheel size: Ø 400 x 50 x Ø 127 mm
• Total power: 12 kW, 380 V
• Weight: 8,500 kg

Applications

• Grinding flat surfaces on steel parts
• Finishing plates, blocks and tooling components
• Toolroom and general engineering work
• Producing flat, accurately sized faces on machine parts

Commercial Details

• Make: Danobat
• Model: RT 1200
• Year: 1980
• Condition: Used
• Location: Navi Mumbai, Maharashtra, India
• Seller: A.K. Machine Traders

Frequently Asked Questions

• What size workpiece can it grind? The grinding dimensions are 1,200 x 750 x 800 mm, and the magnetic plate measures 1,000 x 600 mm.
• What spindle power and wheel does it have? It has a 7.5 kW spindle running at 1,500 rpm, fitted with a Ø 400 x 50 x Ø 127 mm grinding wheel.
• What accessories are included? It comes with a 1000 x 600 mm electromagnetic plate, coolant and pendulum control.
• What should I ask when enquiring? Ask for photos or video of the machine running, whether an inspection can be arranged, what accessories and wheels are included, the condition of the electrics and control, and the loading and shipping arrangements for its 8,500 kg weight.
