Used Dixi 75ON Horizontal Boring Machine | A.K. Machine Traders, Navi Mumbai, India

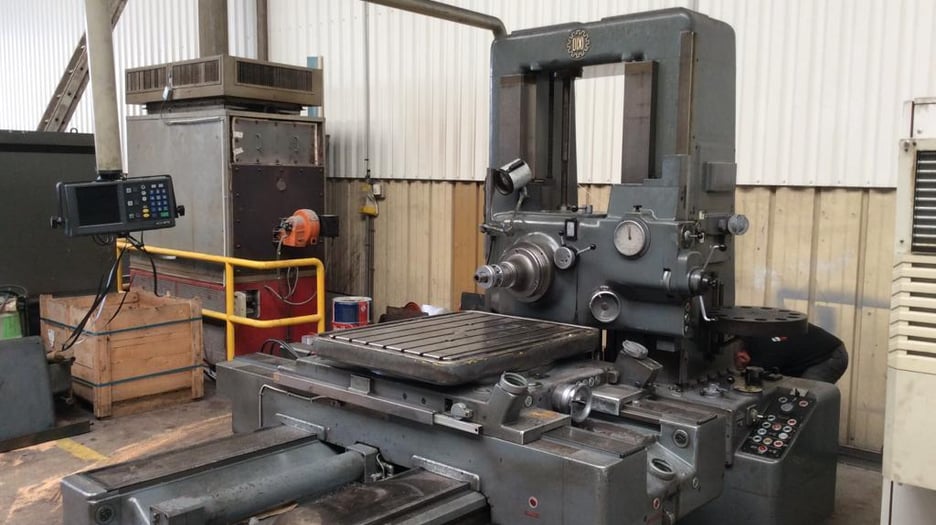

This used Dixi 75ON boring machine is available from A.K. Machine Traders in Navi Mumbai, India. It is a boring and machining machine built around a 75 mm boring spindle and a 1,000 x 810 mm work table.

The table moves 620 mm longitudinally and 620 mm transversely and rotates through 360°. Spindle speeds run from 32 to 1,600 RPM, and the machine weighs 9,500 kg.

Key Features

• Leonard drive
• Infinitely variable hydraulic motions from 0 to 3,000 mm/min
• 360° circular table motion

Technical Specifications

• Model: 75ON
• Boring spindle diameter: 75 mm
• Work table: 1,000 x 810 mm
• Longitudinal travel: 620 mm
• Transverse travel: 620 mm
• Circular motion: 360°
• Maximum height over table: 570 mm
• Spindle speeds: 32–1,600 RPM
• Hydraulic motions: Infinitely variable, 0–3,000 mm/min
• Drive: Leonard drive
• Weight: 9,500 kg

Applications

• Boring and machining of precision bores in housings
• Machining of medium-sized components in toolrooms and workshops
• Jig and fixture work
• Machining of castings and fabricated parts

Commercial Details

• Make: Dixi
• Model: 75ON
• Condition: Used
• Location: Navi Mumbai, Maharashtra, India
• Seller: A.K. Machine Traders

Frequently Asked Questions

• What is the table size? The work table measures 1,000 x 810 mm and rotates through 360°.
• What spindle speeds does it offer? Spindle speeds range from 32 to 1,600 RPM, with a 75 mm boring spindle.
• How heavy is the machine? It weighs 9,500 kg.
• What should I ask when enquiring? Ask for photos or video of the machine running under power, whether an inspection is possible, which accessories and tooling are included, the condition of the Leonard drive and electrics, and the loading and shipping arrangements.
