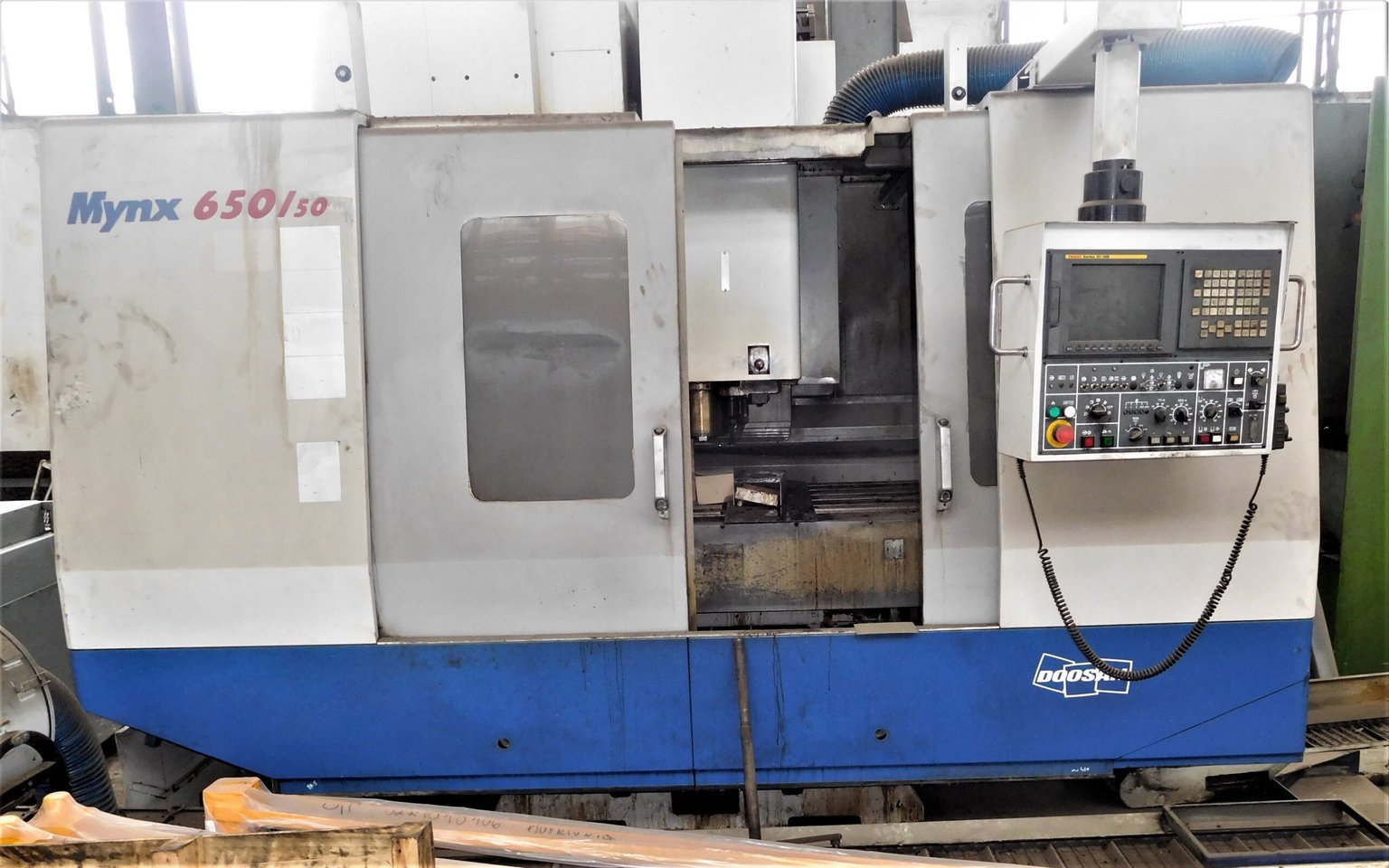

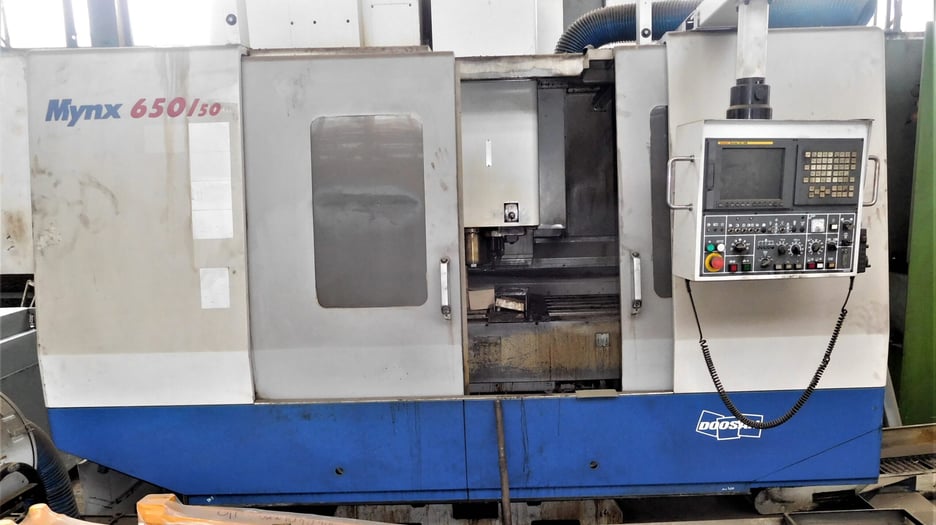

Used Doosan MYNX 650/50 Vertical Machining Center | A.K. Machine Traders, Navi Mumbai, India

This used Doosan MYNX 650/50 vertical CNC machining centre is available from A.K. Machine Traders in Navi Mumbai, India. It is a 3-axis machine that cuts parts with rotating tools held in a vertical spindle.

It offers 1,270 mm of X-axis travel, a 22.4 kW spindle drive, speeds up to 6,000 RPM and a 30-tool automatic tool changer. Control is by Fanuc 21 IA CNC.

Key Features

• 30-tool automatic tool changer
• Taper 50 spindle
• Fanuc 21 IA CNC control

Technical Specifications

• Model: MYNX 650/50
• Machine type: Vertical CNC machining centre
• X-axis travel: 1,270 mm
• Y-axis travel: 670.56 mm
• Z-axis travel: 624.84 mm
• Number of axes: 3
• Table length: 1,397 mm
• Table width: 670.56 mm
• Spindle speed: 6,000 RPM
• Power: 22.4 kW
• Spindle taper: 50
• Tool changer capacity: 30 tools

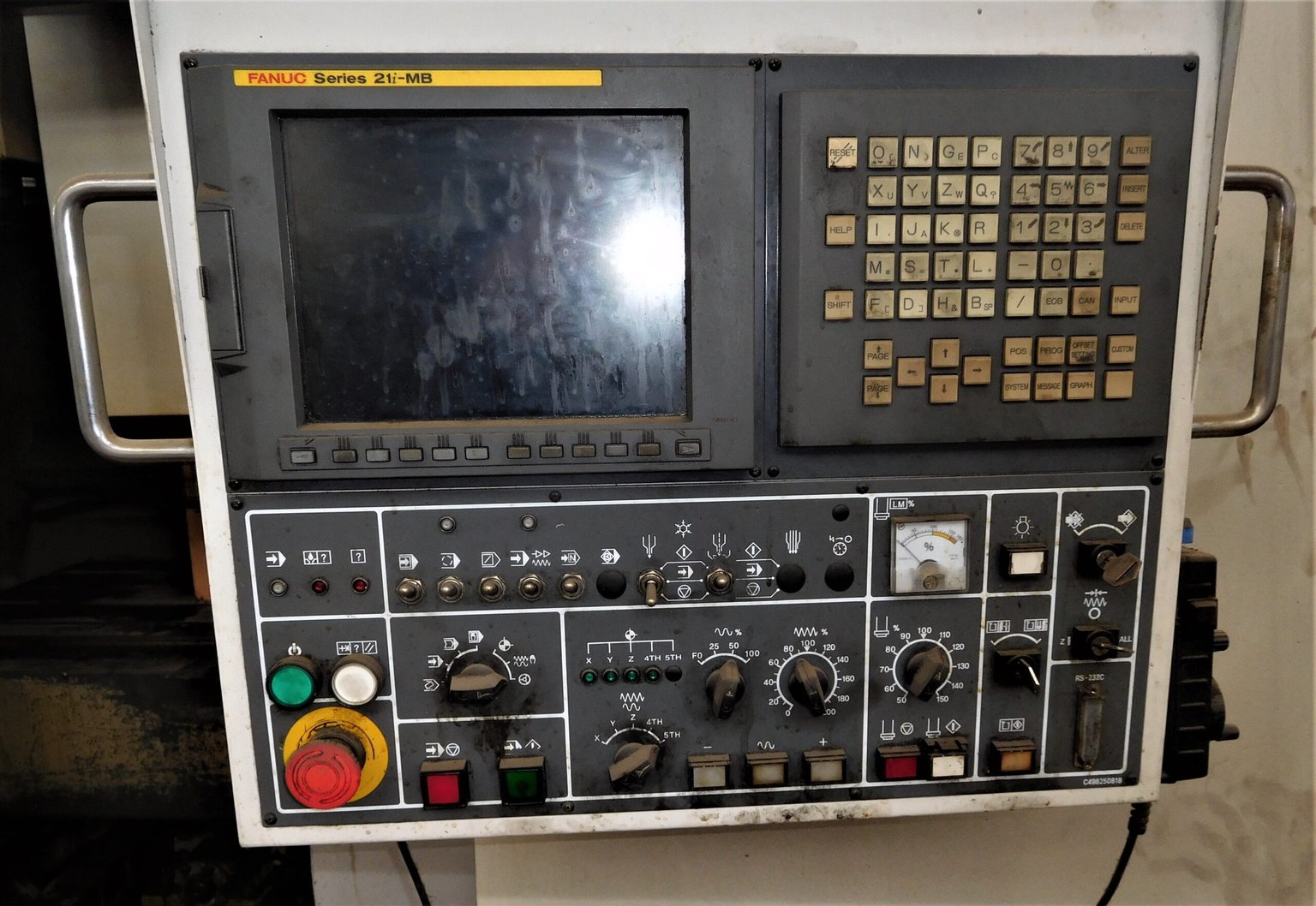

• Control: Fanuc 21 IA CNC

Applications

• Machining of metal components in job shops and general engineering
• Milling, drilling and tapping of prismatic parts
• Tooling, mould and die components
• Batch production of machine parts

Commercial Details

• Make: Doosan
• Model: MYNX 650/50
• Condition: Used
• Location: Navi Mumbai, Maharashtra, India
• Seller: A.K. Machine Traders

Frequently Asked Questions

• What are the axis travels? The X, Y and Z travels are 1,270 mm, 670.56 mm and 624.84 mm.
• What control does it have? It is fitted with a Fanuc 21 IA CNC control.
• How many tools does the changer hold? The automatic tool changer holds 30 tools, and the spindle has a Taper 50 fitting.
• What should I ask when enquiring? Ask for photos or video of the machine running under power, whether an inspection is possible, which accessories and tooling are included, the condition of the control and electrics, and loading and shipping arrangements.
