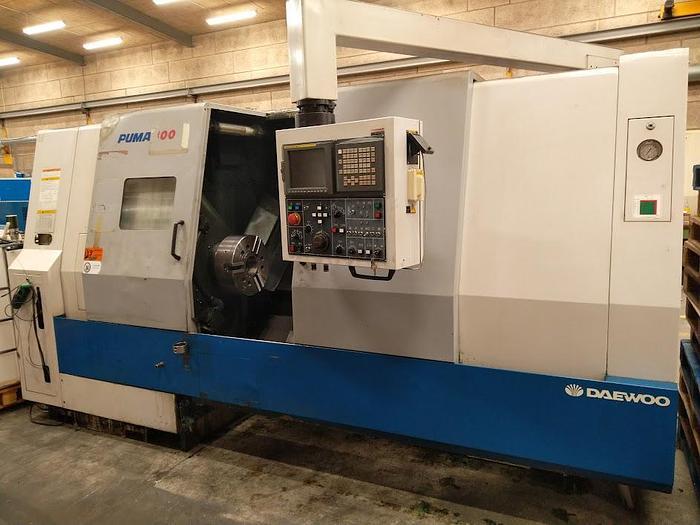

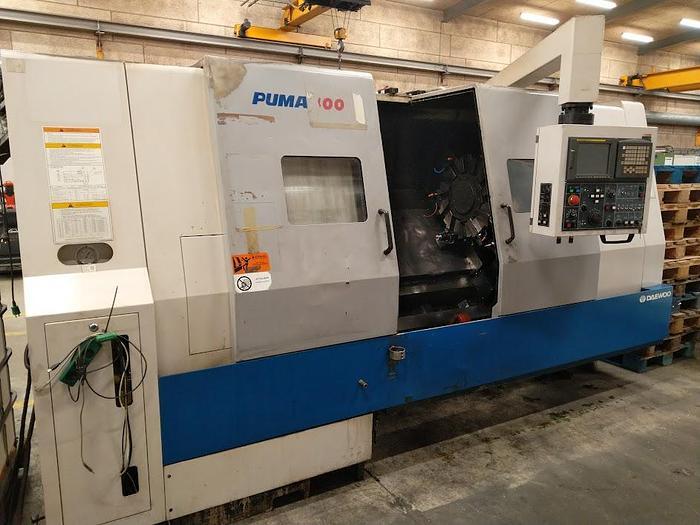

Used Doosan Puma 400A CNC Lathe | A.K. Machine Traders, Navi Mumbai, India

This used Doosan Puma 400A CNC lathe is available from A.K. Machine Traders in Navi Mumbai, India. It is a CNC turning machine that cuts round parts from bar or chucked workpieces.

It turns up to 550 mm in diameter and up to 1,079 mm in length, with a 3,000 rpm spindle and a Fanuc 18i-T control. It comes with a 381 mm hydraulic chuck, a chip conveyor and various tool holders.

Key Features

• Fanuc 18i-T CNC control

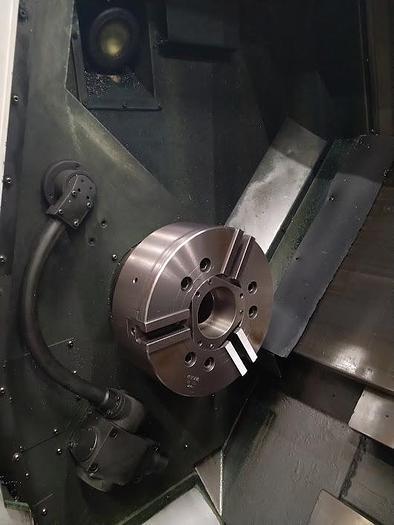

• Hydraulic chuck, 381 mm diameter

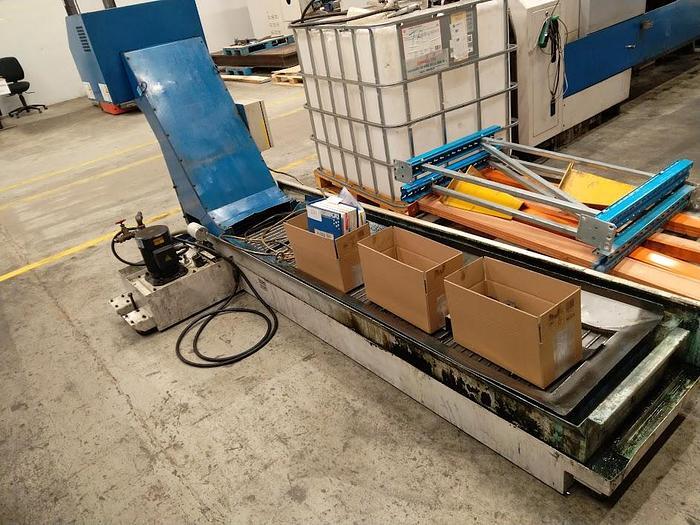

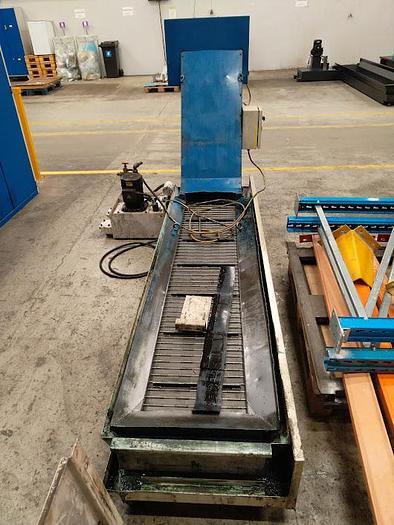

• Chip conveyor included

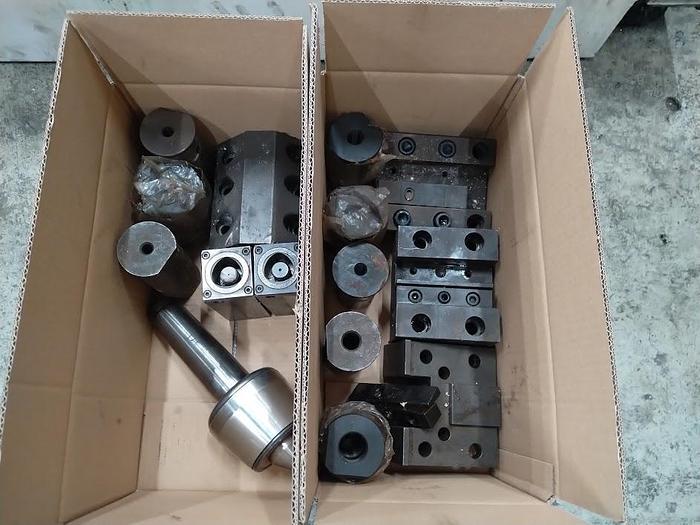

• Various tool holders included
• Mechanical range change on the spindle

Technical Specifications

• Model: Doosan Puma 400A
• Maximum swing over bed: 770 mm
• Maximum swing over carriage: 590 mm
• Turning diameter: 550 mm
• Maximum turning length: 1,079 mm
• Bar working range diameter: 90 mm
• Spindle nose: ASA A2-8
• Spindle range change: Mechanical
• Spindle speed: 3,000 rpm
• Control: Fanuc 18i-T
• Chuck: Hydraulic, 381 mm diameter

Applications

• Turned shafts and spindles
• Round components machined from bar
• Flanges, hubs and discs
• General engineering and production turning

Commercial Details

• Make: Doosan
• Model: Puma 400A
• Condition: Used
• Location: Navi Mumbai, Maharashtra, India
• Seller: A.K. Machine Traders

Frequently Asked Questions

• What is the maximum turning size? It turns up to 550 mm in diameter and up to 1,079 mm in length.
• What control does it use? It has a Fanuc 18i-T CNC control.
• What is included with the machine? It comes with a 381 mm hydraulic chuck, a chip conveyor and various tool holders.
• What should I ask when enquiring? Ask for photos or a video of the lathe running under power, and about inspection arrangements. Confirm which holders and tooling are included, the condition of the Fanuc control and electrics, and the loading and shipping arrangements.
