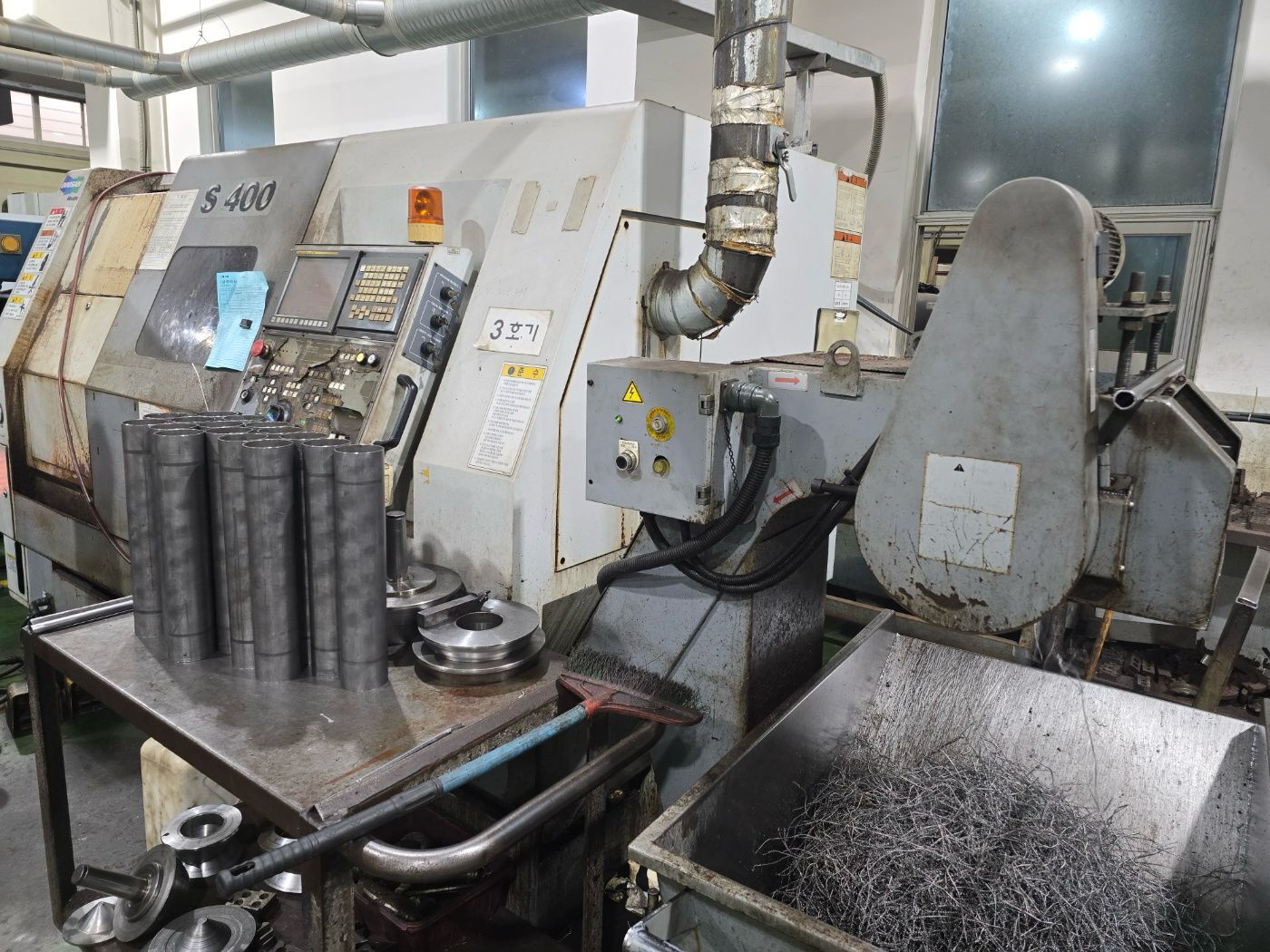

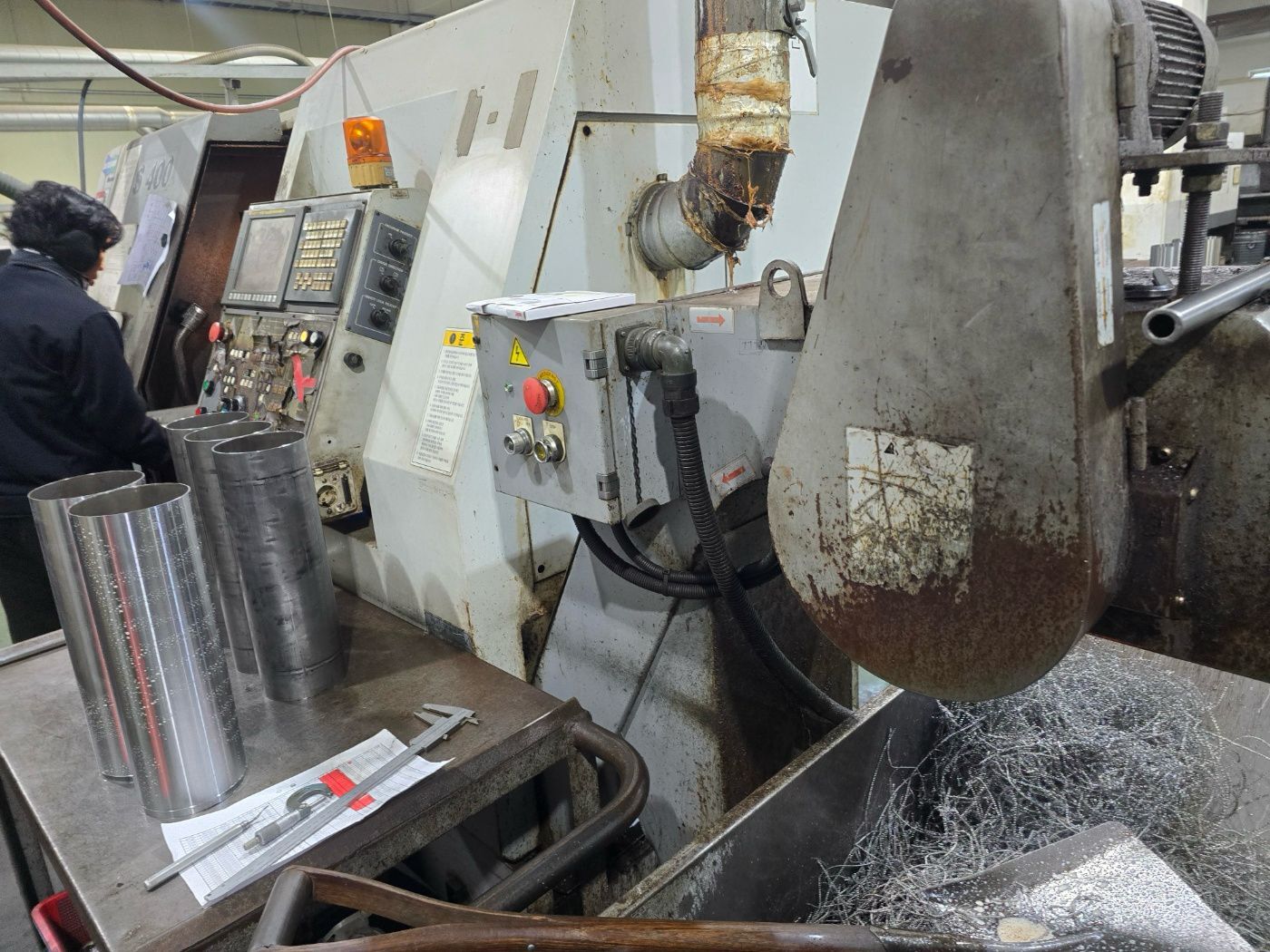

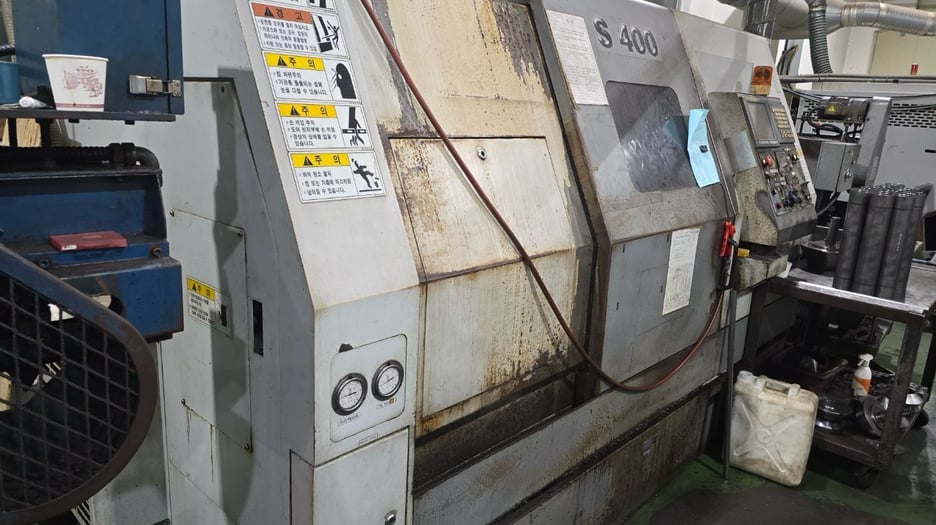

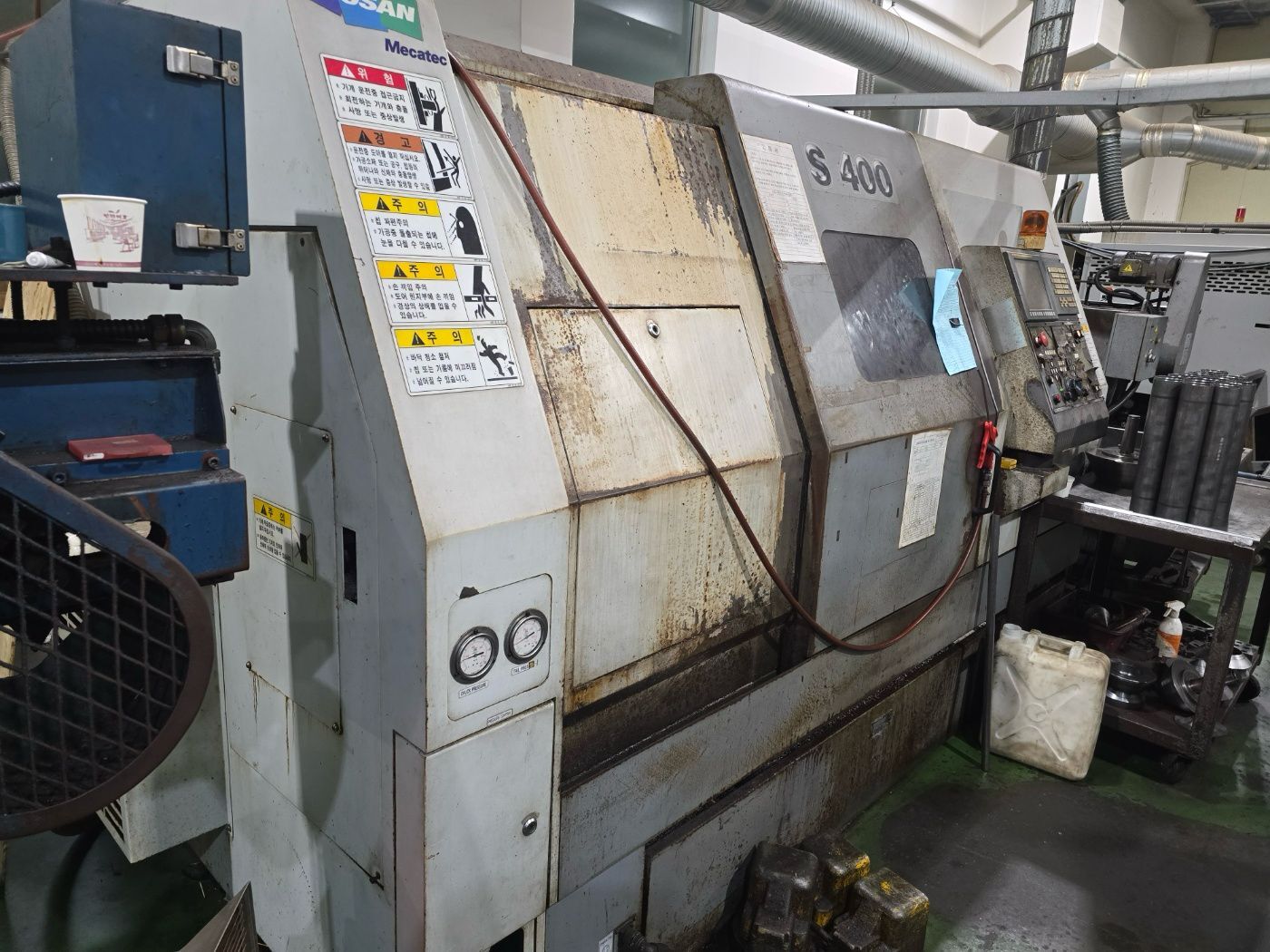

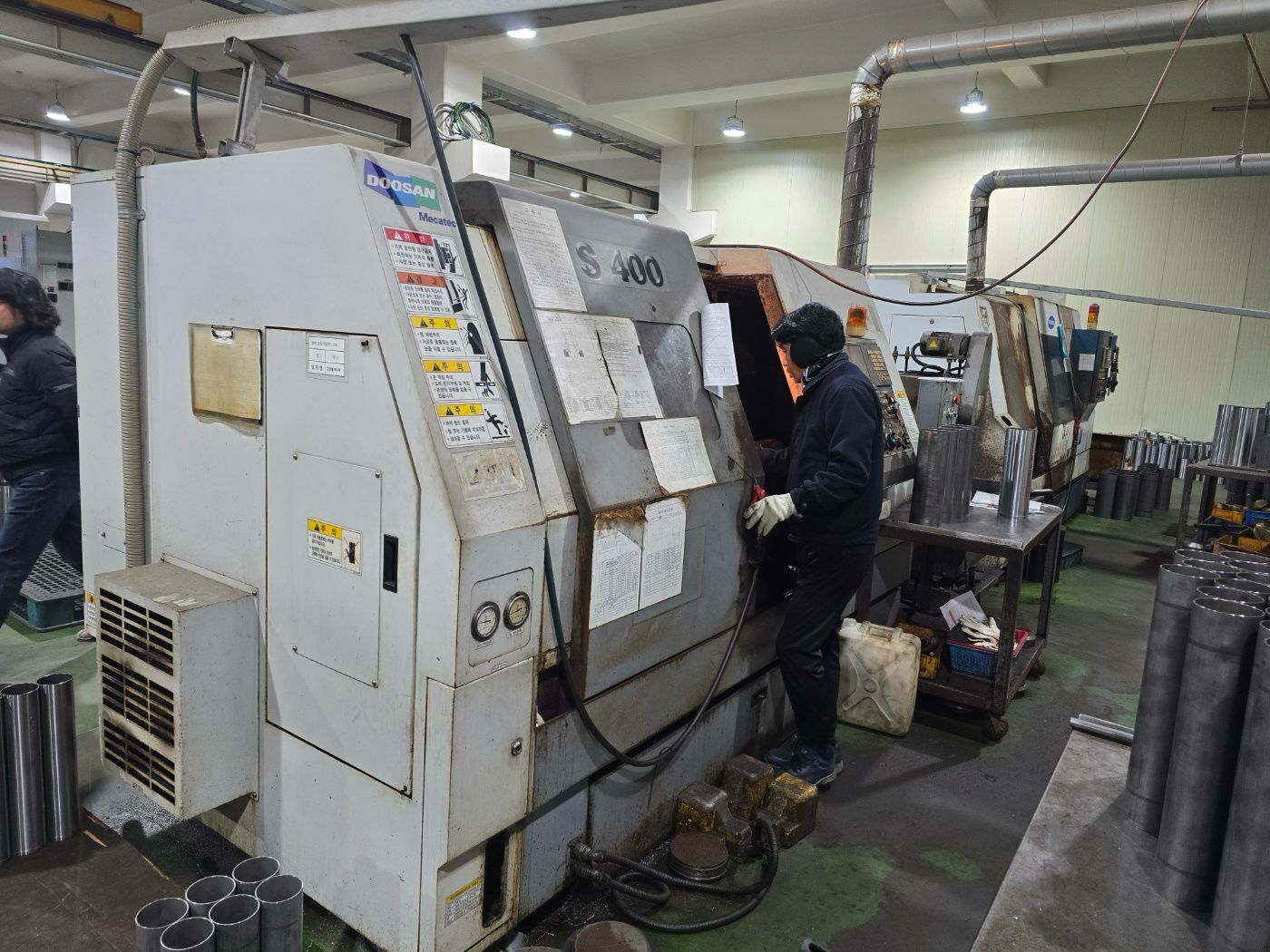

Used Doosan S400 CNC Lathe | A.K. Machine Traders, Navi Mumbai, India

This used Doosan S400 CNC lathe is available from A.K. Machine Traders in Navi Mumbai, India. A CNC lathe turns round parts by spinning the workpiece while cutting tools shape it.

It swings up to 610 mm and cuts up to 400 mm in diameter and 716 mm in length. The spindle runs at 35–3,500 rpm with an AC 18.5/22 kW motor, an A2-8 spindle nose and a 10-inch chuck. A 12-station V12 turret holds the tools.

Key Features

• V12 turret holding up to 12 tools

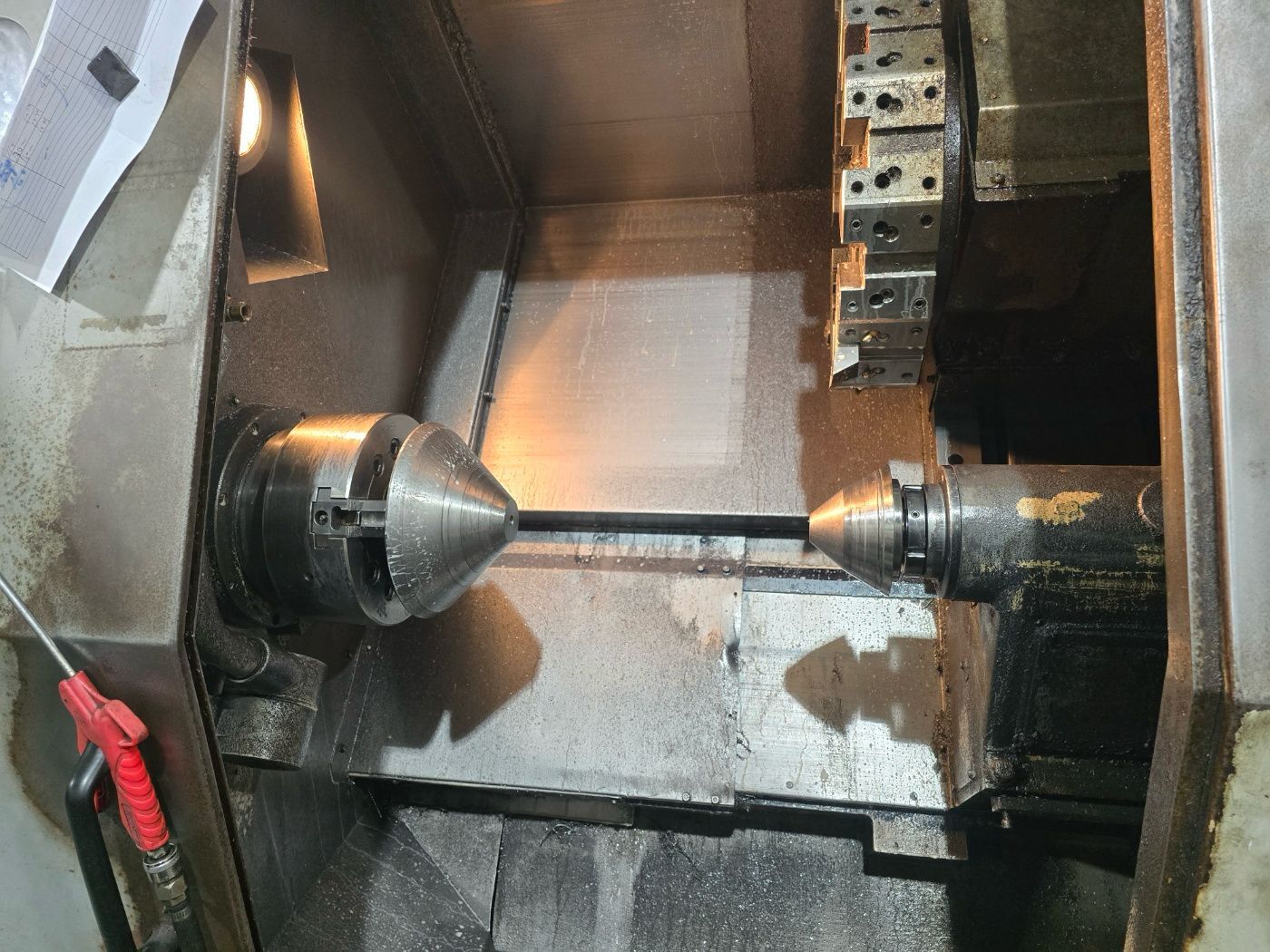

• Tailstock with a 545 mm body travel and 100 mm quill stroke
• Quill bore with Morse taper No. 5
• Hole through spindle of 91 mm for bar work

Technical Specifications

• Make and model: Doosan S400
• Max. swing diameter: 610 mm
• Max. cutting diameter: 400 mm
• Max. cutting length: 716 mm
• Spindle nose: A2-8
• Hole through spindle: 91 mm
• Chuck size: 10 inch
• Spindle speed: 35–3,500 rpm
• Bar capacity: 76.5 mm
• X-axis stroke: 230 mm
• Z-axis stroke: 750 mm
• Rapid traverse X-axis: 20 mm
• Rapid traverse Z-axis: 20 mm
• Feed range: F=0.0001–133.3
• Main spindle motor: AC 18.5/22 kW
• Turret: V12
• Max. number of tools: 12
• Standard shank size: 25 mm
• Tailstock body travel: 545 mm
• Quill stroke: 100 mm
• Quill diameter: 100 mm
• Quill bore taper: Morse taper No. 5
• Machine size (L x W): 3,180 mm x 1,825 mm
• Machine height: 1,900 mm
• Machine weight (excl. packaging): 4,300 kg

Applications

• Turned shafts and round components
• Bar-fed turned parts up to 76.5 mm bar capacity
• General machining and engineering work
• Batch production of parts with multiple tool operations

Commercial Details

• Make: Doosan
• Model: S400
• Condition: Used
• Location: Navi Mumbai, Maharashtra, India
• Seller: A.K. Machine Traders

Frequently Asked Questions

• What size parts can it turn? It cuts up to 400 mm in diameter and 716 mm in length, with a maximum swing of 610 mm.
• How many tools does the turret hold? The V12 turret holds up to 12 tools, with a standard shank size of 25 mm.
• What is the spindle speed and motor power? The spindle runs at 35–3,500 rpm and is driven by an AC 18.5/22 kW main motor.
• What should I ask when enquiring? Ask for photos or video of the machine running under power, whether an inspection is possible, which chuck, tooling and accessories are included, the control and electrical details, and how loading and shipping will be handled.
