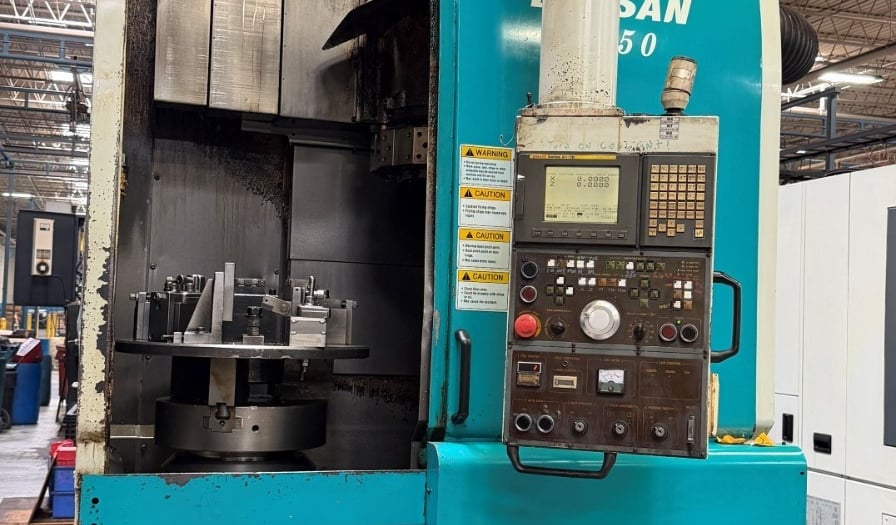

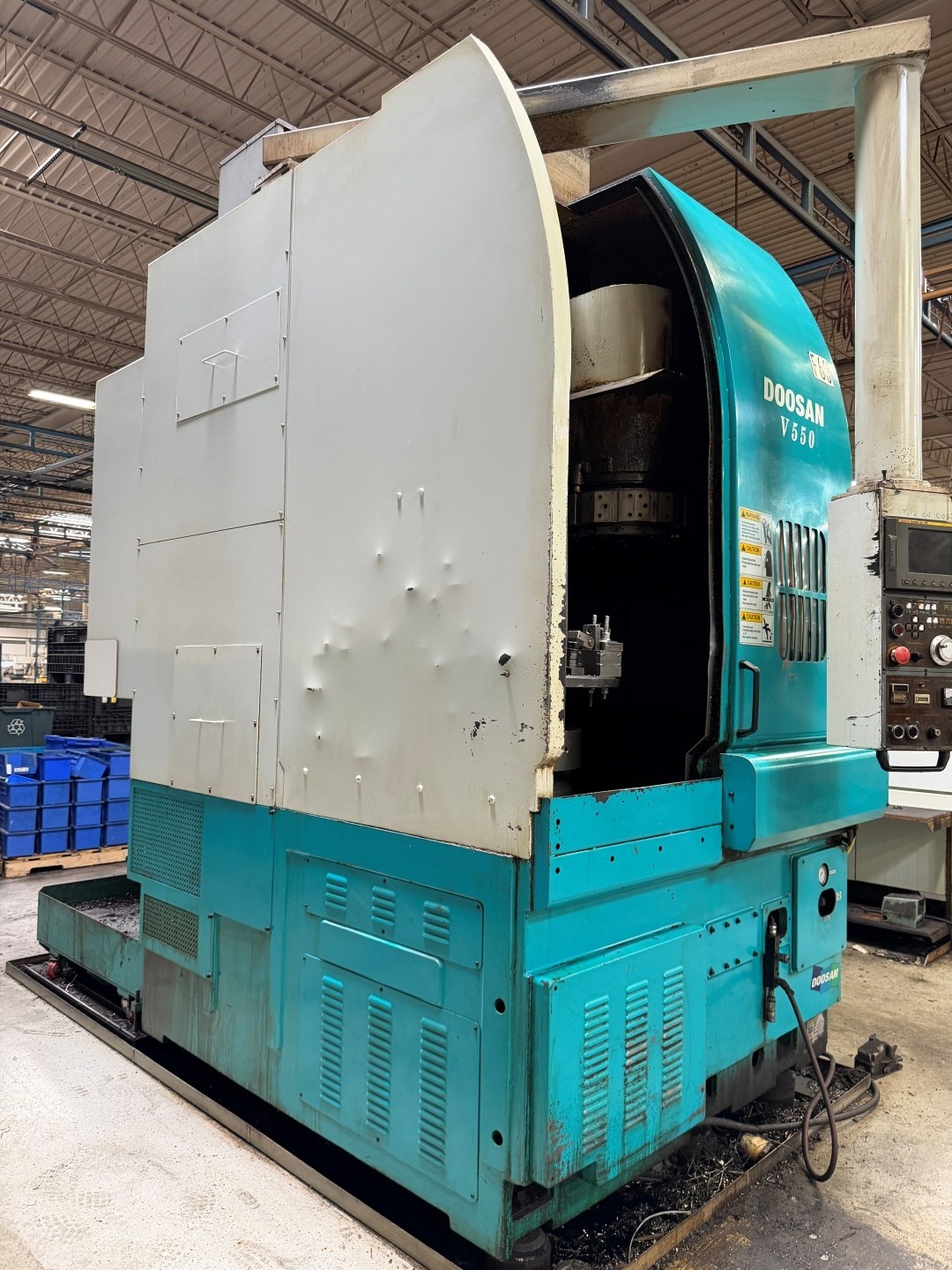

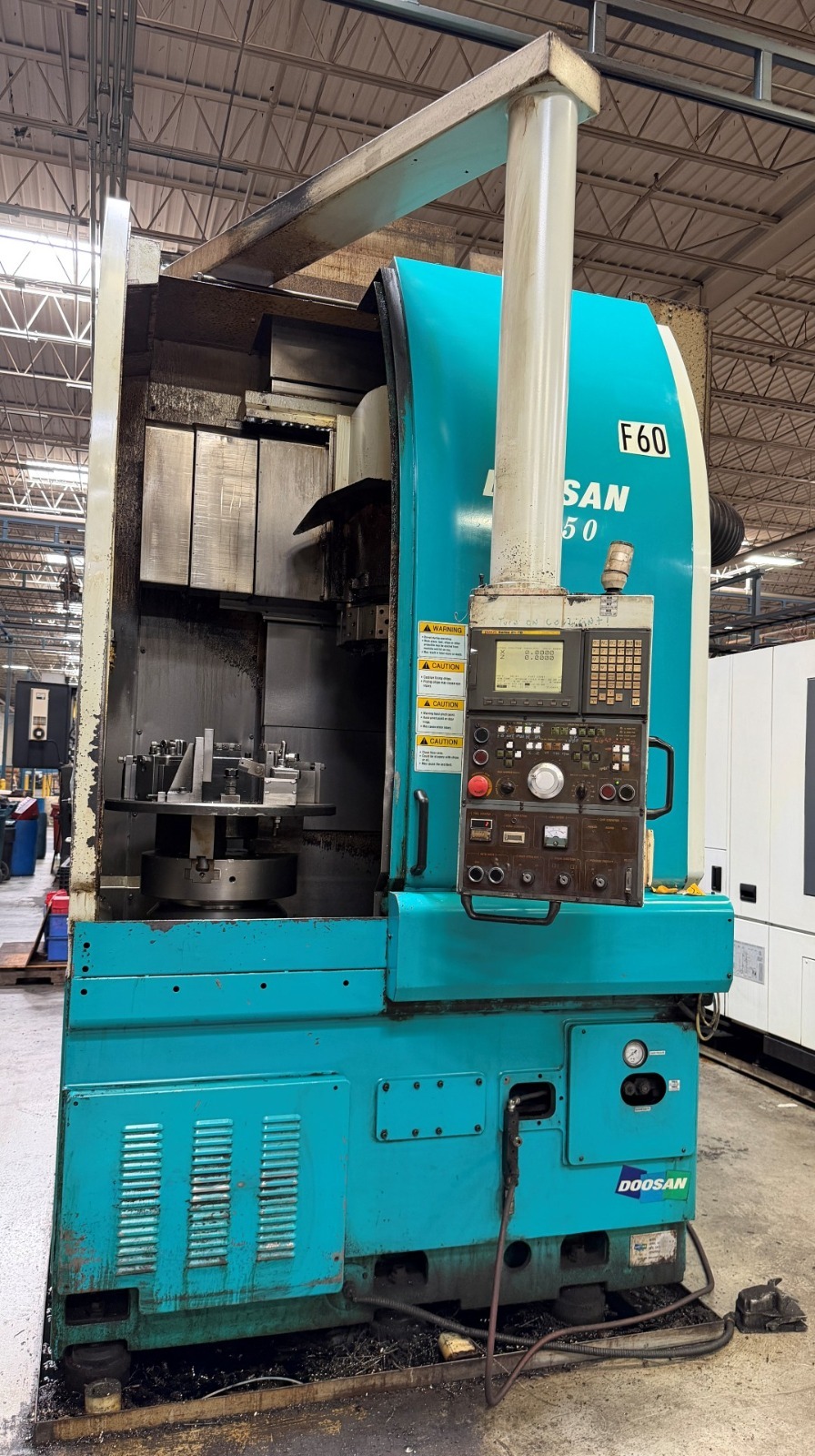

Used Doosan V550 CNC Vertical Turning Center | A.K. Machine Traders, Navi Mumbai, India

This used Doosan V550 CNC vertical turning center is available from A.K. Machine Traders in Navi Mumbai, India. It is a CNC lathe for turning round parts, with a maximum turning diameter of 550 mm and a maximum turning length of 610 mm.

It has a stepless spindle running at 20–2,000 rpm, 20 m/min rapid traverse on both axes and a Fanuc Series 21i-TB CNC control. It is fitted with a 533 mm (21″) 3-jaw hydraulic chuck, a chip conveyor and a mist collector.

Key Features

• Fanuc Series 21i-TB CNC control

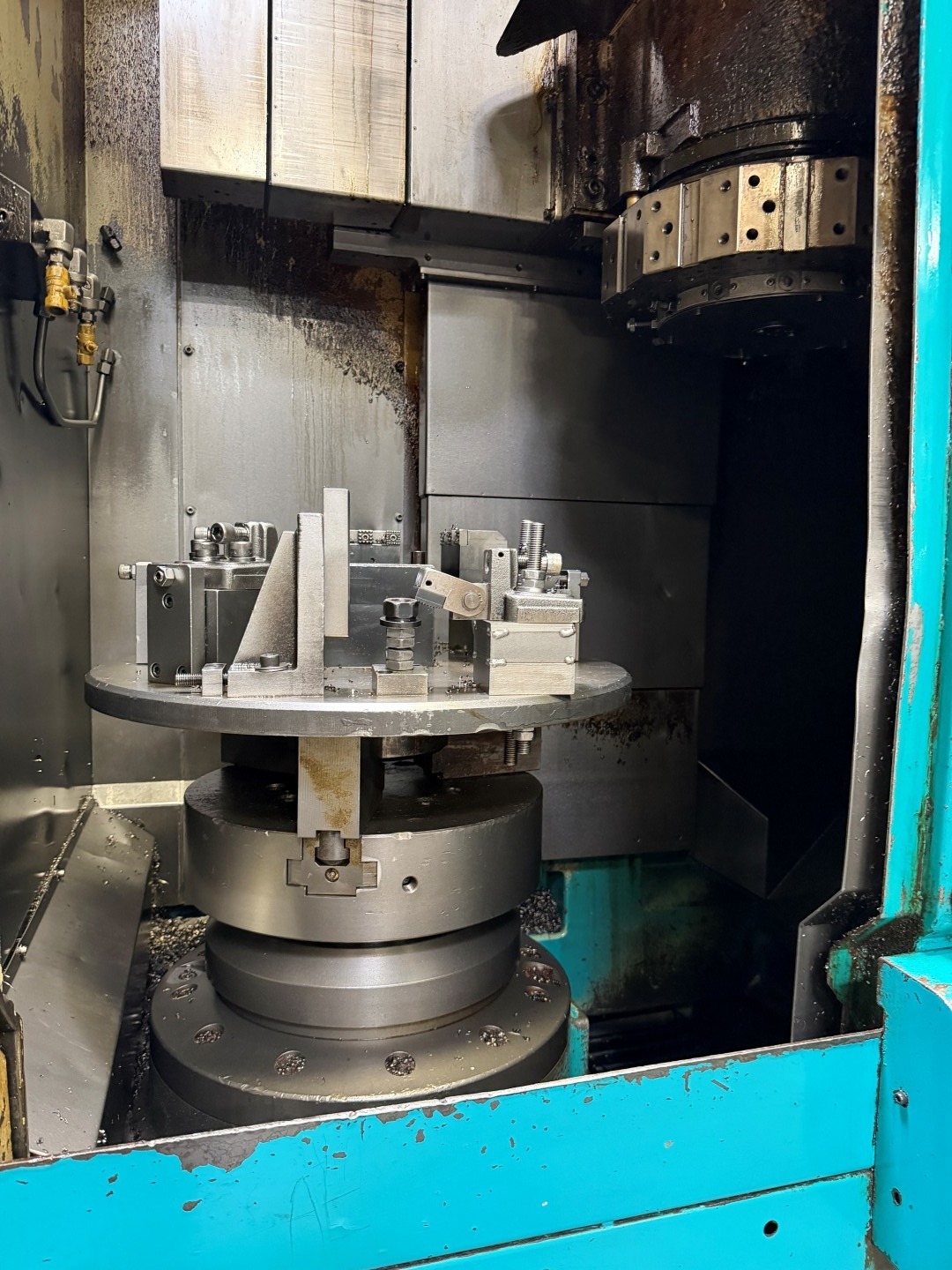

• 533 mm (21″) 3-jaw hydraulic chuck
• Chip conveyor fitted
• Mist collector fitted
• Stepless spindle speed with 50–150% override
• Cutting feed override of 0–200% in 10% steps

Technical Specifications

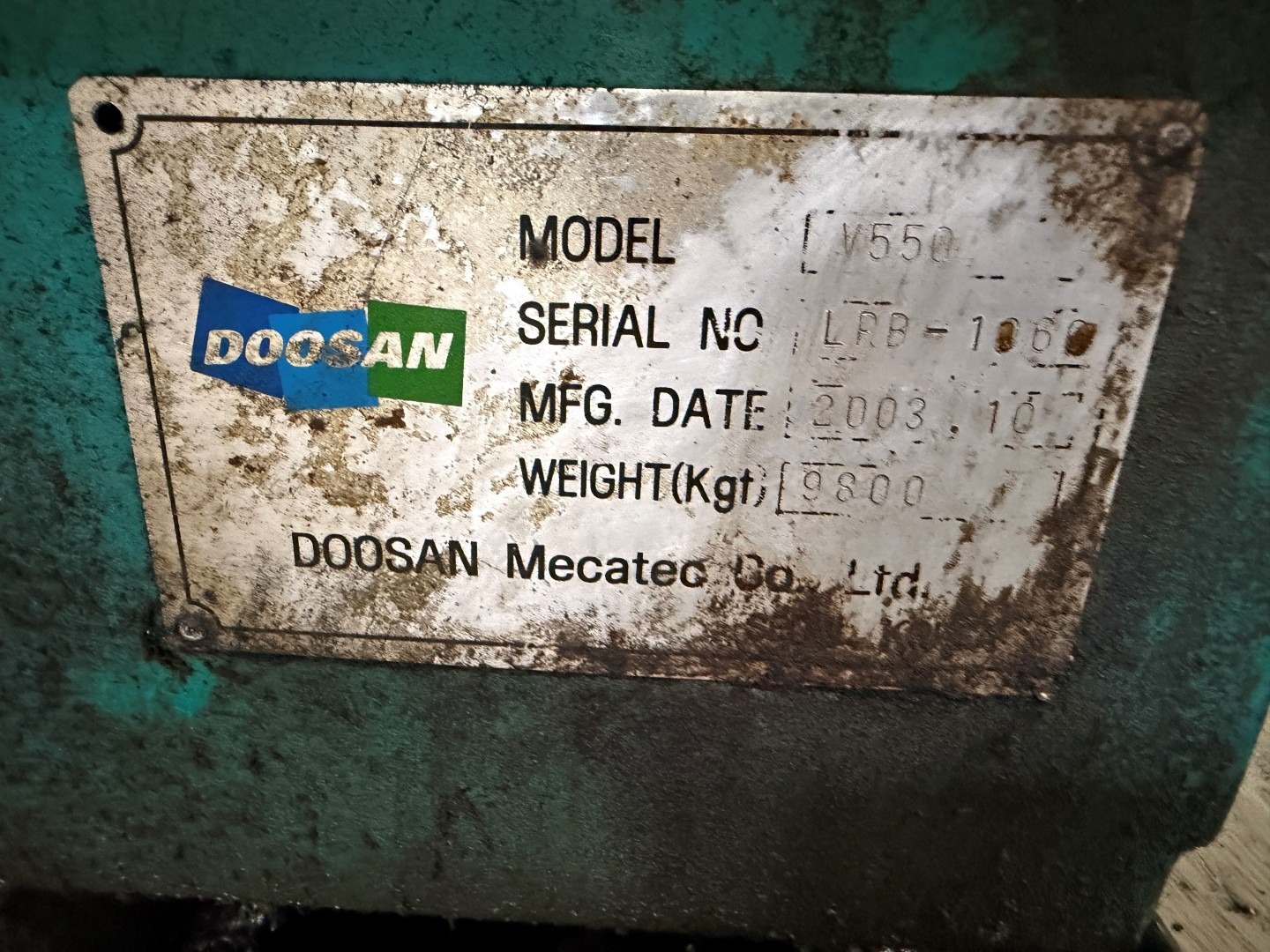

• Model: Doosan V550
• Swing over bed: 770 mm
• Maximum turning diameter: 550 mm
• Maximum turning length: 610 mm
• Bed across saddle sideway: 120 mm
• Spindle centre height: 1,060 mm
• Spindle nose: ASA A2-11
• Spindle hole taper: Ø115 mm, 1/20 taper
• Spindle hole diameter: 110 mm
• Spindle speed range: 20–2,000 rpm, stepless
• Spindle speed override: 50–150%
• X-axis travel: 310 mm
• Z-axis travel: 610 mm
• X-axis rapid traverse: 20 m/min
• Z-axis rapid traverse: 20 m/min
• Feed range: 0.001–500 mm/rev
• Cutting feed override: 0–200% (10% steps)
• Turret type: V12
• Number of tool stations: 12
• Boring bar diameter: Ø50 mm
• Chuck: 533 mm (21″) 3-jaw hydraulic
• Control: Fanuc Series 21i-TB CNC
• Machine weight: Approx. 11,300 kg

Applications

• Turning round components such as discs, flanges and rings
• Machining wheels, hubs and housings
• General CNC turning of medium-sized workpieces up to 550 mm diameter
• Boring and facing of larger-diameter parts

Commercial Details

• Make: Doosan
• Model: V550
• Condition: Used
• Location: Navi Mumbai, Maharashtra, India
• Seller: A.K. Machine Traders

Frequently Asked Questions

• What is the largest part this machine can turn? It turns up to 550 mm in diameter and 610 mm in length, with a swing over bed of 770 mm.
• What control does it use? It has a Fanuc Series 21i-TB CNC control.
• What comes with the machine? It is equipped with a 533 mm (21″) 3-jaw hydraulic chuck, a chip conveyor and a mist collector.
• What should I ask when enquiring? Ask for photos or video of the machine running under power, whether an inspection can be arranged, which tooling and accessories are included, the condition of the control and electrics, and how loading and shipping of its approx. 11,300 kg will be handled.
