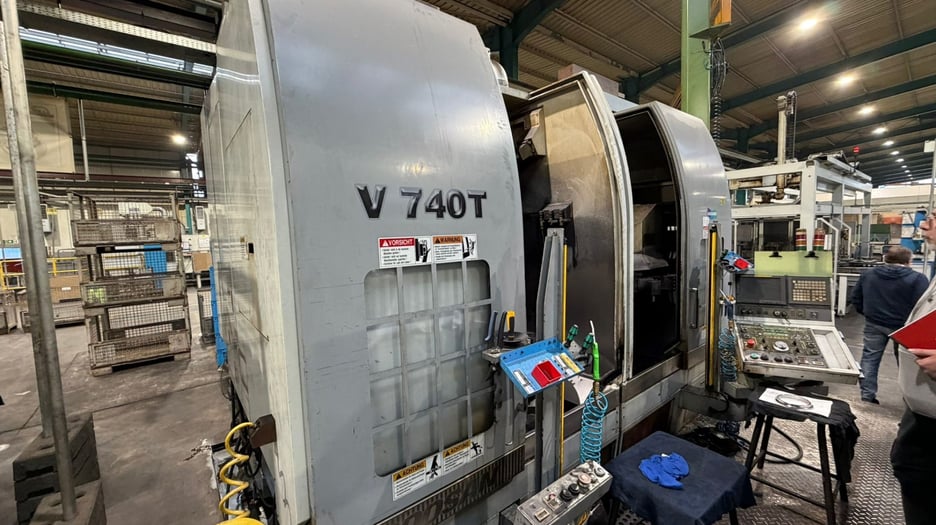

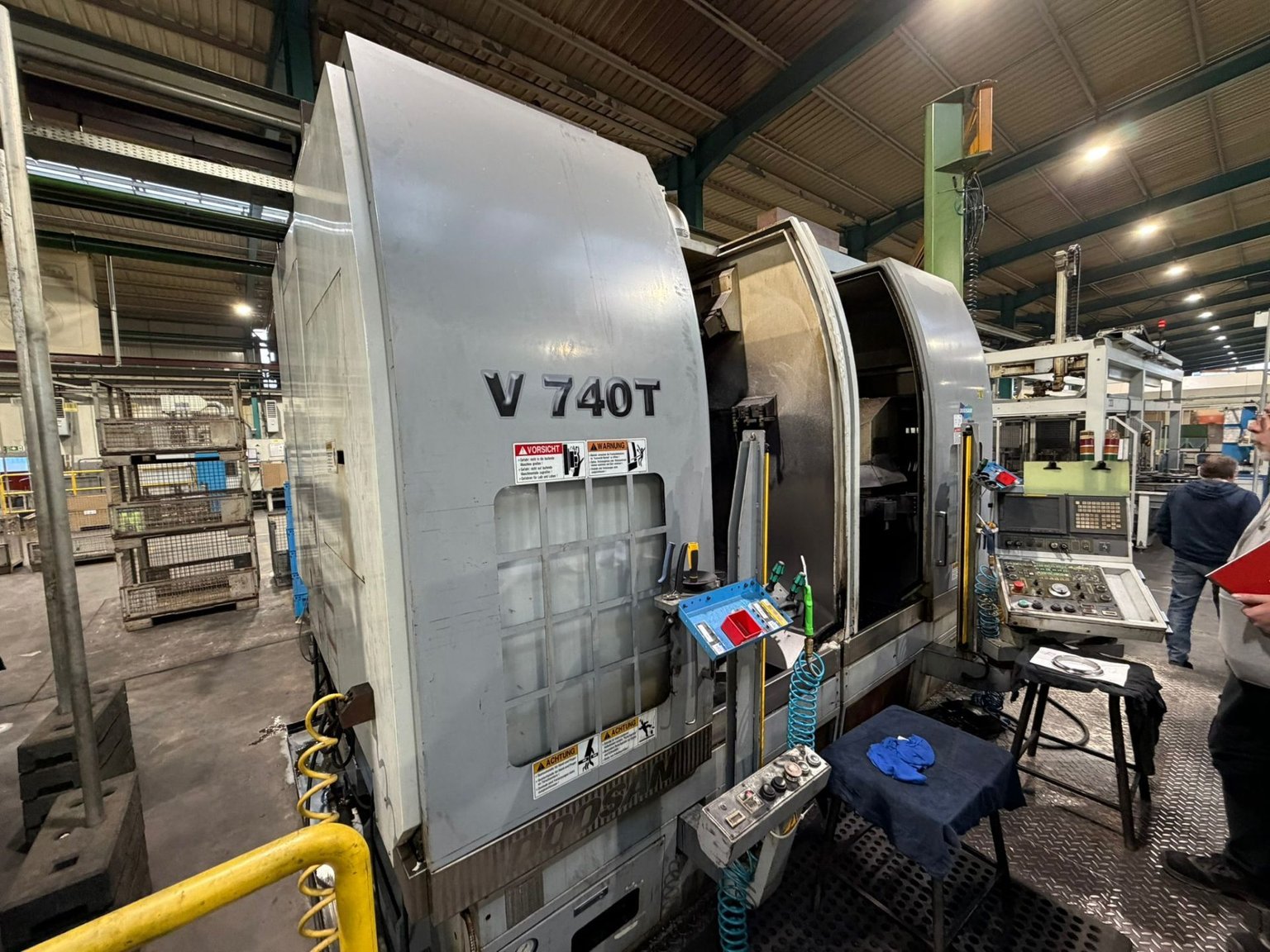

Used Doosan V740T Double CNC Vertical Turret Lathe | A.K. Machine Traders, Navi Mumbai, India

This used Doosan V740T double CNC vertical turret lathe is available from A.K. Machine Traders in Navi Mumbai, India. A vertical turret lathe turns workpieces on a vertical axis, with the part held on a horizontal table.

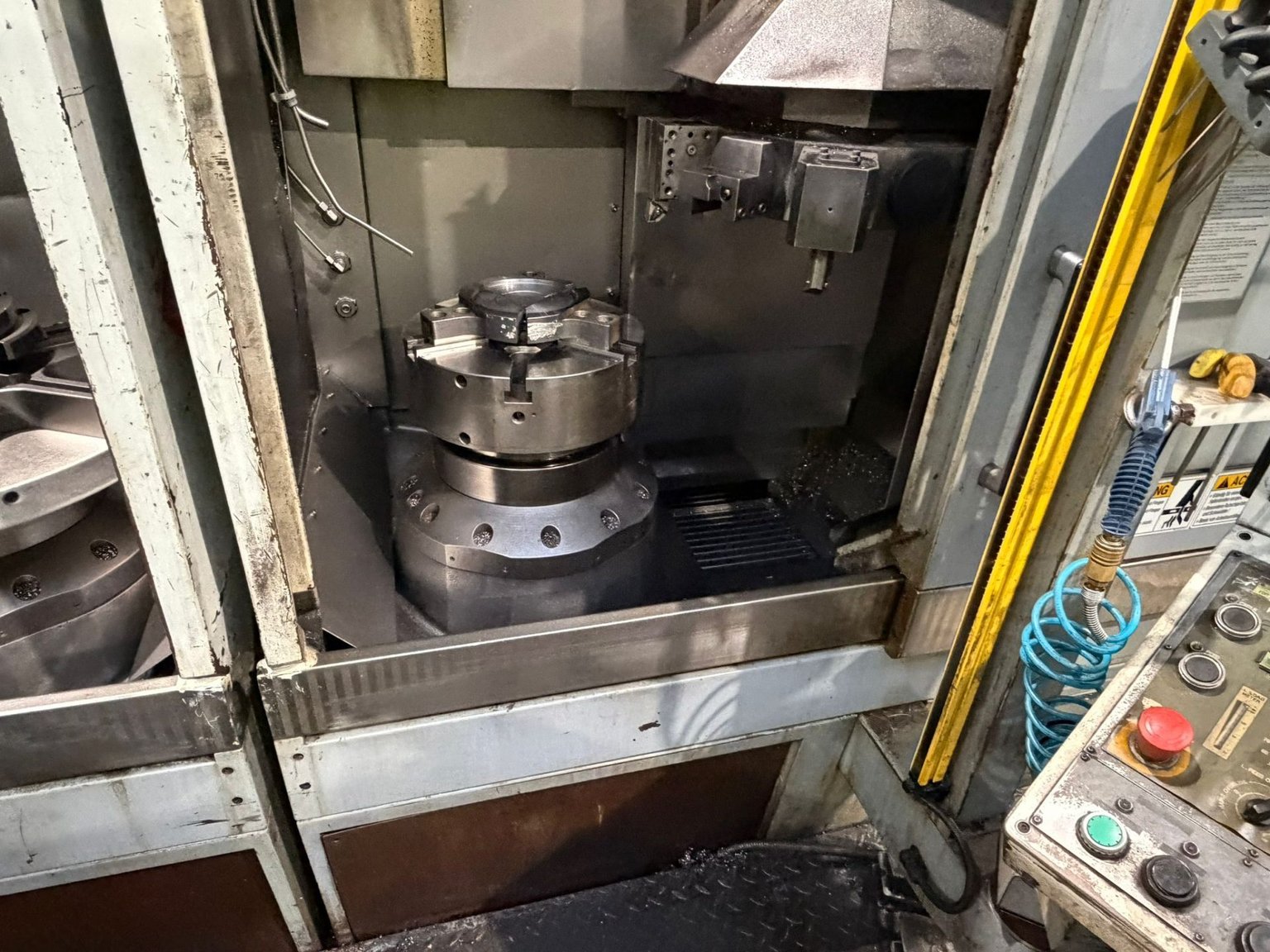

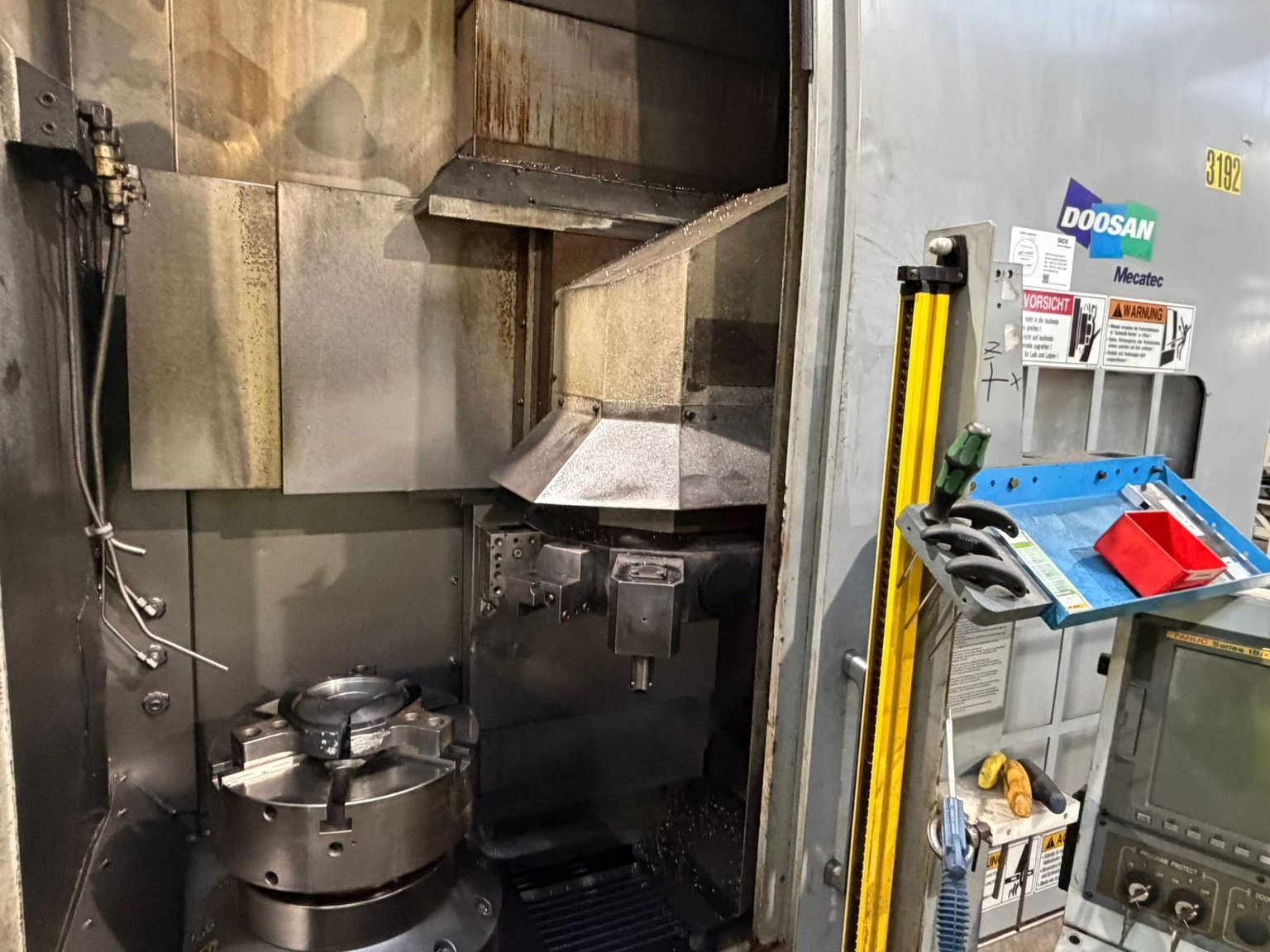

It has a 610 mm chuck, a maximum swing of 740 mm and a 700 kg table weight capacity. Spindle speeds run from 5 to 1,800 RPM, and a 12-station turret and Fanuc 18iTB control are fitted.

Key Features

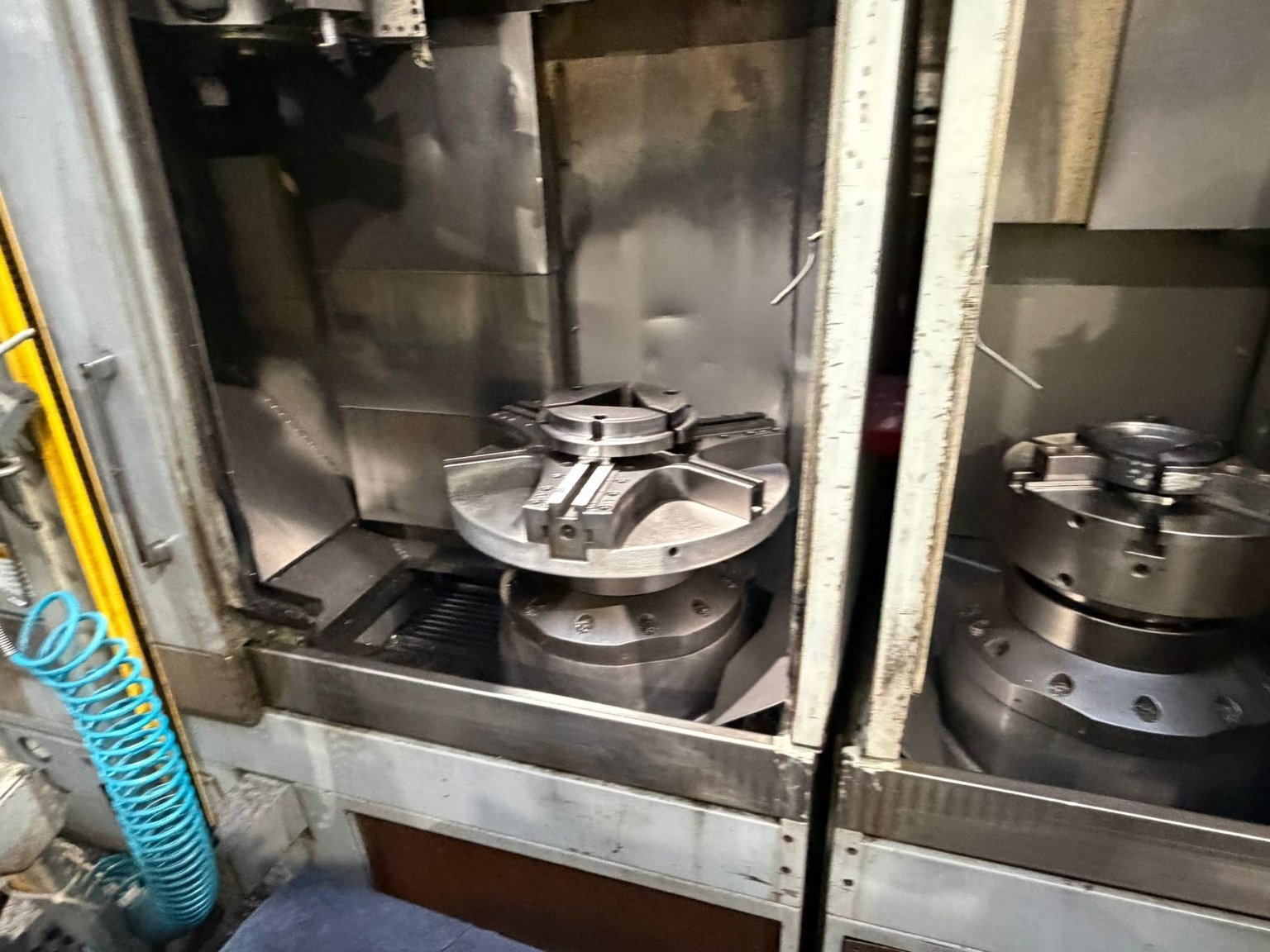

Double CNC vertical turret lathe layout
12-station turret
Fanuc 18iTB control
AC table drive with up to two gear ranges

Technical Specifications

Model: Doosan V740T
Chuck diameter: 610 mm
Maximum swing: 740 mm
Maximum cutting diameter: 760 mm
Maximum cutting height: 740 mm
Spindle speed: 5–1,800 RPM
Gear ranges: 2 maximum
Table weight capacity: 700 kg
Spindle nose: A2-11
Spindle bearing diameter: 200 mm
Table power: 50/40 HP AC
Z-axis travel: 740 mm
X-axis travel: 470 mm
Rapid traverse rate: 630/630 IPM
Turret: 12 stations
Control: Fanuc 18iTB

Applications

Turning large-diameter, short discs and rings
Machining flanges and wheel-type components
Turning housings and similar heavy round parts
General CNC turning of chucked components

Commercial Details

Make: Doosan
Model: V740T
Condition: Used
Location: Navi Mumbai, Maharashtra, India
Seller: A.K. Machine Traders

Frequently Asked Questions

What is the largest part it can turn? It has a maximum swing of 740 mm, a maximum cutting diameter of 760 mm and a cutting height of 740 mm, with a 700 kg table capacity.
What control does it use? It is fitted with a Fanuc 18iTB control.
How many tools does the turret hold? The turret has 12 stations.
What should I ask when enquiring? Ask for photos or video of the machine running under power, and whether an inspection can be arranged. Confirm the condition of the control and electrics, which chucks, tooling and accessories are included, and the loading and shipping arrangements.
