Used Doris Scharmann Twin Pallet CNC Horizontal Machining Center | A.K. Machine Traders, Navi Mumbai, India

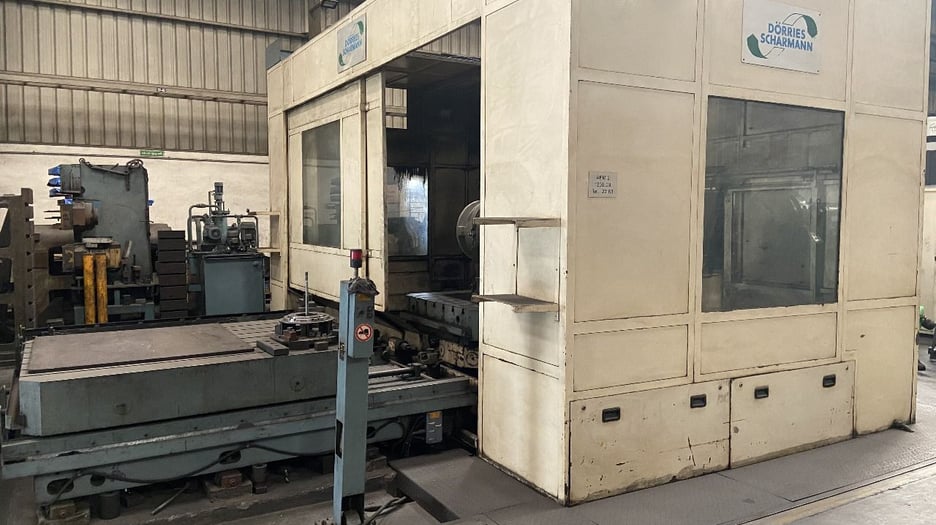

This used Doris Scharmann twin pallet CNC horizontal machining centre is available from A.K. Machine Traders in Navi Mumbai, India. A horizontal machining centre cuts metal parts with a rotating tool, and this one is built for large workpieces.

It has travels of 3,000 mm in X, 2,000 mm in Y and 1,500 mm in Z, plus 700 mm in W. The ISO 50 spindle is driven by a 55 kW motor at up to 3,000 rpm, and a 2,000 × 1,600 mm CNC rotary table on two pallet stations carries up to 12 tonnes. It is controlled by a Siemens 840 D.

Key Features

• Twin pallet stations
• CNC rotary table with 0.001 degree resolution
• Scale feedback on the X, Y, Z and W axes
• Siemens 840 D CNC control
• Coolant system offering 2, 8 and 30 bar
• Full protection canopy
• Machine rebuilt in 2017 with a new CNC system

Technical Specifications

• Machine type: Twin pallet CNC horizontal machining centre
• X travel: 3,000 mm
• Y travel: 2,000 mm
• Z travel: 1,500 mm
• W travel: 700 mm
• Spindle diameter: 150 mm
• Spindle taper: ISO 50
• Spindle speed: 3,000 rpm
• Spindle motor: 55 kW
• Spindle support: 300 mm
• Tool magazine: 95 tools (automatic tool change not functioning at present)
• Coolant system: 2/8/30 bar
• CNC control: Siemens 840 D
• Rotary table size: 2,000 × 1,600 mm
• Table resolution: 0.001 degree
• Pallet stations: 2
• Load on table: 12 t

Applications

• Large fabricated and cast components needing milling, drilling and boring
• Heavy machinery and equipment housings
• Large parts machined on multiple faces in one setup
• Engineering and general heavy machining work

Commercial Details

• Make: Doris Scharmann
• Model: Twin Pallet CNC Horizontal Machining Center
• Condition: Used
• Location: Navi Mumbai, Maharashtra, India
• Seller: A.K. Machine Traders

Frequently Asked Questions

• What are the axis travels? X is 3,000 mm, Y 2,000 mm, Z 1,500 mm and W 700 mm.
• What control does it use? It uses a Siemens 840 D CNC control, with scale feedback on the X, Y, Z and W axes.
• Does the automatic tool changer work? The 95-tool changer is listed as not functioning at present.
• What should I ask when enquiring? Ask for photos or video of the machine under power, an inspection, the condition of the tool changer, what tooling and accessories are included, details of the 2017 rebuild and electrics, and loading and shipping arrangements.
