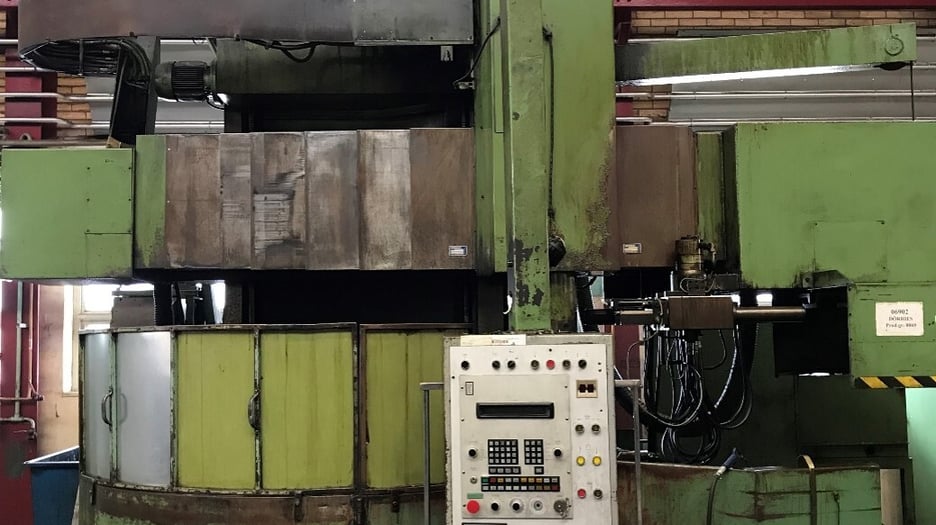

Used Dorries CT 140 CNC Vertical Turret Lathe | A.K. Machine Traders, Navi Mumbai, India

This used Dorries CT 140 CNC vertical turret lathe is available from A.K. Machine Traders in Navi Mumbai, India. A vertical turret lathe turns large, heavy workpieces held on a horizontal rotating table.

It has a 1,422.40 mm table diameter, a 1,930.40 mm swing and 2,032.00 mm height under the rail. A 16-position tool changer and a ram-type head are fitted, with an independent 4-jaw chuck.

Key Features

• Independent 4-jaw chuck with bolt-on jaw system
• Hard jaws available as an option
• Ram-type head
• Rail positioned by elevating screw
• Hardened ways with roller pack on the cross rail
• Metal telescopic way covers
• Coolant system included; chip conveyor optional

Technical Specifications

• Model: Dorries CT 140
• Control: CNC
• Table diameter: 1,422.40 mm
• Swing: 1,930.40 mm
• Height under rail: 2,032.00 mm
• Chuck type: Independent
• Number of jaws: 4
• Jaw system: Bolt on
• X horizontal saddle travel: 1,524.00 mm
• Z vertical slide travel: 1,041.40 mm
• Head 1 type: Ram type
• Ram size: 203.20 mm
• Rail positioning: Elevating screw
• Tool changer: 16 tools
• Power: 3 phase, 60 Hz, 460 V

Applications

• Large round components such as rings, flanges and discs
• Heavy housings and casings
• Wheels, hubs and large bearing parts
• General heavy engineering and large-part turning

Commercial Details

• Make: Dorries
• Model: CT 140
• Condition: Used
• Location: Navi Mumbai, Maharashtra, India
• Seller: A.K. Machine Traders

Frequently Asked Questions

• What size workpiece can it swing? It has a 1,422.40 mm table diameter and a 1,930.40 mm swing, with 2,032.00 mm height under the rail.
• How many tools does the changer hold? The tool changer holds 16 tools.
• What electrical supply does it use? It is set up for 3 phase, 60 Hz, 460 V power.
• What should I ask when enquiring? Ask for photos or video of the machine running under power, whether an inspection is possible, and which tooling, jaws and accessories are included. Also confirm the control and electrics, including the 460 V 60 Hz supply, and arrangements for loading and shipping.
