Used Drummond Maxicut 200 Gear Shaping Machine | A.K. Machine Traders, Navi Mumbai, India

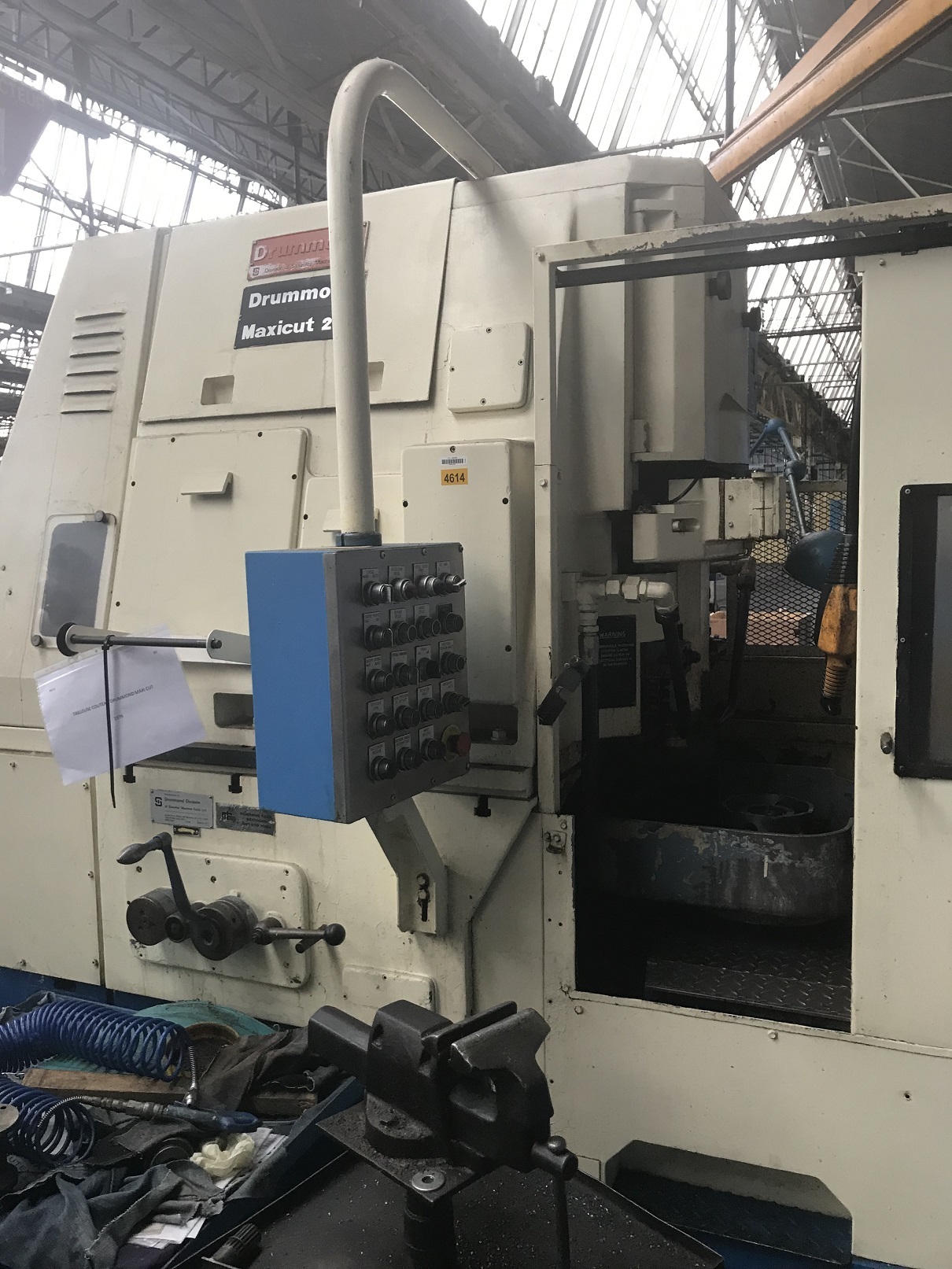

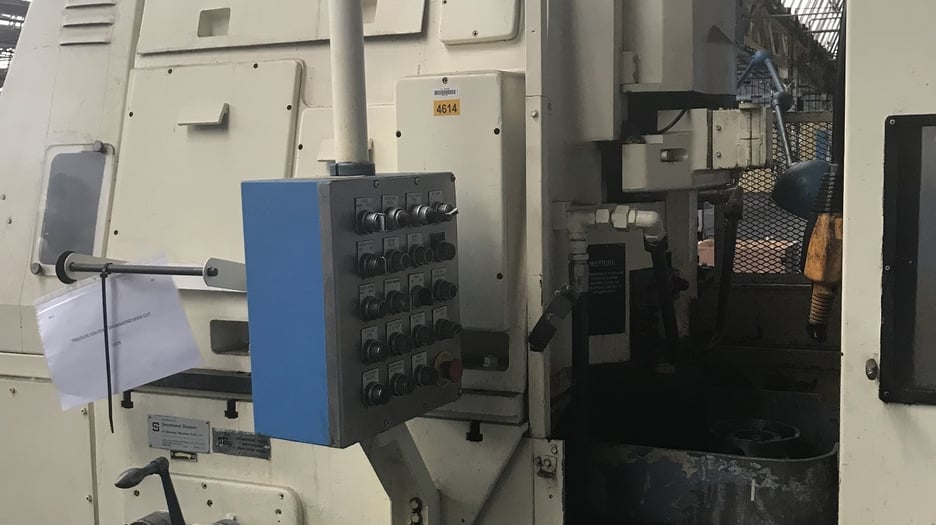

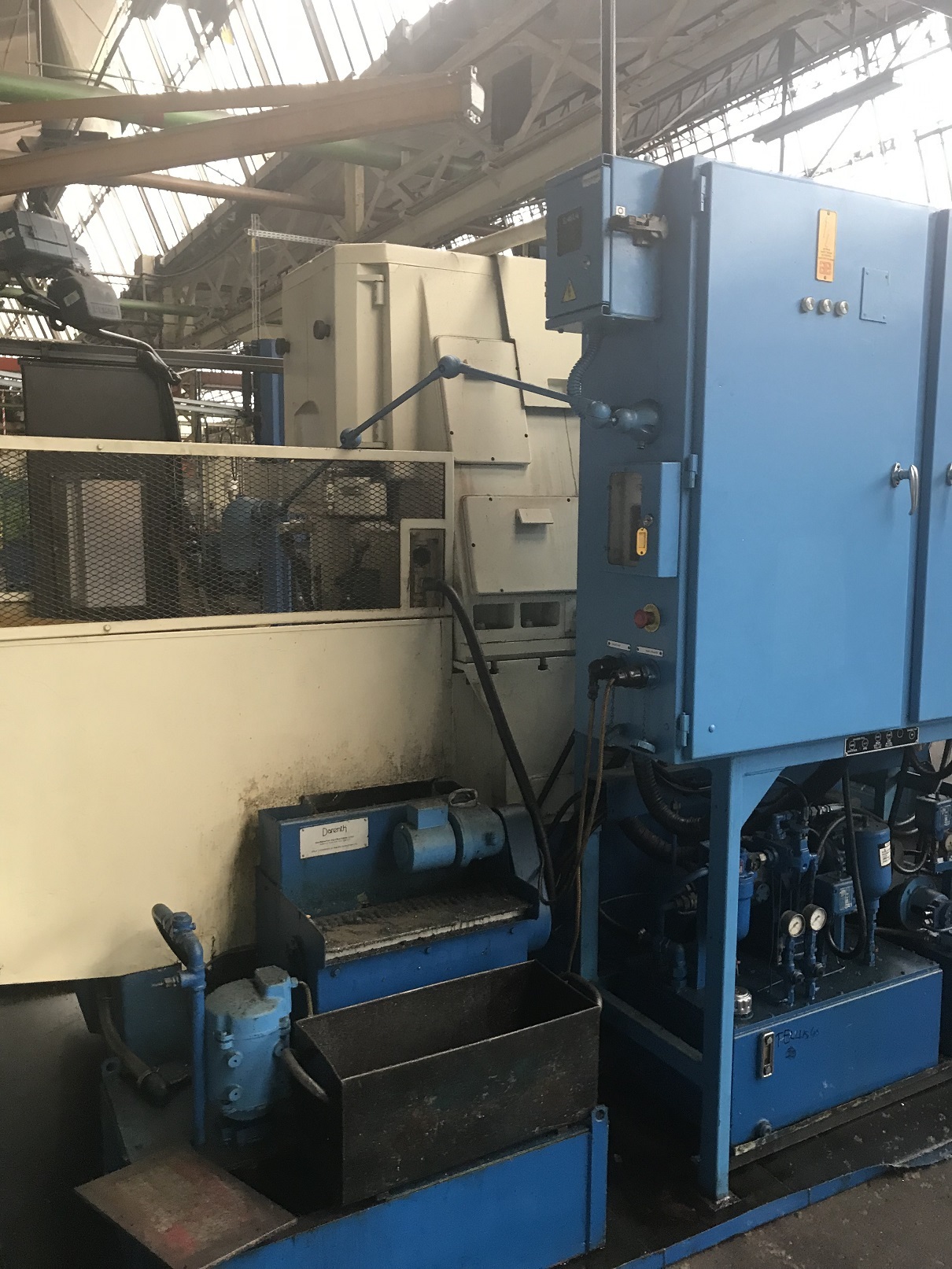

This used Drummond Maxicut 200 gear shaping machine is available from A.K. Machine Traders in Navi Mumbai, India. A gear shaper cuts gear teeth using a reciprocating cutter.

It handles gears up to 200 mm in diameter with a face width of up to 60 mm and a maximum module of 8.5. Cutter speed is adjustable from 158 to 1,600 strokes per minute.

Key Features

• 4 cut cycle
• Fitted with straight guides

Technical Specifications

• Model: Maxicut 200
• Max gear diameter: 200 mm
• Max face width: 60 mm
• Max module: 8.5
• Cutter speed: 158–1,600 strokes/min
• Cut cycle: 4 cut cycle
• Machine size: 160 x 80 x 235 high
• Weight: 4,750 kg

Applications

• Cutting external spur gears
• Producing gears for gearboxes and transmissions
• Small-batch and workshop gear manufacture
• Toolroom and general engineering gear work

Commercial Details

• Make: Drummond
• Model: Maxicut 200
• Condition: Used
• Location: Navi Mumbai, Maharashtra, India
• Seller: A.K. Machine Traders

Frequently Asked Questions

• What size gears can it cut? It cuts gears up to 200 mm in diameter, with a face width up to 60 mm and a maximum module of 8.5.
• What is the cutter speed range? The cutter runs at 158–1,600 strokes per minute.
• How heavy is the machine? It weighs 4,750 kg, which is useful for planning transport and foundations.
• What should I ask when enquiring? Ask for photos or video of the machine running, whether an inspection is possible, which cutters, change gears and accessories are included, the condition of the control and electrics, and how loading and shipping will be handled.
