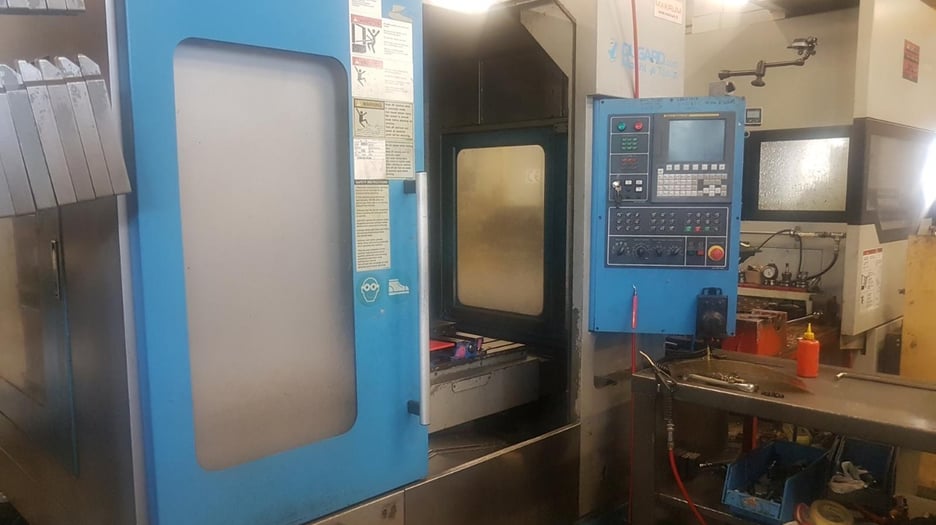

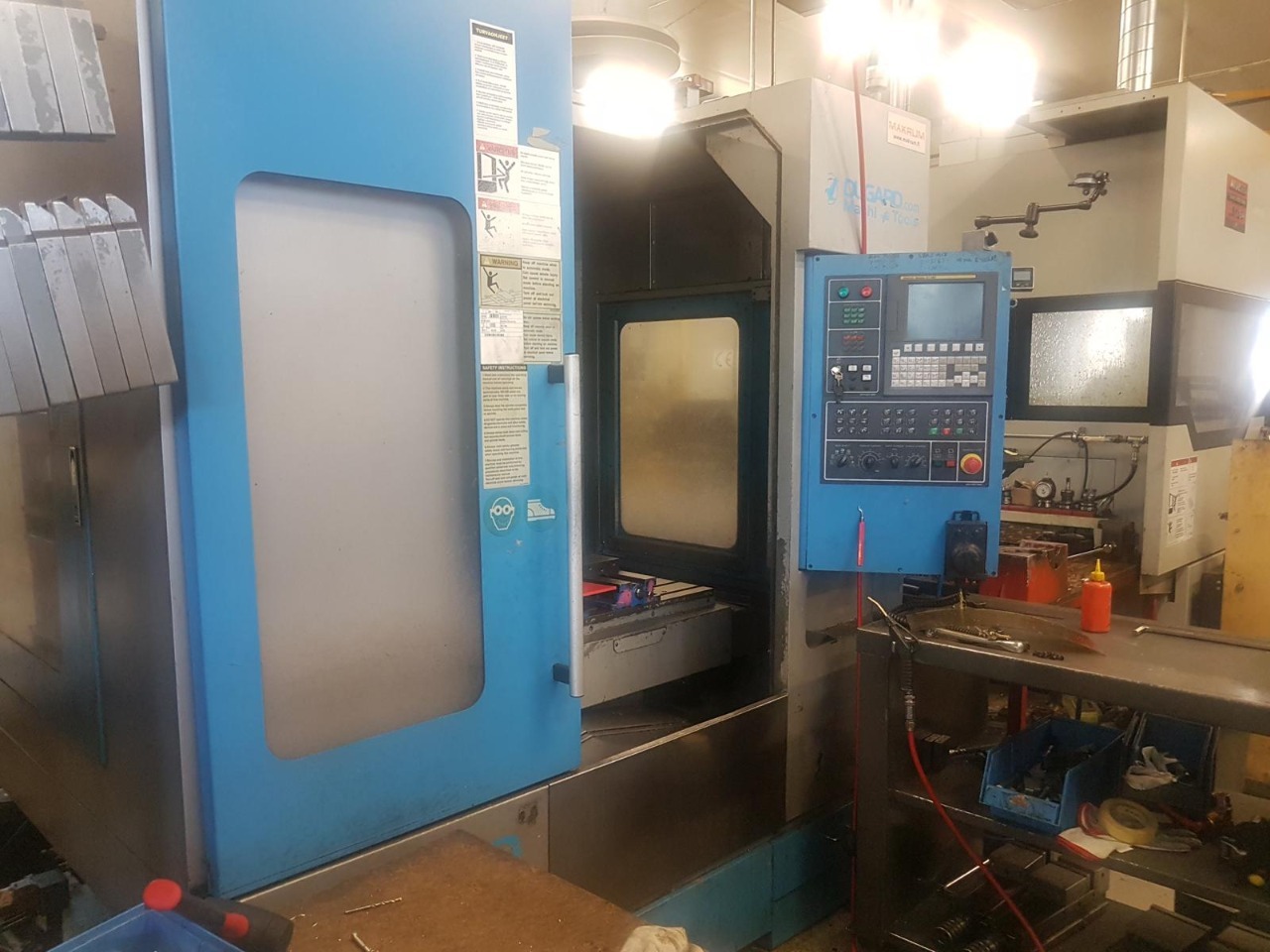

Used Dugard Eagle 850 CNC Vertical Machining Centre | A.K. Machine Traders, Navi Mumbai, India

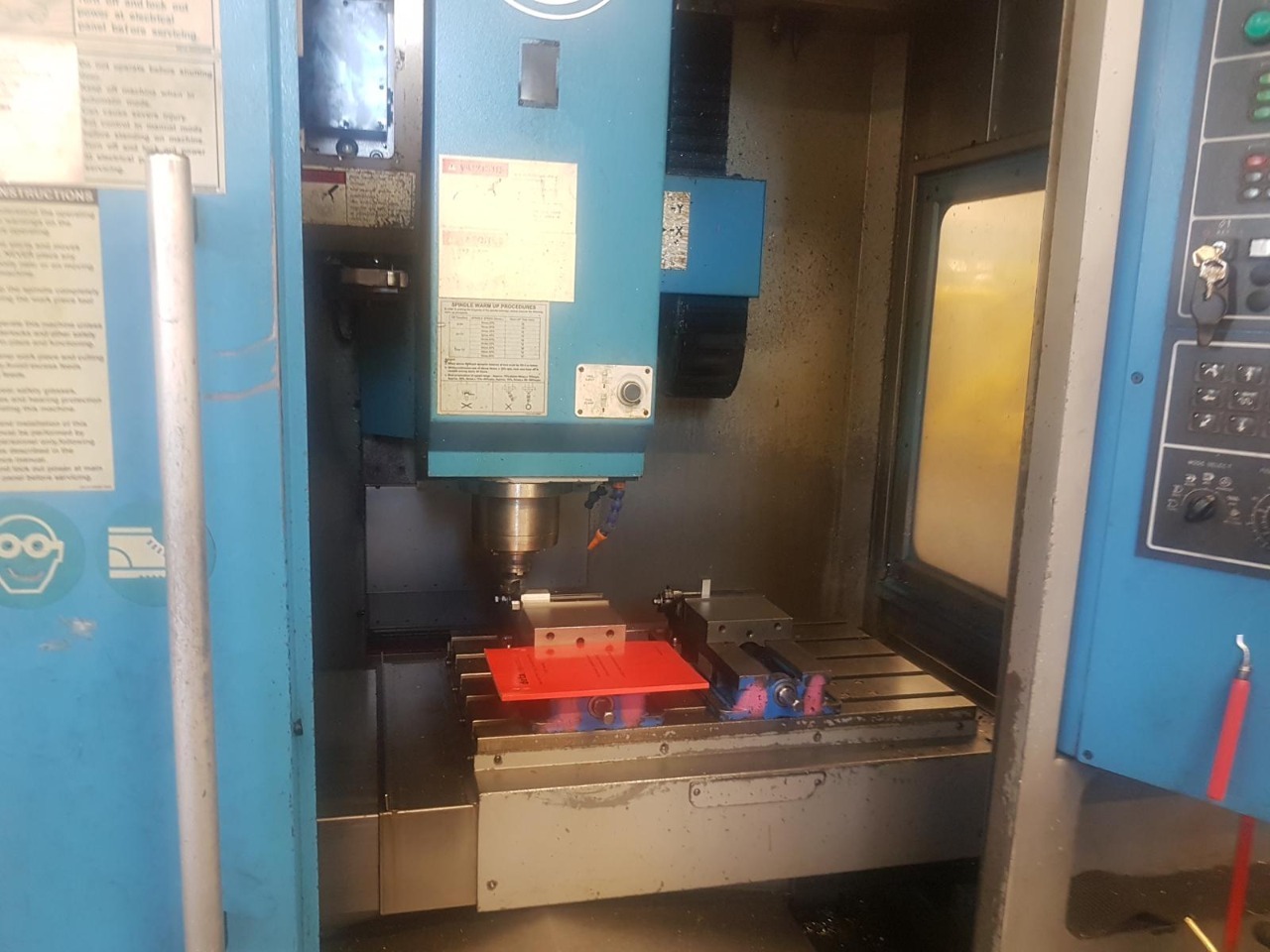

This used Dugard Eagle 850 CNC vertical machining centre is available from A.K. Machine Traders in Navi Mumbai, India. A vertical machining centre cuts metal parts with rotating tools, with the spindle set vertically above the table.

It has travels of 850 x 530 x 510 mm, a 1,000 x 510 mm table that takes up to 500 kg, and a 10,000 rpm ISO 40 spindle. Control is by Fanuc 0iMD, and a 24-tool magazine handles tool changes.

Key Features

• Liquid-cooled spindle running up to 10,000 rpm
• 24-position drum tool magazine with intermediate clamp
• Rolling block guides on the X, Y and Z axes
• BT40 tool holders, with SK40 available as an option

Technical Specifications

• Model: Dugard Eagle 850

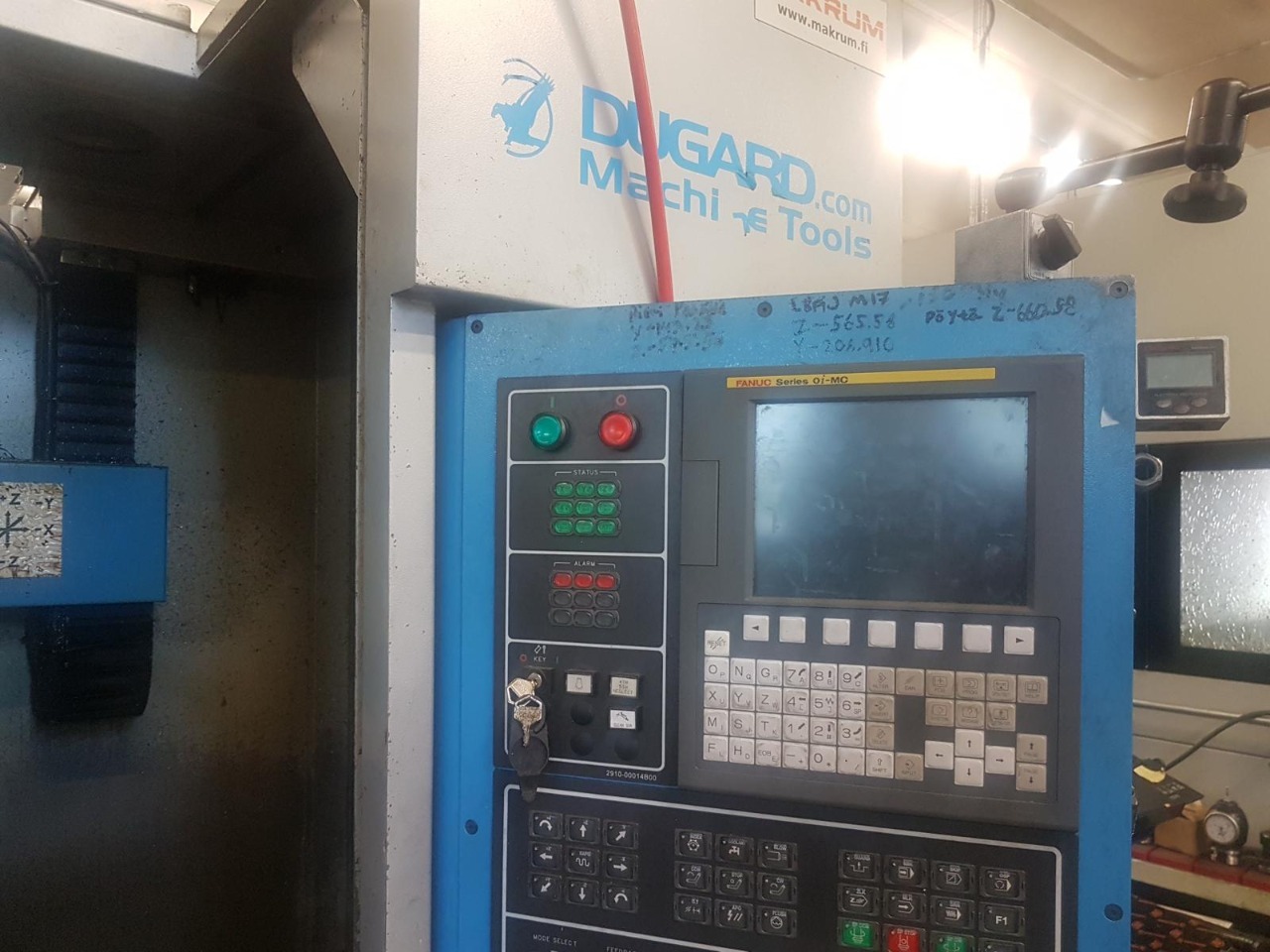

• CNC control: Fanuc 0iMD
• Table size: 1,000 x 510 mm
• Maximum table load: 500 kg
• T-slots: 5 x 18 x 100 mm
• X axis travel: 850 mm
• Y axis travel: 530 mm
• Z axis travel: 510 mm
• Spindle tip to table: 150–660 mm
• Spindle axis to column: 585 mm
• Spindle taper: ISO 40
• Spindle power (constant / 30 min): 11 / 15 kW
• Maximum spindle speed: 10,000 rpm
• Rapid feed X / Y / Z: 30 / 30 / 24 m/min
• Feed speed X, Y, Z: 1–10,000 mm/min
• Axis guides: Rolling blocks
• Positioning accuracy (VDI 3441): P 0.005 mm
• Repeatability (VDI 3441): Ps 0.003 mm
• Tool magazine: 24 tools, with intermediate clamp
• Tool holder: BT40 (SK40 optional)
• Maximum tool diameter: 80 mm
• Maximum tool length: 300 mm
• Maximum tool weight: 7 kg
• Tool change time: 2.0–4.5 s
• Power demand: 15 kVA
• Compressed air demand: 5 bar, 200 l/min
• Required area (L x W x H): 2.30 x 2.12 x 2.58 m
• Machine weight: 5,550 kg

Applications

• Machining of metal components in toolrooms and general engineering
• Milling, drilling and tapping of prismatic parts
• Mould, die and fixture work
• Batch production of machined parts

Commercial Details

• Make: Dugard
• Model: Eagle 850
• Condition: Used
• Location: Navi Mumbai, Maharashtra, India
• Seller: A.K. Machine Traders

Frequently Asked Questions

• What control does the Dugard Eagle 850 use? It is fitted with a Fanuc 0iMD CNC control.
• What are the axis travels? X travel is 850 mm, Y is 530 mm and Z is 510 mm.
• How many tools does it hold? The drum magazine holds 24 tools, with BT40 holders (SK40 optional) up to 80 mm in diameter and 300 mm long.
• What should I ask when enquiring? Ask for photos or video of the machine running under power, and whether an inspection can be arranged. Confirm the control and electrics, which tooling and accessories are included, and the loading and shipping arrangements.
