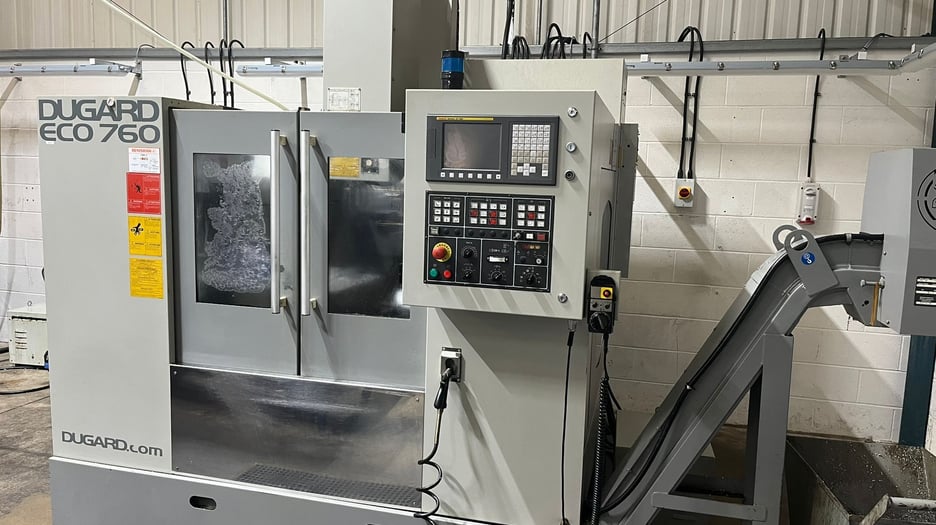

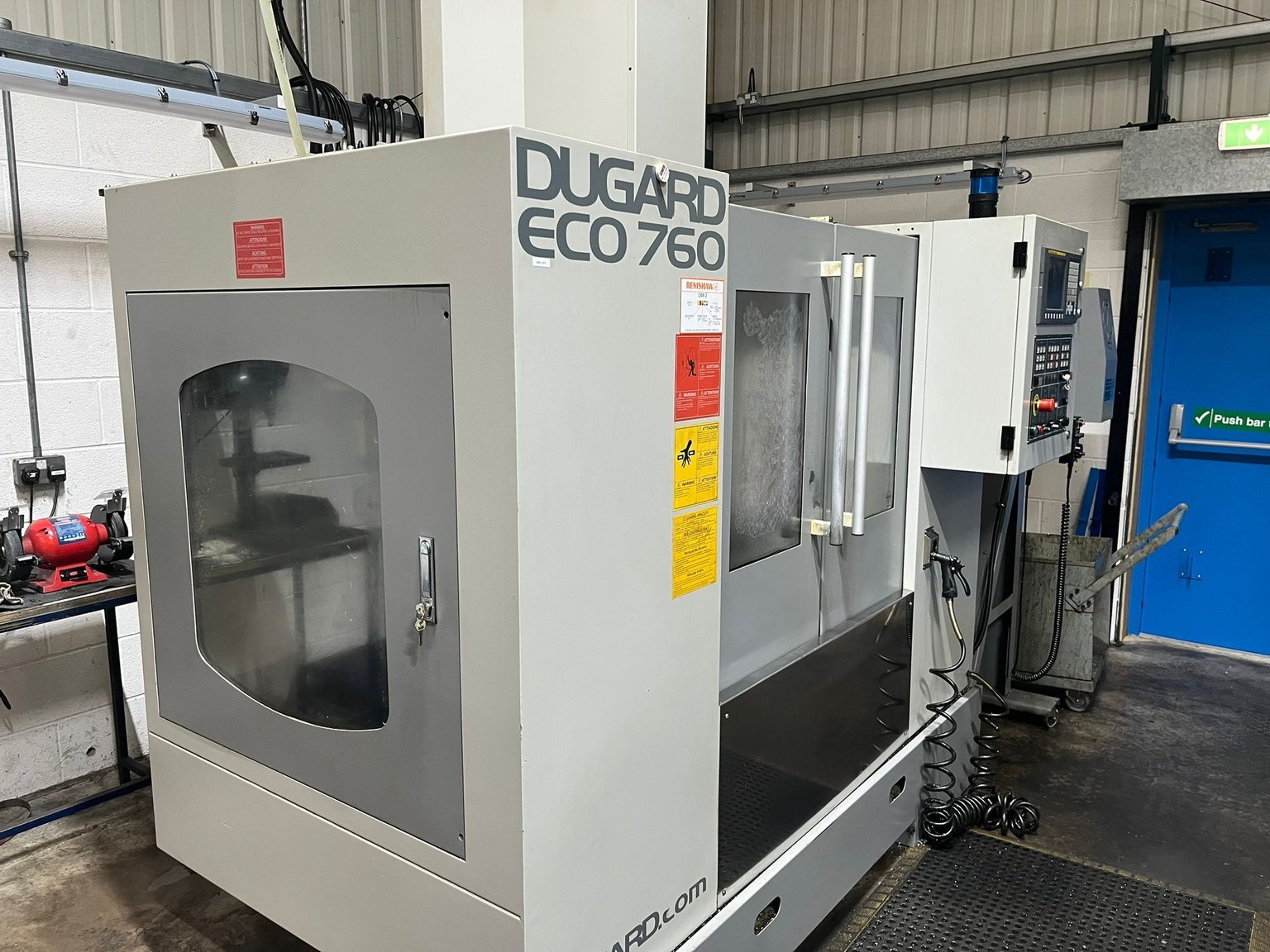

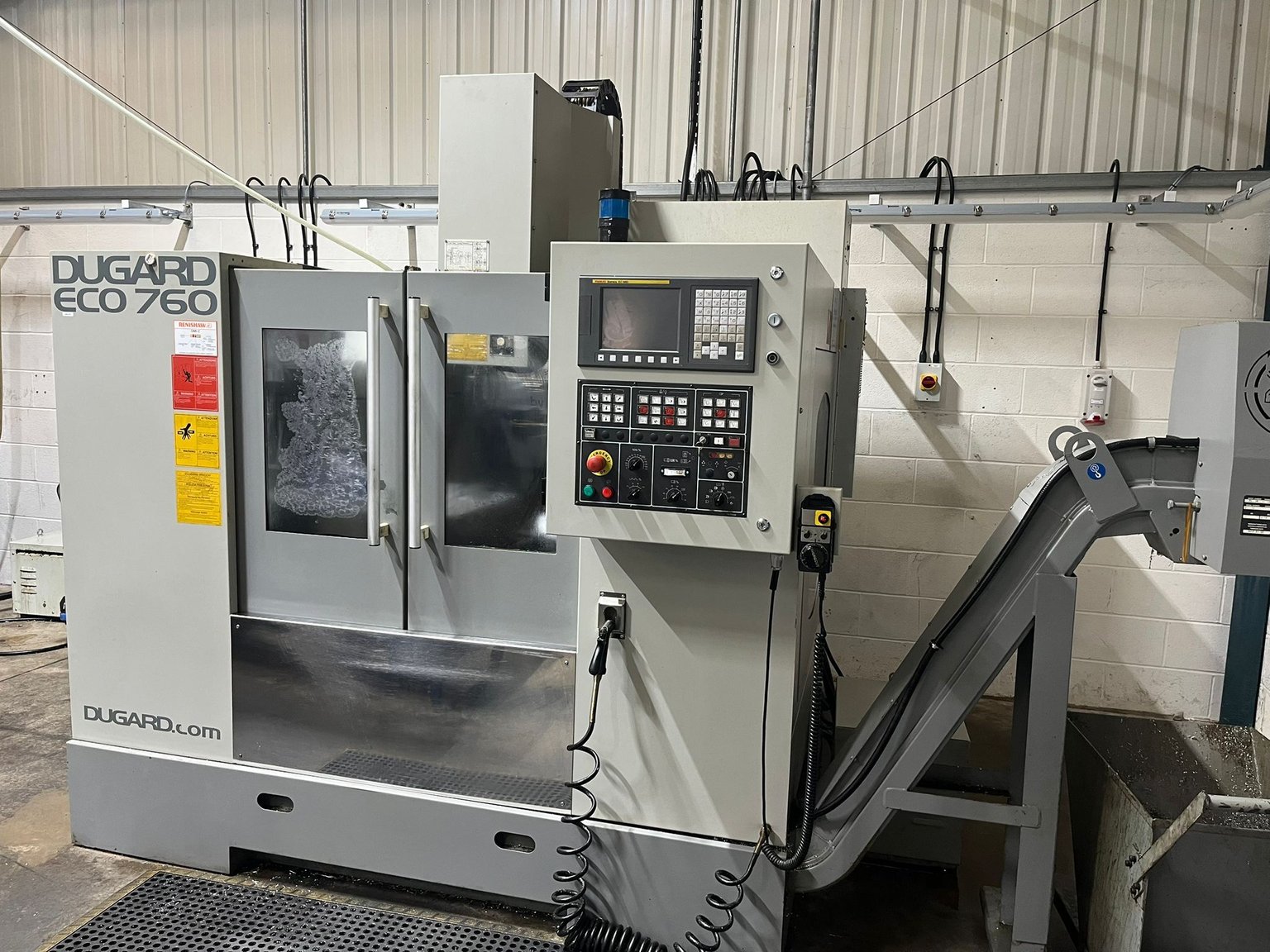

Used Dugard ECO 760 CNC Vertical Machining Centre | A.K. Machine Traders, Navi Mumbai, India

This used Dugard ECO 760 CNC vertical machining centre is available from A.K. Machine Traders in Navi Mumbai, India. It is a CNC machine that cuts parts from solid material using a rotating tool in a vertical spindle.

It has a BT40 spindle running up to 8,000 rpm, a 16-tool changer and a FANUC 0i-MD control. Axis travels are 760 x 430 x 460 mm over a 900 x 410 mm table.

Technical Specifications

• Model: ECO 760
• Spindle taper: BT40
• Spindle speed: 8,000 rpm
• Spindle motor power: 5.5/7.5 kW
• Table size: 900 x 410 mm
• Travels X x Y x Z: 760 x 430 x 460 mm
• Tool change capacity: 16 tools

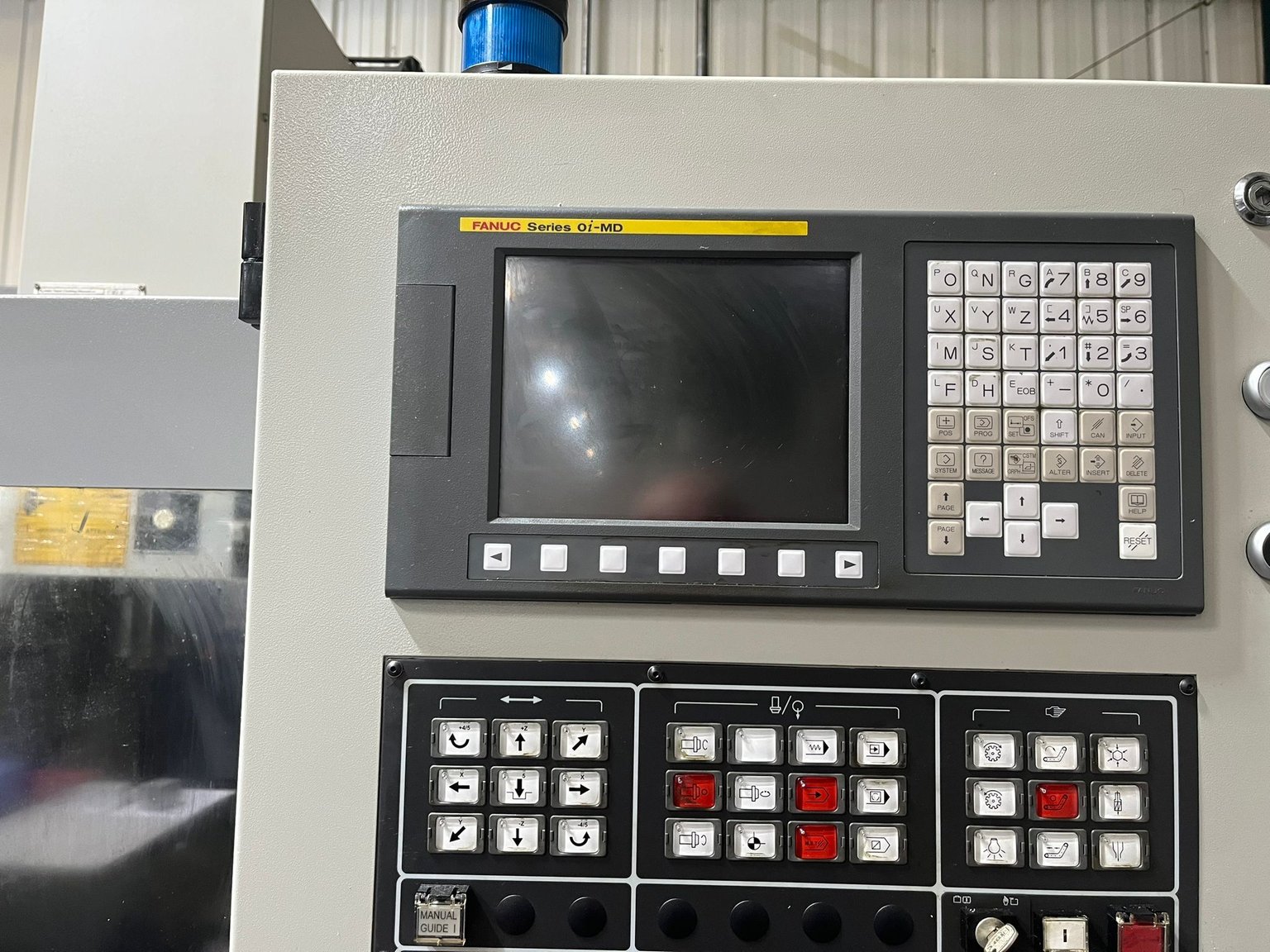

• Control: FANUC 0i-MD

Applications

• Machining of moulds and dies in small to medium sizes
• Milling, drilling and tapping of general engineering components
• Prototype and batch production of metal parts
• Machining of automotive and tooling components

Commercial Details

• Make: Dugard
• Model: ECO 760
• Condition: Used
• Location: Navi Mumbai, Maharashtra, India
• Seller: A.K. Machine Traders

Frequently Asked Questions

• What is the travel of this machine? The X, Y and Z travels are 760 x 430 x 460 mm.
• What control does it have? It is fitted with a FANUC 0i-MD control.
• How many tools does the tool changer hold? The tool changer holds 16 tools, and the spindle taper is BT40.
• What should I ask when enquiring? Ask for photos or a video of the machine running under power, whether an inspection can be arranged, and which accessories and tooling are included. Also confirm the condition of the control and electrics, the voltage requirements, and the loading and shipping arrangements.
