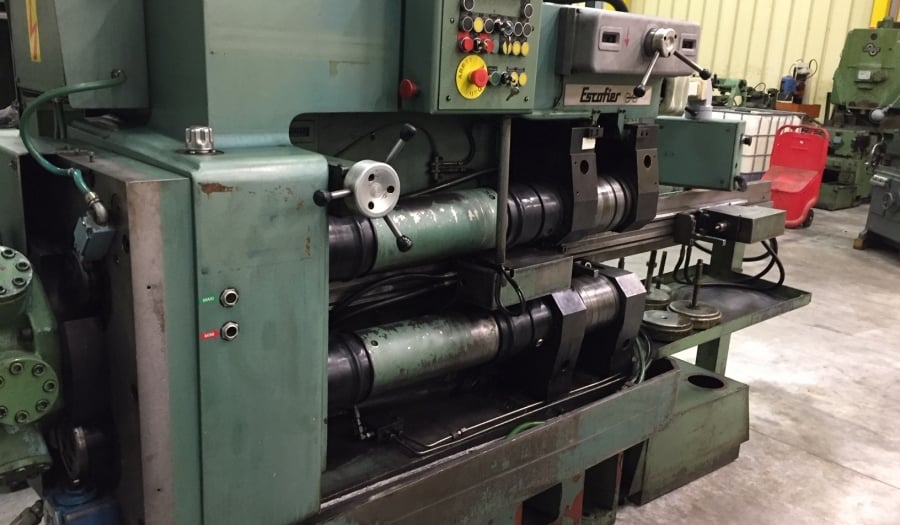

Used Escofier INC 300 Spline Rolling Machine | A.K. Machine Traders, Navi Mumbai, India

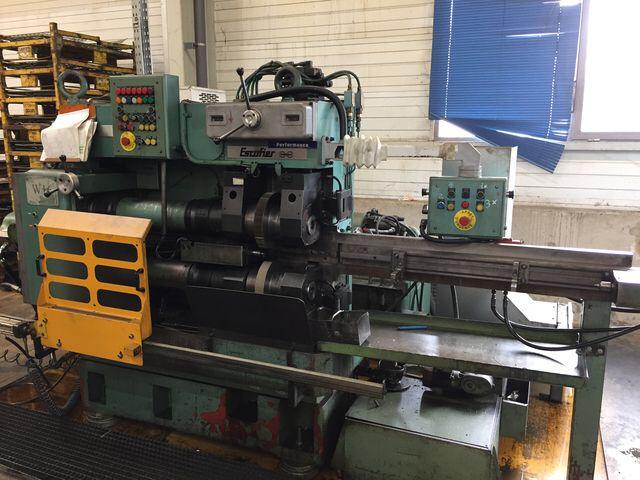

This used Escofier INC 300 spline rolling machine is available from A.K. Machine Traders in Navi Mumbai, India. It forms splines on shafts by rolling rather than cutting.

It takes pieces up to 1,350 mm long, with a maximum teeth length of 1,200 mm and a maximum teeth diameter of 120 mm. It is driven by an 18.5 kW motor.

Technical Specifications

• Model: INC 300
• Maximum piece length: 1,350 mm
• Maximum teeth length: 1,200 mm
• Maximum teeth diameter: 120 mm
• Power: 18.5 kW
• Machine dimensions: 2,840 x 1,700 x 1,420 mm

Applications

• Splined shafts for gearboxes and transmissions
• Drive shafts and axle components
• Machine tool and industrial machinery shafts

Commercial Details

• Make: Escofier
• Model: INC 300
• Condition: Used
• Location: Navi Mumbai, Maharashtra, India
• Seller: A.K. Machine Traders

Frequently Asked Questions

• What is the maximum workpiece length? The machine takes pieces up to 1,350 mm long, with a maximum teeth length of 1,200 mm.
• What is the largest teeth diameter it can roll? The maximum teeth diameter is 120 mm.
• How much space and power does it need? It measures 2,840 x 1,700 x 1,420 mm and has an 18.5 kW drive.
• What should I ask when enquiring? Ask for photos or video of the machine running under power, whether an inspection is possible, and which tooling and accessories are included. Also confirm the control and electrical details, and arrange loading and shipping.
