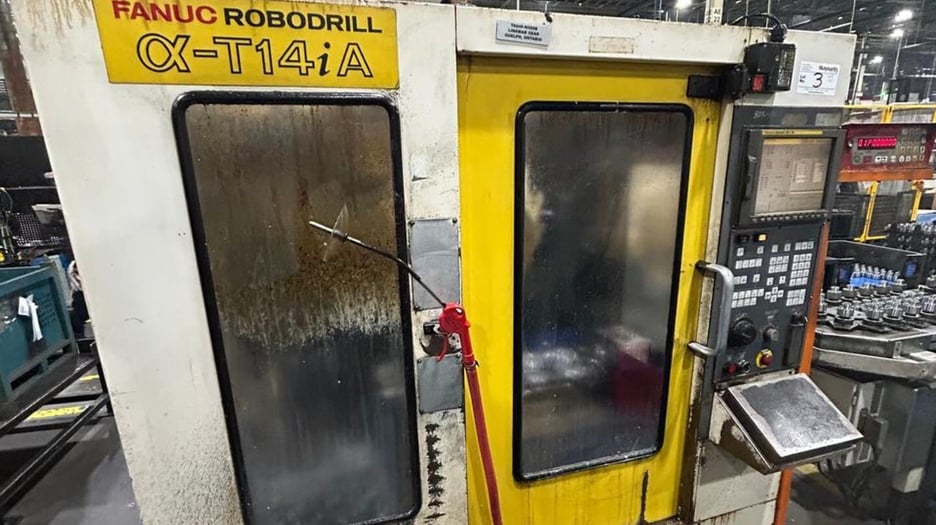

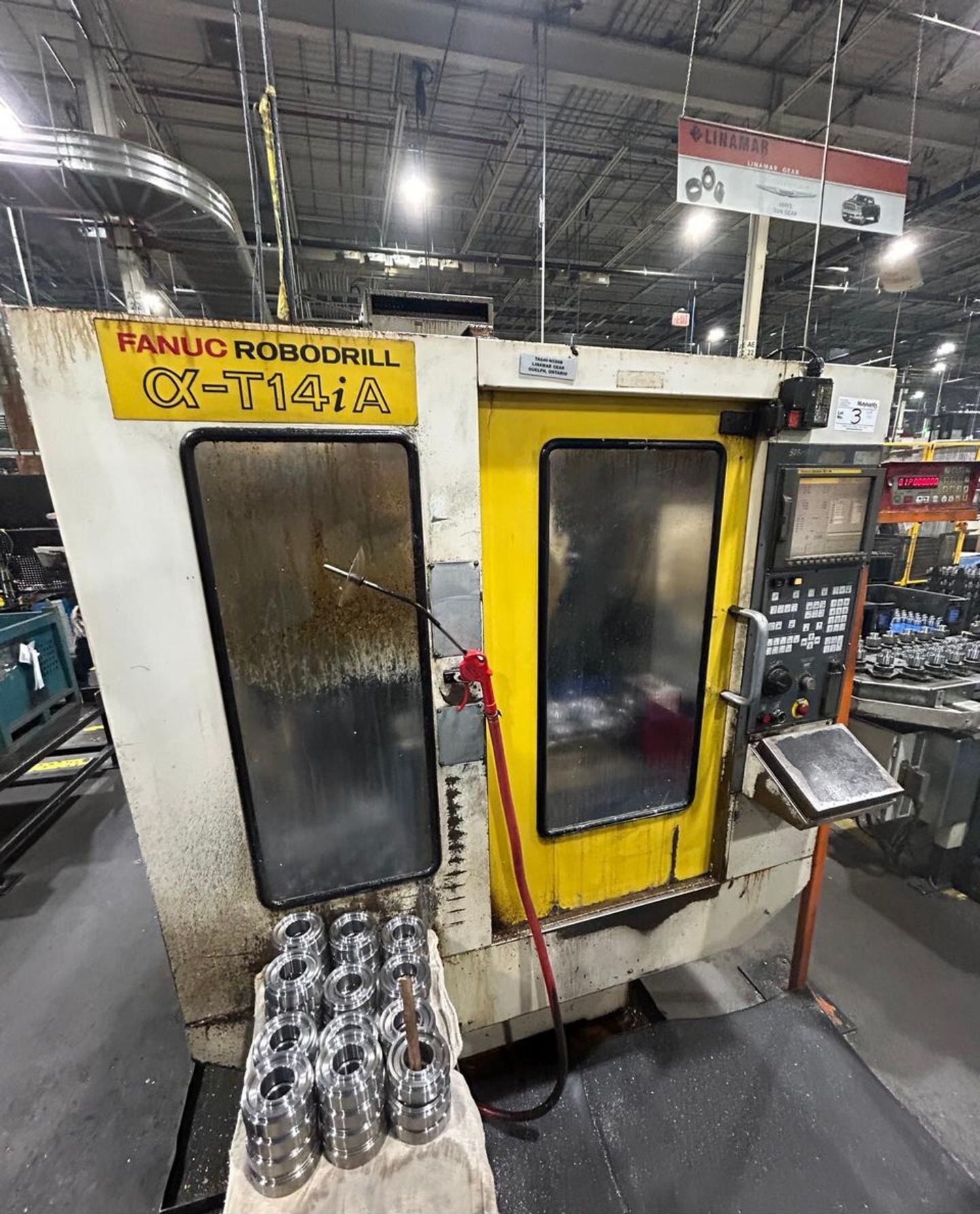

Used Fanuc A-T14iA Robodrill Drilling & Tapping Center | A.K. Machine Traders, Navi Mumbai, India

This used Fanuc A-T14iA Robodrill CNC drilling and tapping center is available from A.K. Machine Traders in Navi Mumbai, India. It is a compact vertical machine for drilling, tapping and light milling of small parts.

It has a BT-30 spindle with infinitely variable speed from 80 to 8,000 RPM, driven by a 5.5 kW motor. Axis travels are 19.68 in (X), 14.96 in (Y) and 11.81 in (Z), and it is fitted with a 14-position automatic tool changer and a Nikken CNC 4th axis rotary indexing table.

Key Features

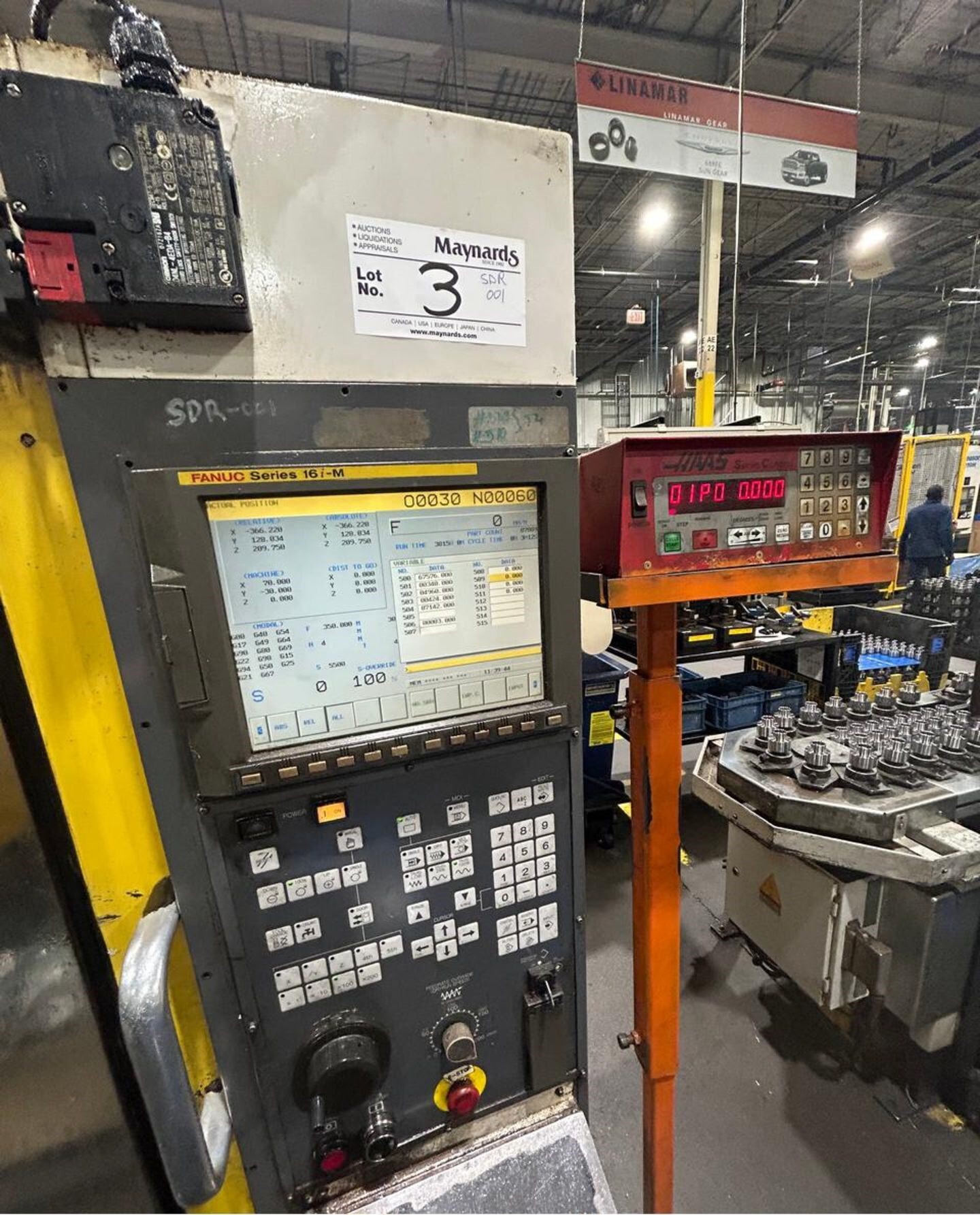

• Fanuc 16-iM CNC control

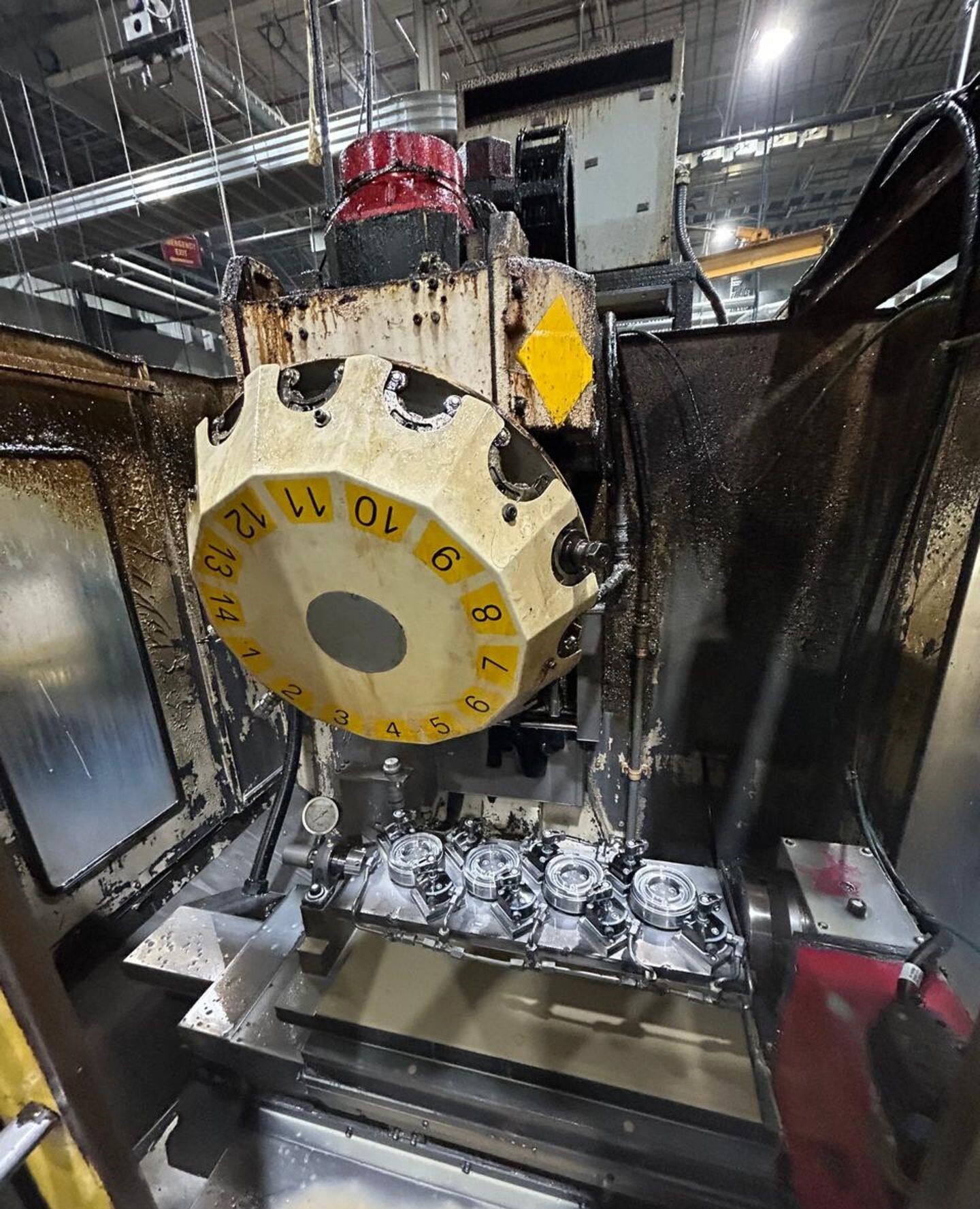

• 14-position automatic tool changer
• Nikken NSVZ180FA CNC 4th axis rotary indexing table
• Renishaw tool sensing light

Technical Specifications

• Model: Fanuc A-T14iA Robodrill
• Table size (W x L): 14.96 in x 21.6 in
• X-axis travel (table longitudinal): 19.68 in
• Y-axis travel (saddle cross): 14.96 in
• Z-axis travel (vertical): 11.81 in
• Spindle nose to table, maximum: 17.71 in
• Spindle nose to table, minimum: 5.9 in
• Spindle taper: BT-30
• Spindle speed: 80–8,000 RPM, infinitely variable
• Working feedrate (X, Y, Z): 590 IPM
• Rapid traverse (X, Y, Z): 1,889 IPM
• Spindle motor: 5.5 kW
• Tool changer: 14 positions, automatic
• Control: Fanuc 16-iM CNC
• 4th axis: Nikken NSVZ180FA CNC rotary indexing table
• Weight: Approximately 3,750 lbs

Applications

• Drilling and tapping holes in small components
• Light milling of small machined parts
• Multi-face machining of parts using a 4th axis indexing table
• Repeat production of small precision parts

Commercial Details

• Make: Fanuc
• Model: A-T14iA Robodrill
• Condition: Used
• Location: Navi Mumbai, Maharashtra, India
• Seller: A.K. Machine Traders

Frequently Asked Questions

• What spindle does it have? It has a BT-30 spindle with infinitely variable speed from 80 to 8,000 RPM, driven by a 5.5 kW motor.
• Does it include a 4th axis? Yes, it is equipped with a Nikken NSVZ180FA CNC 4th axis rotary indexing table.
• What control and tool changer does it use? It uses a Fanuc 16-iM CNC control with a 14-position automatic tool changer.
• What should I ask when enquiring? Ask for photos or video of the machine running under power, whether an inspection can be arranged, and which tooling and accessories are included. Also confirm the condition of the control and electrics, and the loading and shipping arrangements.
