Used Feeler FV1300A Vertical Machining Center | A.K. Machine Traders, Navi Mumbai, India

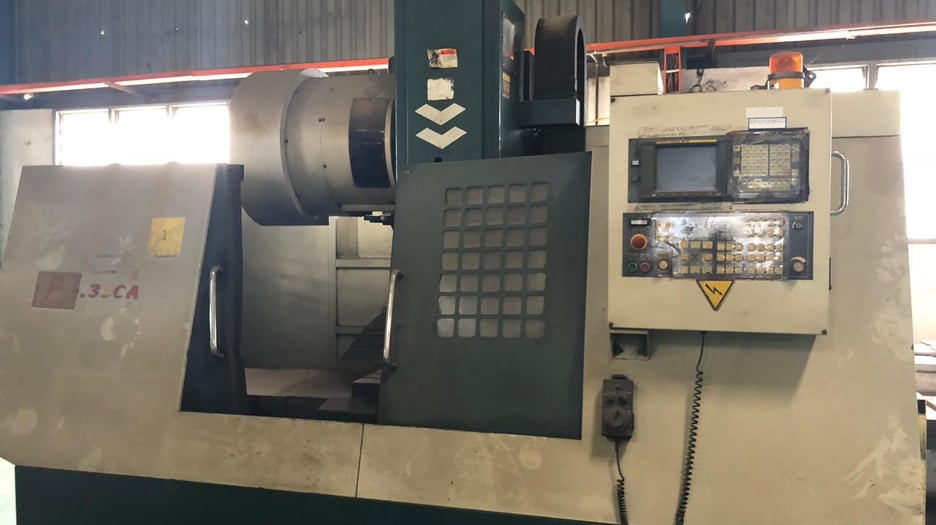

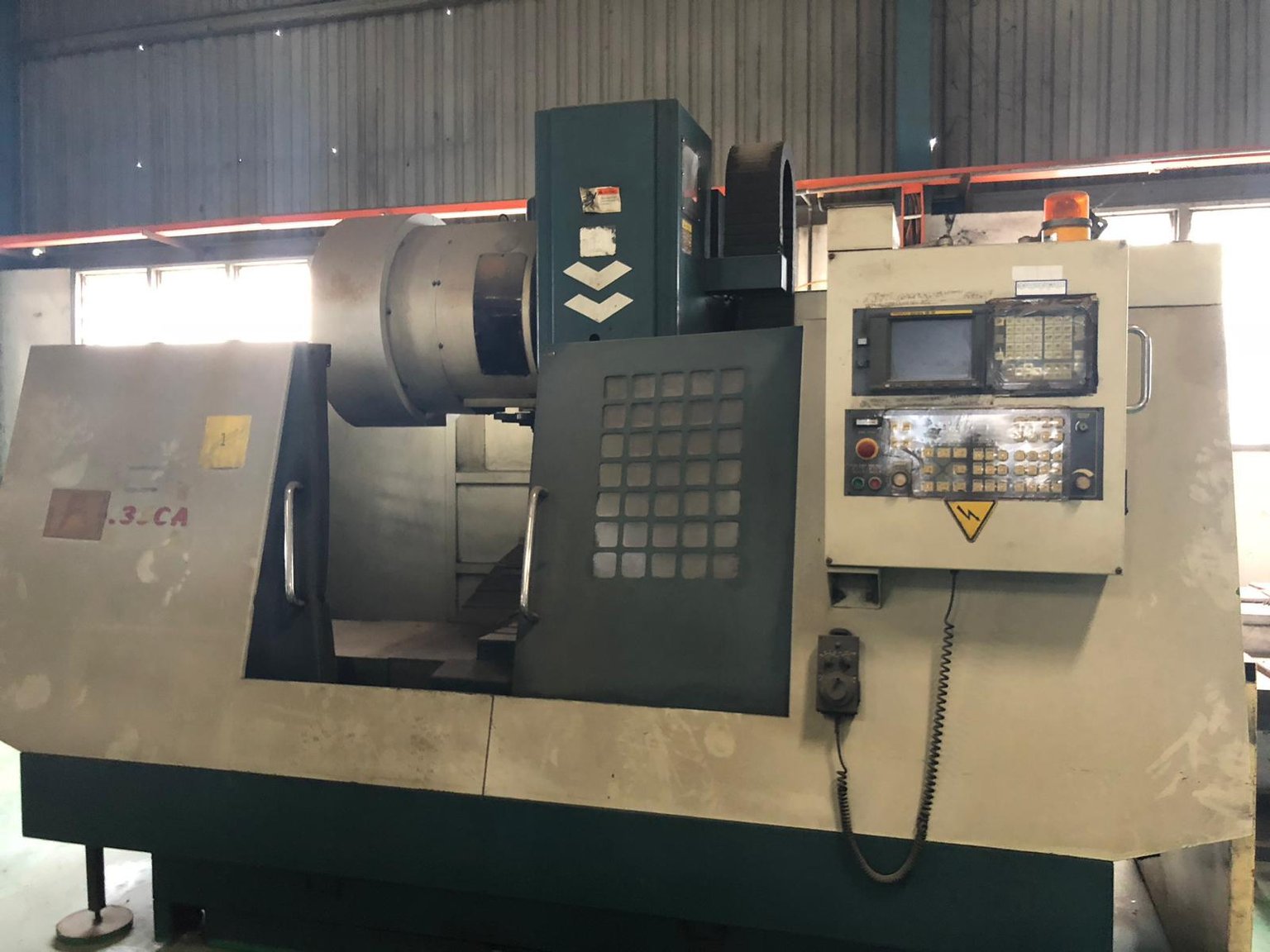

This used Feeler FV-1300A vertical machining centre is available from A.K. Machine Traders in Navi Mumbai, India. It is a CNC machine that cuts metal parts with a rotating tool on a vertical spindle.

It has travels of 1,300 mm (X), 610 mm (Y) and 560 mm (Z) on a 1,420 x 600 mm table. The spindle runs at 50–8,000 rpm with a BT 40 taper, and a 30-position tool changer is fitted. Control is by Fanuc 18M.

Key Features

• Fanuc 18M CNC control
• 30-position automatic tool changer
• BT 40 spindle taper

Technical Specifications

• Model: Feeler FV-1300A
• Year: 2005

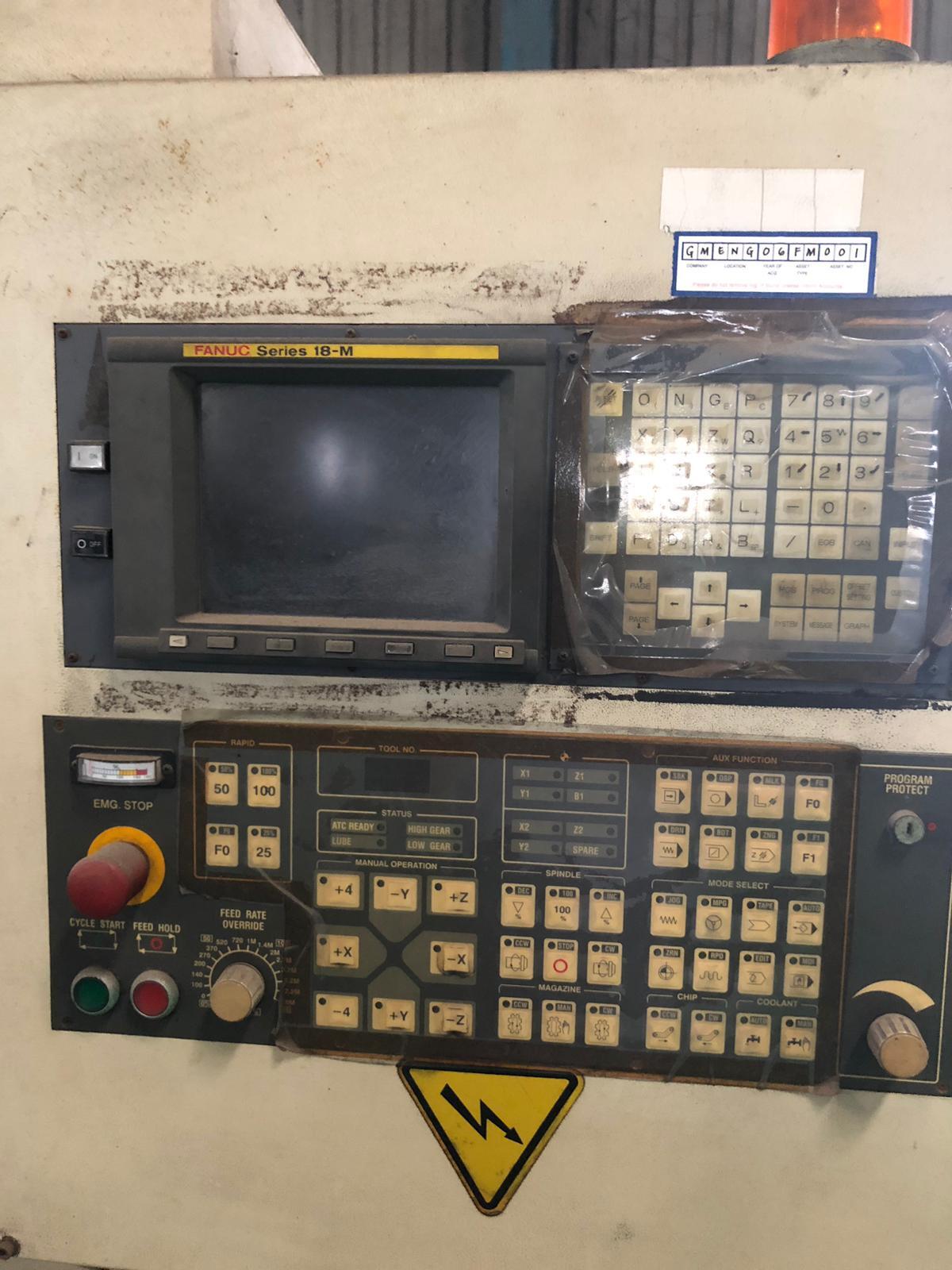

• Control: Fanuc 18M
• X-axis travel (longitudinal): 1,300 mm
• Y-axis travel (cross): 610 mm
• Z-axis travel (vertical): 560 mm
• Table size: 1,420 x 600 mm
• Spindle nose to table: 130–690 mm
• Spindle speed: 50–8,000 rpm
• Spindle power: 9 / 11 kW
• Spindle taper: BT 40
• Tool changer: 30 positions

Applications

• Machining of mould and die components
• Milling, drilling and tapping of general engineering parts
• Batch production of metal components
• Prototype and toolroom work

Commercial Details

• Make: Feeler
• Model: FV-1300A
• Year: 2005
• Condition: Used
• Location: Navi Mumbai, Maharashtra, India
• Seller: A.K. Machine Traders

Frequently Asked Questions

• What are the travels of the Feeler FV-1300A? The travels are 1,300 mm in X, 610 mm in Y and 560 mm in Z.
• What control does it have? It is fitted with a Fanuc 18M CNC control.
• How many tools does the changer hold? The tool changer has 30 positions and the spindle taper is BT 40.
• What should I ask when enquiring? Ask for photos or video of the machine running under power, whether an inspection is possible, and what accessories, tooling and manuals are included. Confirm the condition of the control and electrics, the spindle and the tool changer, and arrange loading and shipping details.
