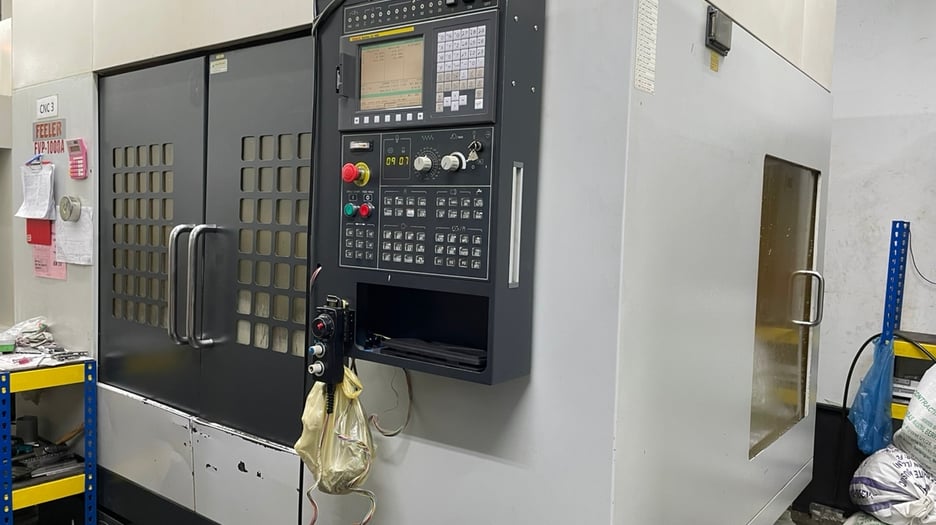

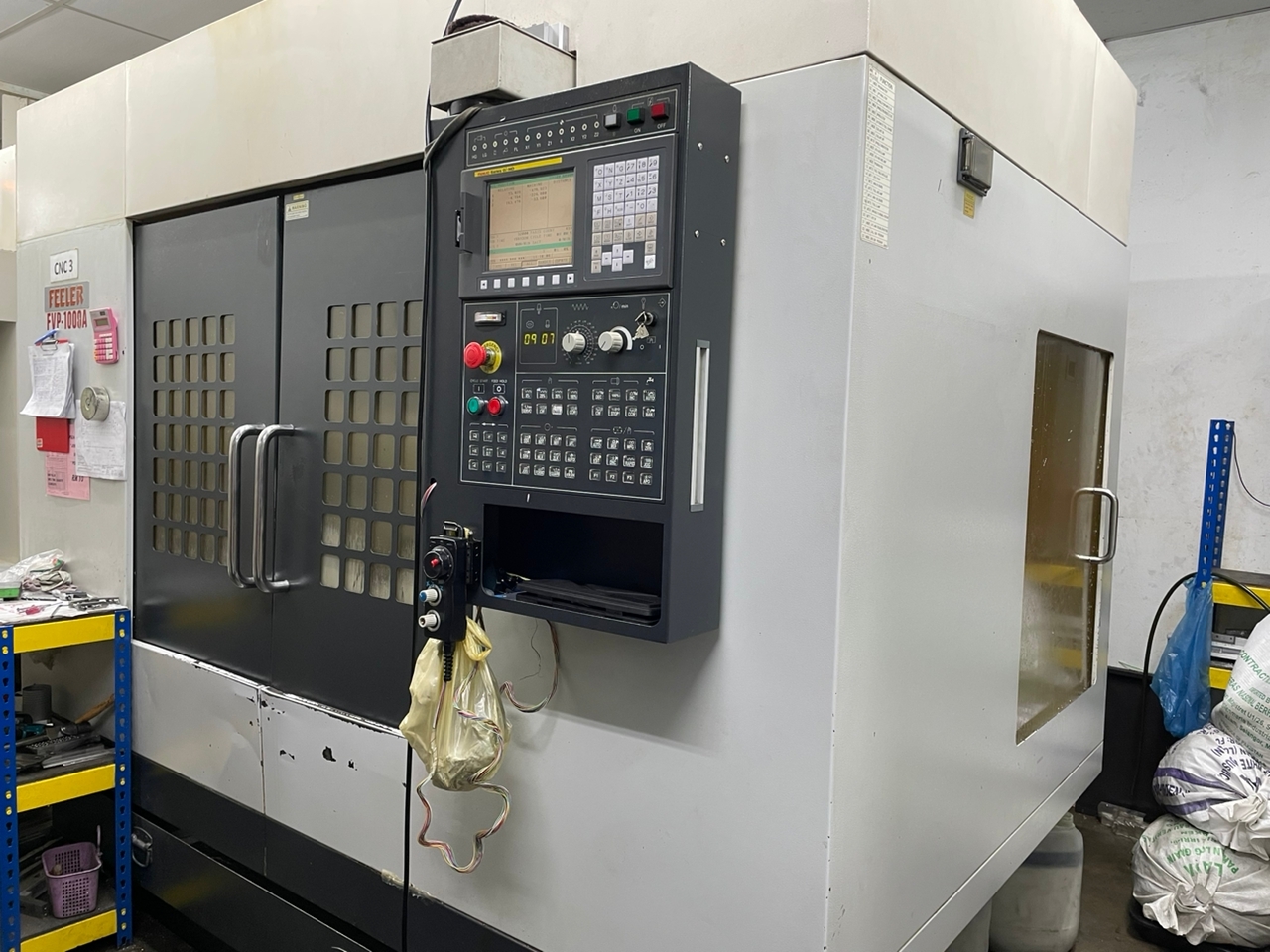

Used Feeler FVP 1000A CNC Vertical Machining Centre | A.K. Machine Traders, Navi Mumbai, India

This used Feeler FVP 1000A CNC vertical machining centre is available from A.K. Machine Traders in Navi Mumbai, India. A vertical machining centre cuts parts with a rotating tool on a vertical spindle, and this one is controlled by a FANUC Oi-MC.

It offers XYZ travels of 1,020 x 500 x 505 mm on a 1,150 x 475 mm table that takes workpieces up to 800 kg. The 11 kW spindle runs at up to 10,000 rpm, and a 22-station tool changer holds BT40 tooling.

Key Features

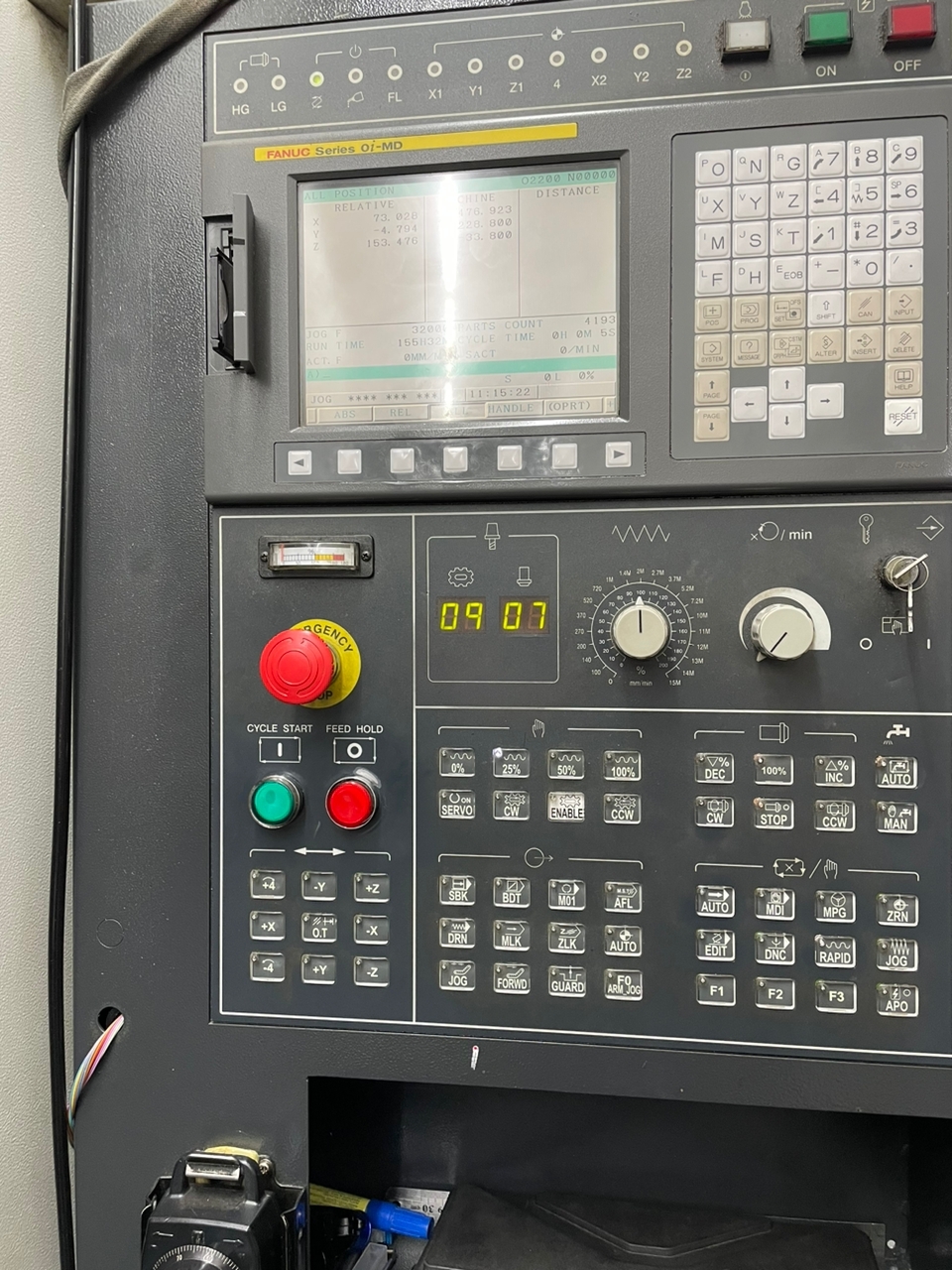

• FANUC Oi-MC control
• 22-station automatic tool changer with BT40 tool size
• Four T-slots in the table at 100 mm centres
• Larger tools up to 150 mm diameter can be used when adjacent magazine pockets are left empty

Technical Specifications

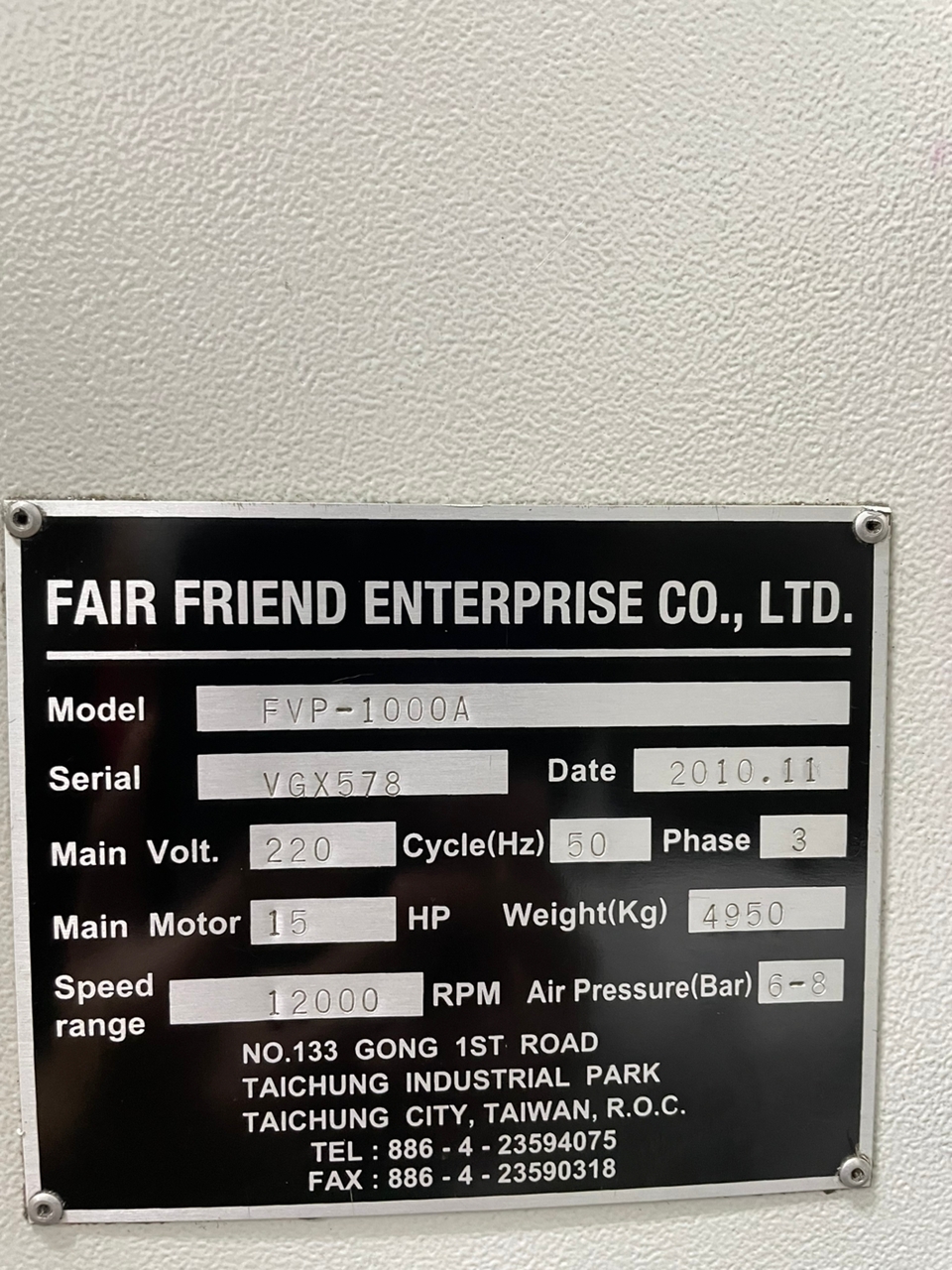

• Model: Feeler FVP 1000A
• Control: FANUC Oi-MC
• Table size: 1,150 x 475 mm
• T-slots: 4 off, 18 mm, at 100 mm centres
• Maximum workpiece weight: 800 kg
• Travels X x Y x Z: 1,020 x 500 x 505 mm
• Spindle centre to column: 510 mm
• Height under spindle: 135–735 mm
• Cutting feedrate: 15 m/min
• Rapid feedrates X x Y x Z: 32 x 24 x 24 m/min
• Spindle motor power: 11 kW
• Spindle speed: 10,000 rpm
• Tool changer capacity: 22 stations
• Tool size: BT40
• Maximum tool diameter: 80 mm (150 mm with empty adjacent pockets)
• Maximum tool length: 250 mm
• Maximum tool weight: 7 kg
• Machine dimensions: 2,800 x 2,180 x 2,795 mm
• Machine weight: 4,950 kg

Applications

• Machining of moulds and dies
• Milling, drilling and tapping of engineering components
• Production of small to medium prismatic parts
• Machine shop and job-shop work

Commercial Details

• Make: Feeler
• Model: FVP 1000A
• Condition: Used
• Location: Navi Mumbai, Maharashtra, India
• Seller: A.K. Machine Traders

Frequently Asked Questions

• What control does the Feeler FVP 1000A have? It is fitted with a FANUC Oi-MC control.
• What are the axis travels? The X, Y and Z travels are 1,020 x 500 x 505 mm.
• How many tools does the changer hold? The tool changer holds 22 BT40 tools.
• What should I ask when enquiring? Ask for photos or video of the machine running under power, the inspection options, which accessories and tooling are included, the condition of the control and electrics, and the loading and shipping arrangements for its 4,950 kg weight.
