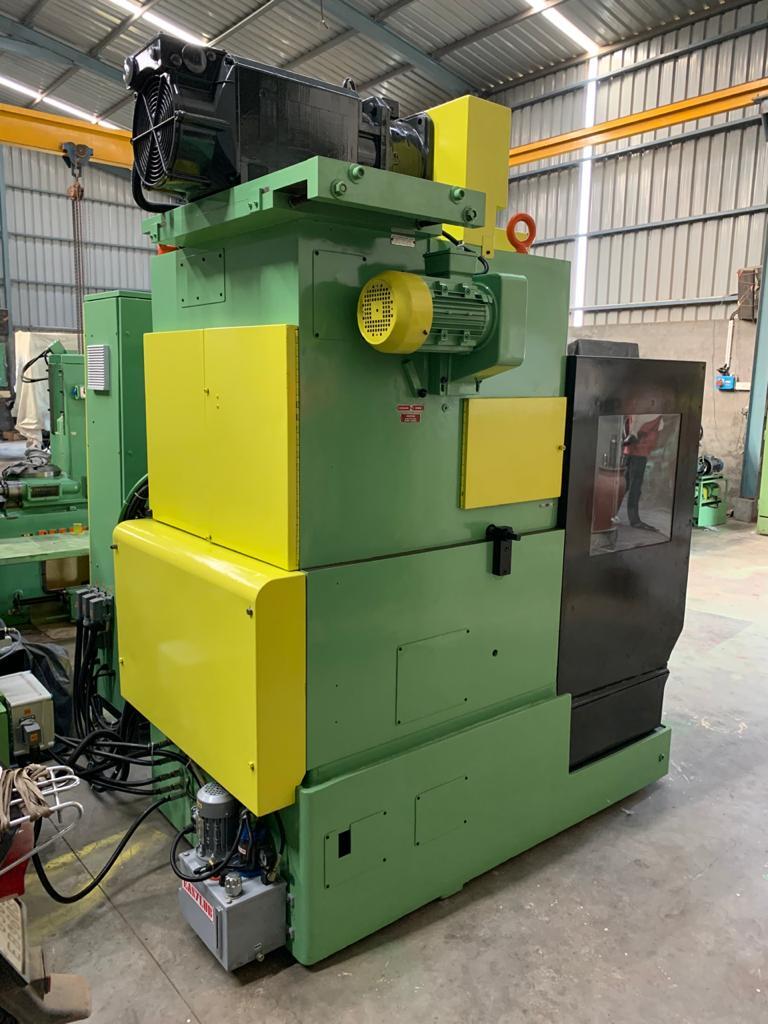

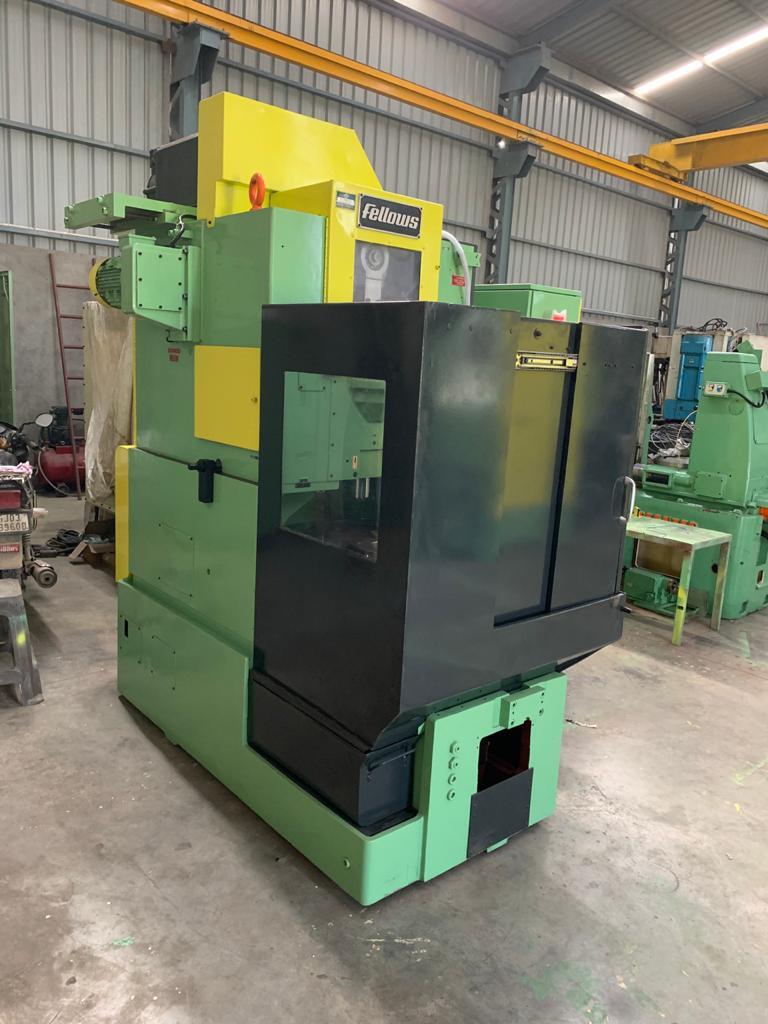

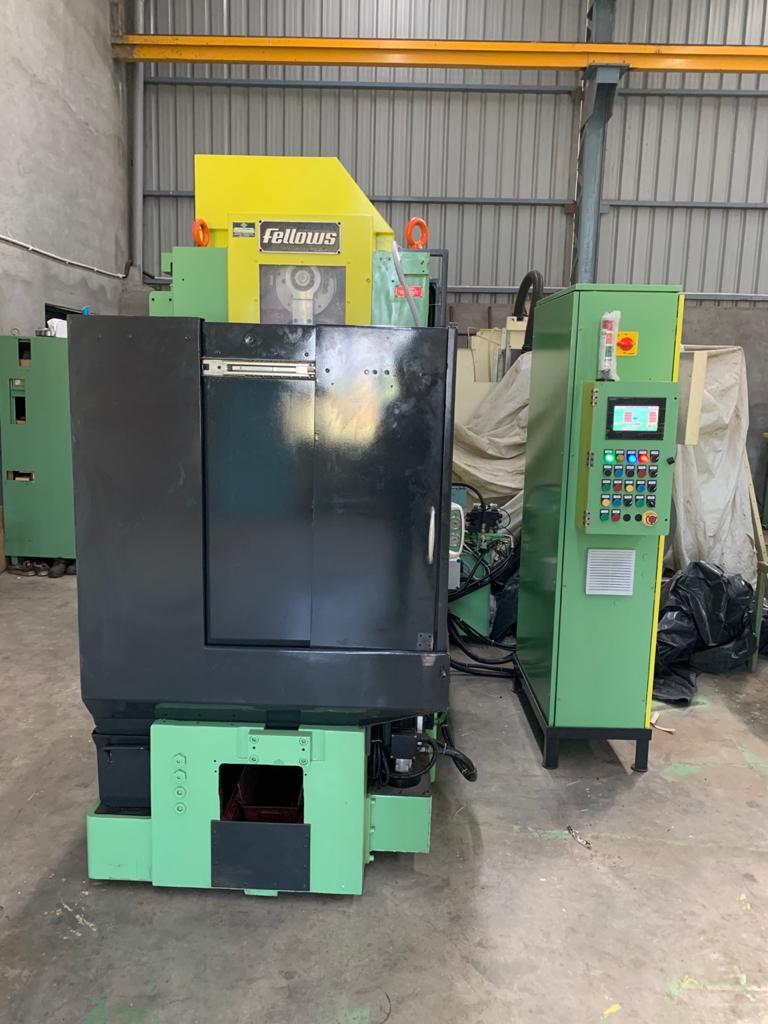

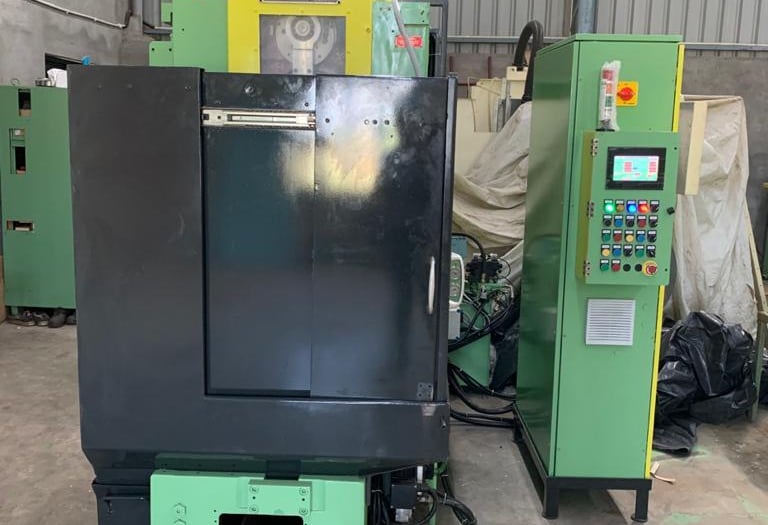

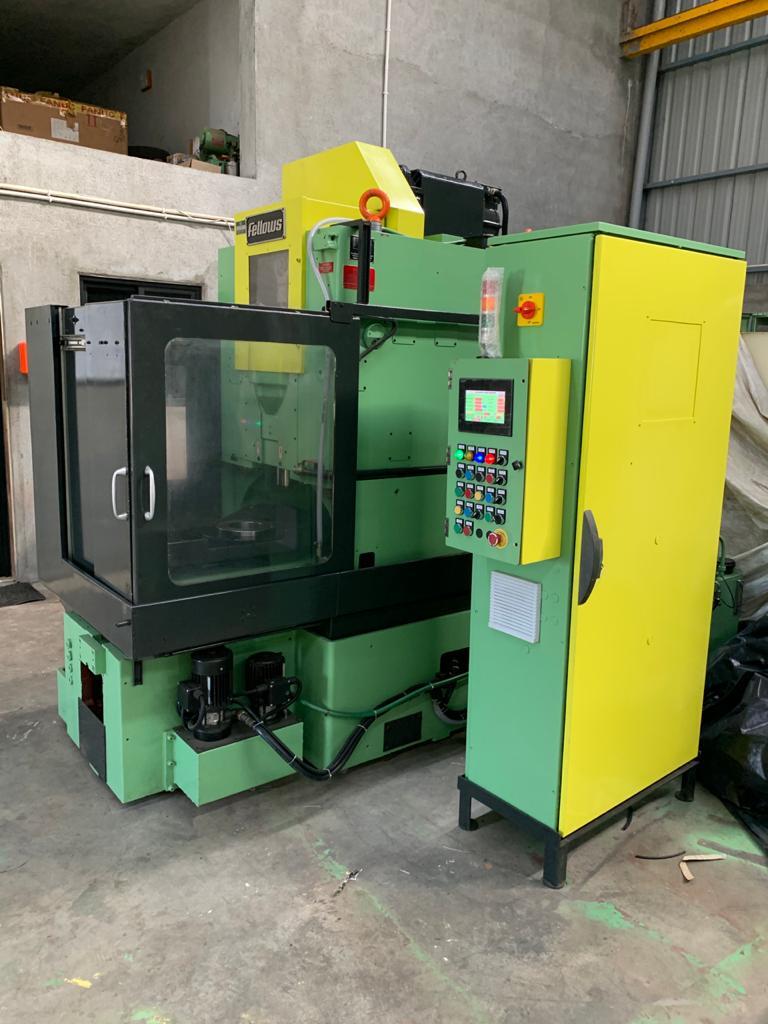

Used Fellows 10-2 CNC Gear Shaper | A.K. Machine Traders, Navi Mumbai, India

This used Fellows 10-2 CNC gear shaper is available from A.K. Machine Traders in Navi Mumbai, India. A gear shaper cuts gear teeth with a reciprocating cutter, and this machine handles both external and internal gears.

It takes work up to 10 in pitch diameter and 4 in external face width. It cuts spur gears to 4 DP and helical gears to 5 DP, and is fitted with a Mitsubishi controller.

Key Features

• CNC control with a Mitsubishi controller
• Cuts both external and internal gears
• Standard guides allow helix angles up to 45 degrees

Technical Specifications

• Make and model: Fellows 10-2
• Machine type: CNC gear shaper
• Maximum pitch diameter, external and internal: 10 in
• Maximum face width, external: 4 in
• Maximum diametral pitch, spur: 4 DP
• Maximum diametral pitch, helical: 5 DP
• Maximum helix angle with standard guides: 45°
• Bore through work spindle: 5.875 in
• Spindle diameter: 3.543 in
• Distance, work table to cutter spindle: 10 in
• Maximum fixture OD: 19 in
• Control: Mitsubishi

Applications

• Spur gears, external and internal
• Helical gears
• Internal gears and ring gears
• Gears for gearboxes and power transmission

Commercial Details

• Make: Fellows
• Model: 10-2
• Condition: Used
• Location: Navi Mumbai, Maharashtra, India
• Seller: A.K. Machine Traders

Frequently Asked Questions

• What size of gear can it cut? It cuts external and internal gears up to 10 in pitch diameter, with a maximum external face width of 4 in.
• What control does it have? It is equipped with a Mitsubishi controller.
• Can it cut helical gears? Yes, helical gears to 5 DP, with helix angles up to 45° using the standard guides.
• What should I ask when enquiring? Ask for photos or video of the machine running under power, whether an inspection is possible, which cutters, guides and fixtures are included, the condition of the Mitsubishi control and electrics, and loading and shipping arrangements.
