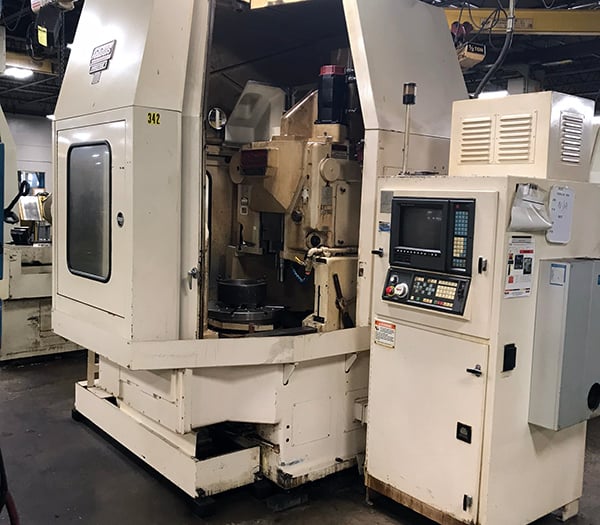

Used Fellows FS400-125 Gear Shaper | A.K. Machine Traders, Navi Mumbai, India

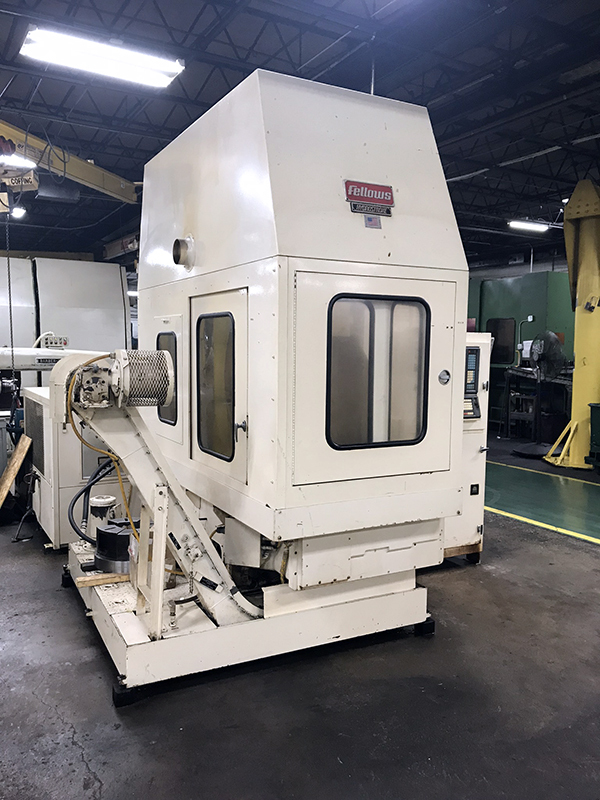

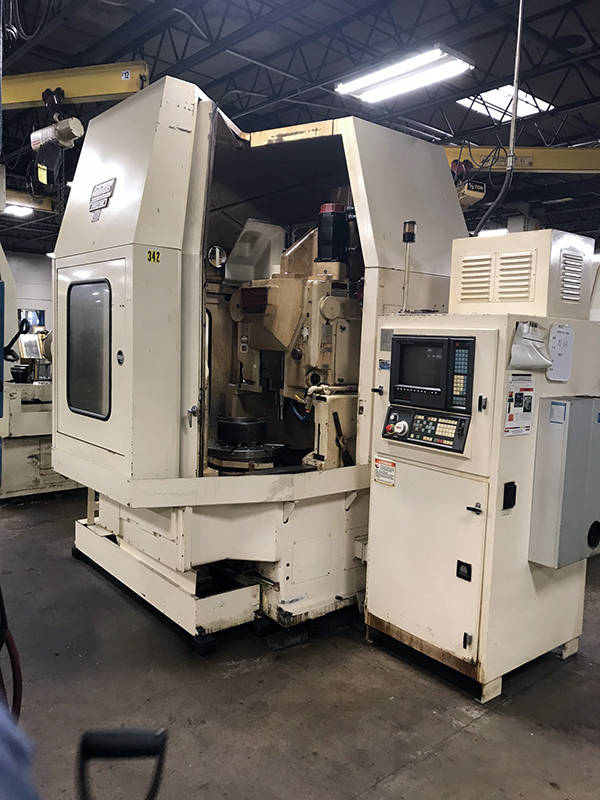

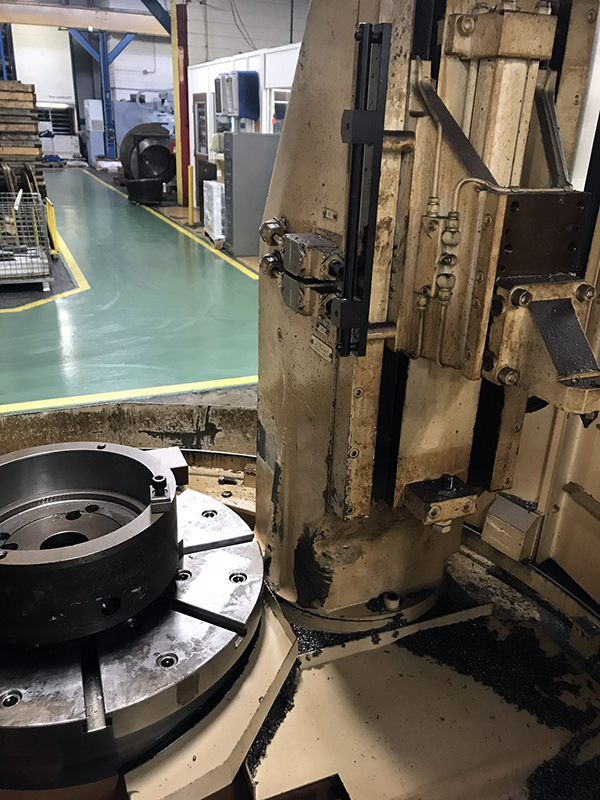

This used Fellows FS400-125 gear shaper is available from A.K. Machine Traders in Navi Mumbai, India. A gear shaper cuts gear teeth with a reciprocating cutter.

It handles external and internal gears up to 15.7″ pitch diameter and up to 5″ face width, with a maximum diametrical pitch of 3.5 DP. Stroking speed is adjustable from 20 to 1000 SPM.

Technical Specifications

• Model: Fellows FS400-125
• Max pitch diameter (external): 15.7″
• Max pitch diameter (internal): 15.7″
• Max face width: 5″
• Max diametrical pitch: 3.5 DP
• Stroking speed: 20–1000 SPM
• Worktable diameter: 20″
• Max distance, cutter spindle to table: 17″
• Spindle diameter: 4.13″
• Max spindle travel: 6.7″
• Dimensions (L x W x H): 12′ x 7′ x 8′
• Net weight (approx.): 20,000 lbs

Applications

• Cutting external spur and helical gears
• Cutting internal gears
• Gear production for general engineering and machinery
• Gear manufacturing and repair work

Commercial Details

• Make: Fellows
• Model: FS400-125
• Condition: Used
• Location: Navi Mumbai, Maharashtra, India
• Seller: A.K. Machine Traders

Frequently Asked Questions

• What size gears can it cut? It cuts external and internal gears up to 15.7″ pitch diameter and 5″ face width, at up to 3.5 DP.
• What is the stroking speed range? Stroking speed runs from 20 to 1000 SPM.
• How big and heavy is the machine? It measures 12′ x 7′ x 8′ (L x W x H) and weighs approximately 20,000 lbs net.
• What should I ask when enquiring? Ask for photos or video of the machine running under power, whether an inspection is possible, which cutters, fixtures and accessories are included, the condition of the control and electrics, and how loading and shipping would be handled.
