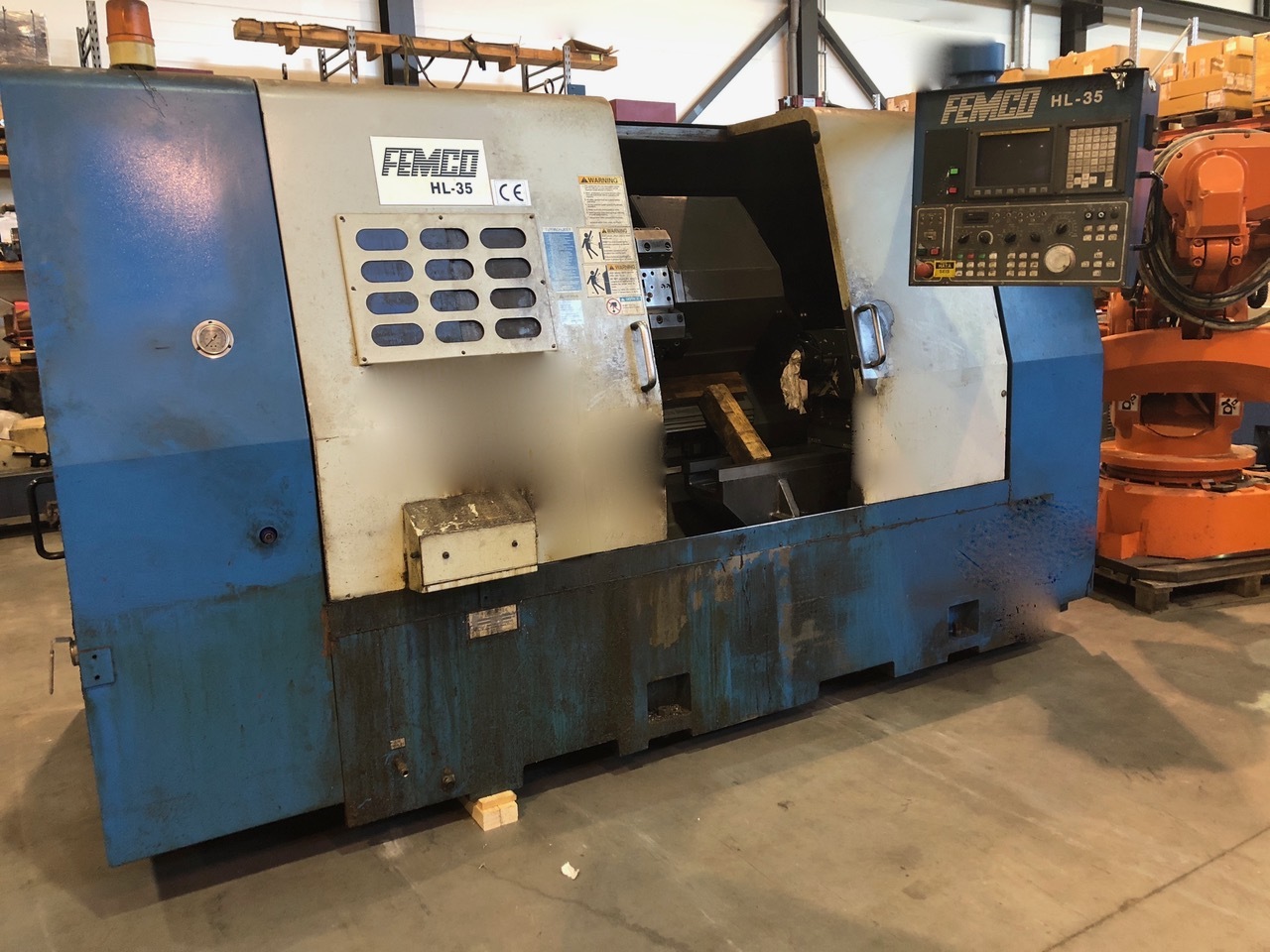

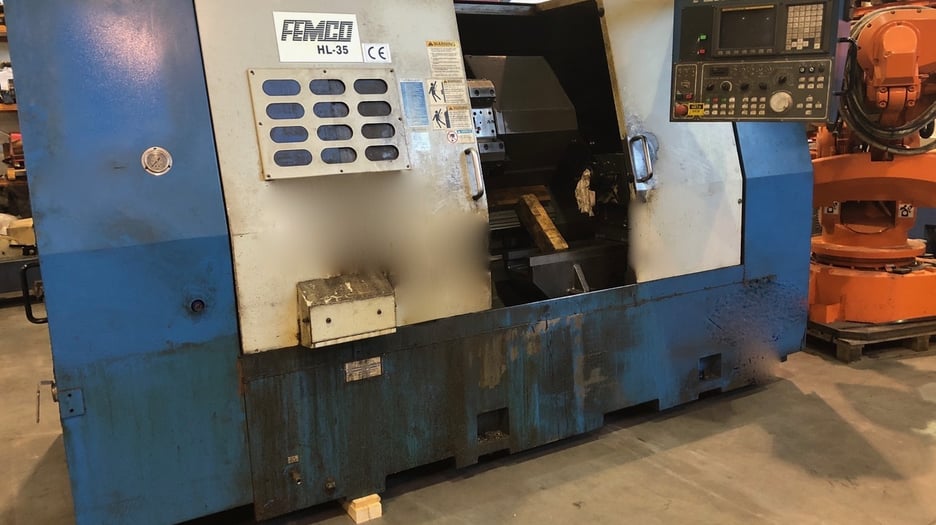

Used Femco HL 35 CNC Lathe | A.K. Machine Traders, Navi Mumbai, India

This used Femco HL 35 CNC lathe is available from A.K. Machine Traders in Navi Mumbai, India. It is a turning centre built in 2005 and fitted with a Fanuc 0i-TB control.

It turns parts up to 14.17″ in diameter and 26.57″ in length, with a spindle speed of 4,000 RPM, a 3″ bar capacity and a 12-position turret driven by a 25 HP main motor.

Key Features

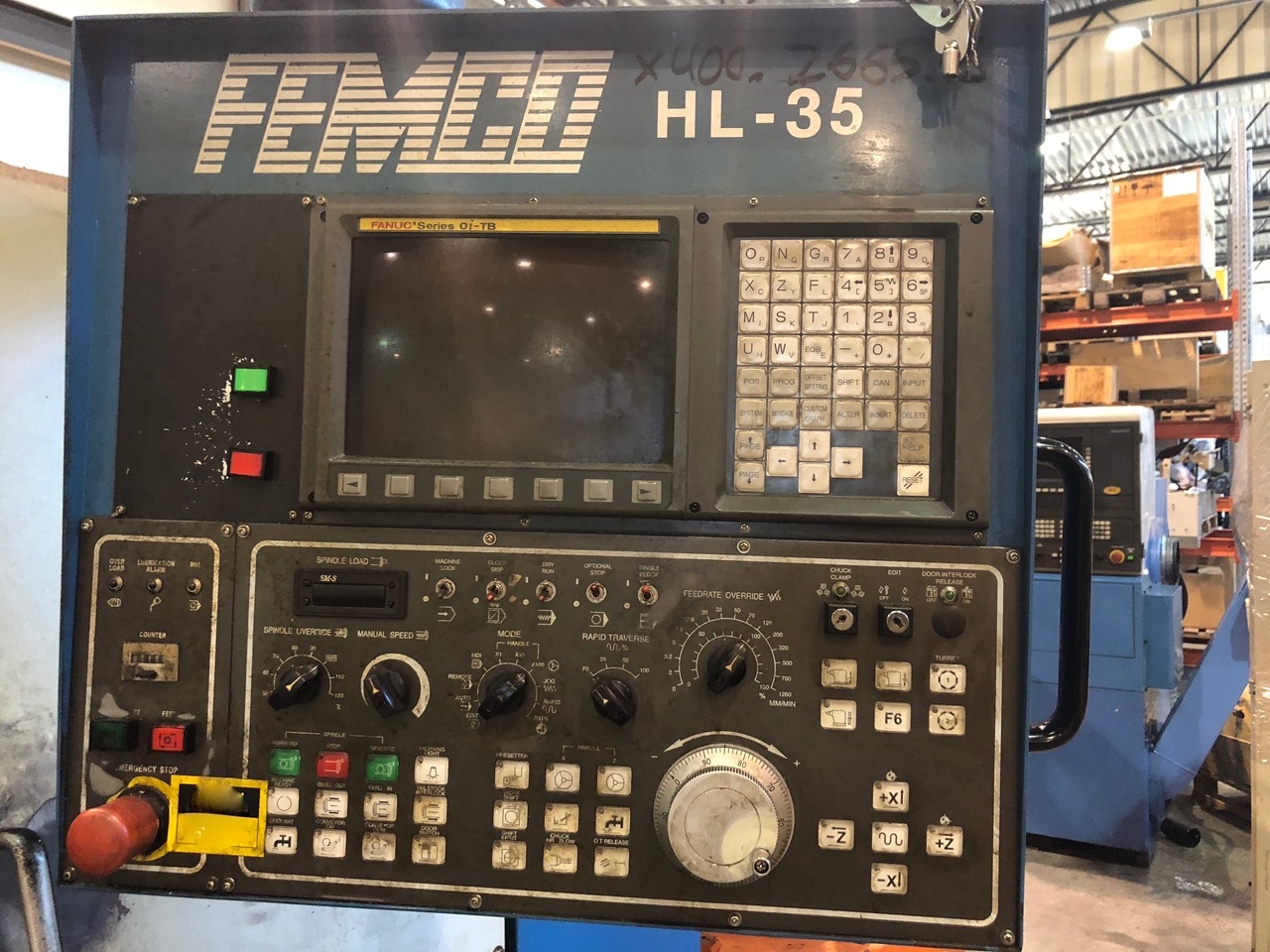

• Fanuc 0i-TB CNC control

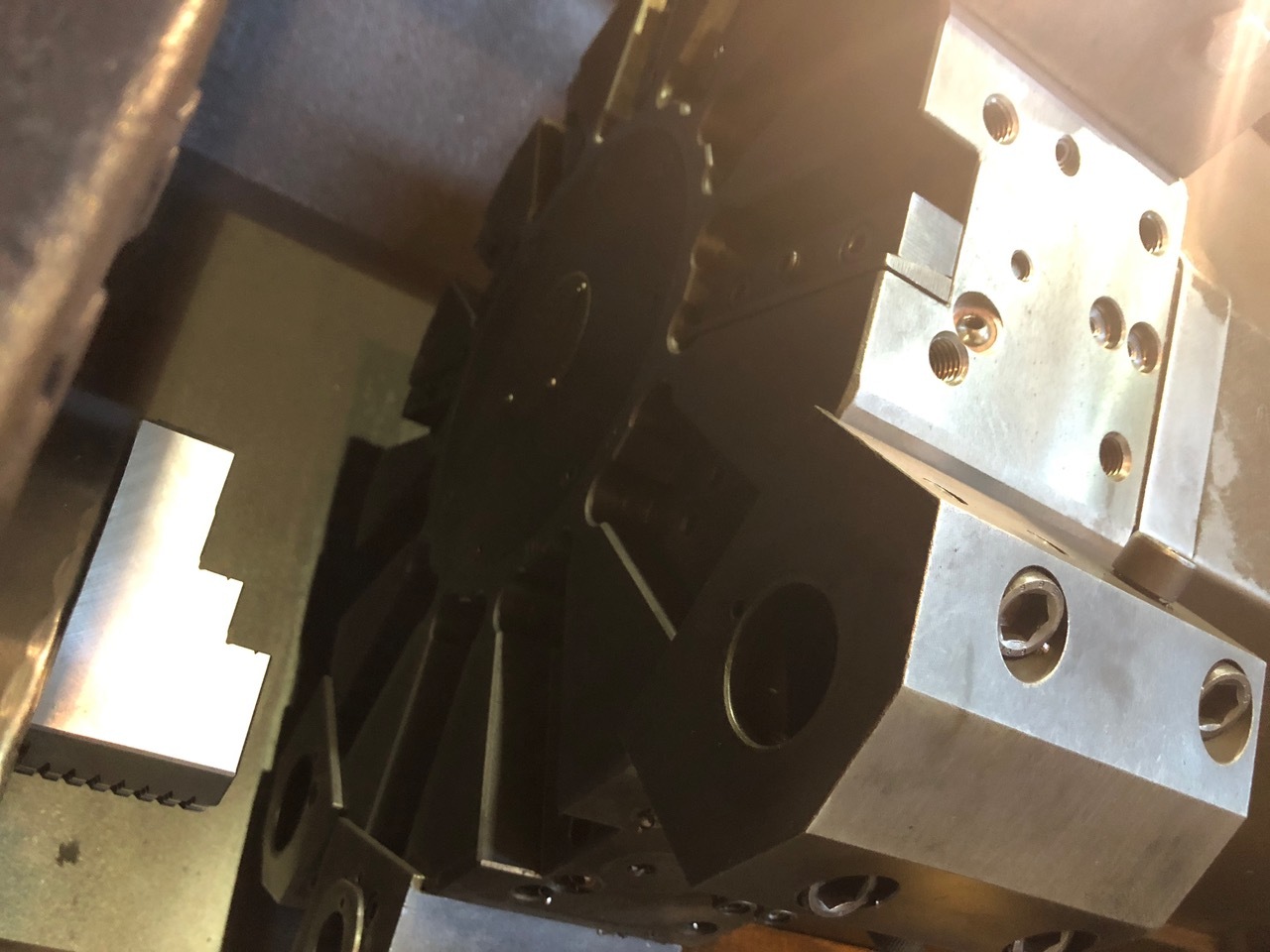

• 12-position turret for holding multiple tools

Technical Specifications

• Model: HL 35
• Year: 2005
• Control: Fanuc 0i-TB
• Max turning diameter: 14.17″
• Max turning length: 26.57″
• Swing over bed: 19.69″
• Distance between centres: 30″
• Spindle speed: 4,000 RPM
• Bar capacity: 3″
• Turret positions: 12
• Main motor: 25 HP

Applications

• Turned shafts and round components
• Bar-fed parts machined from bar stock
• General machining of cylindrical parts in workshops and production

Commercial Details

• Make: Femco
• Model: HL 35
• Year: 2005
• Condition: Used
• Location: Navi Mumbai, Maharashtra, India
• Seller: A.K. Machine Traders

Frequently Asked Questions

• What is the largest part this lathe can turn? It turns up to 14.17″ in diameter and 26.57″ in length, with a swing over bed of 19.69″.
• What control does it have? It is fitted with a Fanuc 0i-TB CNC control.
• What should I ask when enquiring? Ask for photos or video of the machine running under power, whether an inspection is possible, which tooling, chuck and accessories are included, the condition of the control and electrics, and the loading and shipping arrangements.
