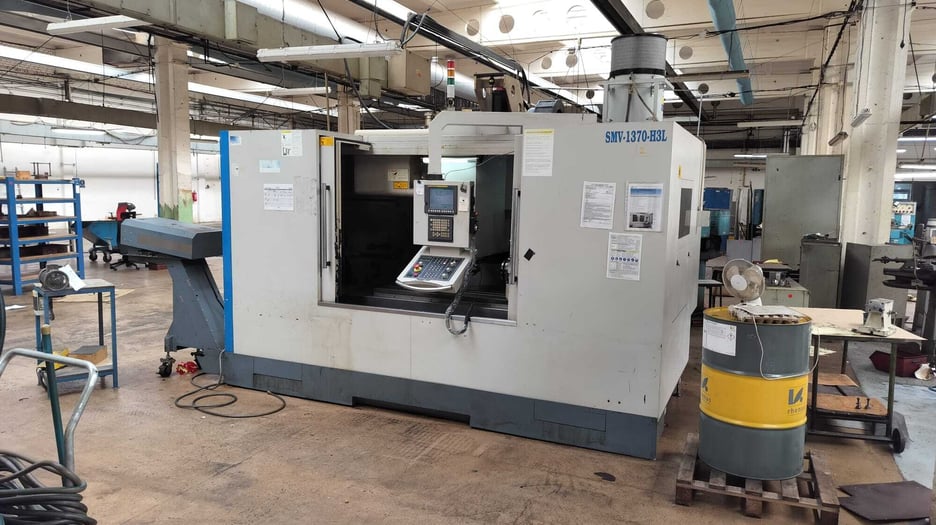

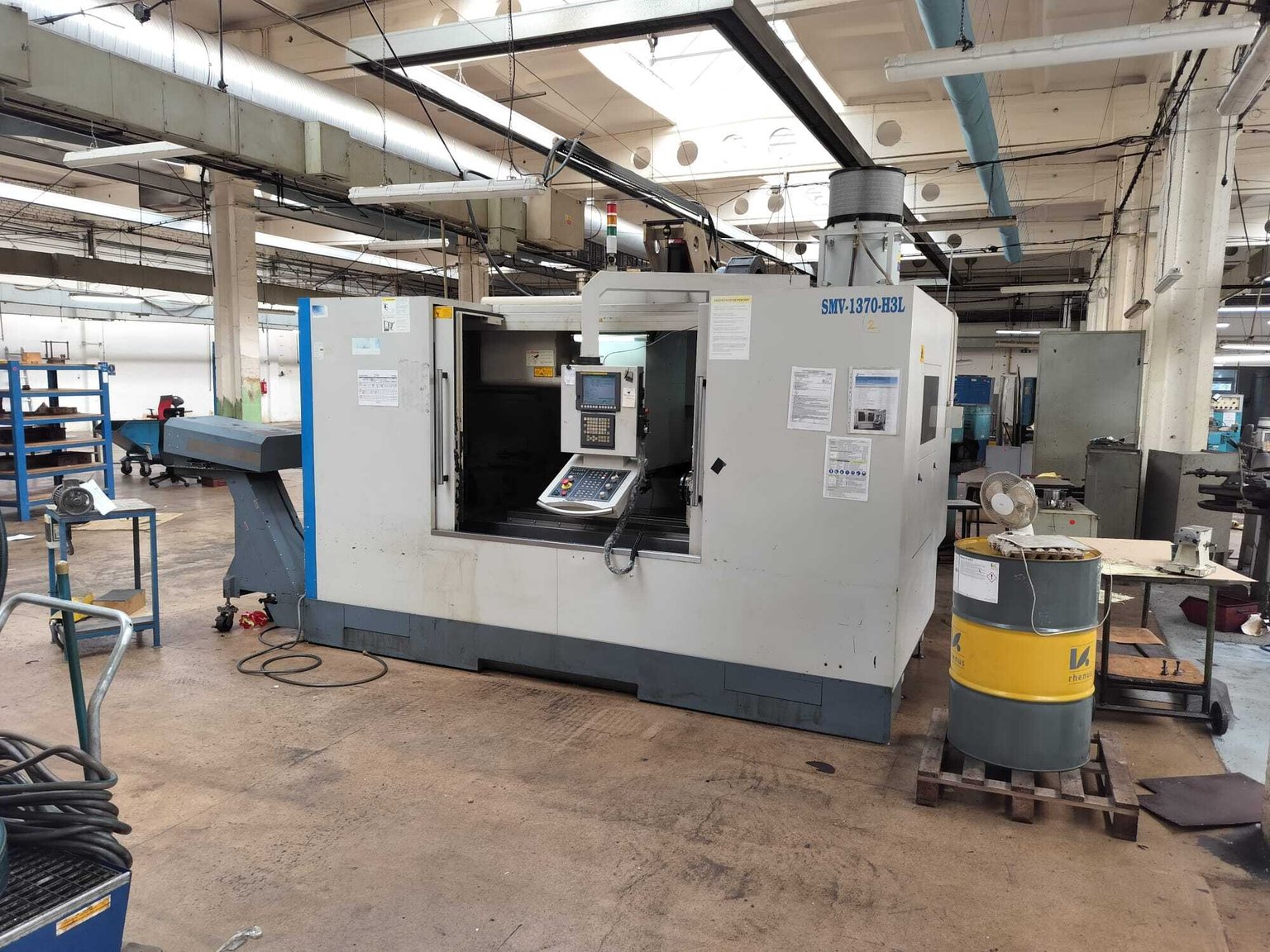

Used Finetech SMV-1370-H3L Vertical Machining Center | A.K. Machine Traders, Navi Mumbai, India

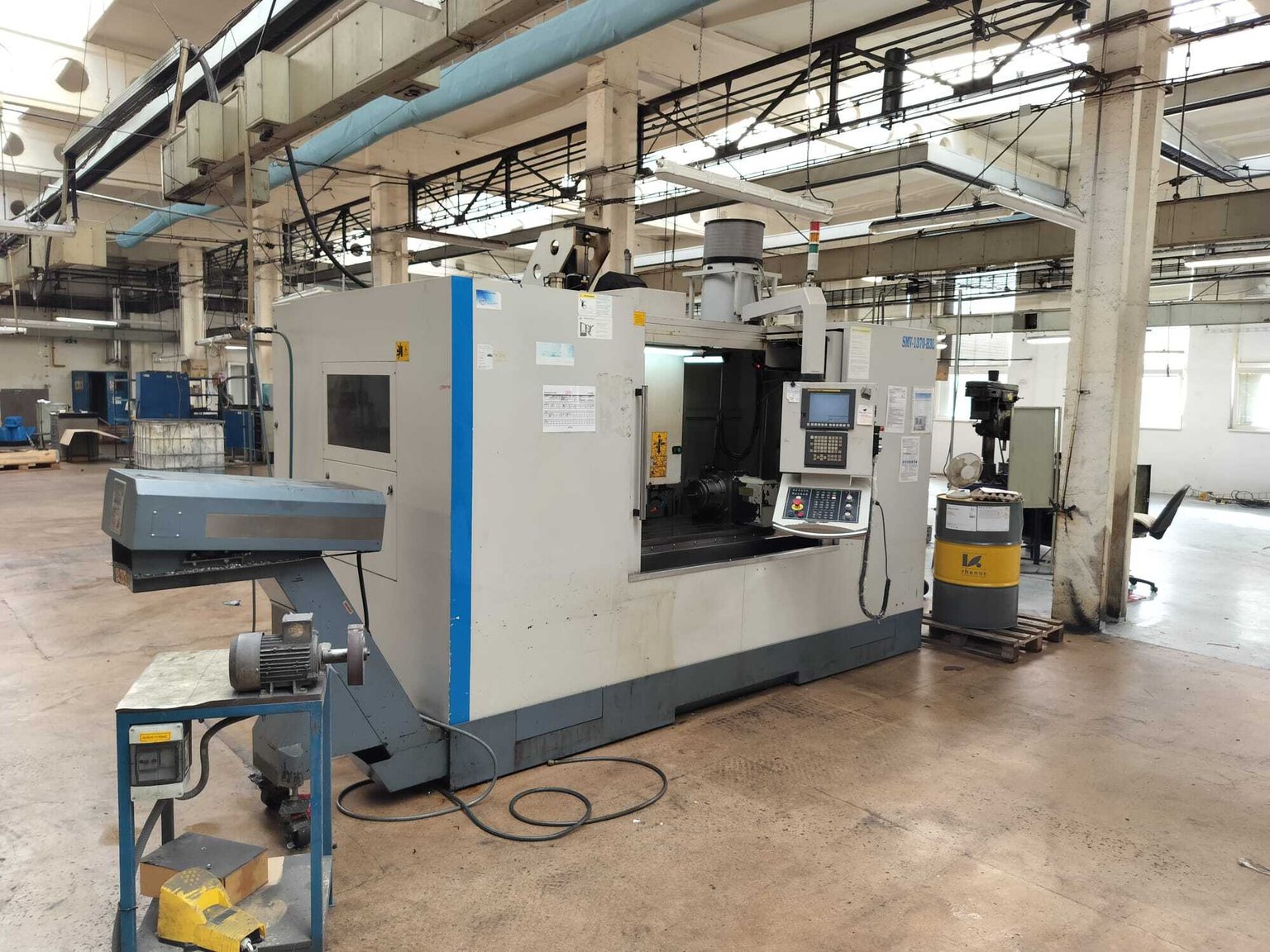

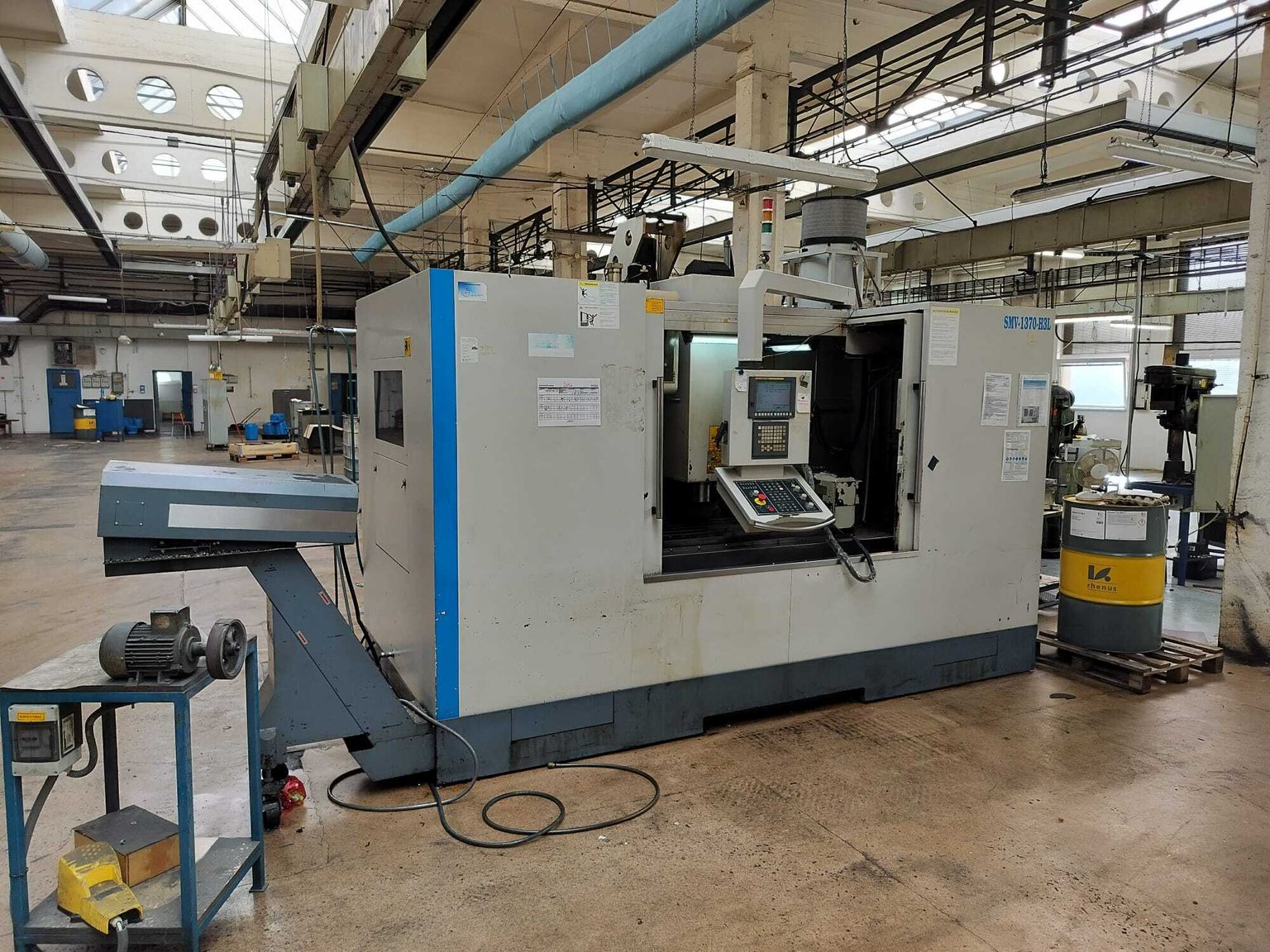

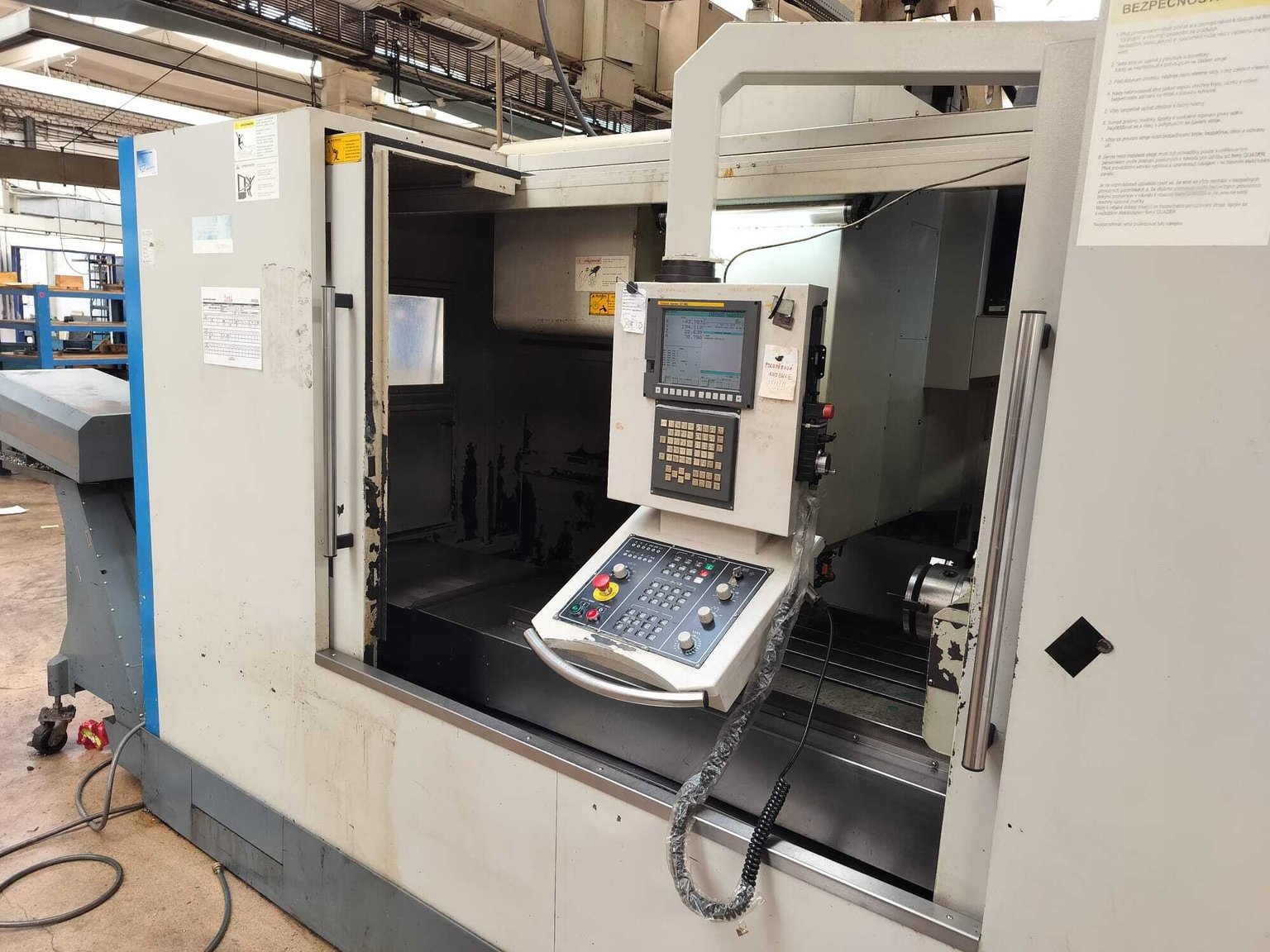

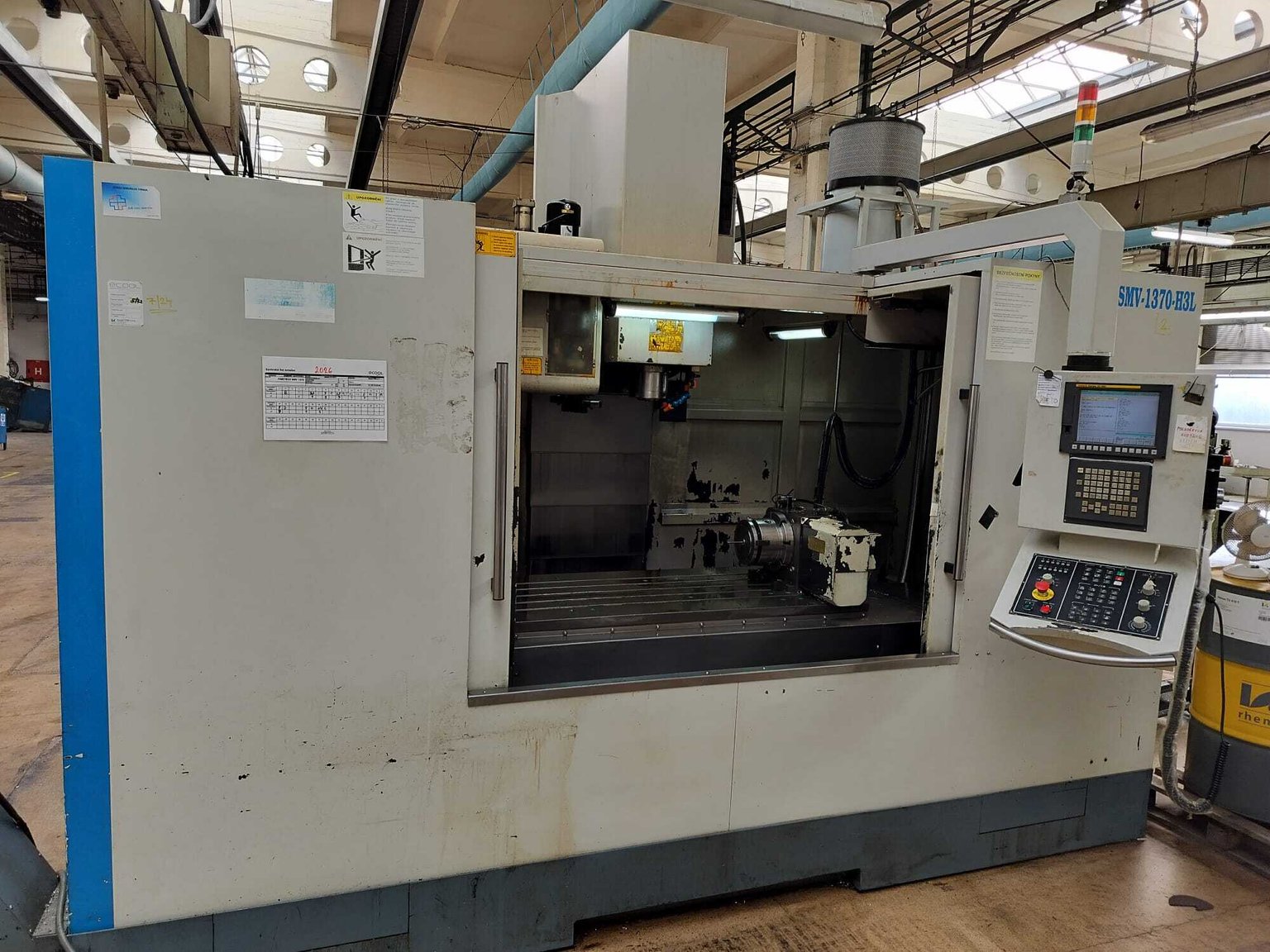

This used Finetech SMV-1370-H3L vertical machining centre is available from A.K. Machine Traders in Navi Mumbai, India. It cuts metal parts with a vertical spindle and automatic tool changes.

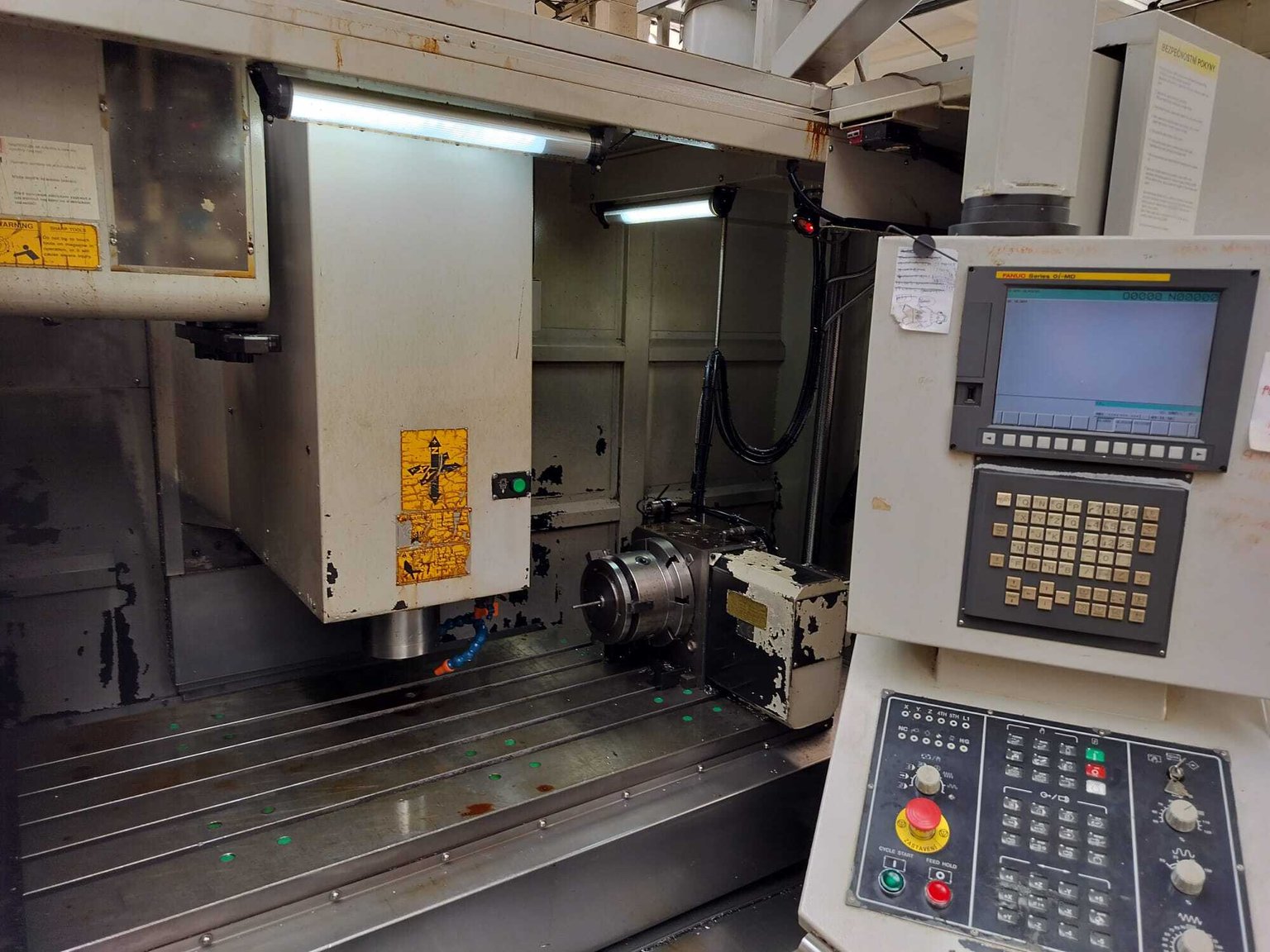

It has X, Y and Z travels of 1,300 x 700 x 650 mm and a 1,450 x 700 mm table rated for 800 kg. The BT 40 spindle runs up to 12,000 rpm, and a 30-position tool changer is fitted. A 4th axis dividing head (A axis) with a 200 mm chuck is included for machining on more than one face.

Key Features

• 4th axis dividing head (A axis)
• 200 mm chuck on the dividing head
• 30-position tool changer

Technical Specifications

• Model: SMV-1370-H3L
• Travel X: 1,300 mm
• Travel Y: 700 mm
• Travel Z: 650 mm
• Table size: 1,450 x 700 mm
• Maximum table load: 800 kg
• Spindle taper: BT 40
• Maximum spindle speed: 12,000 rpm
• Tool changer: 30 positions
• 4th axis: Dividing head (A axis)
• Chuck diameter: 200 mm
• Height from indexing axis to table surface: Approx. 230 mm

Applications

• Machining moulds and dies
• Milling of engineering and machine parts
• Production of plates, housings and brackets
• Parts needing machining on several faces with a 4th axis

Commercial Details

• Make: Finetech
• Model: SMV-1370-H3L
• Condition: Used
• Location: Navi Mumbai, Maharashtra, India
• Seller: A.K. Machine Traders

Frequently Asked Questions

• What is the working travel of this machine? It travels 1,300 mm in X, 700 mm in Y and 650 mm in Z.
• What tool capacity and spindle does it have? It has a 30-position tool changer and a BT 40 spindle running up to 12,000 rpm.
• Does it include a 4th axis? Yes, it comes with a 4th axis dividing head (A axis) with a 200 mm chuck.
• What should I ask when enquiring? Ask for photos or video of the machine running under power, inspection arrangements, which accessories and tooling are included with the 4th axis, the control type and electrical details, and loading and shipping options.
