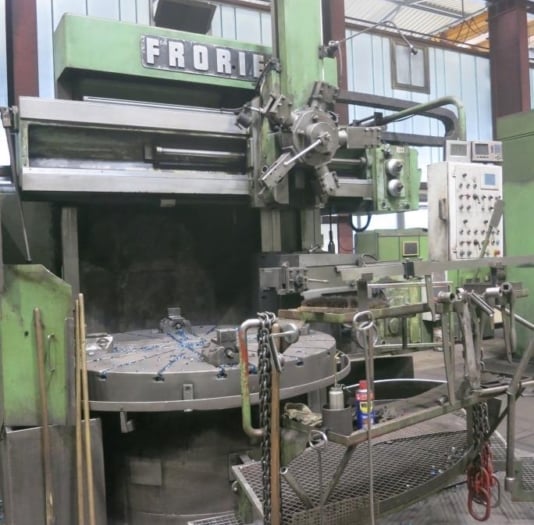

Used Froriep KE 16 Super Vertical Turret Lathe | A.K. Machine Traders, Navi Mumbai, India

This used Froriep KE 16 Super vertical turret lathe is available from A.K. Machine Traders in Navi Mumbai, India. It turns large, heavy workpieces held flat on a horizontal rotating faceplate.

It has a 2,000 mm faceplate, a 2,200 mm swing diameter and a turning height of 1,400 mm. It takes workpieces up to 5,000 kg, with turning speeds of 1–160 rpm and a total power requirement of 55 kW.

Key Features

• Side head with 900 mm specified
• Wide turning speed range of 1–160 rpm
• Feed range of 0.056–16 mm per revolution

Technical Specifications

• Model: Froriep KE 16 Super
• Faceplate diameter: 2,000 mm
• Swing diameter: 2,200 mm
• Turning height: 1,400 mm
• Maximum workpiece weight: 5,000 kg
• Side head: 900 mm
• Turning speeds: 1–160 rpm
• Feed: 0.056–16 mm per revolution
• Total power requirement: 55 kW
• Machine weight: approx. 21 t

Applications

• Large discs, flanges and rings
• Heavy housings and casings
• Wheels and large rotating components
• General heavy engineering and machine building

Commercial Details

• Make: Froriep
• Model: KE 16 Super
• Condition: Used
• Location: Navi Mumbai, Maharashtra, India
• Seller: A.K. Machine Traders

Frequently Asked Questions

• What size workpiece can it turn? It has a 2,000 mm faceplate, a 2,200 mm swing diameter and 1,400 mm turning height, and takes workpieces up to 5,000 kg.
• What is the spindle speed range? Turning speeds run from 1 to 160 rpm.
• How much power and floor loading should I plan for? Total power requirement is 55 kW and the machine weighs approximately 21 t.
• What should I ask when enquiring? Ask for photos or video of the machine under power, inspection options, the tooling and accessories included, the condition of the control and electrics, and loading and shipping arrangements for a machine of about 21 t.
