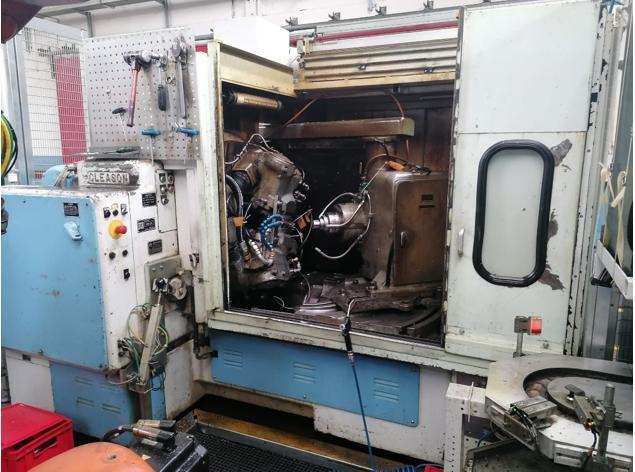

Used Gleason 114 Straight Bevel Gear Generator | A.K. Machine Traders, Navi Mumbai, India

This used Gleason 114 straight bevel gear generator is available from A.K. Machine Traders in Navi Mumbai, India. It cuts straight bevel gears, which transmit drive between shafts that meet at an angle.

It handles gears with 5–150 teeth and a maximum face width of 2.5 in. Maximum pitch diameter is 16 in at a 10:1 ratio and 12 in at a 1:1 ratio. The main motor is rated at 10 HP.

Key Features

• Three pressure angles available: 20°, 22.5° and 25°
• Separate motors for the hydraulic pump and the cutting oil pump

Technical Specifications

• Model: Gleason 114
• Machine type: Straight bevel gear generator
• Cone distance: 0.5 in minimum, 7 in maximum
• Pitch angle, shafts at 90°: 84° 18′
• Extreme ratio: 10:1
• Maximum pitch diameter, 10:1 ratio: 16 in
• Maximum pitch diameter, 1:1 ratio: 12 in
• Maximum face width: 2.5 in
• Number of teeth: 5–150
• Pressure angles: 20°, 22.5°, 25°
• Work spindle taper hole diameter, large end: 3 29/32 in
• Work spindle taper: 39/64 in per ft
• Work spindle taper depth: 6 in
• Work spindle through-hole diameter: 3 1/16 in
• Spindle nose to machine centre: 2.5–13.5 in
• Main motor: 10 HP
• Hydraulic pump motor: 0.75 HP
• Cutting oil pump motor: 1.5 HP
• Net weight: 22,000 lbs

Applications

• Straight bevel gears for power transmission between intersecting shafts
• Gears for differentials and drive axles
• Bevel gears for gearboxes and industrial machinery
• Small-batch or replacement gear production

Commercial Details

• Make: Gleason
• Model: 114
• Condition: Used
• Location: Navi Mumbai, Maharashtra, India
• Seller: A.K. Machine Traders

Frequently Asked Questions

• What size of gear can it cut? It cuts gears with 5–150 teeth, up to 2.5 in face width and up to 7 in cone distance.
• What pressure angles are available? It is set up for 20°, 22.5° and 25° pressure angles.
• What is the main motor rating? The main motor is 10 HP, with a 0.75 HP hydraulic pump motor and a 1.5 HP cutting oil pump motor.
• What should I ask when enquiring? Ask for photos or video of the machine under power, whether an inspection is possible, which tooling, cutters and accessories are included, the condition of the electrics and controls, and how loading and shipping of the 22,000 lbs machine will be handled.
