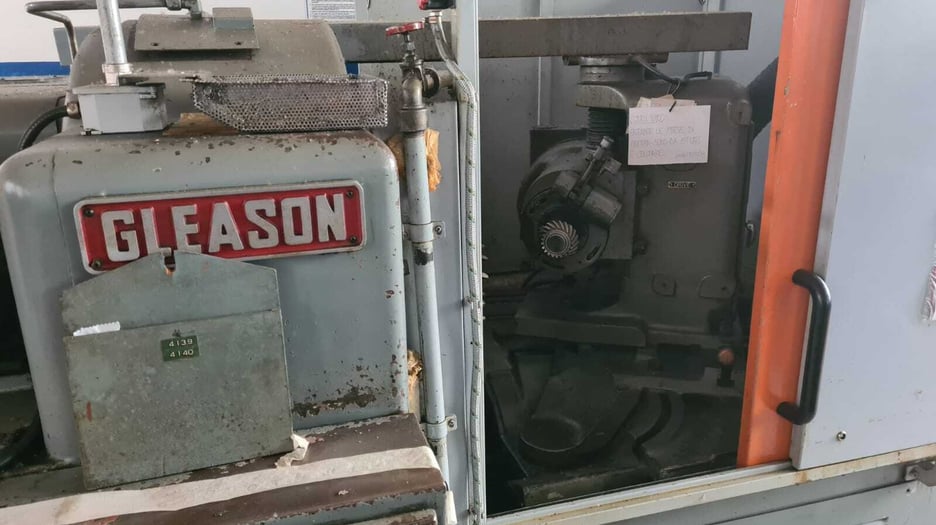

Used Gleason 116 Bevel Gear Generator | A.K. Machine Traders, Navi Mumbai, India

This used Gleason 116 bevel gear generator is available from A.K. Machine Traders in Navi Mumbai, India. It cuts bevel gears, handling work from 5 to 150 teeth.

It takes gears up to 457 mm pitch diameter at a 10 to 1 ratio, with a maximum face width of 69.9 mm and a maximum full depth of 25.4 mm. Five cutter diameters from 125 mm to 300 mm are listed.

Technical Specifications

• Model: Gleason 116
• Max cone distance (30° angle, 300 mm cutter): 228 mm
• Max extreme ratio: 10 to 1
• Max gear pitch diameter, ratio 10 to 1: 457 mm
• Max gear pitch diameter, ratio 2 to 1: 406 mm
• Max gear pitch diameter, ratio 1 to 1: 323 mm
• Coarsest pitch: 12.7 mod
• Max full depth: 25.4 mm
• Max face width: 69.9 mm
• Number of teeth: 5–150
• Work spindle taper hole diameter (large end): 100 mm
• Work spindle taper depth: 150 mm
• Spindle nose diameter: 137.5 mm
• Cutter diameters: 125, 150, 187.5, 225, 300 mm
• Workhead offset above centre: 112.5 mm
• Workhead offset below centre: 112.5 mm
• Machine centre to spindle nose: 62.5–337.5 mm
• Cutter speeds: 20–115 rpm
• Feed: 9–80 seconds per tooth
• Voltage: 380 V, 50 Hz
• Feed motor: 5.5 kW
• Hydraulic motor: 3 kW
• Coolant motor: 1.5 kW
• Floor space: 2,560 × 1,980 mm
• Height: 1,620 mm
• Net weight: 10,977 kg
• Shipping weight (boxed for export): 11,930 kg
• Case size: 3,040 × 2,760 × 1,950 mm

Applications

• Bevel gears for gearboxes and transmissions
• Spiral bevel gears for power transmission
• Gear sets with ratios up to 10 to 1

Commercial Details

• Make: Gleason
• Model: 116
• Condition: Used
• Location: Navi Mumbai, Maharashtra, India
• Seller: A.K. Machine Traders

Frequently Asked Questions

• What size of gear can it cut? It cuts gears of 5–150 teeth, up to 457 mm pitch diameter at a 10 to 1 ratio, with a face width up to 69.9 mm.
• What power supply does it need? It runs on 380 V, 50 Hz, with a 5.5 kW feed motor, 3 kW hydraulic motor and 1.5 kW coolant motor.
• What is its weight and shipping size? Net weight is 10,977 kg; boxed for export it weighs 11,930 kg in a case of 3,040 × 2,760 × 1,950 mm.
• What should I ask when enquiring? Ask for photos or video of the machine under power, inspection options, which cutters, fixtures and accessories are included, the condition of the electrics, and loading and shipping arrangements.
