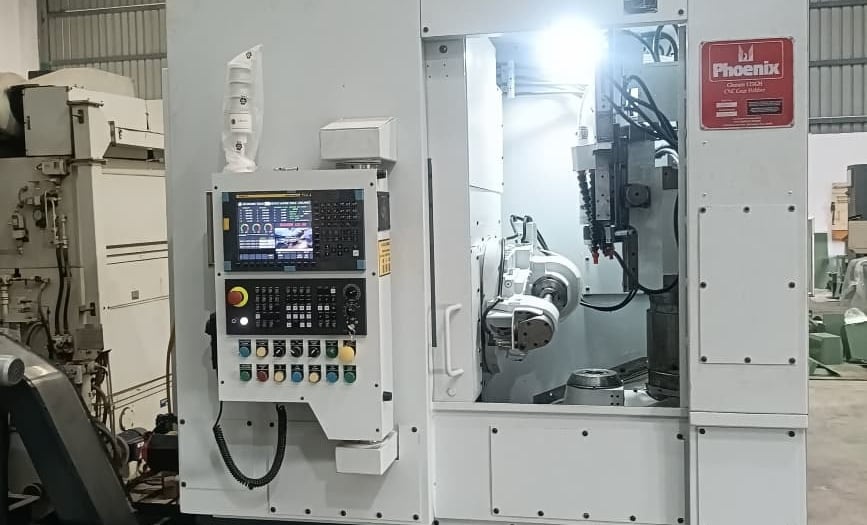

Used Gleason 125GH CNC Gear Hobber | A.K. Machine Traders, Navi Mumbai, India

This used Gleason 125GH CNC gear hobber is available from A.K. Machine Traders in Navi Mumbai, India. A gear hobber cuts gear teeth into a workpiece using a rotating hob.

It handles workpieces up to 125 mm in diameter (200 mm is also listed) and gears up to 3.2 module (8 NDP). It is described as reconditioned and fitted with a new Fanuc control.

Key Features

Reconditioned, with a new Fanuc control
Hob head swivel of -180 to +40 degrees
Optional higher work head speed of 3,500 rpm

Technical Specifications

Model: Gleason 125GH
Max workpiece diameter: 125 mm / 200 mm
Min workpiece diameter: 6.4 mm (0.25 in)
Max pitch / module: 8 NDP / 3.2 module
Max axial slide travel: 300 mm (11.81 in)
Hob head swivel: -180 to +40 degrees
Max hob diameter: 115 mm (4.53 in)
Max hob length: 215 mm (8.46 in)
Max hob shifting length: 200 mm (7.87 in)
Max work head speed: 1,500 rpm
Max work head speed (optional): 3,500 rpm
Hob head drive rating: 15 HP
Control: New Fanuc
Floor space: 106 x 65 x 122 in high
Machine weight: 15,000 lbs

Applications

Spur and helical gears
Small gears for gearboxes and transmissions
Gear production and toolroom work on small parts

Commercial Details

Make: Gleason
Model: 125GH
Condition: Used
Location: Navi Mumbai, Maharashtra, India
Seller: A.K. Machine Traders

Frequently Asked Questions

What size of workpiece can it cut? It takes workpieces from 6.4 mm up to 125 mm in diameter, with 200 mm also listed, at up to 3.2 module (8 NDP).
What control does it have? It is reconditioned and fitted with a new Fanuc control.
What speed does the work head run at? The work head runs to 1,500 rpm, with 3,500 rpm available as an option.
What should I ask when enquiring? Ask for photos or video of the machine under power, inspection arrangements, which hobs, fixtures and accessories are included, the condition of the Fanuc control and electrics, and loading and shipping details.
