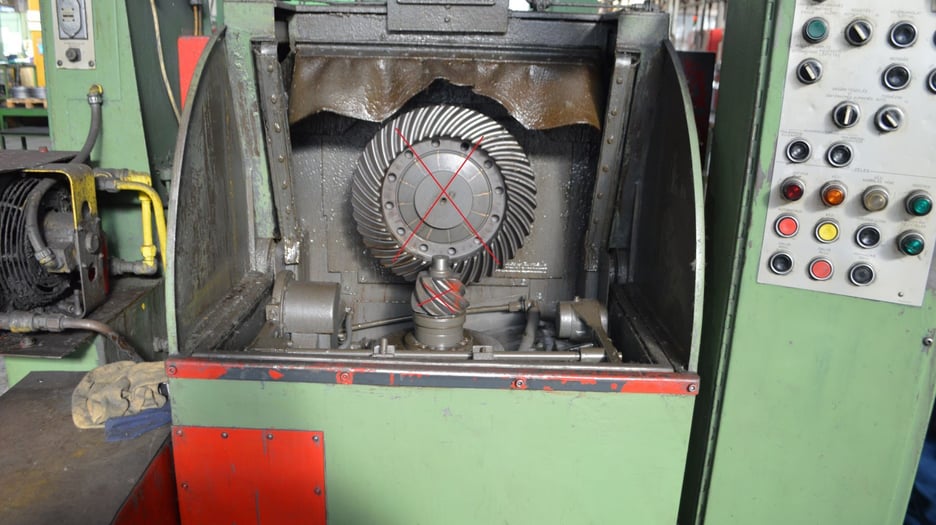

Used Gleason 506 Hypoid Gear Lapper | A.K. Machine Traders, Navi Mumbai, India

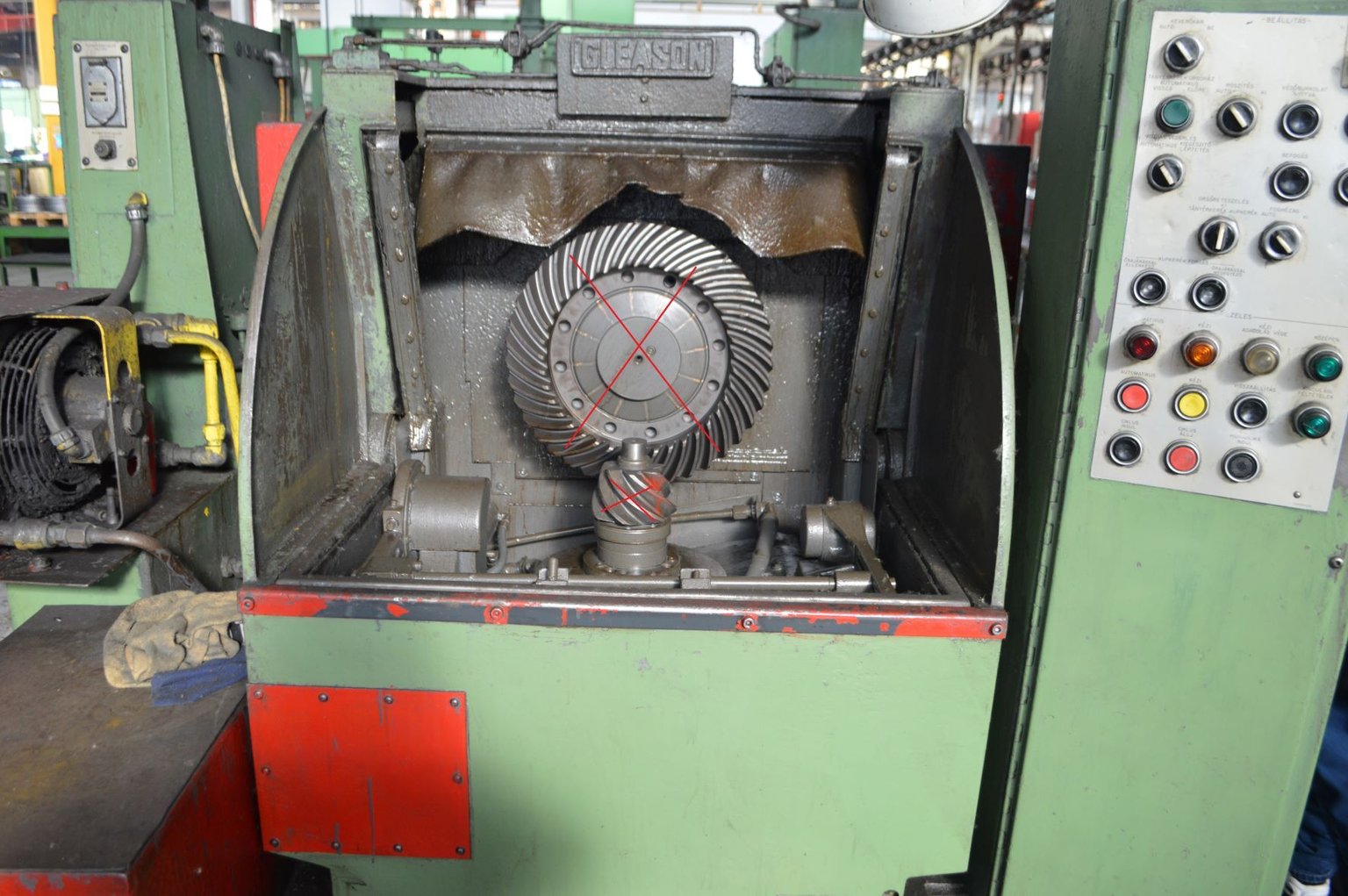

This used Gleason 506 hypoid gear lapper is available from A.K. Machine Traders in Navi Mumbai, India. It laps hypoid gear and pinion sets together so they run as a matched pair.

It takes gears up to 508.00 mm in outside diameter and pinions up to 254.00 mm in diameter, with a pinion spindle offset of 76.20 mm.

Technical Specifications

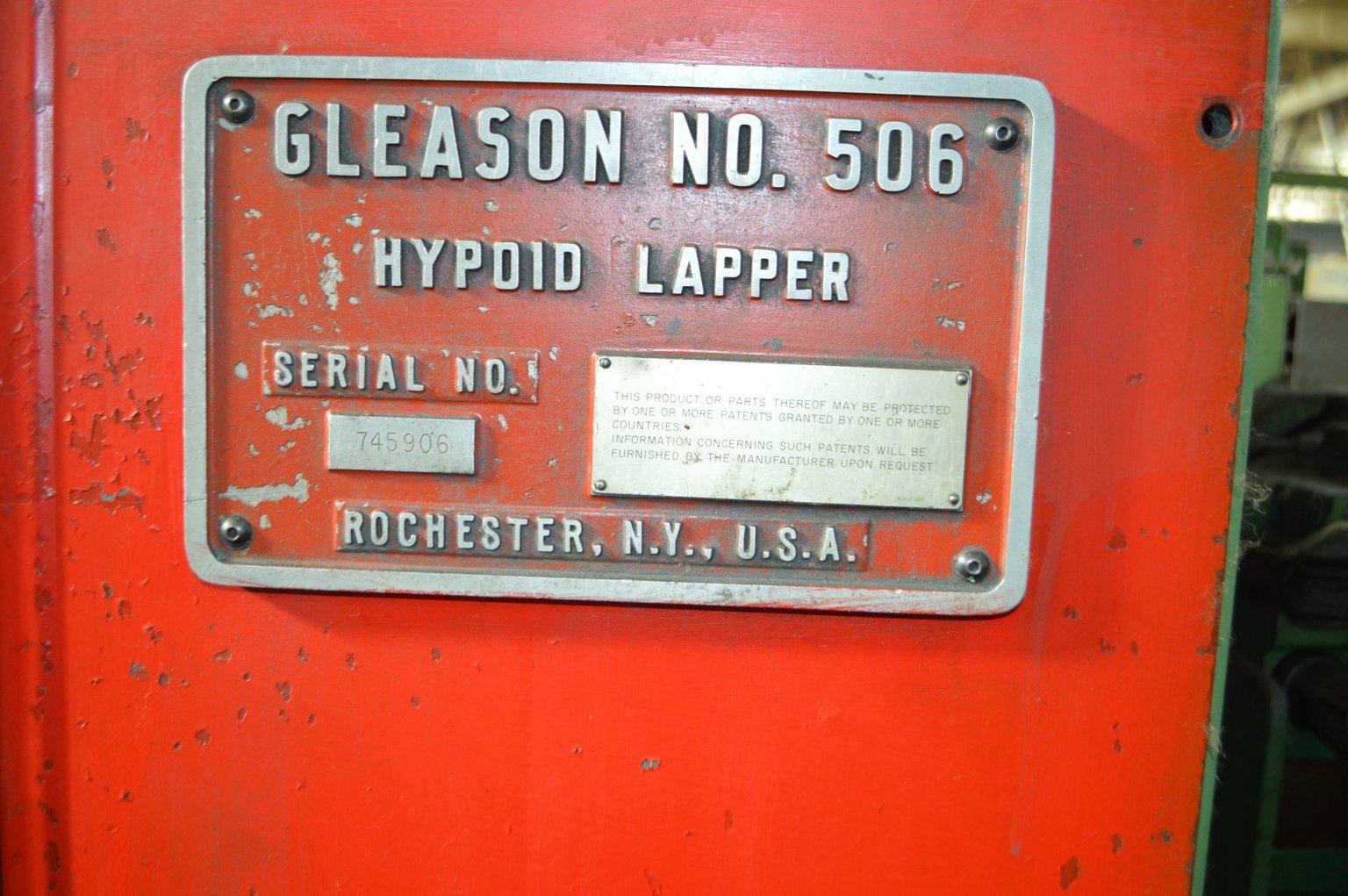

• Model: Gleason 506
• Maximum gear OD: 508.00 mm
• Maximum pinion diameter: 254.00 mm
• Pinion spindle offset (centre to gear spindle centre): 76.20 mm
• Gear spindle nose to gear axis: 114.30–190.50 mm
• Pinion spindle nose to gear axis: 165.10–304.80 mm
• Pinion shank length: 96.52 mm x 76.20 mm

Applications

• Lapping hypoid gear and pinion sets
• Automotive axle and differential drive gears
• Truck and commercial vehicle final drive gears
• Industrial gearbox hypoid sets

Commercial Details

• Make: Gleason
• Model: 506
• Condition: Used
• Location: Navi Mumbai, Maharashtra, India
• Seller: A.K. Machine Traders

Frequently Asked Questions

• What size of gear can it lap? It handles gears up to 508.00 mm outside diameter and pinions up to 254.00 mm in diameter.
• What is the pinion spindle offset? The pinion spindle centre is offset 76.20 mm from the gear spindle centre.
• What should I ask when enquiring? Ask for photos or video of the machine under power, whether an inspection is possible, which tooling, fixtures and accessories are included, the condition of the control and electrics, and the loading and shipping arrangements.
