Used Gleason 511 Hypoid Gear Tester | A.K. Machine Traders, Navi Mumbai, India

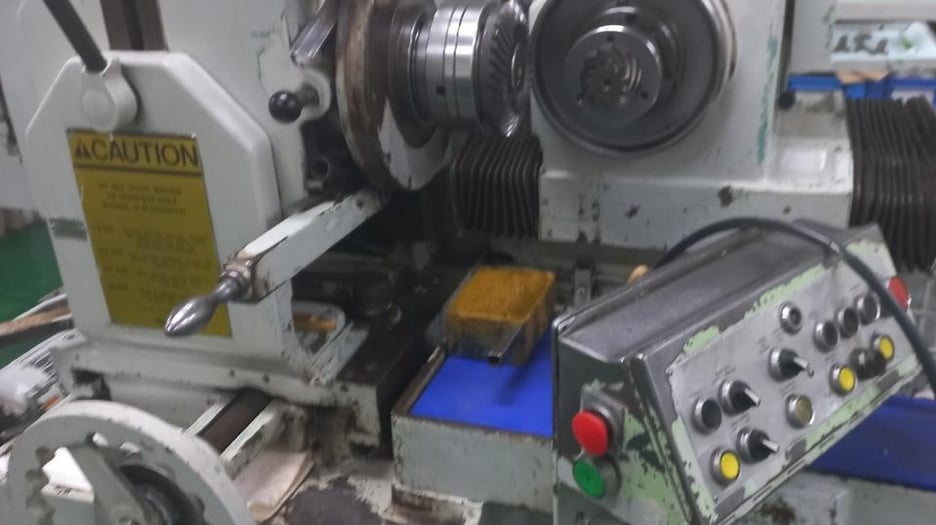

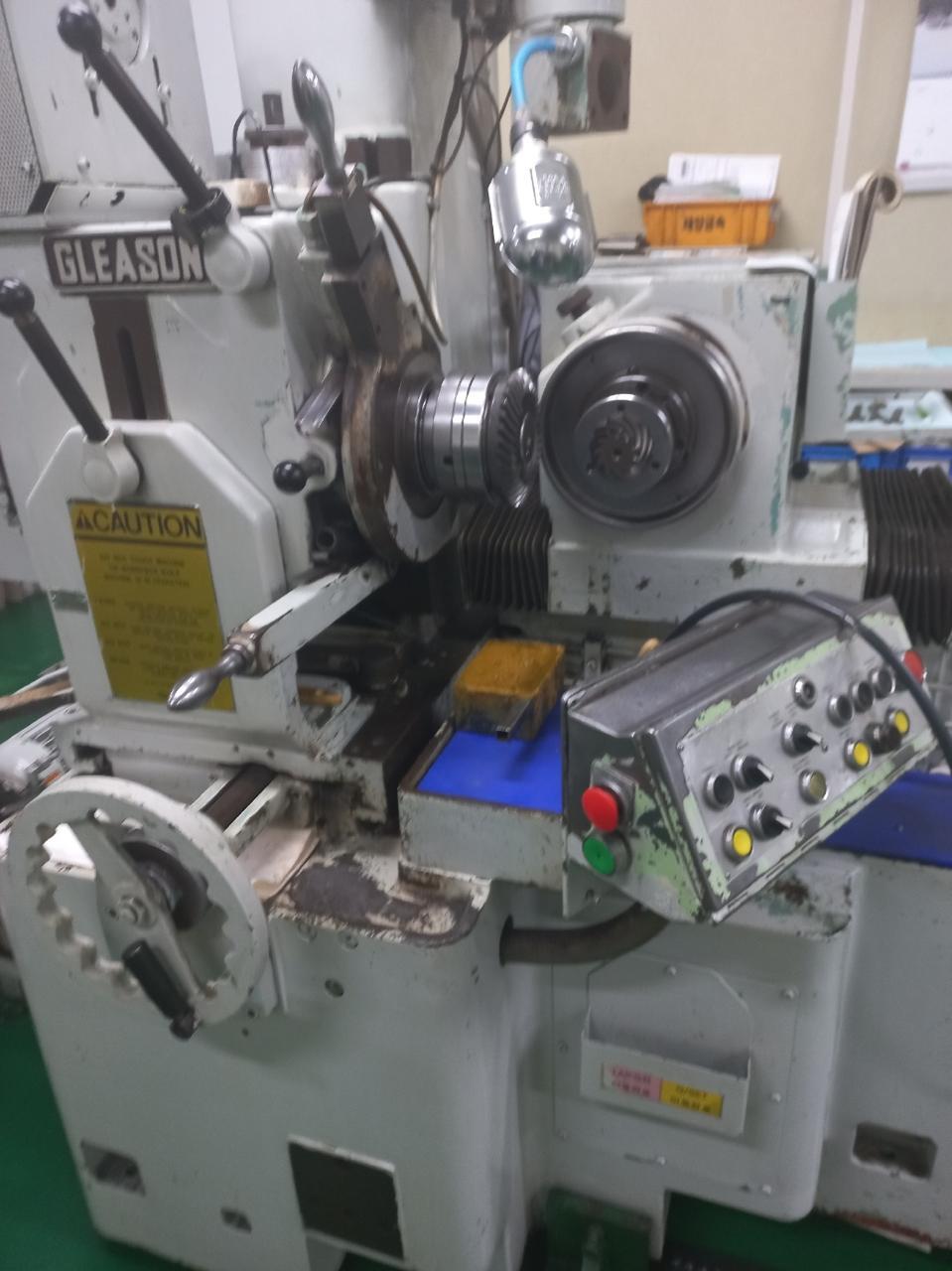

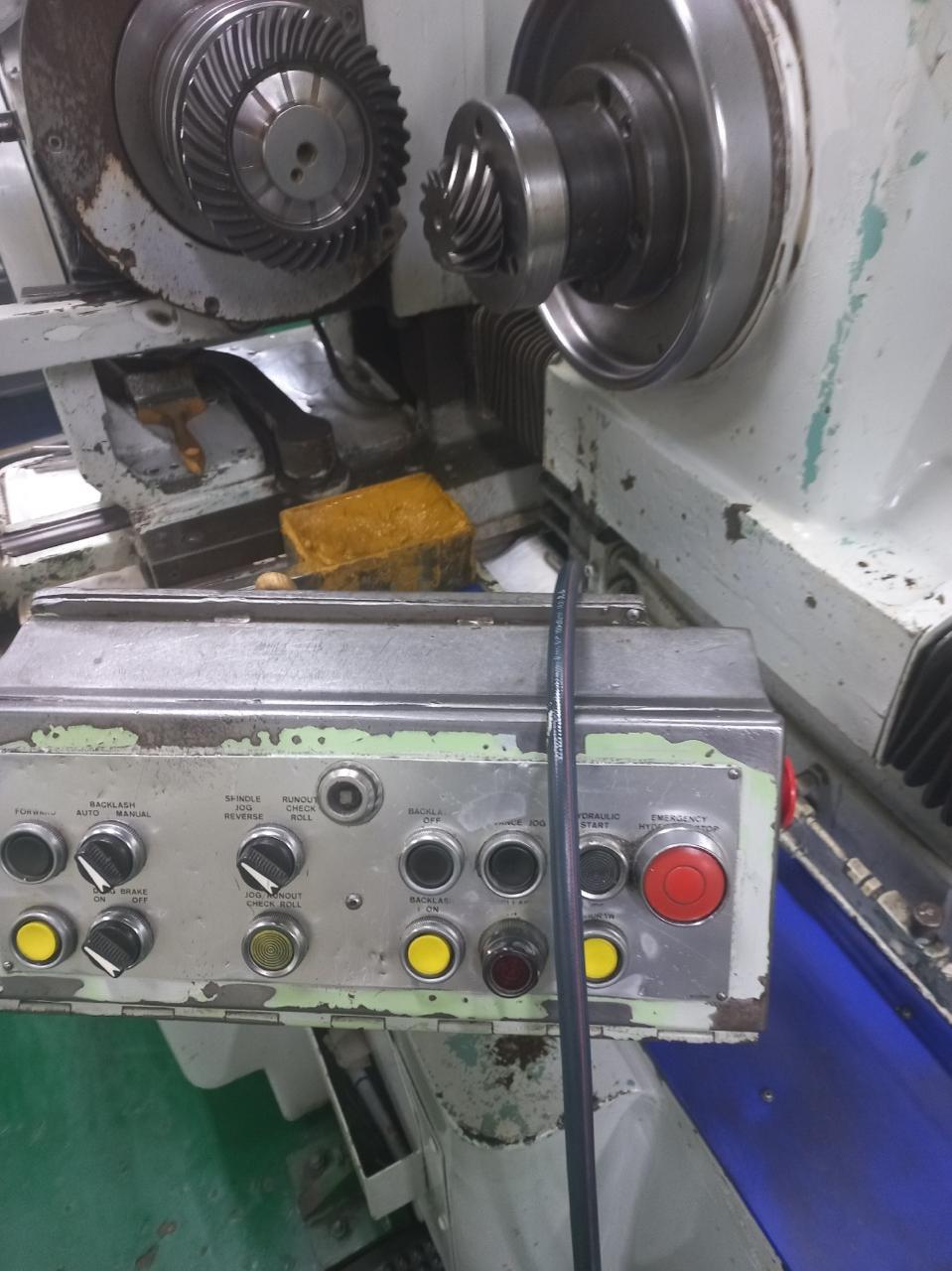

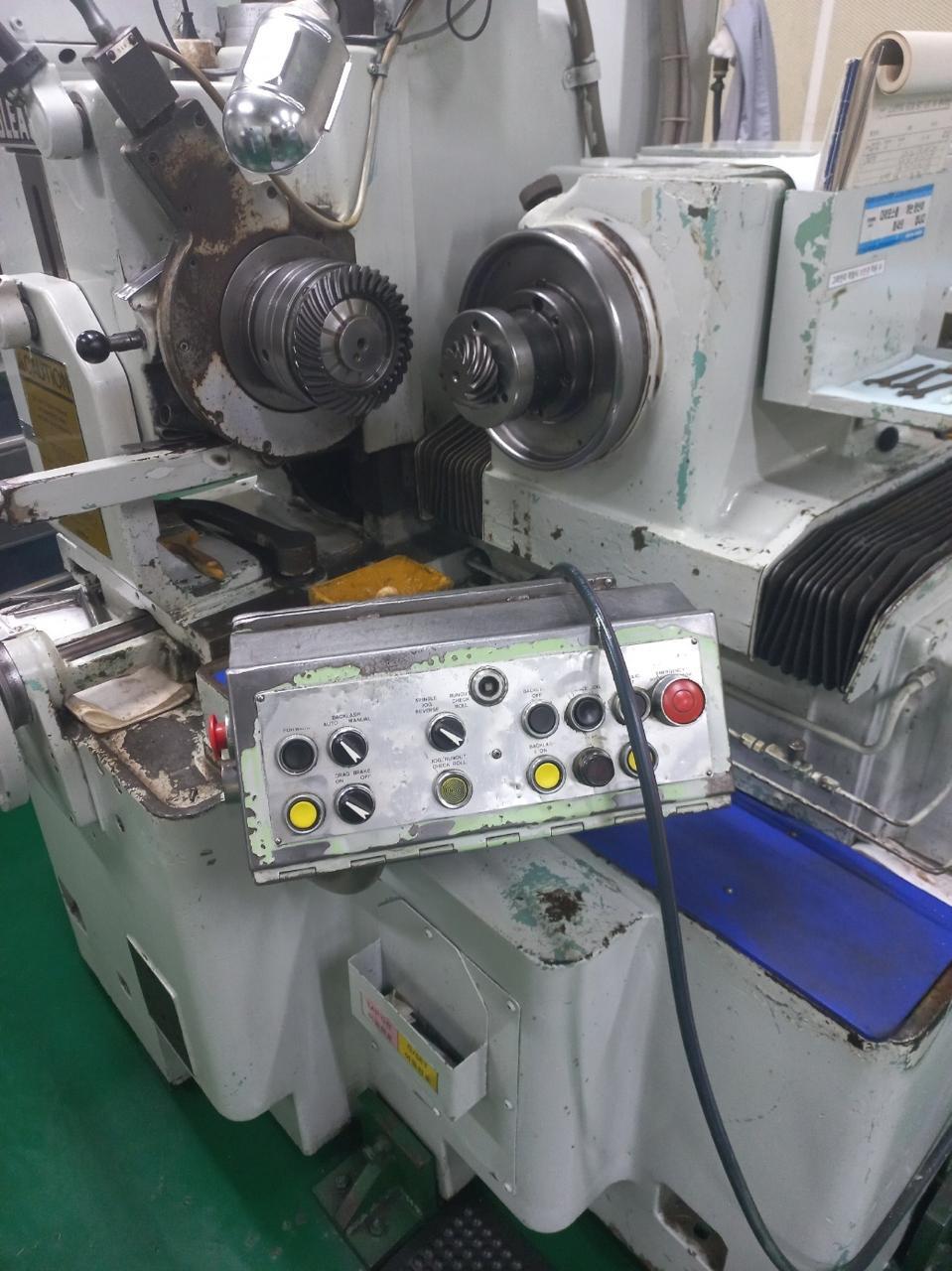

This used Gleason 511 hypoid gear tester is available from A.K. Machine Traders in Navi Mumbai, India. It is used to test hypoid gear sets by running the pinion and wheel together.

It takes wheels up to 508 mm in diameter and gears up to 120 mm wide, with a maximum module of 12. The axial cross angle ranges from 85 to 180°, and the axis adjustment is ±127 mm.

Technical Specifications

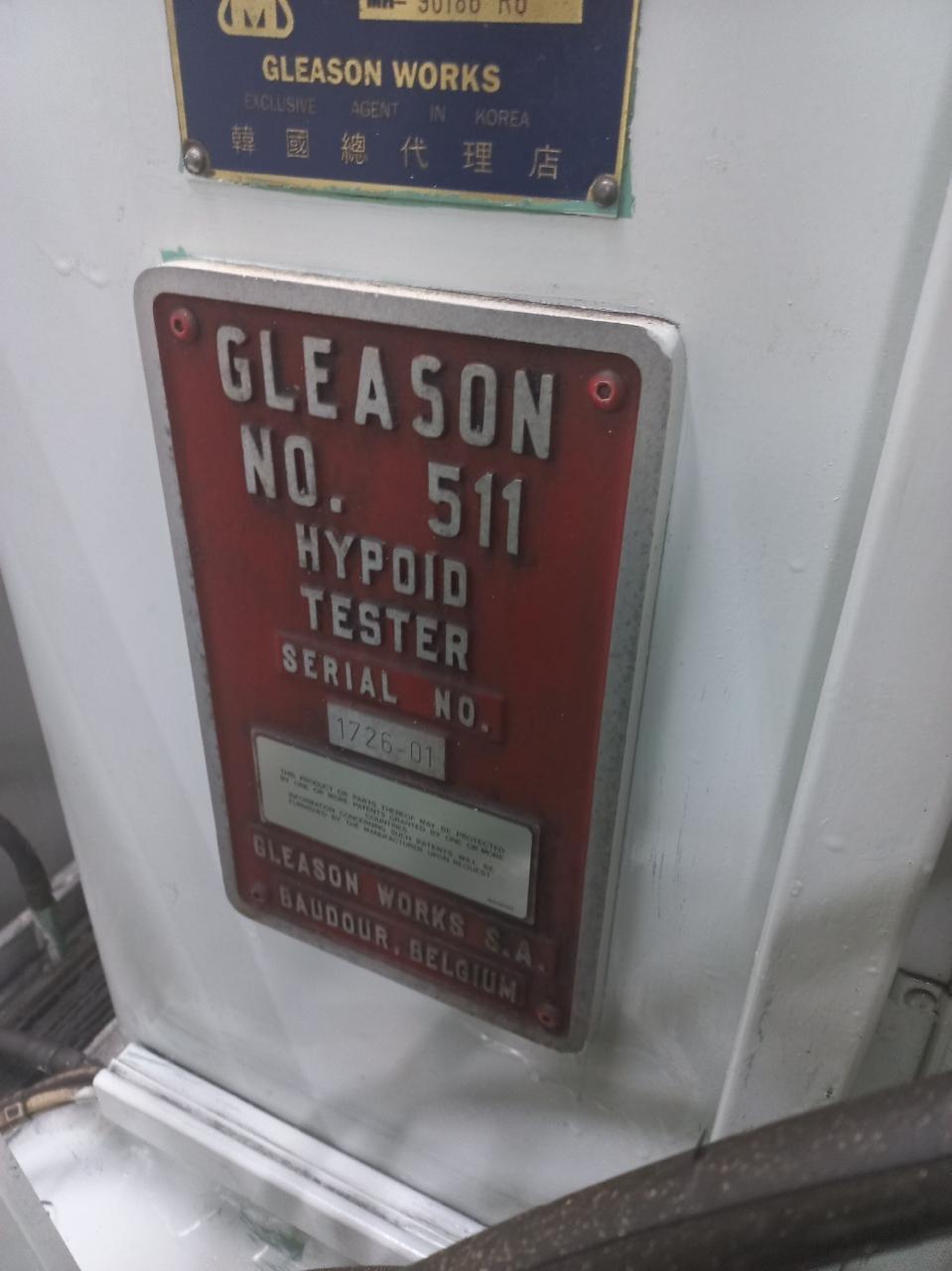

• Model: Gleason 511
• Machine type: Hypoid gear tester
• Max. wheel diameter: 508 mm
• Gear width: 120 mm
• Module: 12
• Axial cross angle: 85–180°
• Axis adjustment: ±127 mm
• Weight: approx. 4.5 t

Applications

• Testing hypoid gear sets
• Checking tooth contact on pinion and wheel pairs
• Quality checks on gears for axle and drive components

Commercial Details

• Make: Gleason
• Model: 511
• Condition: Used
• Location: Navi Mumbai, Maharashtra, India
• Seller: A.K. Machine Traders

Frequently Asked Questions

• What size of gear can it test? It handles wheels up to 508 mm in diameter and gears up to 120 mm wide, with a maximum module of 12.
• What is the axial cross angle range? The axial cross angle is 85–180°, with axis adjustment of ±127 mm.
• How heavy is the machine? The machine weighs approximately 4.5 t, which is useful for planning transport and installation.
• What should I ask when enquiring? Ask for photos or video of the machine under power, the total power requirement and electrical details, and which fixtures, spindles and accessories are included. Also ask about inspection options, loading and shipping.
