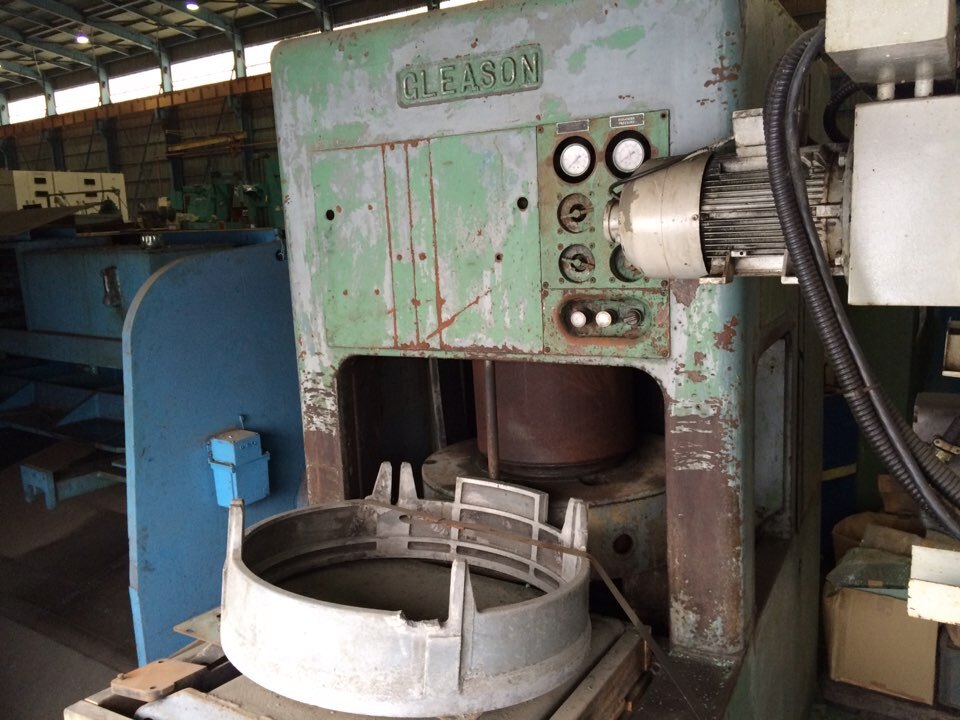

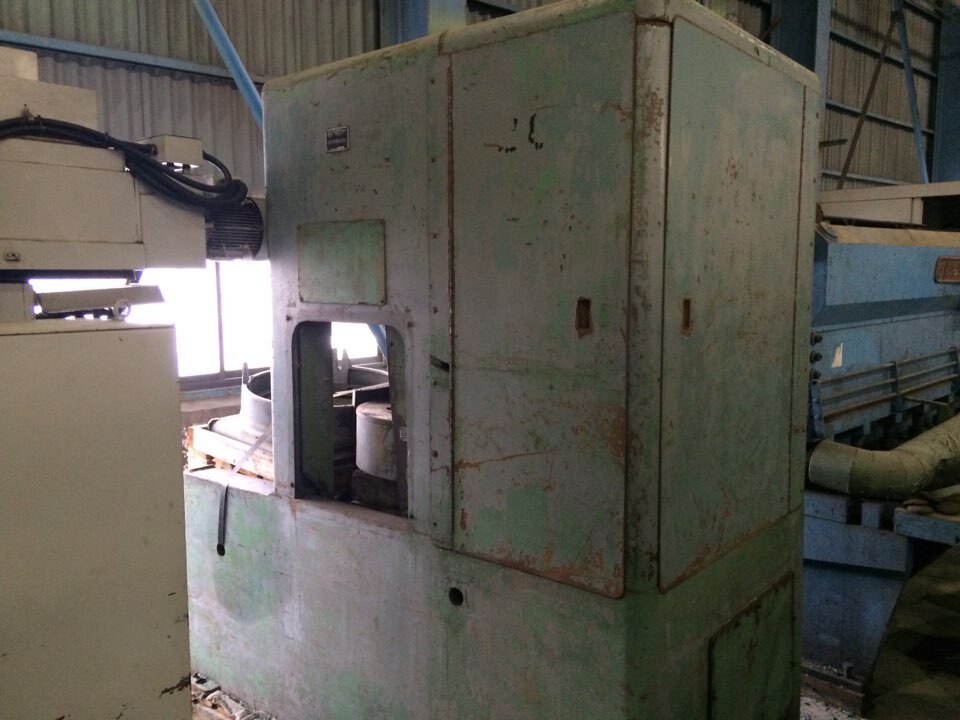

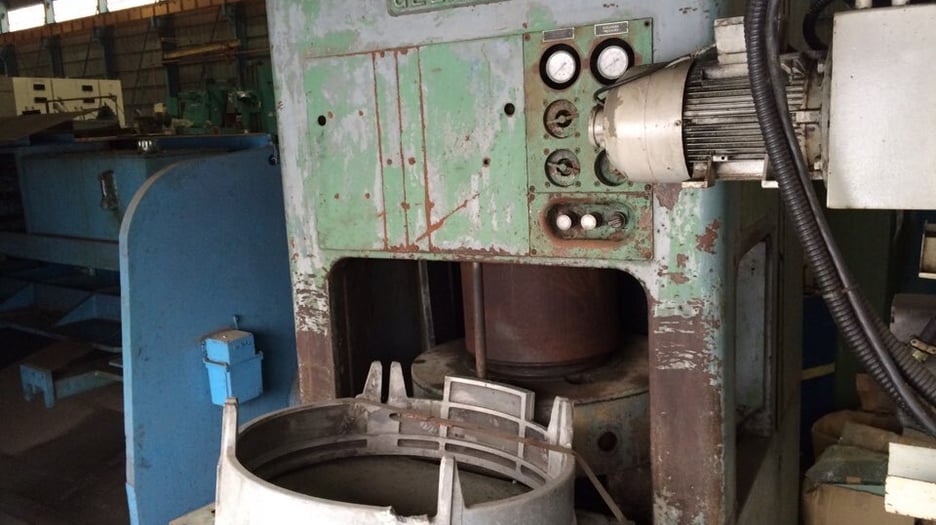

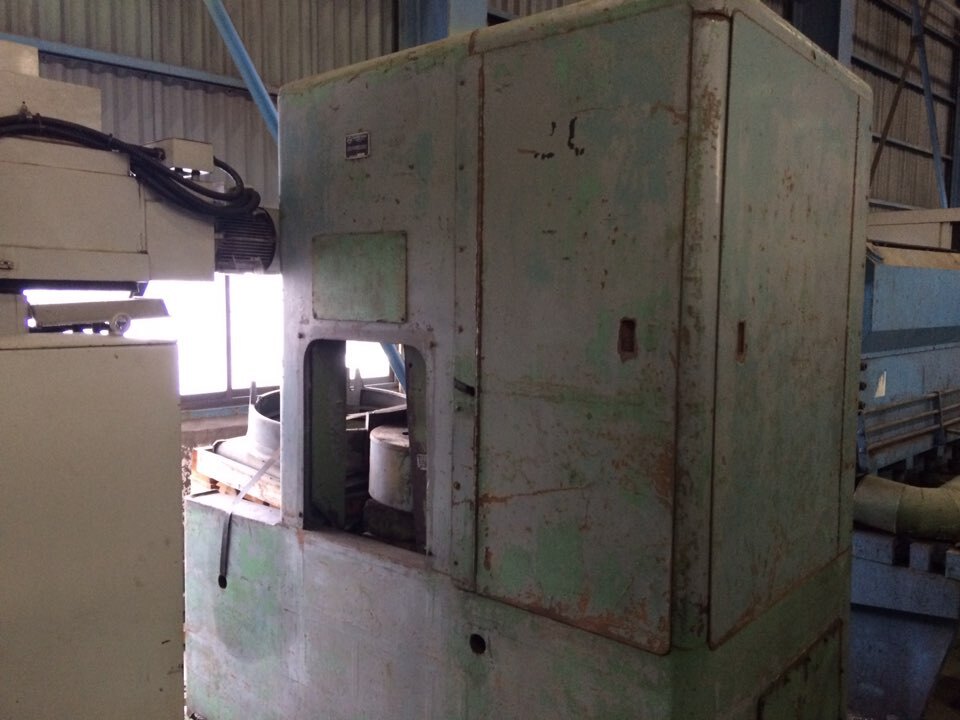

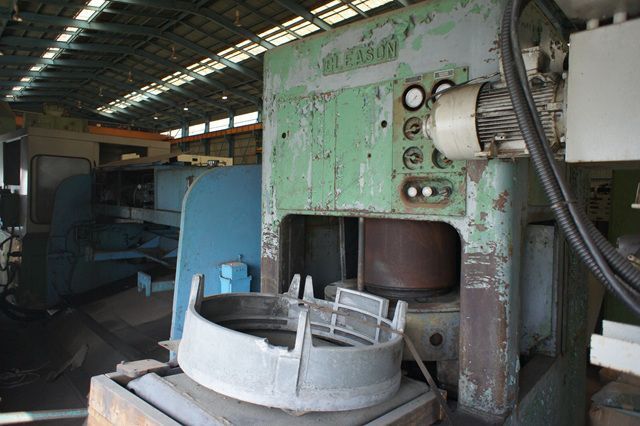

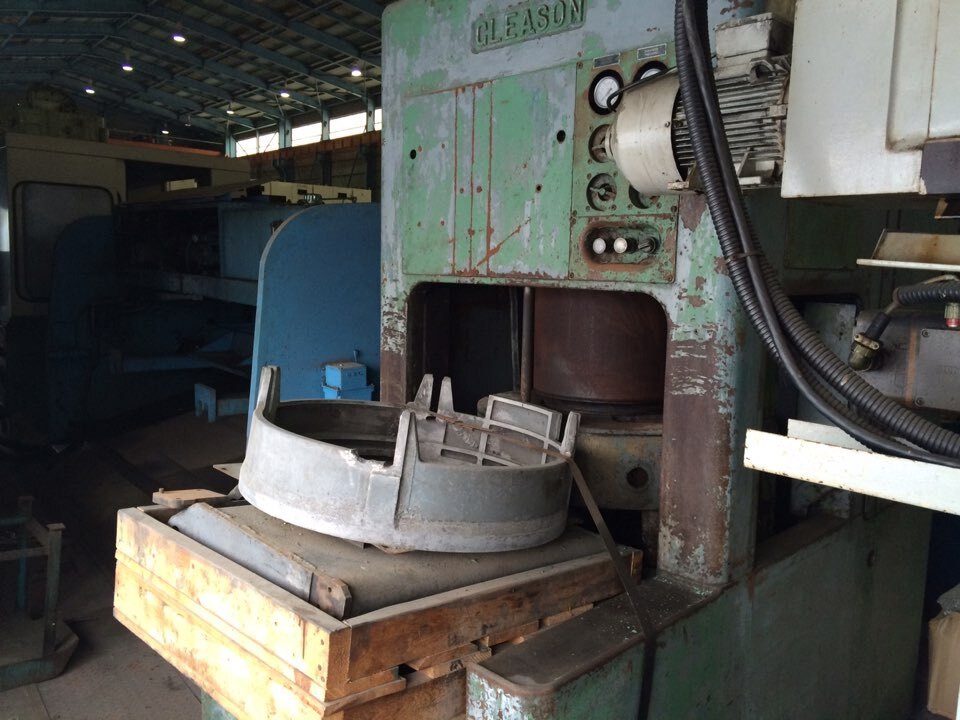

Used Gleason 529 Gear Quenching Press | A.K. Machine Traders, Navi Mumbai, India

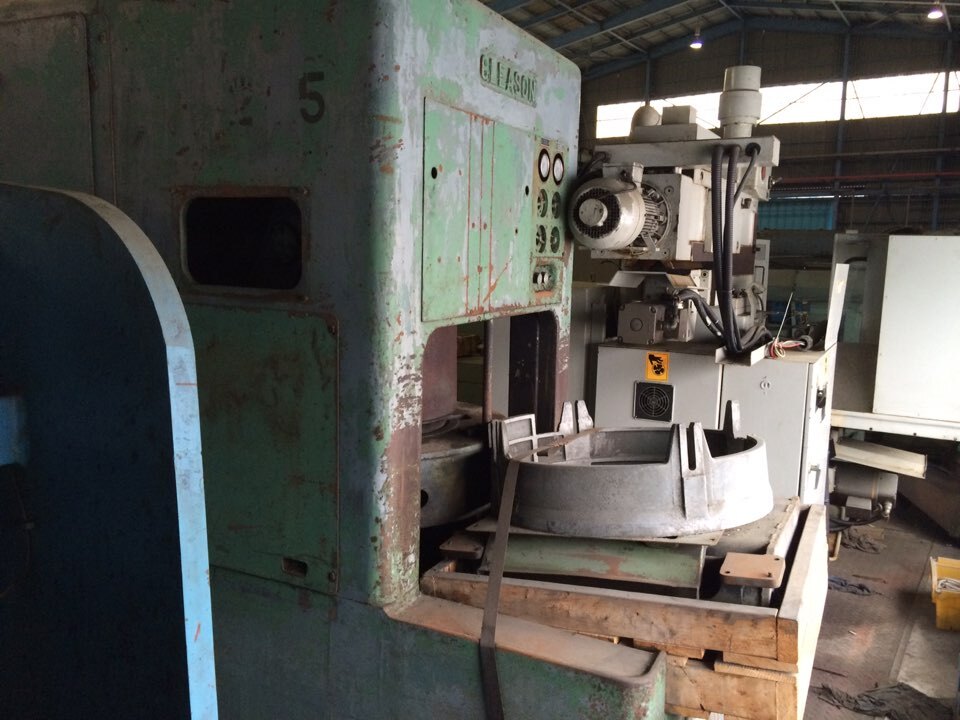

This used Gleason Model 529 gear quenching press is available from A.K. Machine Traders in Navi Mumbai, India. A quenching press holds a heat-treated gear between dies while it is cooled, to control distortion.

It has a 7.5 HP drive motor and a 7.5 HP quenching pump, with outer and inner ring pressures of 20,000 lbs each. A pulsing process is used to minimise distortion, and three timers set the quench stages.

Key Features

• Pulsing process to minimise distortion

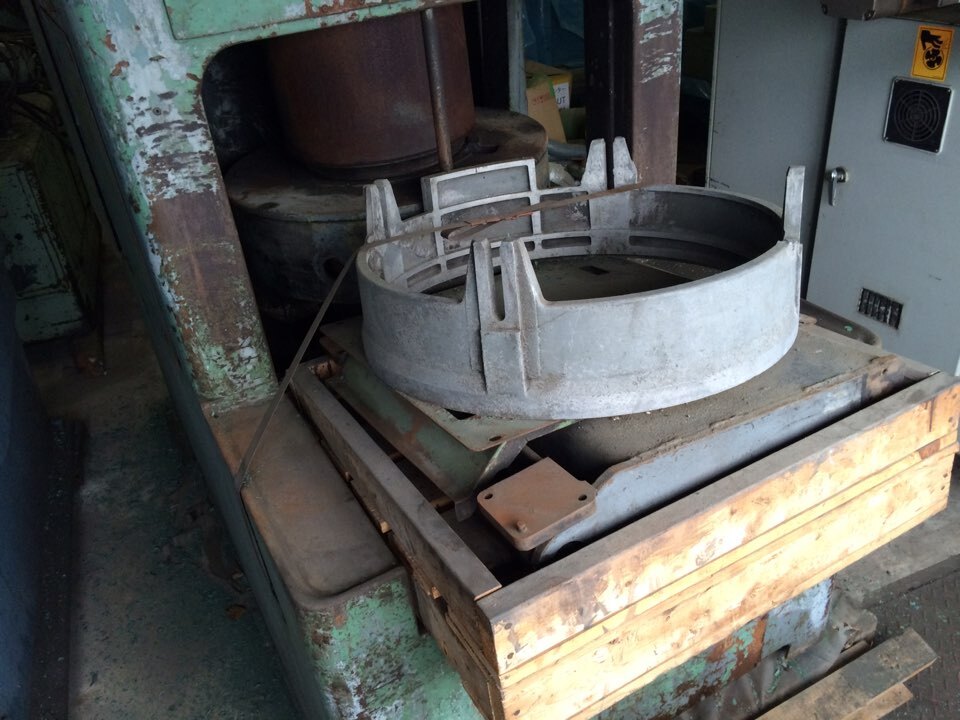

• Universal lower die, with an assortment of lower dies

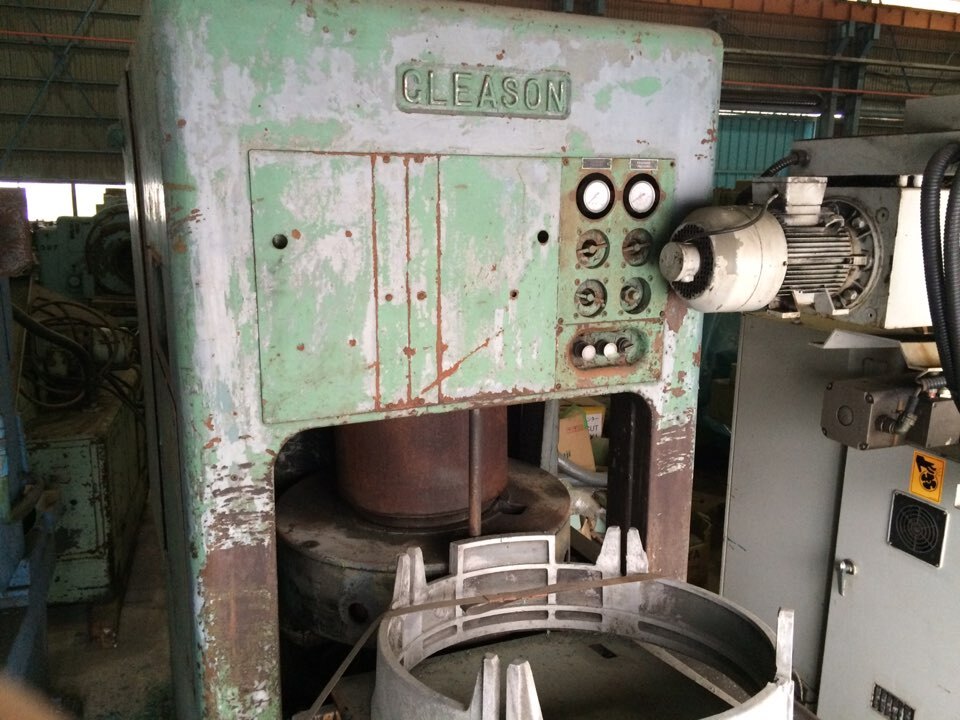

• Adjustable pressure control with dial gauge
• Timers for Quench No. 1, No. 2 and No. 3
• Forward and reverse jogging
• Foot pedal operation
• Complete electrical controls

Technical Specifications

• Model: Gleason 529
• Main motor: 7.5 HP, 3 phase, 60 cycle, 440 V
• Quenching pump: 7.5 HP
• Outer ring pressure: 20,000 lbs
• Inner ring pressure: 20,000 lbs
• Upper die holder to lower holder: 6 in
• Approximate dimensions: 48 in x 91 in x 90 in

Applications

• Quenching heat-treated gears to control distortion
• Hardening of gear blanks and rings
• Gear manufacturing and heat-treatment shops

Commercial Details

• Make: Gleason
• Model: 529
• Condition: Used
• Location: Navi Mumbai, Maharashtra, India
• Seller: A.K. Machine Traders

Frequently Asked Questions

• What power does the press need? The motor is 7.5 HP, 3 phase, 60 cycle, 440 V, and the quenching pump is also 7.5 HP.
• What pressure does it apply? Both the outer ring and the inner ring apply 20,000 lbs.
• Which dies are included? It has a universal lower die and an assortment of lower dies.
• What should I ask when enquiring? Ask for photos or video of the press running, confirmation of which lower dies are included, the condition of the electrical controls and pump, the 60 cycle power requirement, and loading and shipping arrangements.
