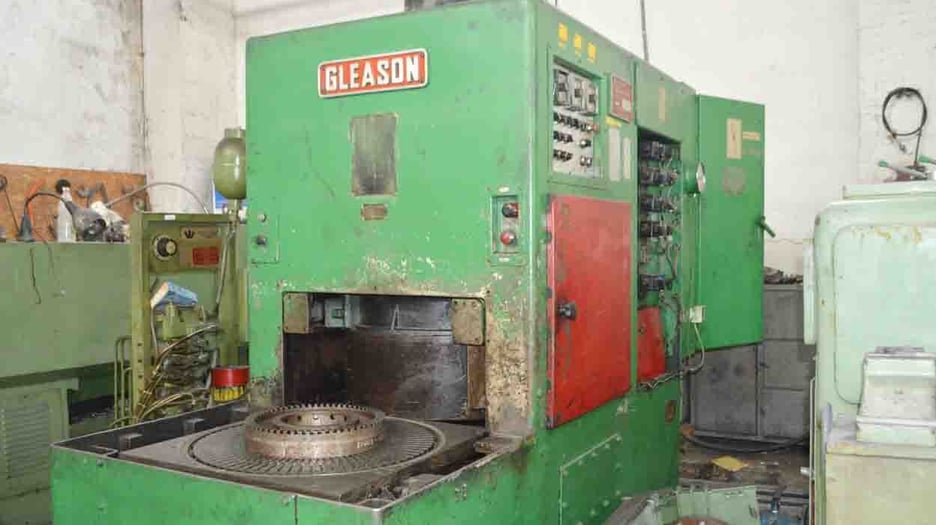

Used Gleason 537 Gear Quenching Press | A.K. Machine Traders, Navi Mumbai, India

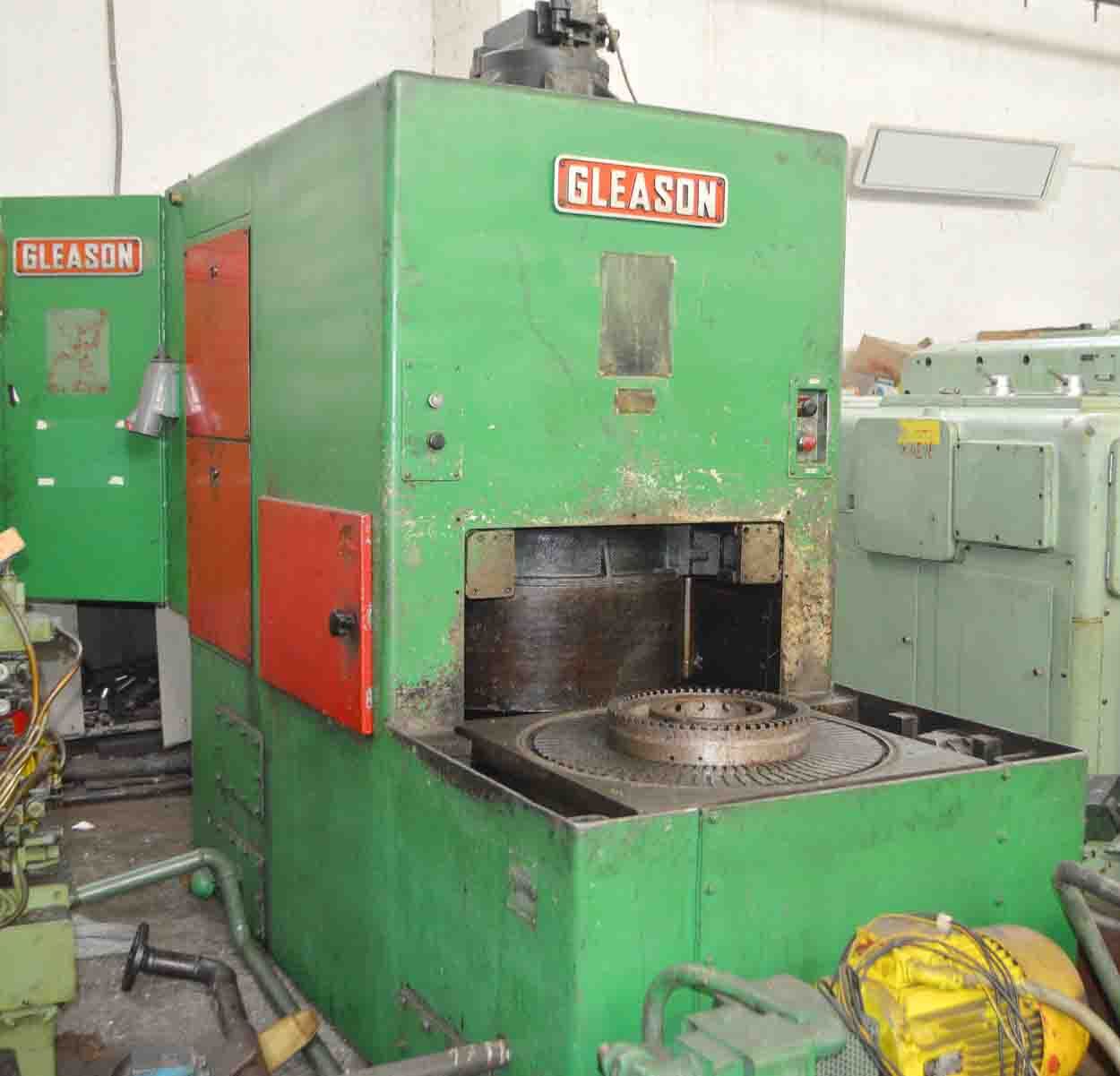

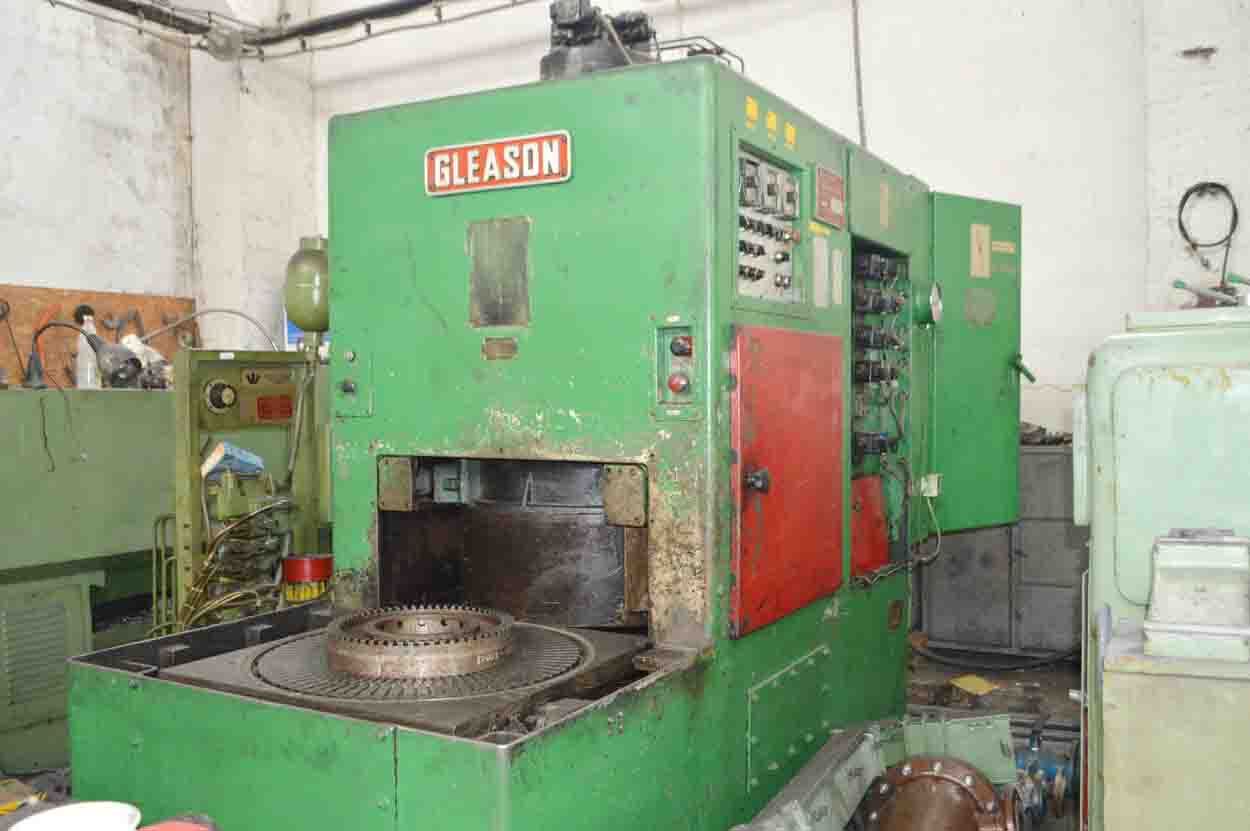

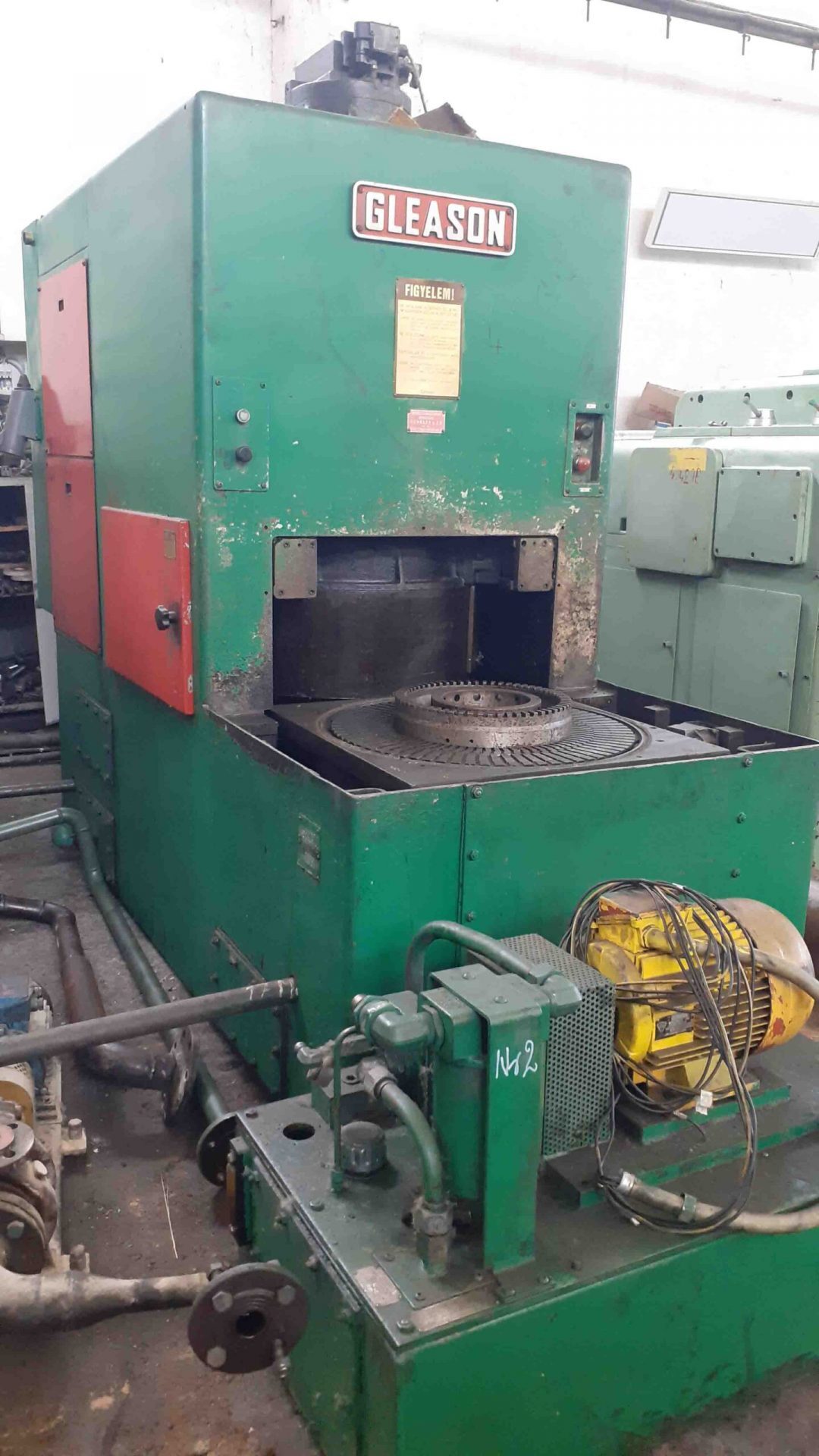

This used Gleason 537 gear quenching press is available from A.K. Machine Traders in Navi Mumbai, India. A quenching press holds a heat-treated gear in dies while it cools, which helps control distortion.

It takes gears up to 711 mm in diameter and 203 mm high, with a minimum bore of 152 mm. The lower die is adjustable over 152–406 mm.

Key Features

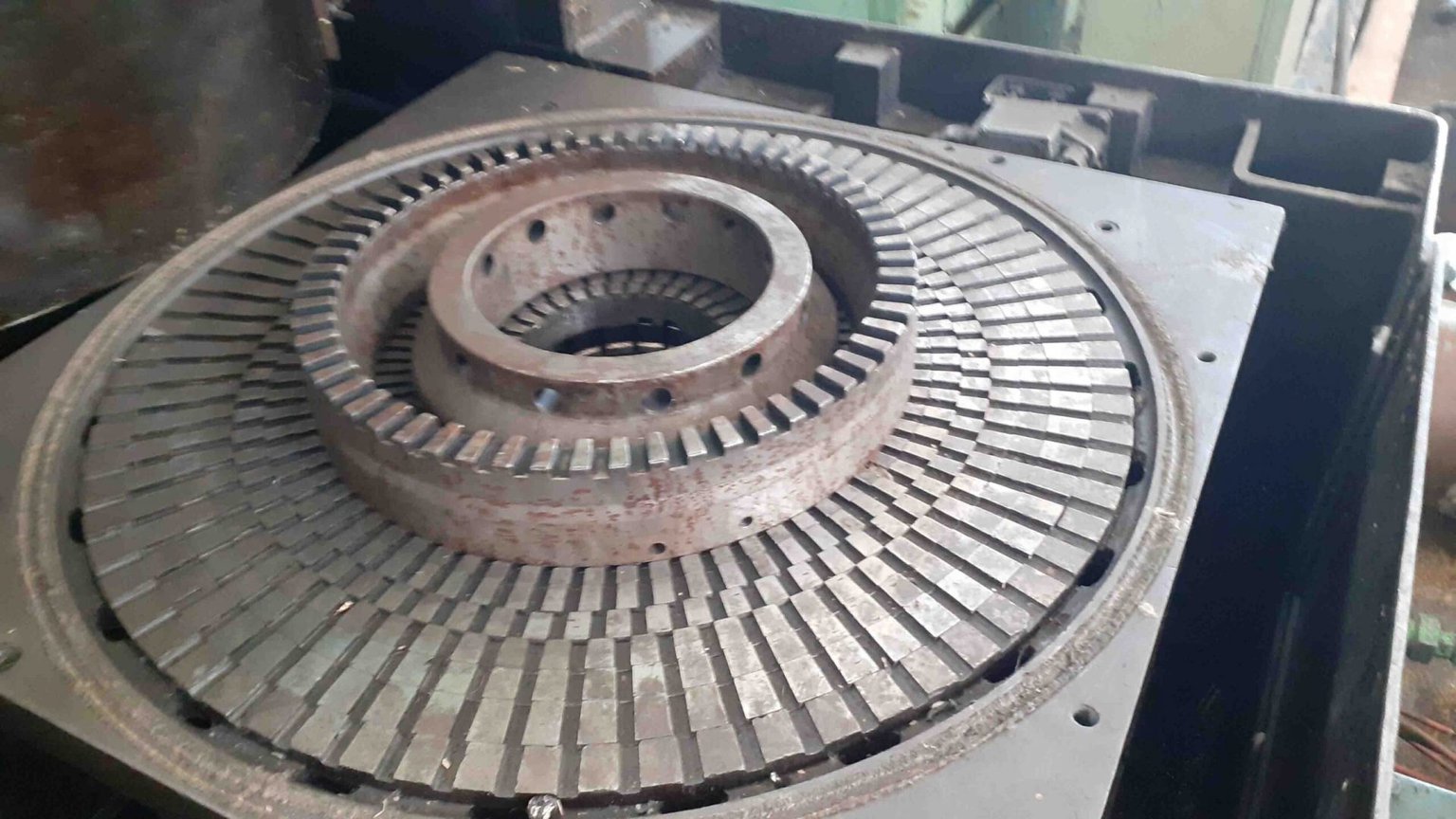

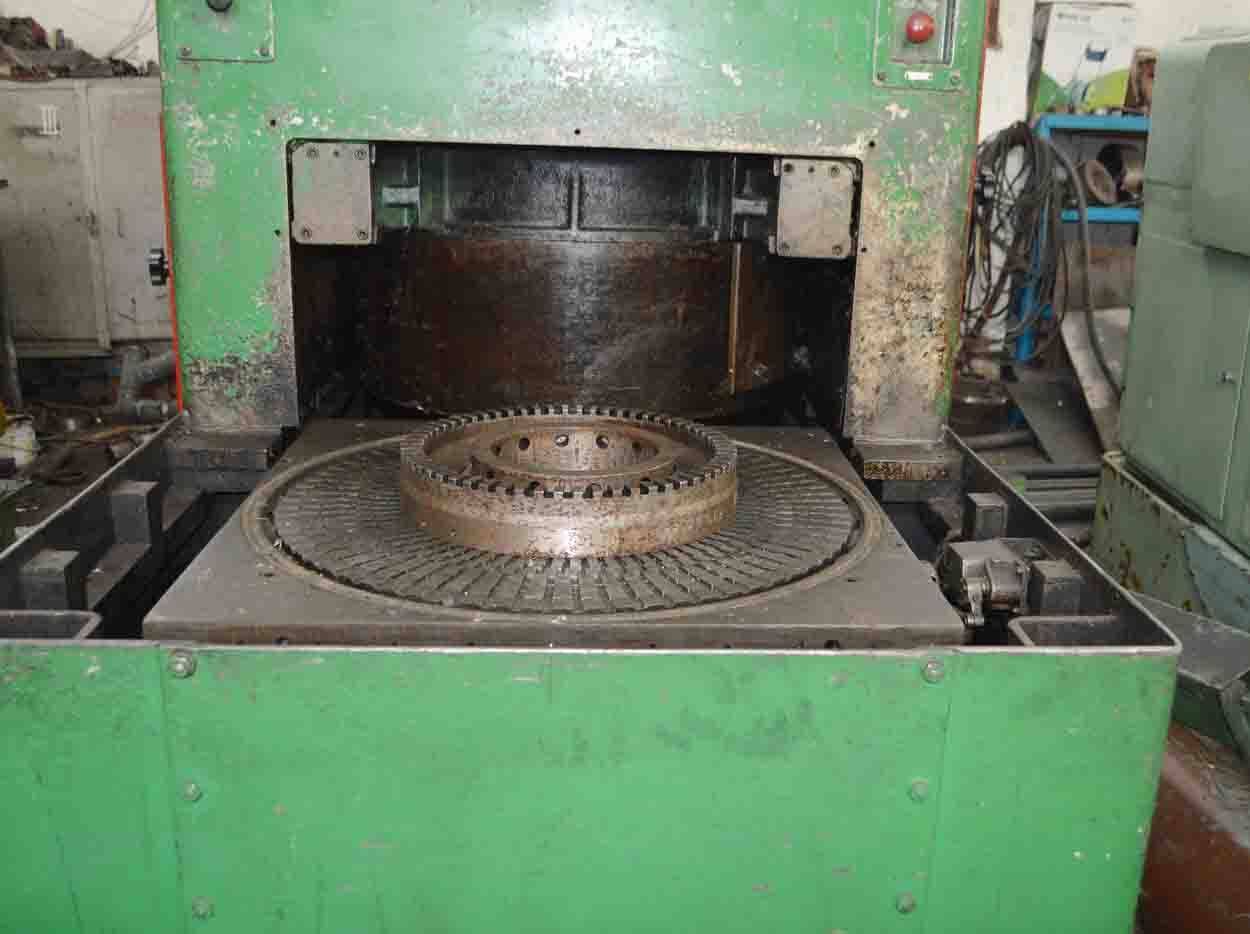

• Adjustable lower die for different gear bore sizes
• Adjustable opening between upper and lower die holders

Technical Specifications

• Model: Gleason 537
• Maximum diameter: 711 mm (28 in)
• Minimum diameter (bore or inner diameter): 152 mm (6 in)
• Maximum height: 203 mm (8 in)
• Bottom of upper die holder to top of bottom holder: 254–558 mm (10–22 in)
• Lower die adjustment range: 152–406 mm (6–16 in)

Applications

• Quenching heat-treated gears to control distortion
• Hardening ring gears and gear blanks within the diameter and height range
• Gear production and heat-treatment shops

Commercial Details

• Make: Gleason
• Model: 537
• Condition: Used
• Location: Navi Mumbai, Maharashtra, India
• Seller: A.K. Machine Traders

Frequently Asked Questions

• What is the largest gear this press takes? It takes gears up to 711 mm in diameter and 203 mm high.
• What is the minimum bore it handles? The minimum bore or inner diameter is 152 mm.
• How adjustable is the lower die? The lower die adjusts over 152–406 mm.

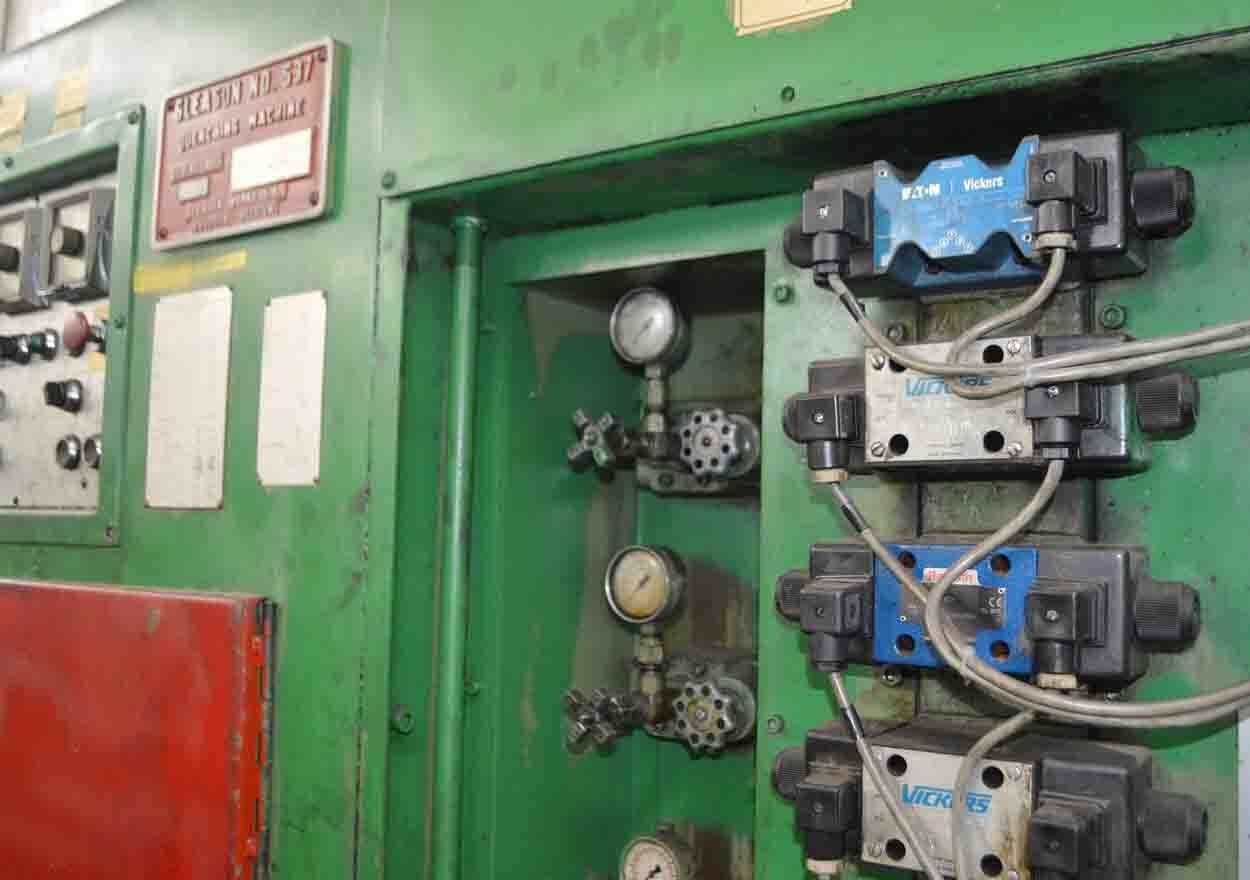

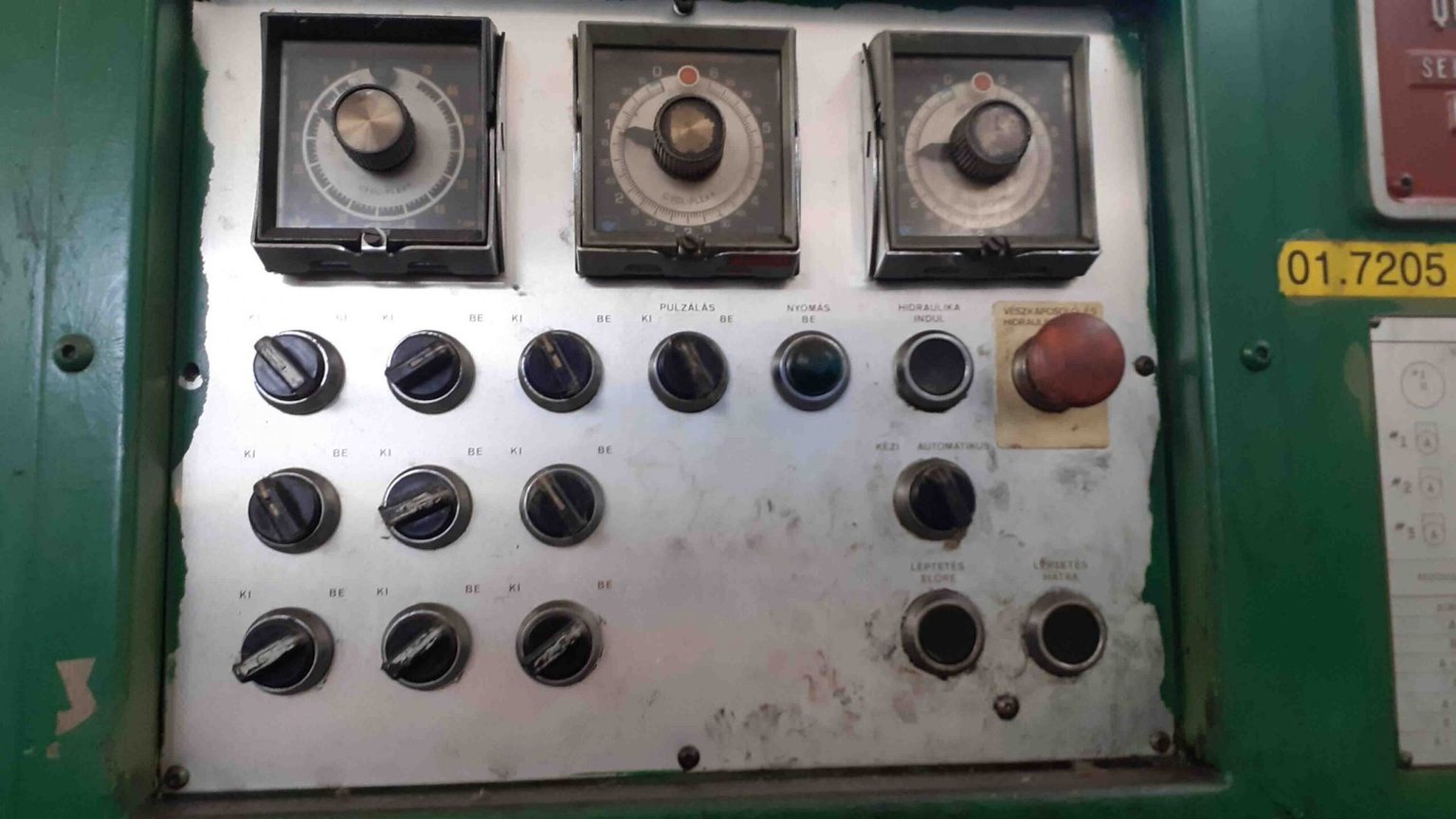

• What should I ask when enquiring? Ask for photos or video of the press operating, and confirm the dies and tooling included, the condition of the hydraulics and controls, the electrical supply requirements, and loading and shipping arrangements.
