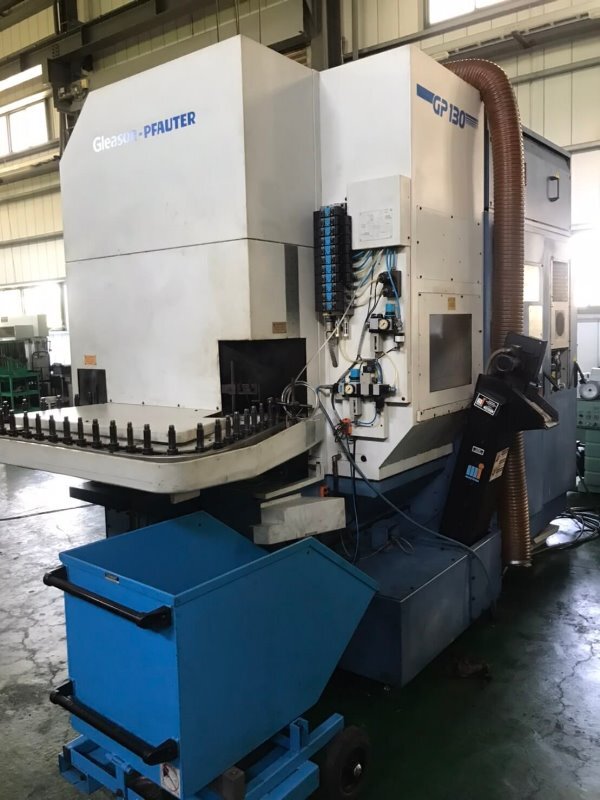

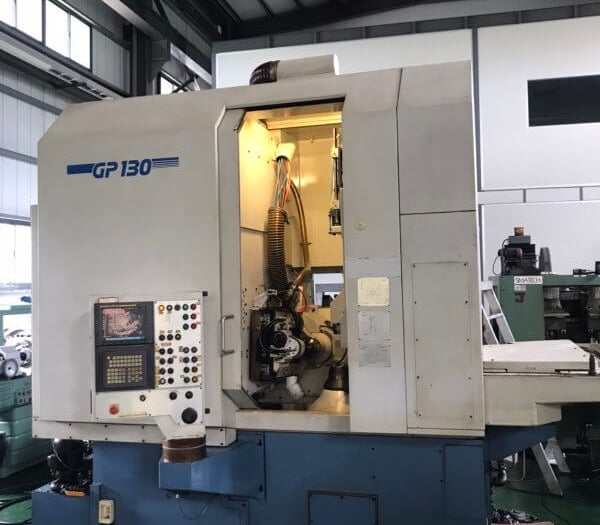

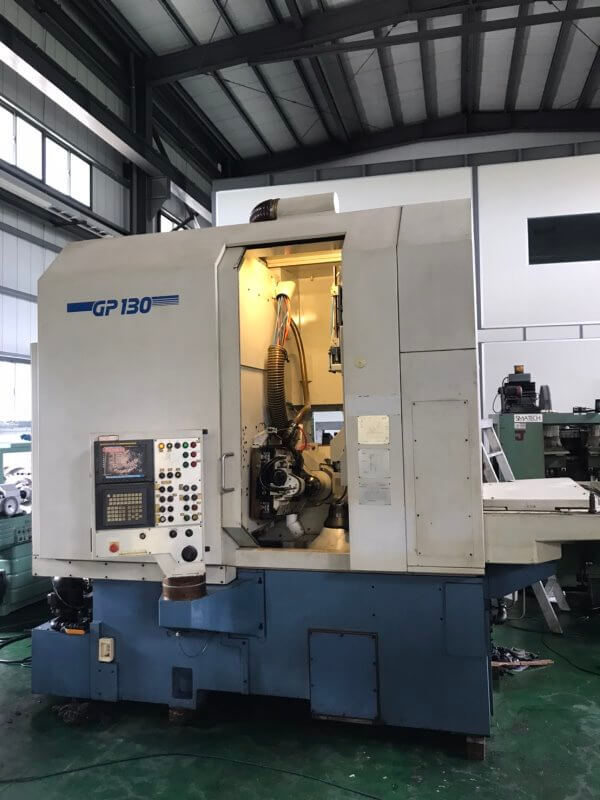

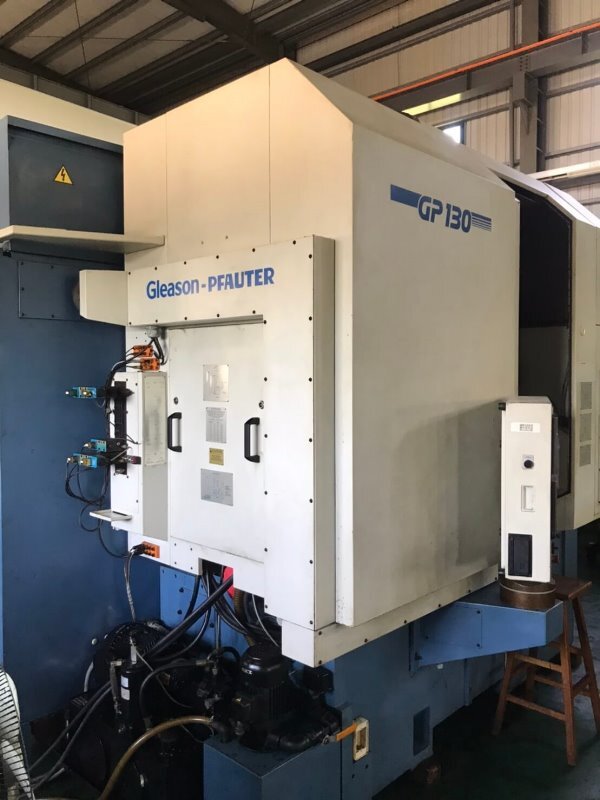

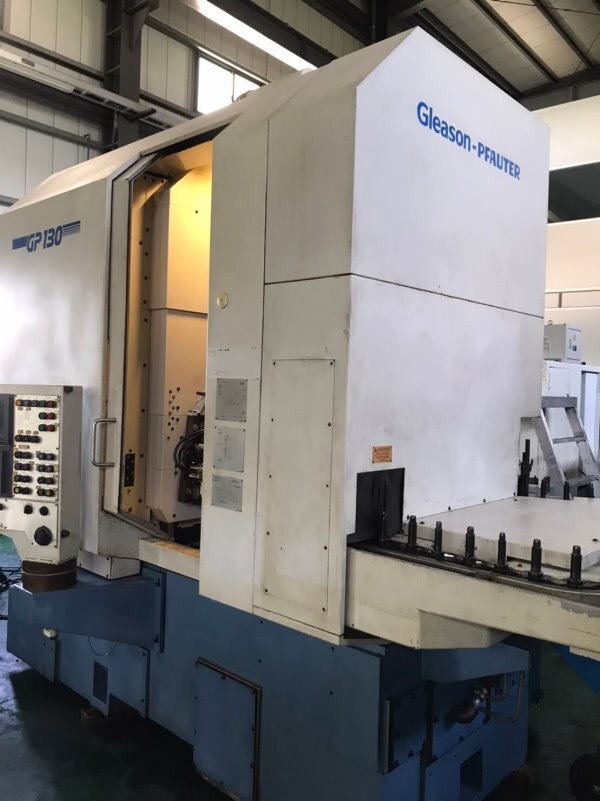

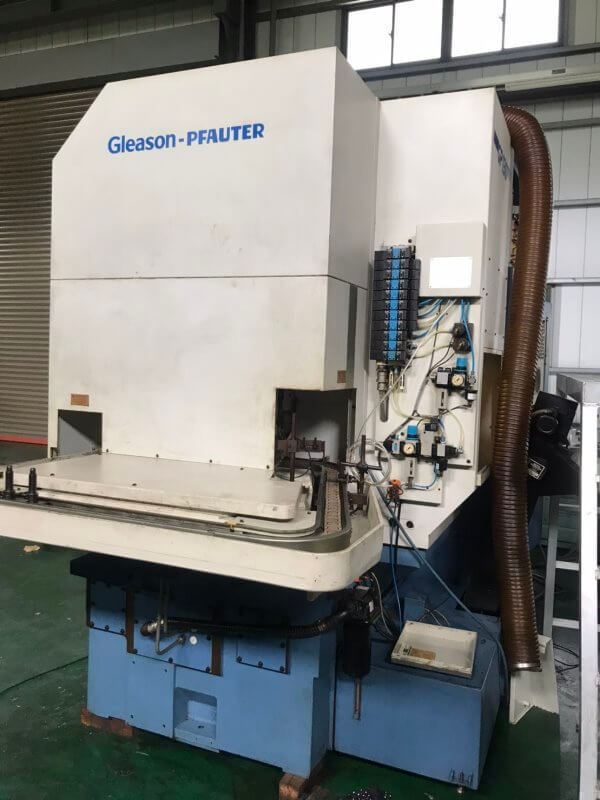

Used Gleason Pfauter GP 130 CNC Gear Hobbing Machine | A.K. Machine Traders, Navi Mumbai, India

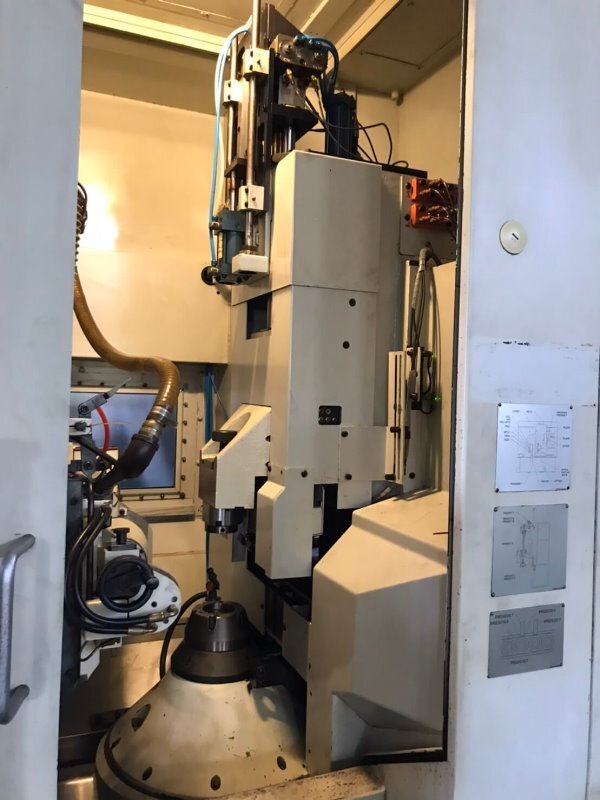

This used Gleason Pfauter GP 130 CNC gear hobbing machine is available from A.K. Machine Traders in Navi Mumbai, India. A gear hobbing machine cuts gear teeth into a workpiece with a rotating hob.

It handles workpieces up to 130 mm in nominal diameter at a nominal module of 3 mm. The hob drive is rated at 14 kW with hob speeds up to 3,000 rpm, and the machine is controlled by a Fanuc 160iM.

Key Features

• CNC control with a Fanuc 160iM
• Hob swivels ±45° for different gear and helix angles
• Hob shift travel of 170 mm

Technical Specifications

• Model: Gleason Pfauter GP 130
• Nominal workpiece diameter: 130 mm
• Nominal module: 3 mm
• Maximum axial slide travel: 250 mm
• Hob swivel angle: ±45°
• Maximum workspindle speed: 1,000 rpm
• Maximum hob diameter: 80 mm
• Maximum hob length / total length: 170 / 245 mm
• Maximum hob shift travel: 170 mm
• Hob drive: 14 kW
• Maximum hob speed: 3,000 rpm
• Table surface diameter: 160 mm

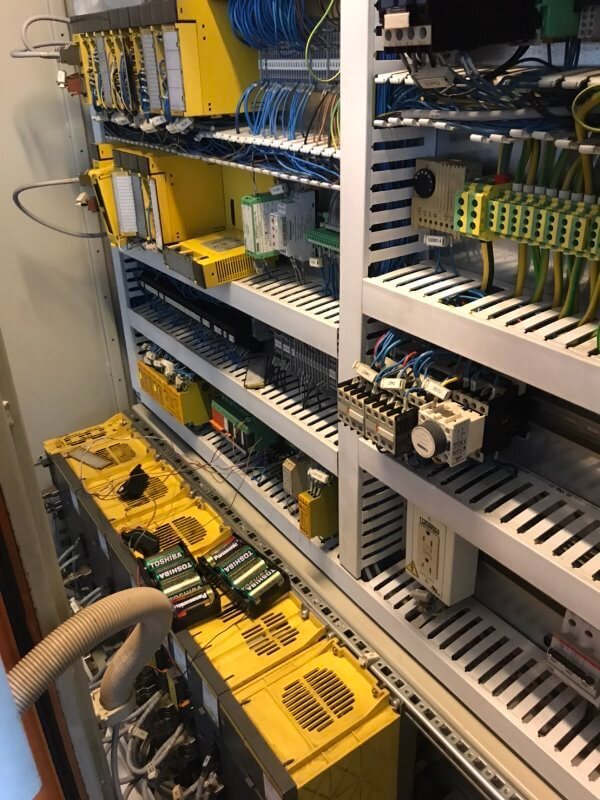

• Control: Fanuc 160iM
• Machine weight: 10,000 kg

Applications

• Small spur and helical gears
• Gears for gearboxes and transmissions
• Automotive and general engineering gear components
• Batch production of toothed parts

Commercial Details

• Make: Gleason Pfauter
• Model: GP 130
• Condition: Used
• Location: Navi Mumbai, Maharashtra, India
• Seller: A.K. Machine Traders

Frequently Asked Questions

• What size of gear can it cut? It is rated for a nominal workpiece diameter of 130 mm and a nominal module of 3 mm.
• What control does it use? It has a Fanuc 160iM CNC control.
• How heavy is the machine? The machine weighs 10,000 kg.
• What should I ask when enquiring? Ask for photos or video of the machine running under power, whether an inspection is possible, which hobs, fixtures and accessories are included, the condition of the Fanuc control and electrics, and loading and shipping arrangements.
