Used Gleason Phoenix GH 400 CNC Gear Hobber | A.K. Machine Traders, Navi Mumbai, India

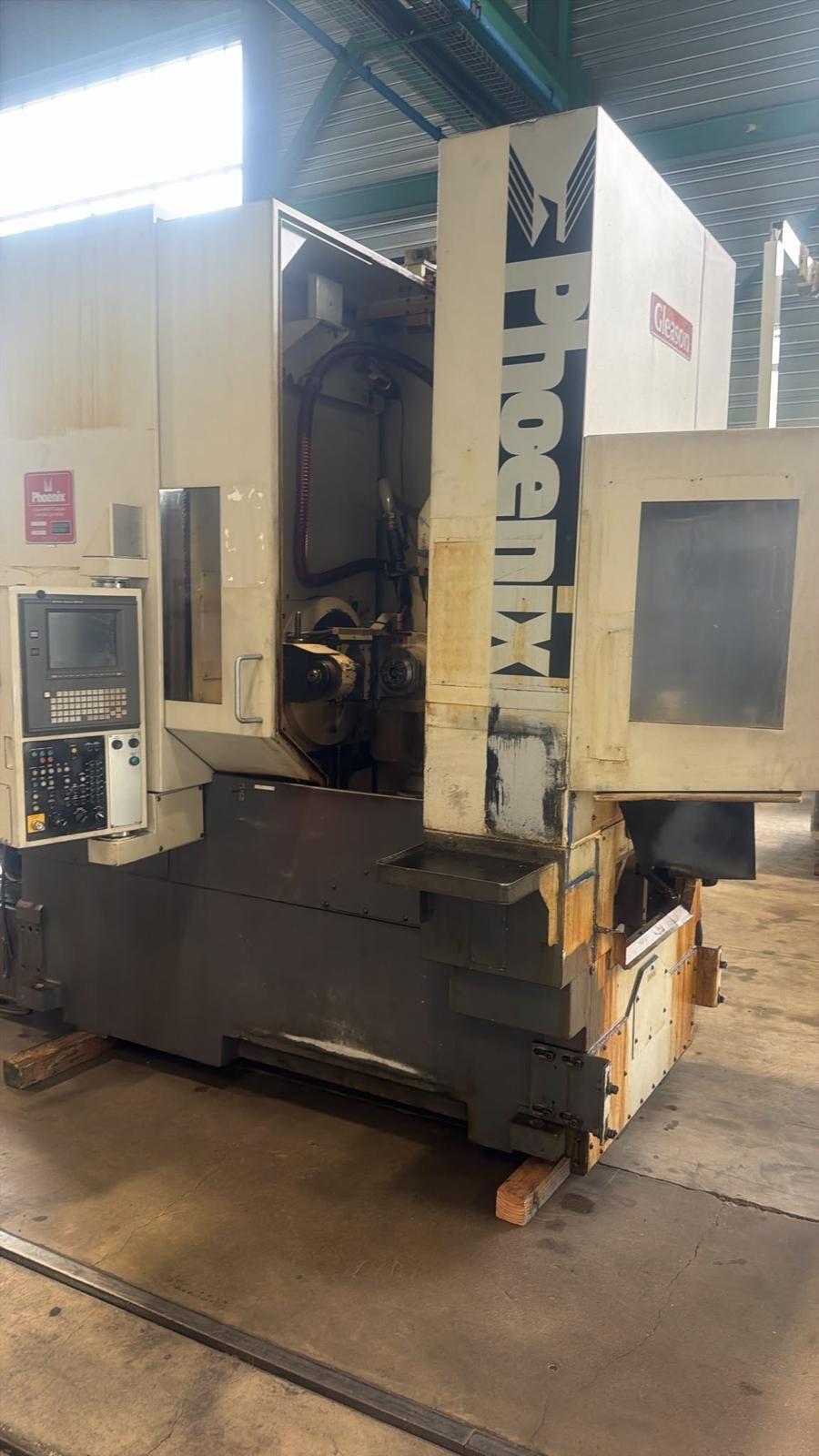

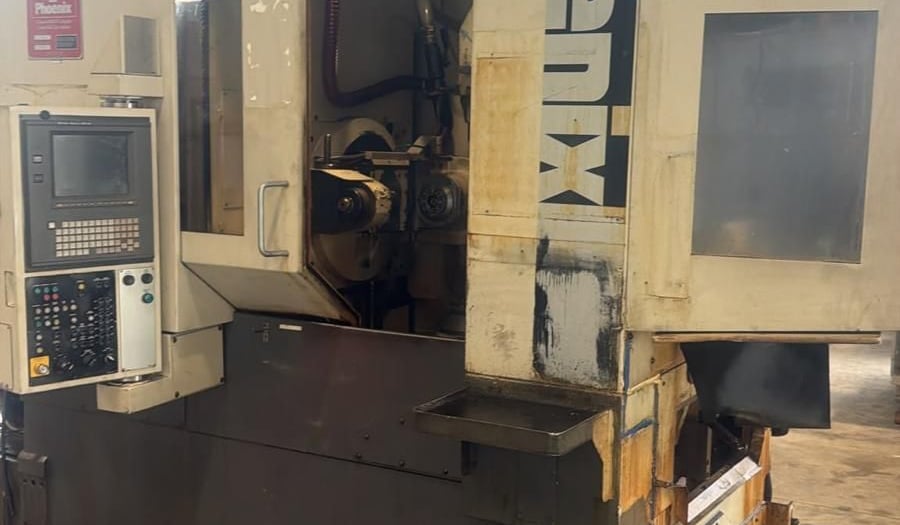

This used Gleason Phoenix GH 400 CNC gear hobber is available from A.K. Machine Traders in Navi Mumbai, India. A gear hobber cuts gear teeth into a workpiece using a rotating hob.

It handles workpieces up to 400 mm in diameter with carousel loading, or 450 mm with manual loading, and face widths up to 525 mm. Maximum module is 10 (2.5 DP). It has a 15 kW hob drive, a FANUC CNC control with 6 axes, and a 16-station pallet/carousel work changer.

Key Features

• 16-station pallet/carousel work changer
• FANUC CNC control with 6 axes
• Part program storage for 100 parts
• Hydraulic chucking, up to 78.3 kN
• Optional hob spindle speed range of 150–1500/min
• Optional low-speed range of 15–150/min

Technical Specifications

• Model: Gleason Phoenix GH 400
• Max. workpiece diameter, carousel loading: 400 mm
• Max. workpiece diameter, manual loading: 450 mm
• Max. face width: 525 mm
• Max. module: 10
• Max. diametral pitch: 2.5 DP
• Minimum number of teeth: 2
• Max. part weight, carousel: 56 kg
• Hob to workpiece centre distance: 35–310 mm
• Work spindle to hob centre height: 75–235 mm
• Axial hob slide travel: 275 mm
• Radial slide travel: 275 mm
• Work spindle to tailstock face: 350–380 mm
• Work spindle mounting diameter: 150–320 mm
• Draw rod interface hole diameter: 152 mm
• Work spindle bolt circles: 150 and 190 mm
• Max. hydraulic chucking force: 78.3 kN
• Max. hob diameter: 160 mm
• Hob arbor diameter: Ø32 / Ø40 mm
• Hob spindle taper: ISO 40
• Max. hob spindle torque: 280 Nm
• Hob spindle speed, standard: 150–1000/min
• Hob spindle speed, optional: 150–1500/min
• Low-speed range: 1–75/min
• Optional low-speed range: 15–150/min
• Worktable speed: 5,000 mm/min
• Radial traverse rate: 5,000 mm/min
• Axial traverse rate: 5,000 mm/min
• Hob drive motor: 15 kW
• Work spindle motor: 7.5 kW
• Hydraulic unit motor: 2.2 kW
• Coolant motor: 8 kW
• Mist collector motor: 0.6 kW
• CNC control: FANUC
• CNC axes: 6
• Part program storage: 100 parts

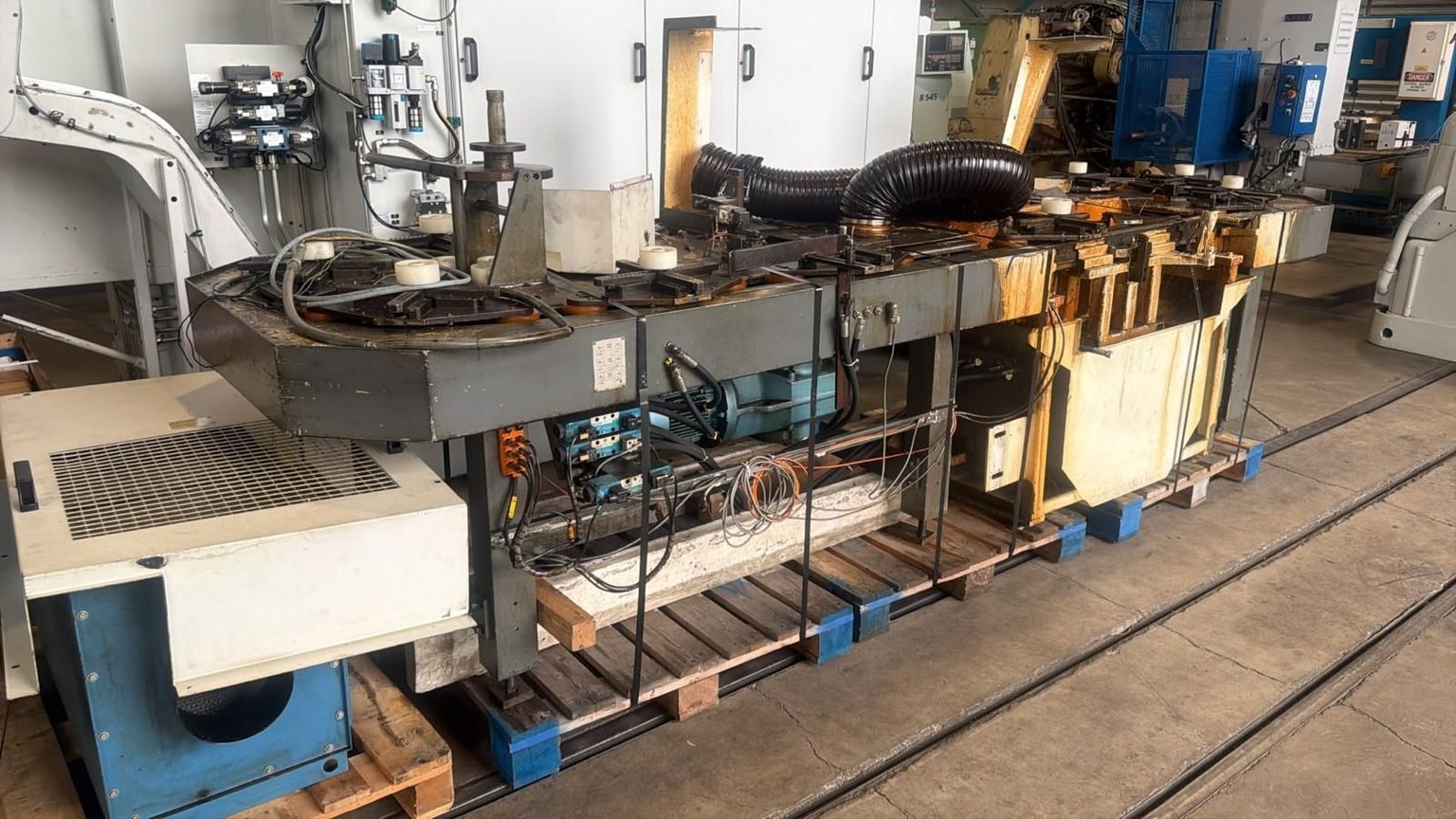

• Work changer: 16-station pallet / carousel
• Machine weight: 11,884 kg
• Machine weight with carousel: 12,128 kg

Applications

• Spur and helical gears
• Gears for transmissions and gearboxes
• Splined shafts and similar toothed parts
• Small to medium production batches of gear components

Commercial Details

• Make: Gleason
• Model: Phoenix GH 400
• Condition: Used
• Location: Navi Mumbai, Maharashtra, India
• Seller: A.K. Machine Traders

Frequently Asked Questions

• What is the largest workpiece it can cut? It takes up to 400 mm diameter with carousel loading or 450 mm with manual loading, with a face width up to 525 mm.
• What gear size can it cut? It cuts up to module 10 (2.5 DP), with a minimum of 2 teeth.
• What control does it use? It has a FANUC CNC control with 6 axes and storage for 100 part programs.

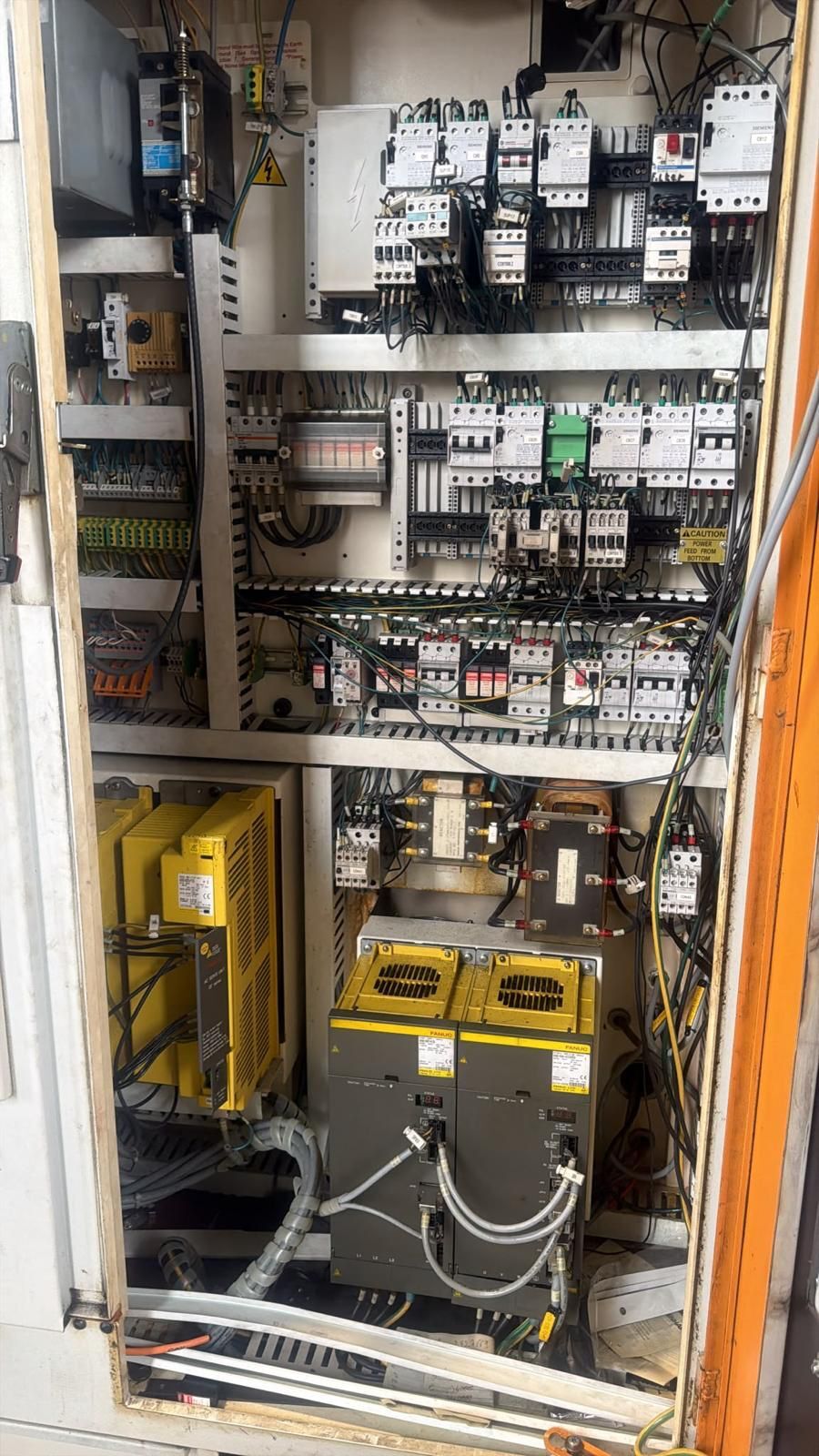

• What should I ask when enquiring? Ask for photos or video of the machine running under power, and whether an inspection can be arranged. Confirm which hobs, arbors, work-holding and carousel fixtures are included, the condition of the FANUC control and electrics, whether the optional speed ranges are fitted, and the loading and shipping arrangements for a machine of about 12 t.
