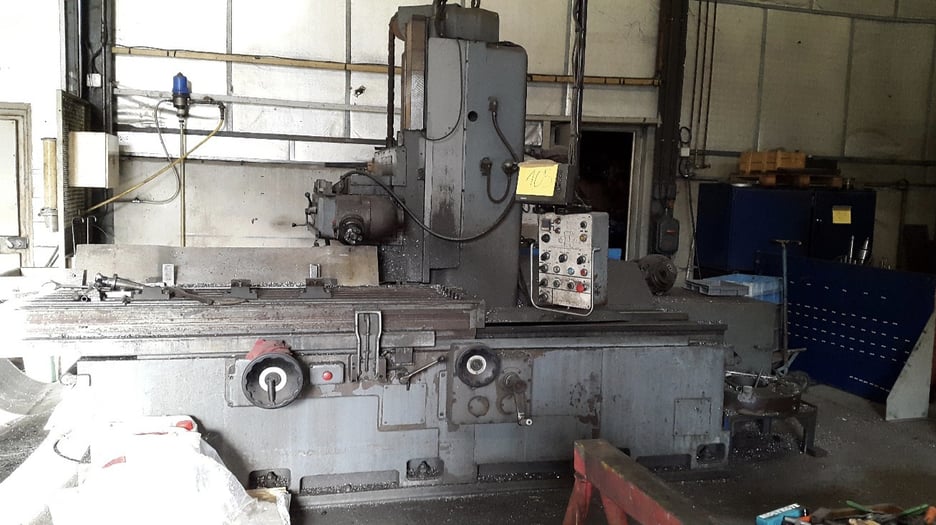

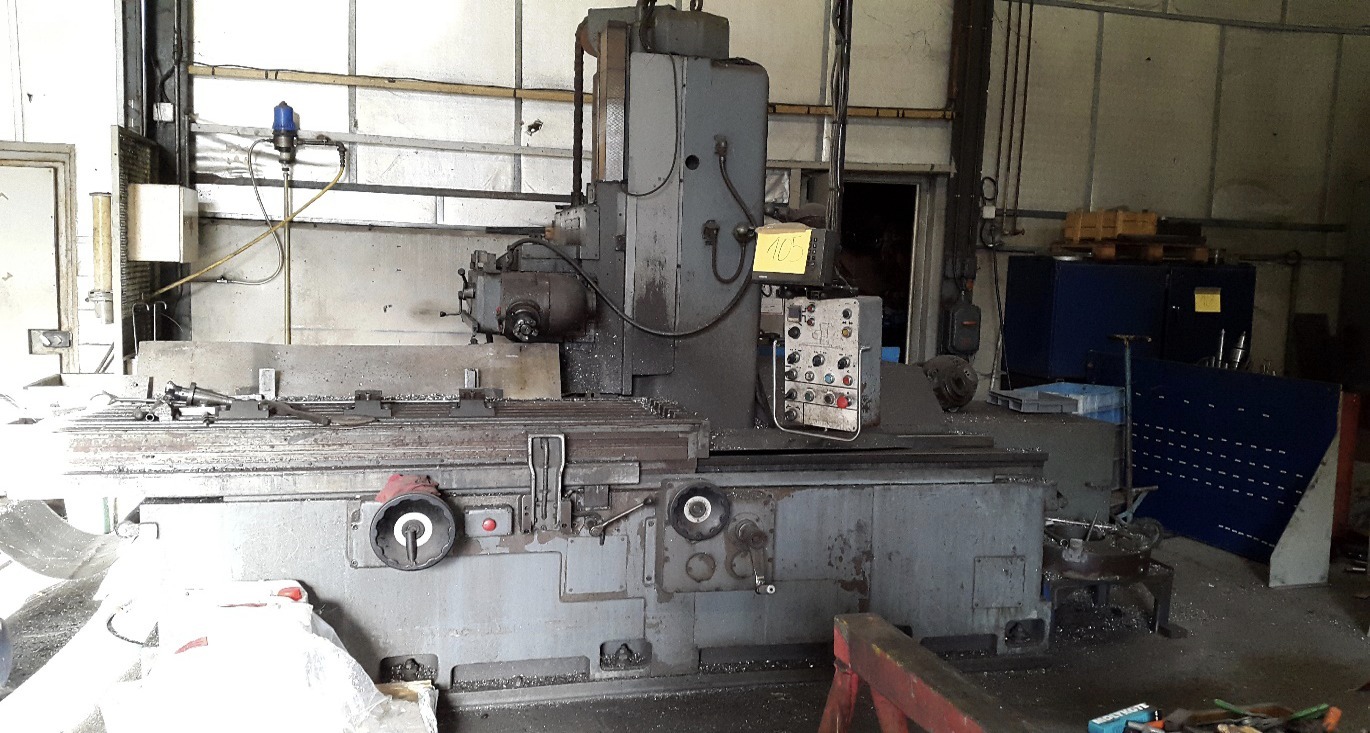

Used Graffenstaden FB36162D Milling Machine | A.K. Machine Traders, Navi Mumbai, India

This used Graffenstaden FB36162D milling machine is available from A.K. Machine Traders in Navi Mumbai, India. It is a large-format milling machine with a 3,400 x 1,500 mm table and a 22 kW power rating.

Travel is 1,600 mm longitudinal, 1,000 mm transversal and 1,000 mm vertical. A Heidenhain screen gives 3-axis control, and the spindle motor is rated 11 kW / 15 HP.

Key Features

• Heidenhain screen with 3-axis control

Technical Specifications

• Model: FB36162D
• Power: 22 kW
• Longitudinal stroke: 1,600 mm
• Transversal stroke: 1,000 mm
• Vertical stroke: 1,000 mm
• Table dimensions: 3,400 x 1,500 mm
• Table stroke: 2,200 x 630 mm
• Control: Heidenhain screen, 3 axes
• Spindle motor: 11 kW / 15 HP
• Motor: 15 kW
• Machine dimensions (L x W x H): 3,400 x 3,960 x 2,800 mm
• Weight: Approx. 12,000 kg

Applications

• Machining large and heavy workpieces
• Milling flat surfaces and slots on large components
• Toolroom and general engineering work
• Heavy fabrication and machinery component production

Commercial Details

• Make: Graffenstaden
• Model: FB36162D
• Condition: Used
• Location: Navi Mumbai, Maharashtra, India
• Seller: A.K. Machine Traders

Frequently Asked Questions

• What is the table size? The table measures 3,400 x 1,500 mm, with a table stroke of 2,200 x 630 mm.
• What control does it have? It has a Heidenhain screen with 3-axis control.
• How heavy is the machine? It weighs approximately 12,000 kg and measures 3,400 x 3,960 x 2,800 mm (L x W x H).
• What should I ask when enquiring? Ask for photos or video of the machine under power, whether an inspection is possible, which accessories and tooling are included, the condition of the Heidenhain control and electrics, and the loading and shipping arrangements for a machine of about 12,000 kg.
