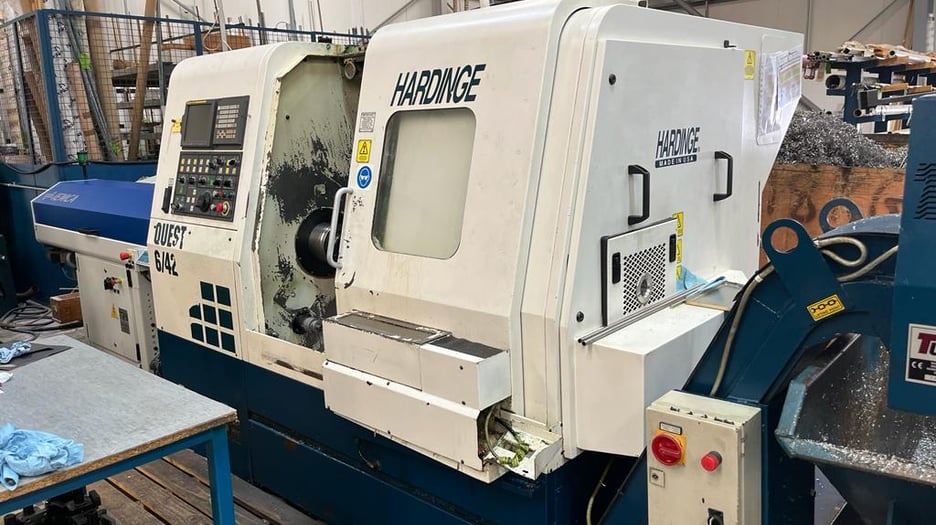

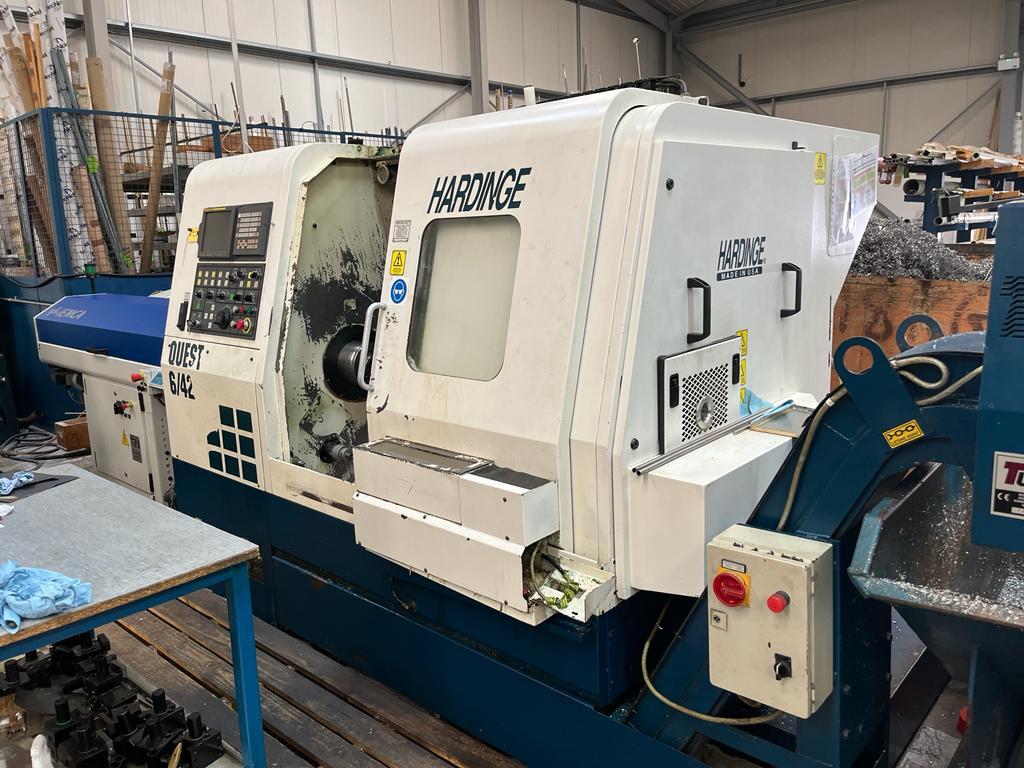

Used Hardinge Quest 6/24 CNC Lathe | A.K. Machine Traders, Navi Mumbai, India

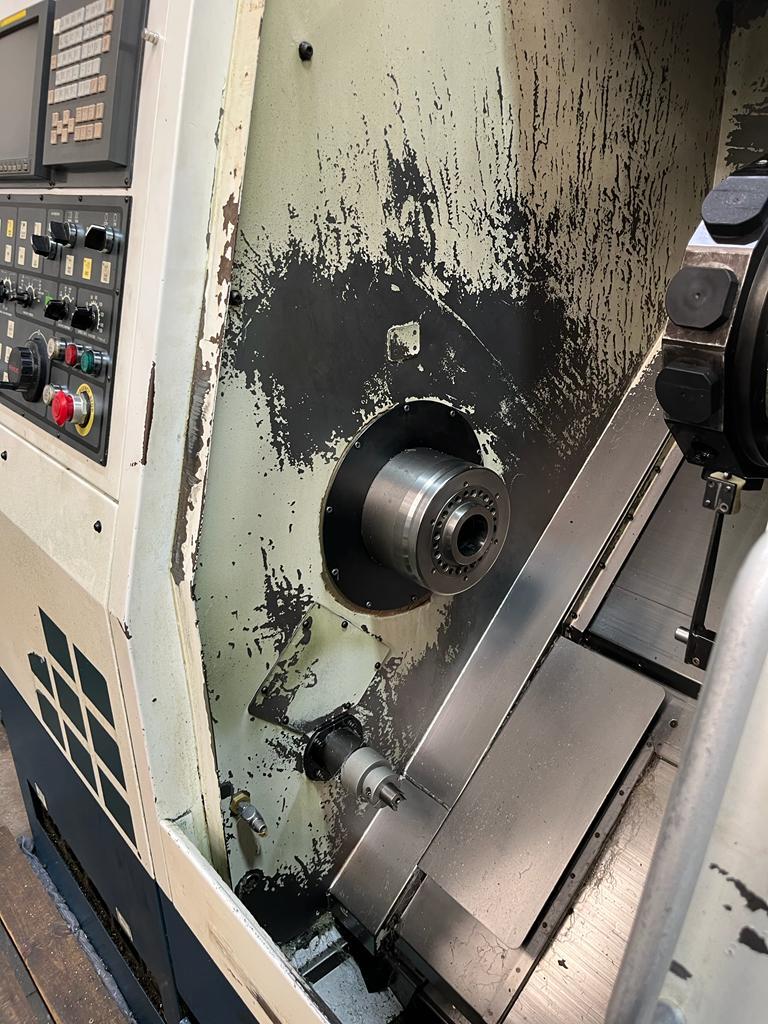

This used Hardinge Quest 6/24 CNC lathe is available from A.K. Machine Traders in Navi Mumbai, India. A CNC lathe turns round parts by rotating the workpiece against cutting tools under computer control.

It has an 11 kW spindle running at 60–6,000 rpm, with an A2-5 spindle nose and a 42 mm bore. The 16-position turret takes VDI 30 tool holders, and the machine travels 189 mm in X and 406 mm in Z.

Key Features

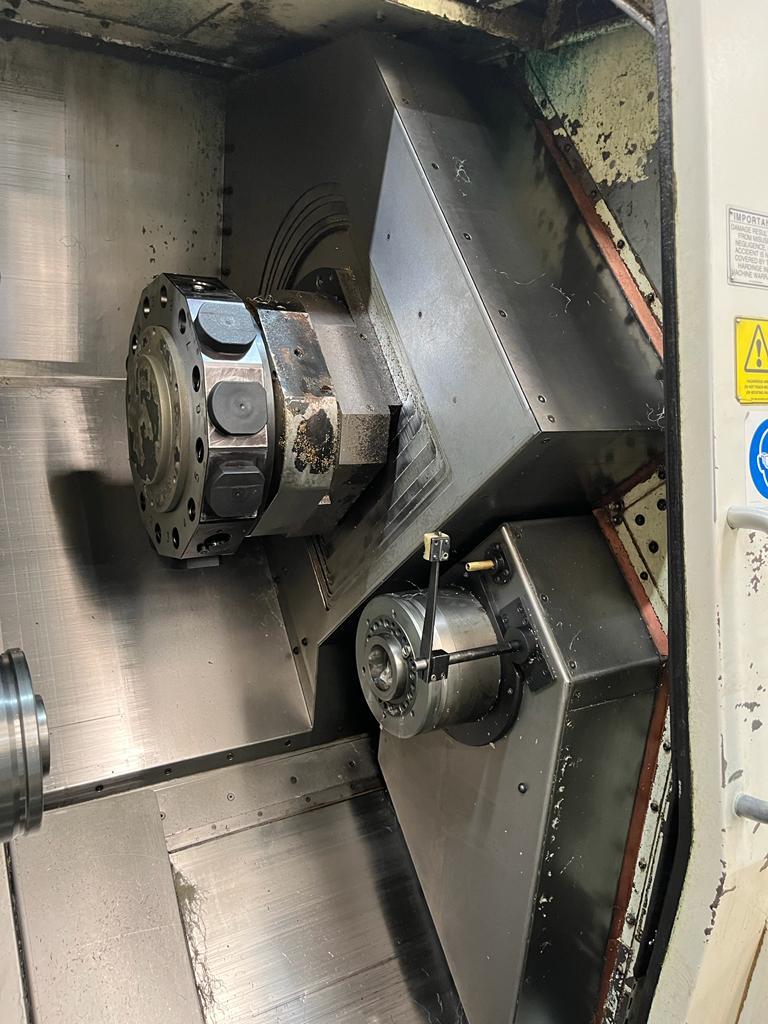

• 16-position turret

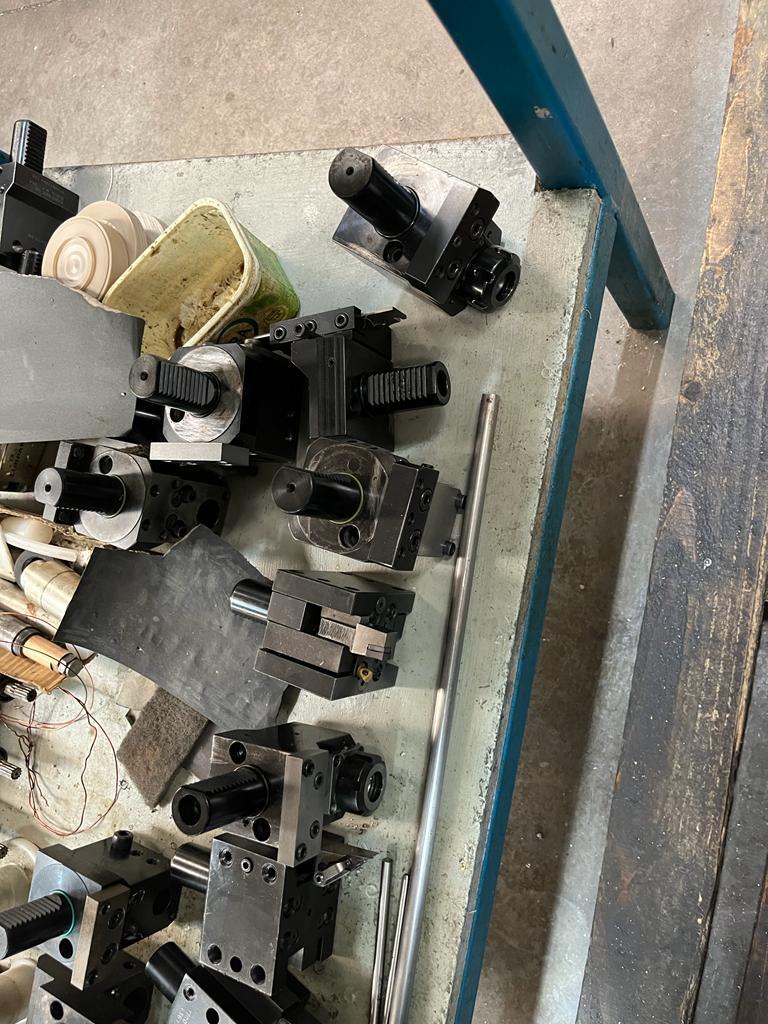

• VDI 30 tool holders
• Tailstock with 317.5 mm stroke

Technical Specifications

• Model: Hardinge Quest 6/24
• X-axis travel: 189 mm
• Z-axis travel: 406 mm
• Max. bench diameter: 519 mm
• Max. chuck diameter: 150 mm
• Tailstock stroke: 317.5 mm
• Turret: 16 positions
• Spindle bore: 42 mm
• Spindle nose: A2-5
• Spindle power: 11 kW
• Spindle speed: 60–6,000 rpm
• Tool holders: VDI 30 / MT3
• Weight: 5,071 kg

Applications

• Turned shafts, pins and spindles
• Round components machined from bar or chucked blanks
• Small and medium precision turned parts
• Toolroom and general machining work

Commercial Details

• Make: Hardinge
• Model: Quest 6/24
• Condition: Used
• Location: Navi Mumbai, Maharashtra, India
• Seller: A.K. Machine Traders

Frequently Asked Questions

• What is the spindle power and speed range? The spindle is rated at 11 kW and runs at 60–6,000 rpm.
• How many tools does the turret hold? The turret has 16 positions and uses VDI 30 tool holders.
• What is the machine's weight? It weighs 5,071 kg, which is useful for planning transport and installation.
• What should I ask when enquiring? Ask for photos or video of the lathe running under power, and whether an inspection is possible. Confirm which chuck, tooling and tool holders are included, the control type and electrical supply, and arrangements for loading and shipping.
