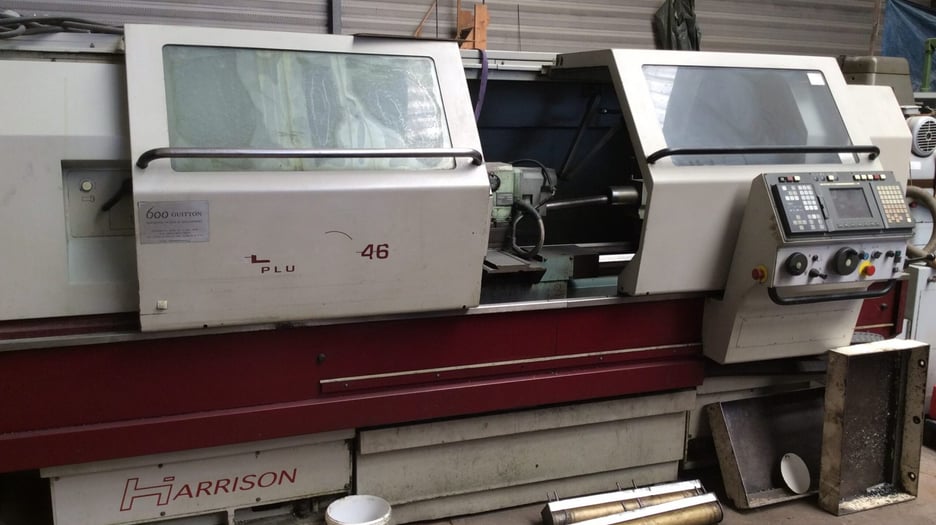

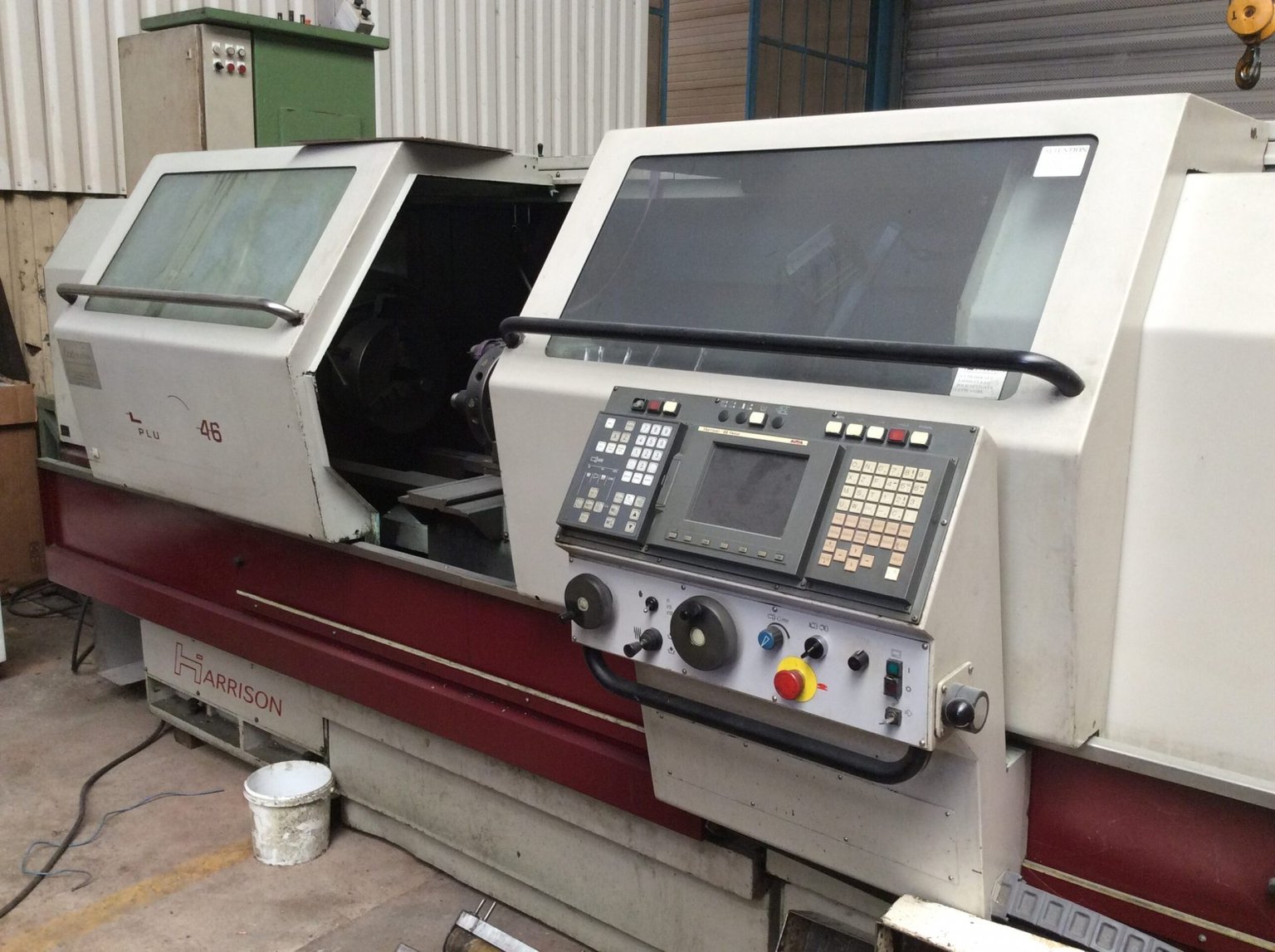

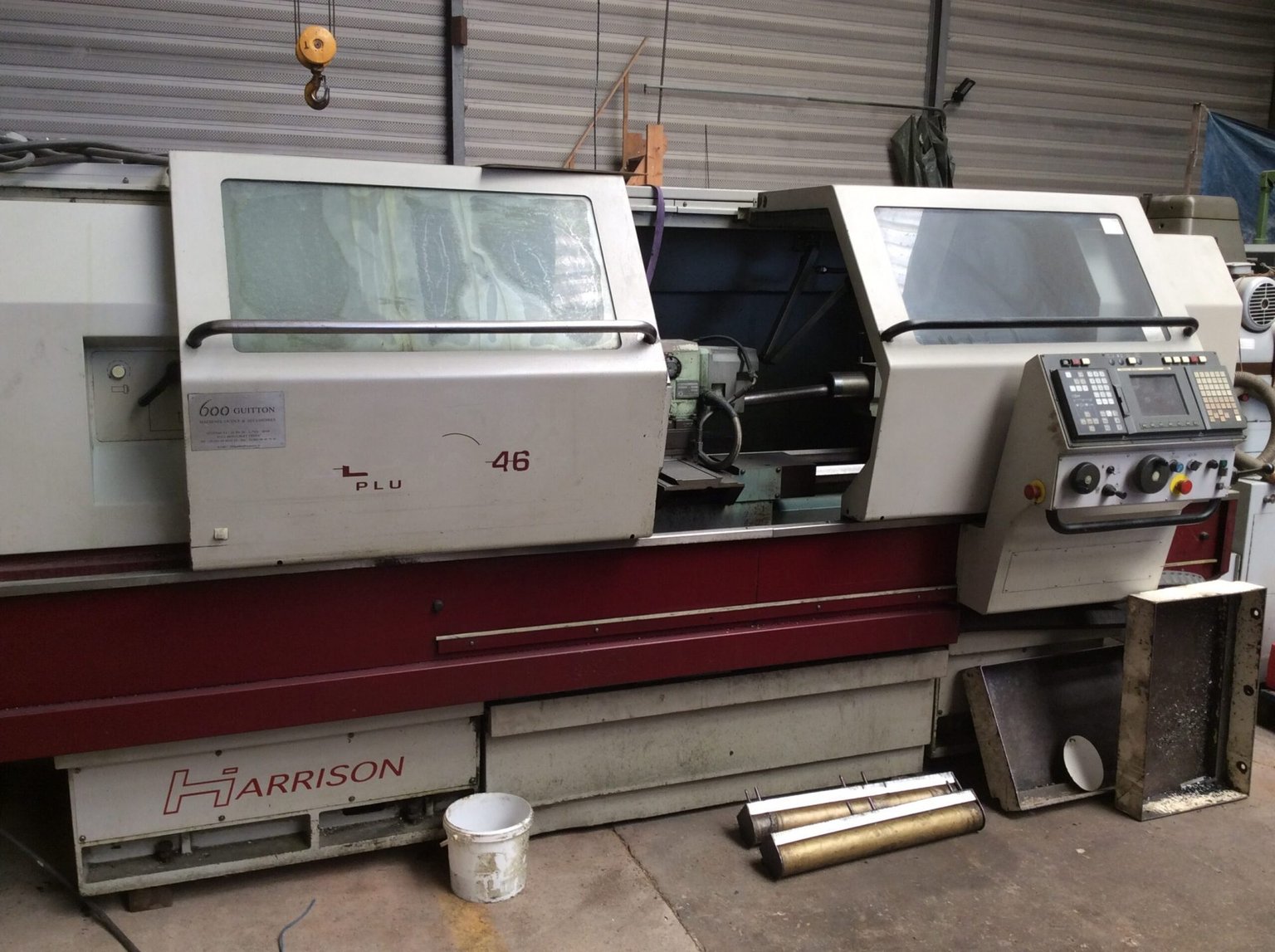

Used Harrison Alpha 460 S CNC Lathe | A.K. Machine Traders, Navi Mumbai, India

This used Harrison Alpha 460 S CNC lathe is available from A.K. Machine Traders in Navi Mumbai, India. A CNC lathe turns round parts by rotating the workpiece against a cutting tool under computer control.

It has a 460 mm swing over the bed, 1,500 mm between centres and a 230 mm centre height. The spindle has a 76 mm bore and is driven by a 26 kW motor across three speed ranges from 20 to 2,000 rpm, with FANUC control.

Key Features

• Quick-change tool-post and holders
• Tailstock fitted
• FANUC control
• Three spindle speed ranges

Technical Specifications

• Model: Alpha 460 S
• Centre height: 230 mm
• Swing over bed: 460 mm
• Swing over cross slide: 270 mm
• Distance between centres: 1,500 mm
• Spindle speed: 20–2,000 rpm (3 ranges)
• Spindle bore: 76 mm
• Spindle motor: 26 kW

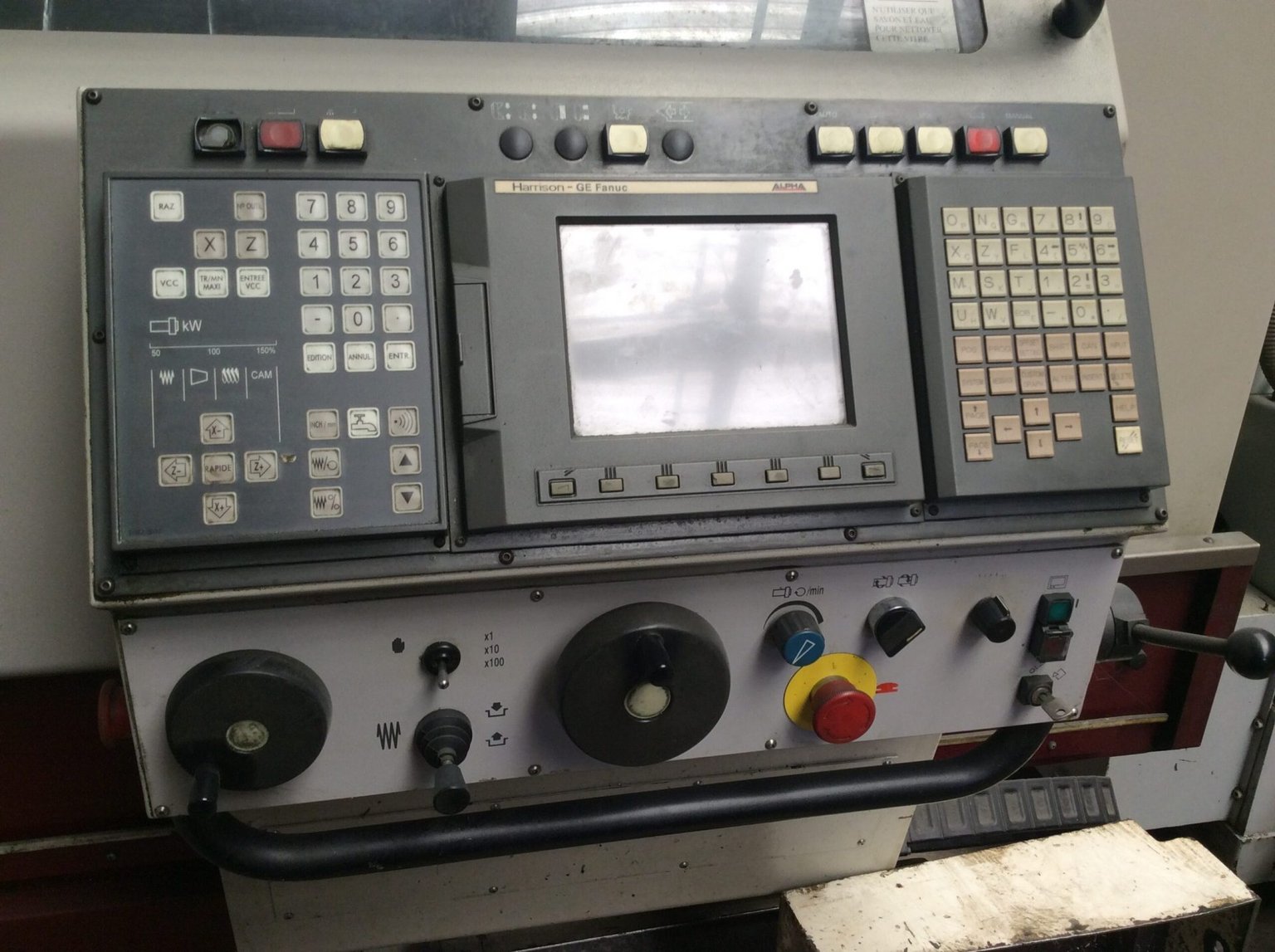

• Control: FANUC

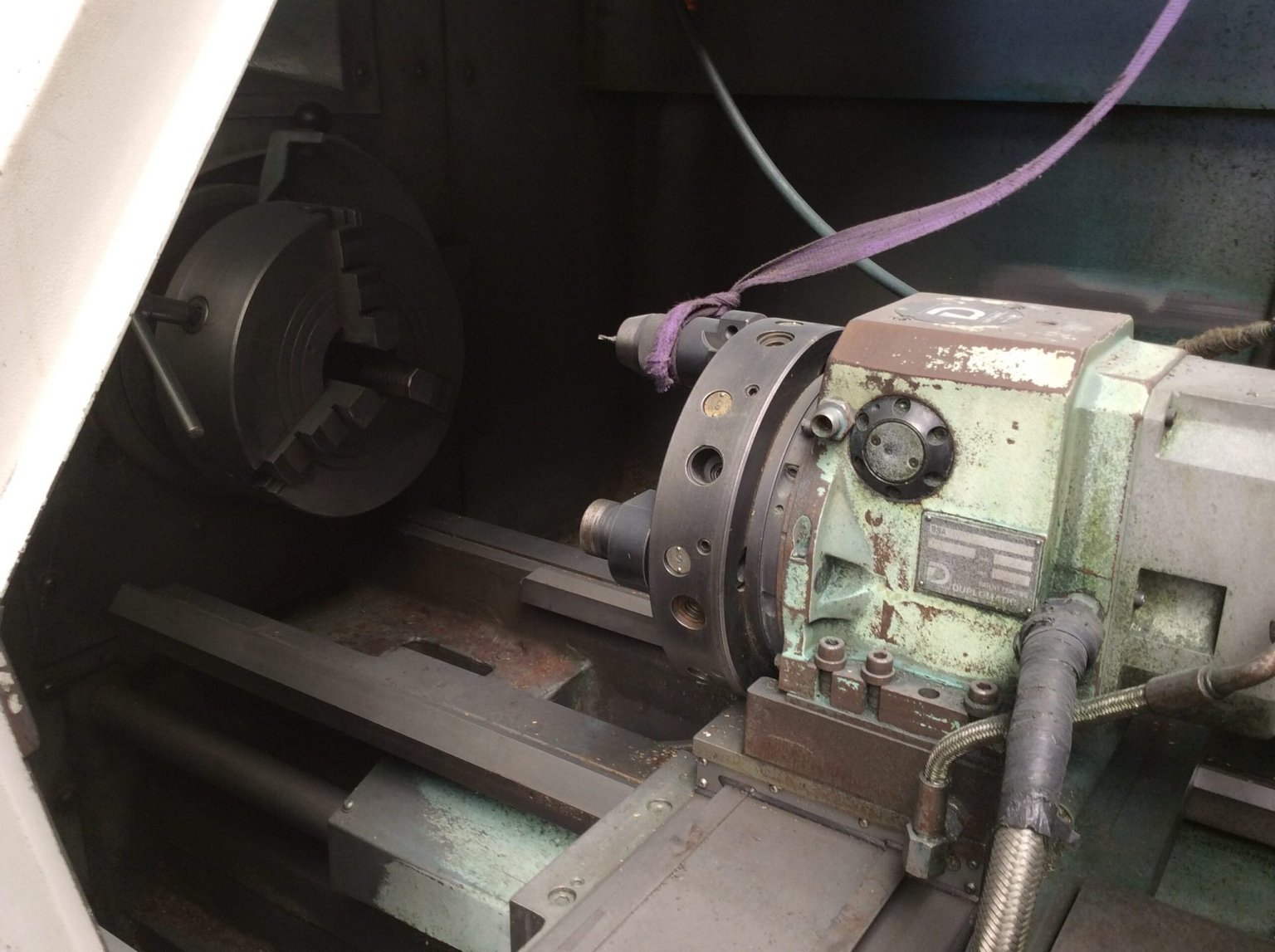

• Tool-post: Quick-change tool-post with holders
• Tailstock: Fitted

Applications

• Turned shafts and spindles
• Round components machined between centres
• Bar and bored parts using the 76 mm spindle bore
• General engineering and workshop turning

Commercial Details

• Make: Harrison
• Model: Alpha 460 S
• Condition: Used
• Location: Navi Mumbai, Maharashtra, India
• Seller: A.K. Machine Traders

Frequently Asked Questions

• What is the longest workpiece it can turn between centres? The distance between centres is 1,500 mm.
• What control does it use? It is fitted with a FANUC control.
• What spindle speeds and power does it have? The spindle runs from 20 to 2,000 rpm in three ranges and is driven by a 26 kW motor.
• What should I ask when enquiring? Ask for photos or video of the machine running under power, whether an inspection is possible, which chucks, tool holders and accessories are included, the condition of the FANUC control and electrics, and loading and shipping arrangements.
