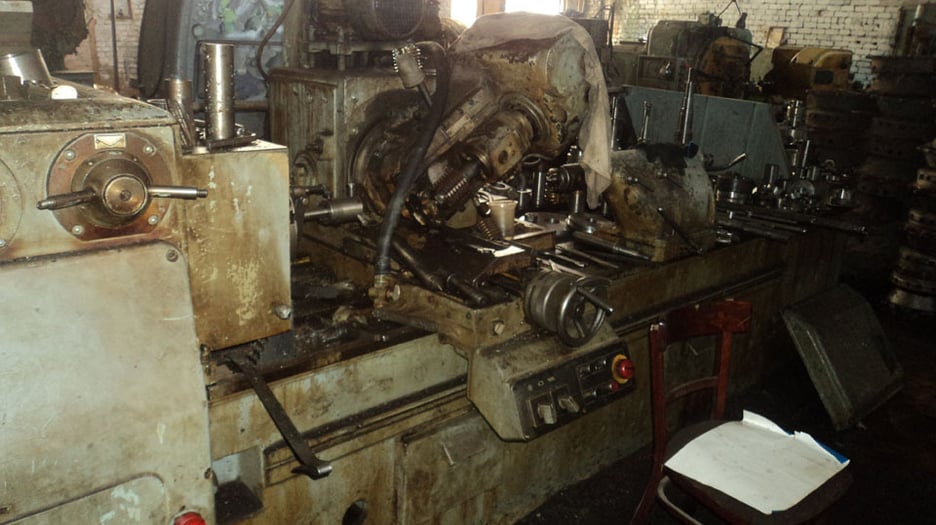

Used Heckert ZFWVG 250×2000 Thread & Worm Milling Machine | A.K. Machine Traders, Navi Mumbai, India

This used Heckert ZFWVG 250×2000 thread and worm milling machine is available from A.K. Machine Traders in Navi Mumbai, India. It is a German-built machine for milling threads and worms on cylindrical workpieces.

It offers a milling length of 2,000 mm and a maximum module of 7, with a 4 kW main drive. The workpiece spindle has a 102 mm bore, and the machine handles a number of teeth from 2 to 50.

Technical Specifications

• Model: Heckert ZFWVG 250×2000
• Made in: Germany
• Milling length: 2,000 mm
• Maximum module: 7
• Number of teeth: 2–50
• Workpiece diameter over bed: 500 mm
• Workpiece diameter over saddle: 250 mm
• Centre height over bed: 260 mm
• Workpiece spindle bore: 102 mm
• Tailstock quill adjustment: 100 mm
• Speed: 0.0032–2.6 rpm
• Longitudinal milling feed: 0.25–198 mm/min
• Main drive: 4 kW
• Total power requirement: 9.5 kW
• Electrics: 380 V, 50 Hz
• Dimensions: 3,700 × 2,400 × 1,600 mm
• Total weight: 4,300 kg

Applications

• Threaded shafts and lead screws
• Worm shafts for worm gear drives
• Long worms and screw-type components up to 2,000 mm milling length
• General engineering and gearbox component manufacture

Commercial Details

• Make: Heckert
• Model: ZFWVG 250×2000
• Condition: Used
• Location: Navi Mumbai, Maharashtra, India
• Seller: A.K. Machine Traders

Frequently Asked Questions

• What is the milling length? The milling length is 2,000 mm, with a maximum module of 7.
• What power does it need? The main drive is 4 kW and the total power requirement is 9.5 kW, on 380 V, 50 Hz.
• How heavy is it and what space does it take? It weighs 4,300 kg and measures 3,700 × 2,400 × 1,600 mm.
• What should I ask when enquiring? Ask for photos or video of the machine under power, whether an inspection is possible, which accessories and tooling are included, the condition of the electrics and control, and the loading and shipping arrangements.
