Used Huron DX CNC Milling Machine | A.K. Machine Traders, Navi Mumbai, India

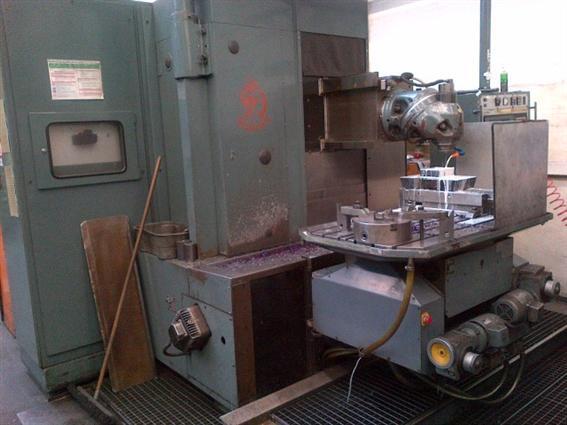

This used Huron DX CNC milling machine is available from A.K. Machine Traders in Navi Mumbai, India. It is a CNC milling machine with a 1,200 x 700 mm table and travels of 1,350 mm in X, 700 mm in Y and 665 mm in Z.

The table tilts ±30° and a rotary table is fitted, so parts can be machined at angles. The machine takes ISO 50 tooling and carries a table load of up to 1,000 kg.

Key Features

Tilting table with ±30° movement
Second table axis of ±30°
Rotary table with 360° rotation in 0.01° steps
ISO 50 tool taper

Technical Specifications

Make: Huron
Model: DX
X travel: 1,350 mm
Y travel: 700 mm
Z travel: 665 mm
Table size: 1,200 x 700 mm
Maximum table load: 1,000 kg
B-axis (table): ±30°
A-axis (tilting table): ±30°
C-axis (rotary table): 360 x 0.01°
Spindle speeds: 18–2,000 rpm
Tool taper: ISO 50
Total power requirement: 50 kVA
Machine dimensions: approx. 3,100 x 3,420 x 2,645 mm
Machine weight: approx. 9,200 kg

Applications

Milling of medium to large machined components
Machining of angled faces and features using the tilting and rotary table
Tool, die and mould work
General engineering and job-shop machining

Commercial Details

Make: Huron
Model: DX
Condition: Used
Location: Navi Mumbai, Maharashtra, India
Seller: A.K. Machine Traders

Frequently Asked Questions

What are the working travels of the Huron DX? The travels are 1,350 mm in X, 700 mm in Y and 665 mm in Z, on a 1,200 x 700 mm table.
What spindle speed range does it have? The spindle runs from 18 to 2,000 rpm and uses an ISO 50 tool taper.
How heavy is the machine and what power does it need? It weighs approx. 9,200 kg and has a total power requirement of 50 kVA.
What should I ask when enquiring? Ask for photos or video of the machine running under power, an inspection option, the control type and electrics, which tooling and accessories are included, and loading and shipping arrangements for a machine of approx. 9,200 kg.
