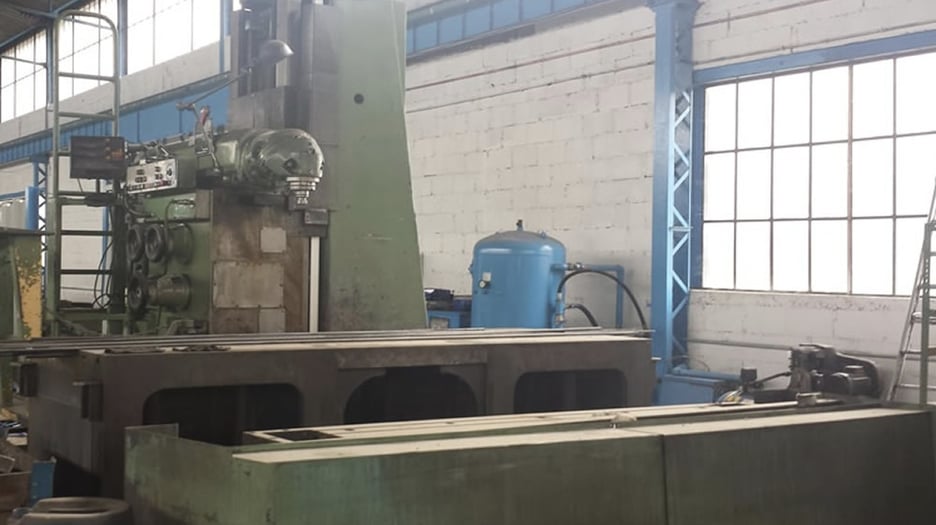

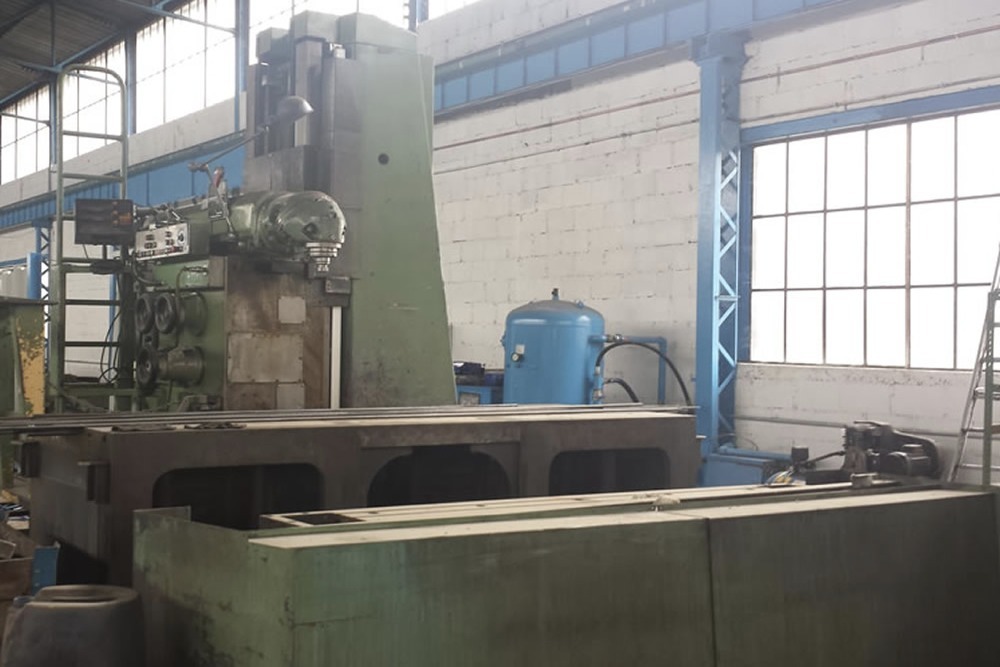

Used Huron LU 9320 Universal Milling Machine | A.K. Machine Traders, Navi Mumbai, India

This used Huron LU 9320 universal milling machine is available from A.K. Machine Traders in Navi Mumbai, India. A milling machine cuts metal parts to shape with a rotating cutter.

It is a large-format machine, with a 4,000 x 1,000 mm table and a longitudinal stroke of 2,680 mm. The vertical stroke is 2,000 mm, and the space under the spindle ranges from 979 mm to 2,979 mm, so it can take tall workpieces.

Technical Specifications

• Model: Huron LU 9320
• Machine type: Universal milling machine
• Table dimensions: 4,000 x 1,000 mm
• Longitudinal stroke: 2,680 mm
• Transversal stroke: 1,000 mm
• Vertical stroke: 2,000 mm
• Minimum space under spindle: 979 mm
• Maximum space under spindle: 2,979 mm
• Machine dimensions (L x W x H): 6,000 x 2,990 x 3,795 mm
• Weight: approx. 16 t

Applications

• Machining large metal components
• Milling long or tall workpieces
• Toolroom and general engineering work
• Heavy fabrication and machine building parts

Commercial Details

• Make: Huron
• Model: LU 9320
• Condition: Used
• Location: Navi Mumbai, Maharashtra, India
• Seller: A.K. Machine Traders

Frequently Asked Questions

• How large is the table on the Huron LU 9320? The table measures 4,000 x 1,000 mm.
• What are the axis strokes? Longitudinal stroke is 2,680 mm, transversal stroke is 1,000 mm and vertical stroke is 2,000 mm.
• How big and heavy is the machine? It measures 6,000 x 2,990 x 3,795 mm (L x W x H) and weighs approximately 16 t.
• What should I ask when enquiring? Ask for photos or video of the machine running under power, whether an inspection is possible, which accessories, heads and tooling are included, the condition of the control and electrics, and how loading and shipping of a 16 t machine will be handled.
